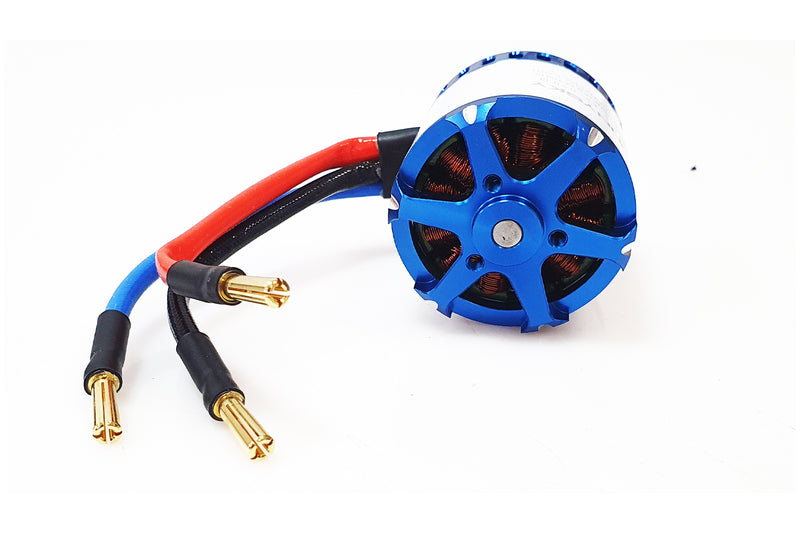

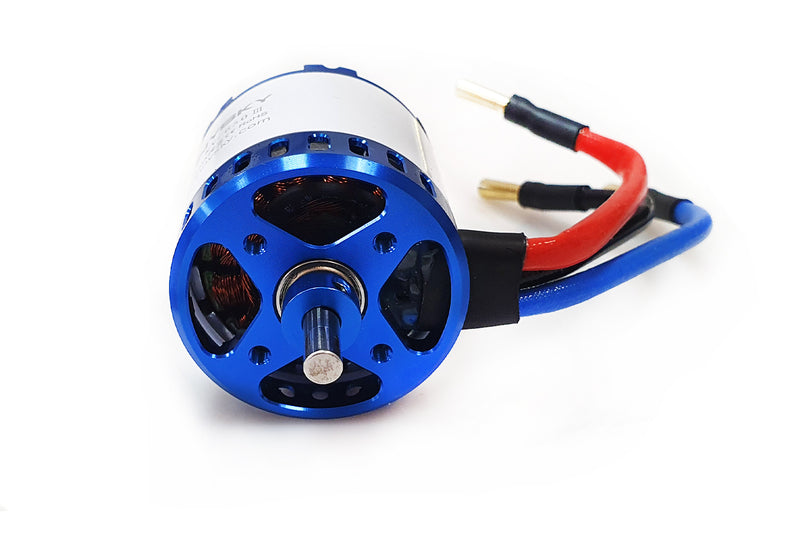

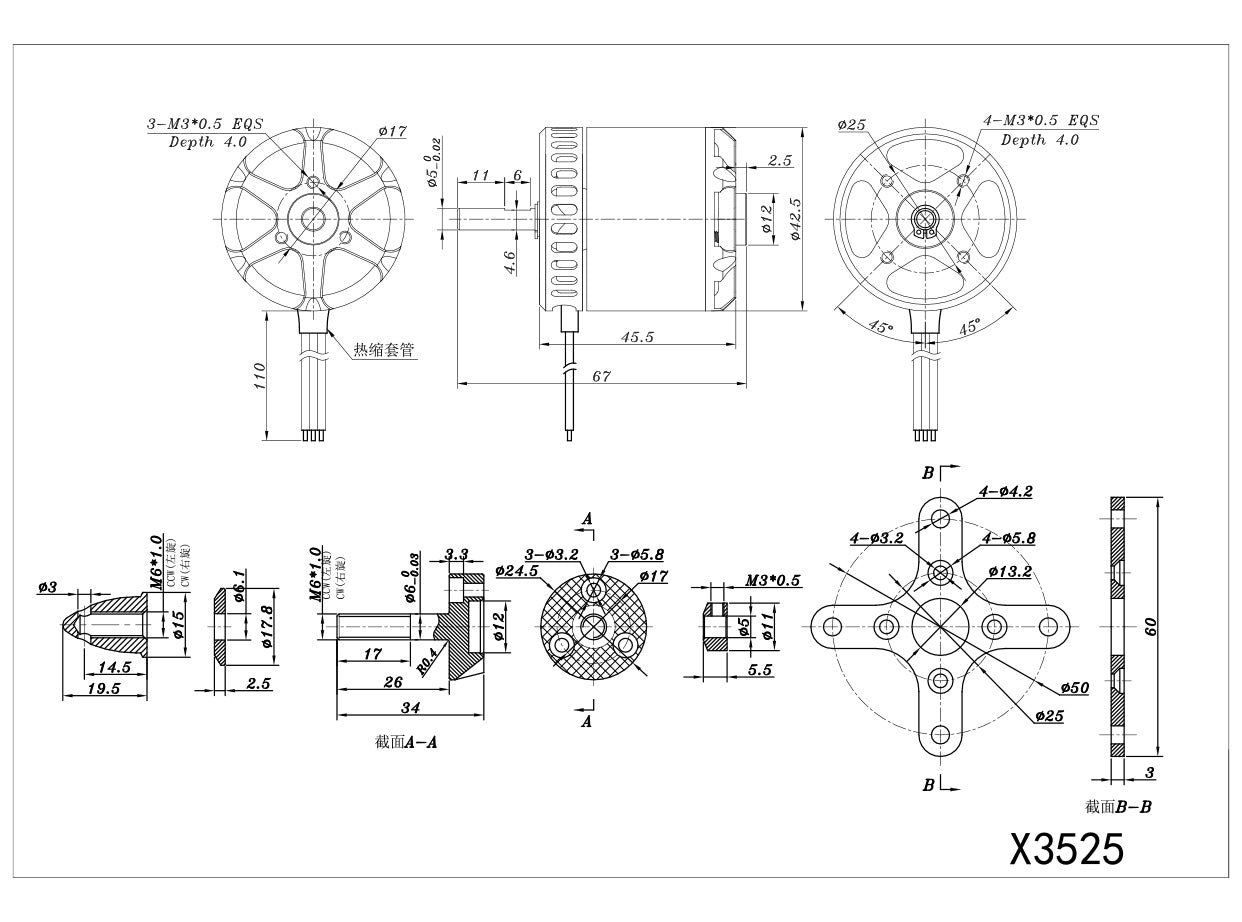

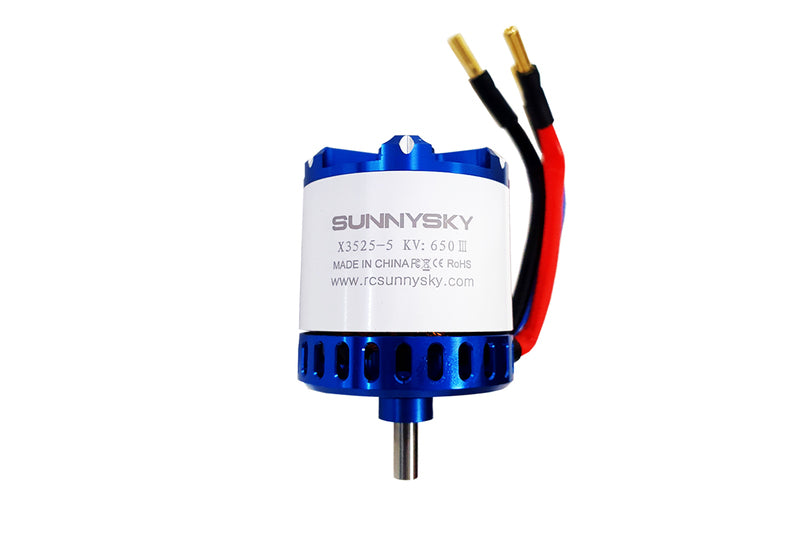

Motor Sunnysky V3 X3525 650KV The Sunnysky X3525-III KV650 brushless motor is a powerful unit designed for powerful drone applications. It features a 12N14P stator/rotor configuration and a low internal resistance of 15.2mΩ, ensuring efficient power transfer. With its compact size and 5.0mm shaft diameter, the motor is easy to install in most drone designs. It supports 4S to 6S batteries and has a rated no-load current of 1.6A at 10V. Specifications: Engine Model / KV: X3525-III / KV650 Number of stator/rotor poles: 12N14P Internal resistance: 15.2 mΩ Motor dimensions: φ42.5 × 48 mm Shaft diameter: 5.0 mm Cable type: 20AWG, length 110 mm Motor weight (including cable): 252 g Rated operating voltage: 4-6S No-load current: 1.6 A / 10 V Maximum continuous power: 2080 W Maximum continuous current: 90 A / 30 s Recommended ESC: 80-100A Recommended propeller size: 6S (128, 1210, 1212, 137) 5S (EOLO148, 147, 137) 4S (EOLO158, 1510) The package contains: 1 × Sunnysky V3 X3525 650KV motor
