    Code: 6770

    Motor Sunnysky V3 X3520 560KV

    Motor Sunnysky V3 X3520 560KV

    Brand: SunnySky

    €54,50
    €54,50 €54,50
    -0% View Product
    In stock
    We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion

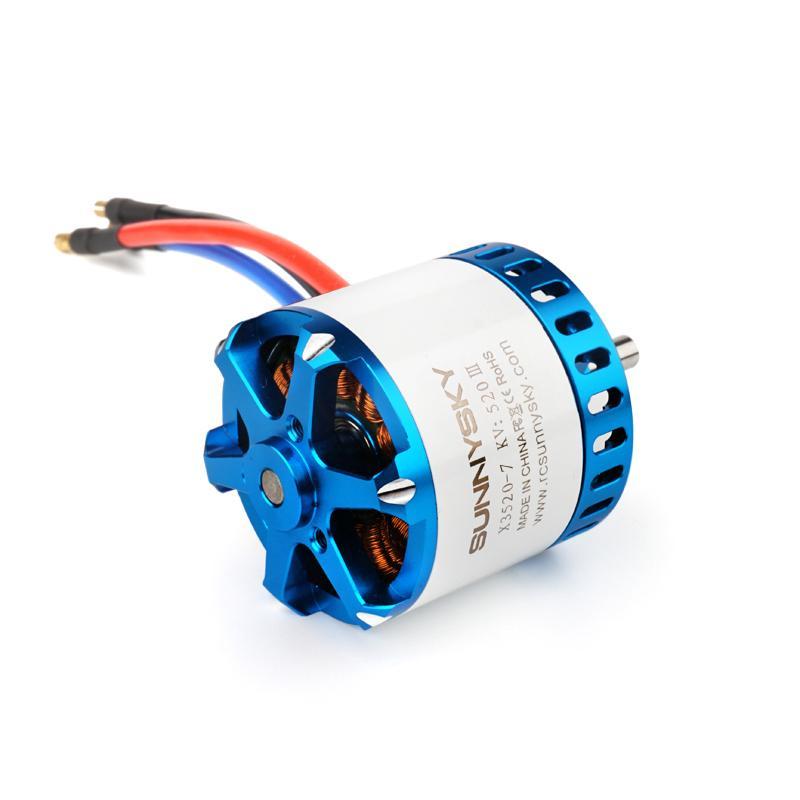

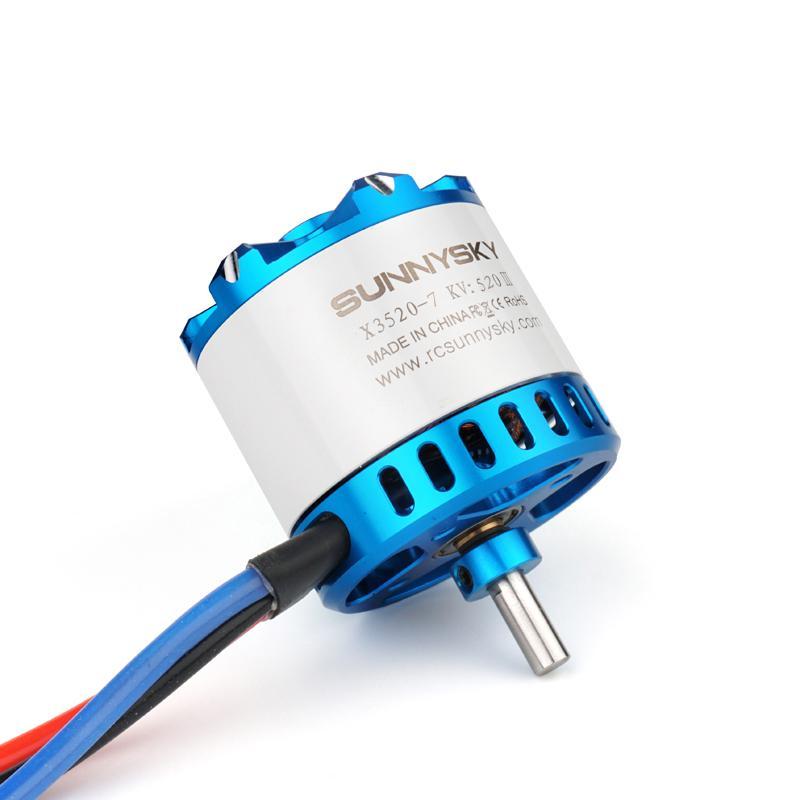

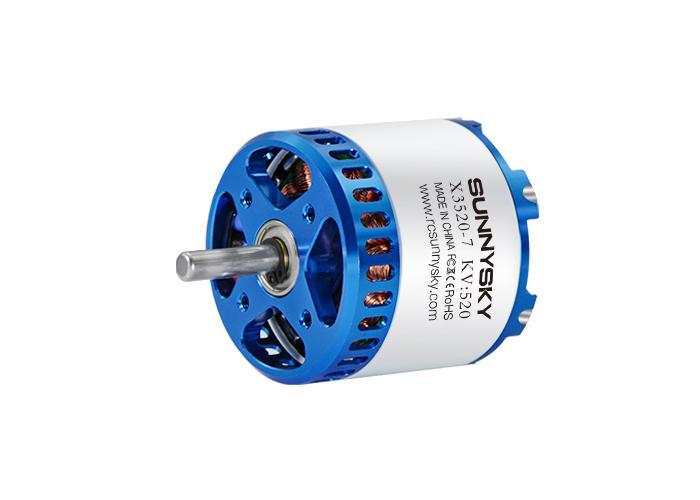

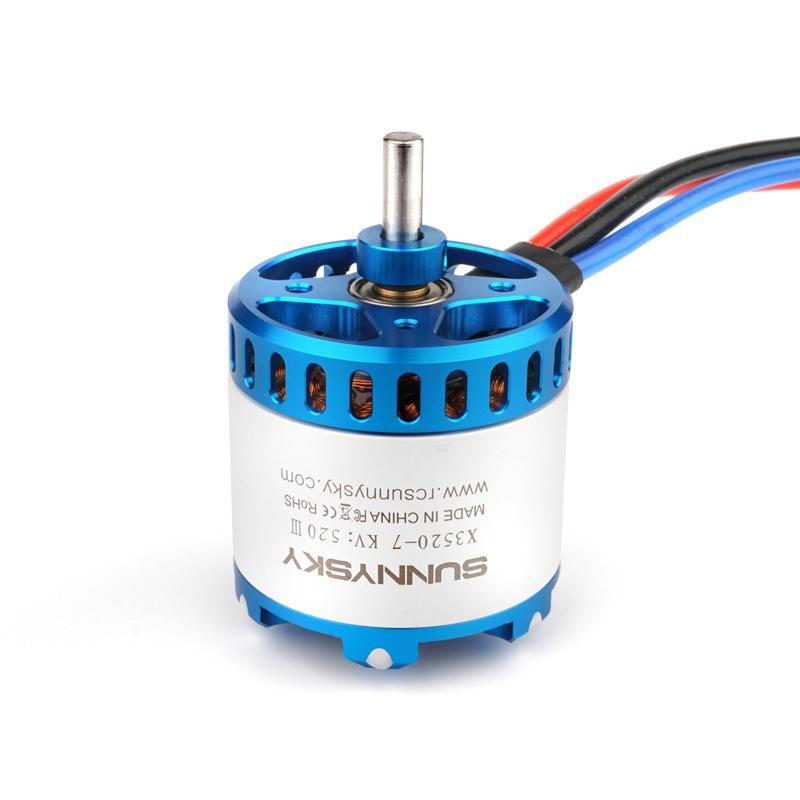

    Motor Sunnysky V3 X3520 560KV

The Sunnysky X3520 V3 560KV motor is a high-performance AC motor designed specifically for fixed-wing aircraft that require efficient performance and smooth operation. Thanks to the precision processing and robust materials, this motor is ideal for larger aircraft and electric gliders requiring stable thrust and increased endurance.

Features:

- Stylish rotor cover: Magical blue hollow carved rotor cover with high quality white metal finish brings aesthetics and effective heat dissipation.
- Superior Bearings: Manufactured with genuine NSK bearings and individually balanced for reduced vibration and smoother rotation at all RPM ranges.
- Advanced Winding: High density copper hand winding ensures lower internal resistance and maximum efficiency.
- Premium components: CNC machined parts and tight tolerance assembly for reliable performance and durability.

Specifications:

Stator diameter: 35 mm
Rotor diameter: 42.5 mm
Stator thickness: 20 mm
Body length: 45 mm
Number of stator slots: 12
Number of rotor poles: 14
Motor KV: 560KV
No-load current: 1.1 A at 10 V
Motor resistance: 23 mΩ
Maximum continuous current: 80A (30 seconds)
Maximum continuous power: 2000 W
Weight: 219 g
Maximum LiPo cell capacity: 6S
Recommended ESC: 60A-80A
Recommended propellers: APC 12×8, 12×6, 13×6.5, 13×8, 14×7.
Maximum take-off weight (acrobatic flight): up to 2500 g (6S with APC 13x6.5 or APC 13x8)
Maximum take-off weight (3D flight): up to 2200 g (6S with APC 13x6.5 or APC 13x8).

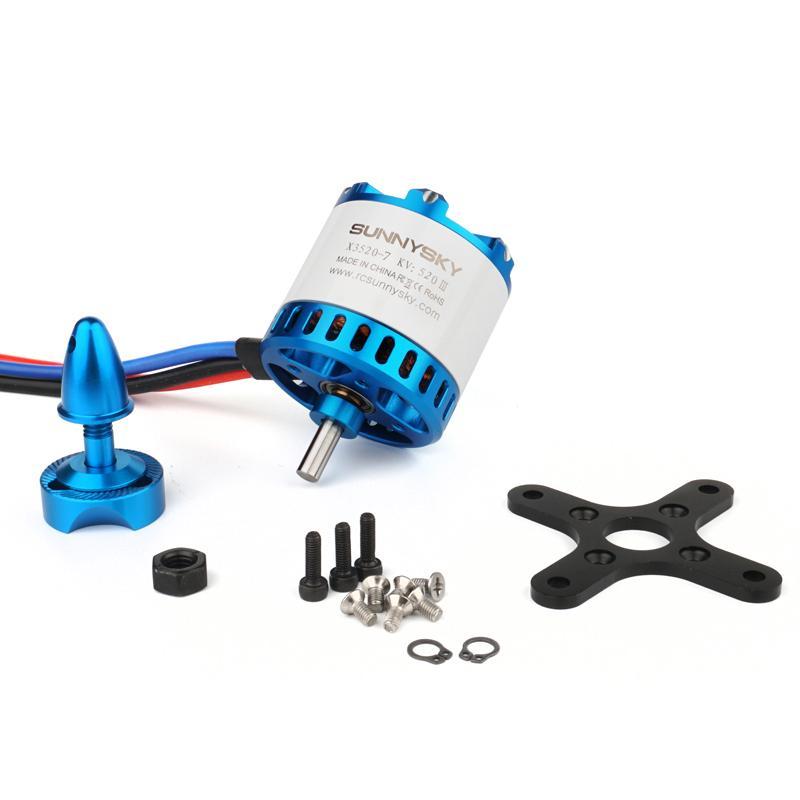

The package contains:

1 x Sunnysky X3520 V3 560KV motor
1 x Motor mount in cross design
1 x propeller adapter with nut
1 x pack of mounting screws
