Motor SunnySky V2 X2216 1100KV
Motor SunnySky V2 X2216 1100KV
Brand: SunnySky
Couldn't load pickup availability
- Description
- Related Files
- Discussion

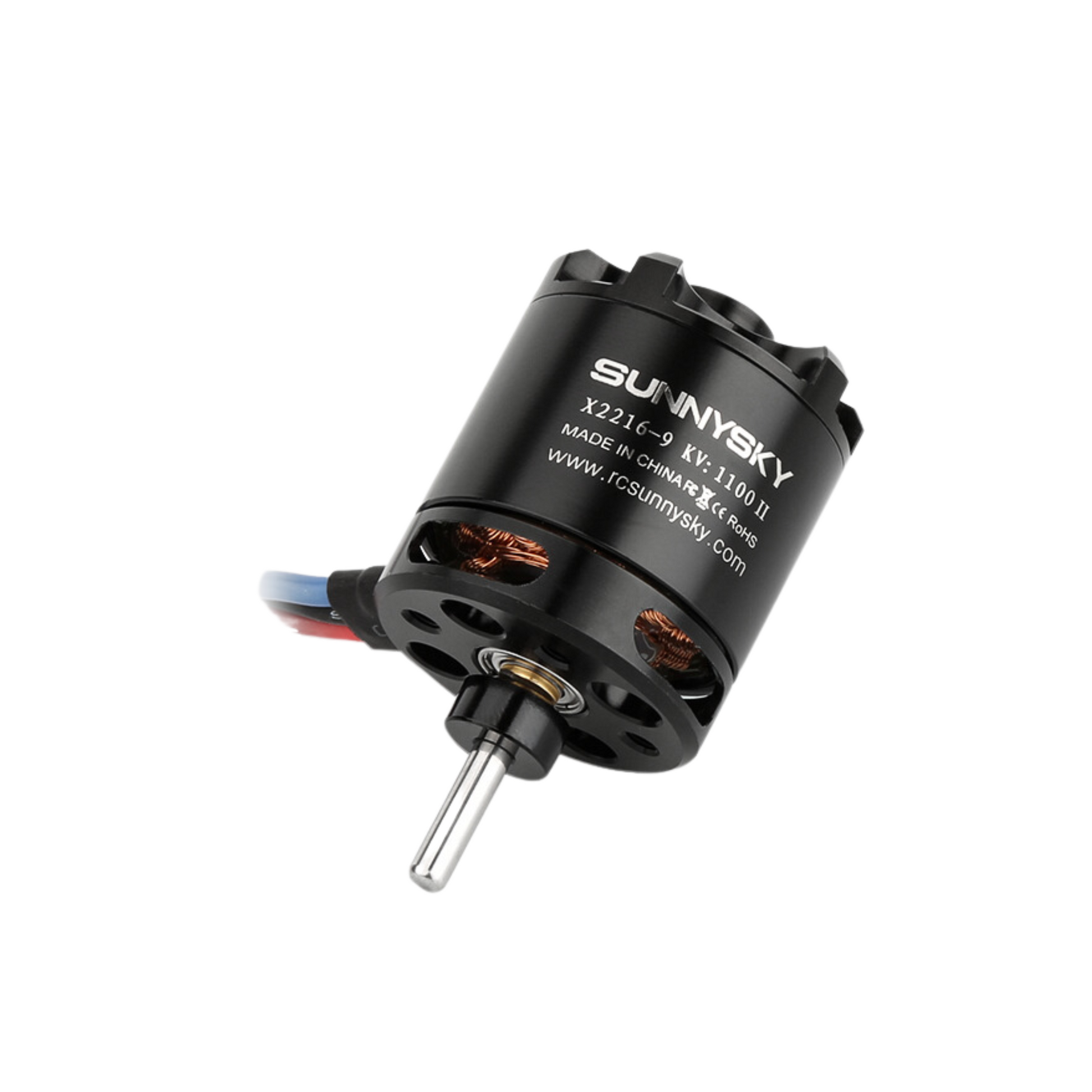

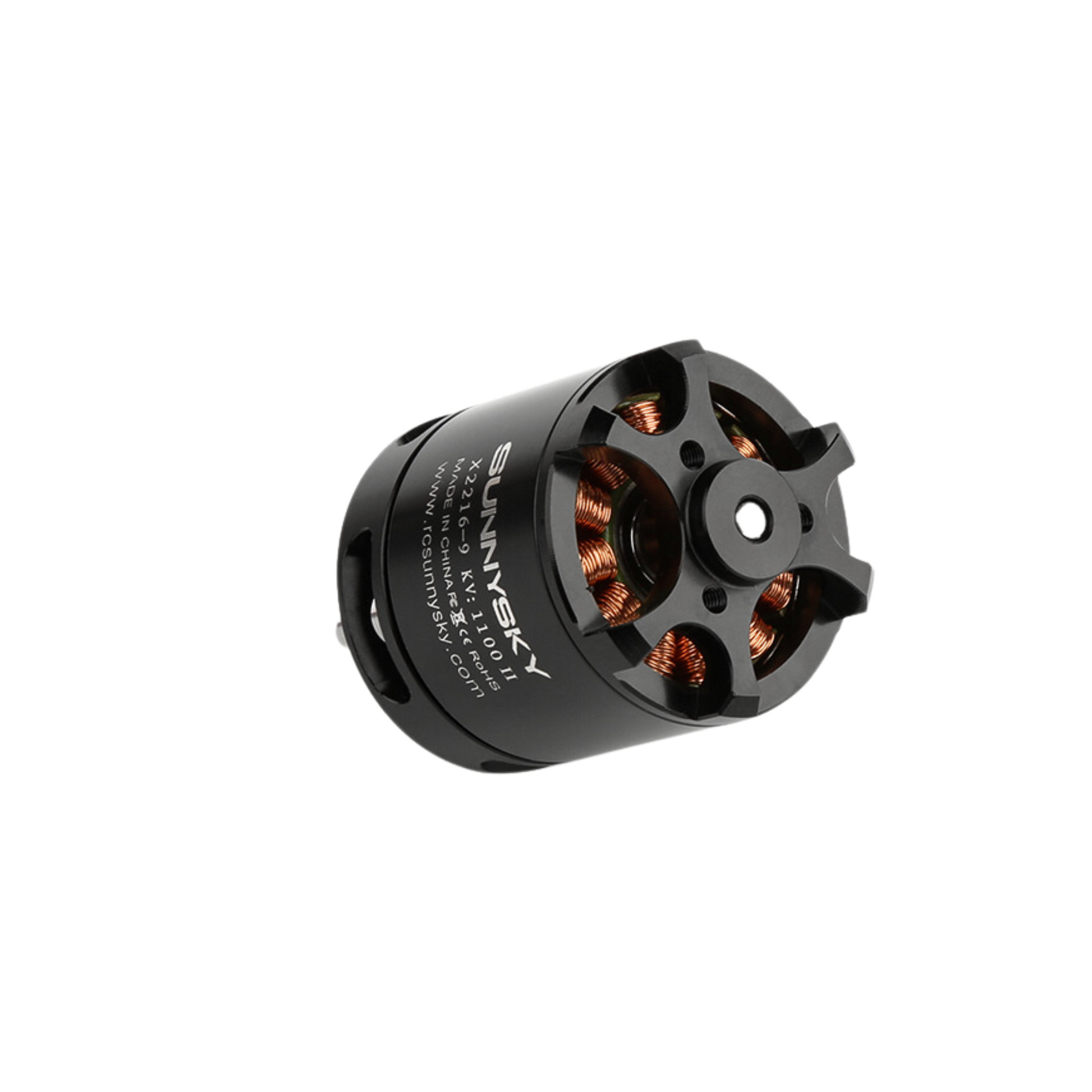

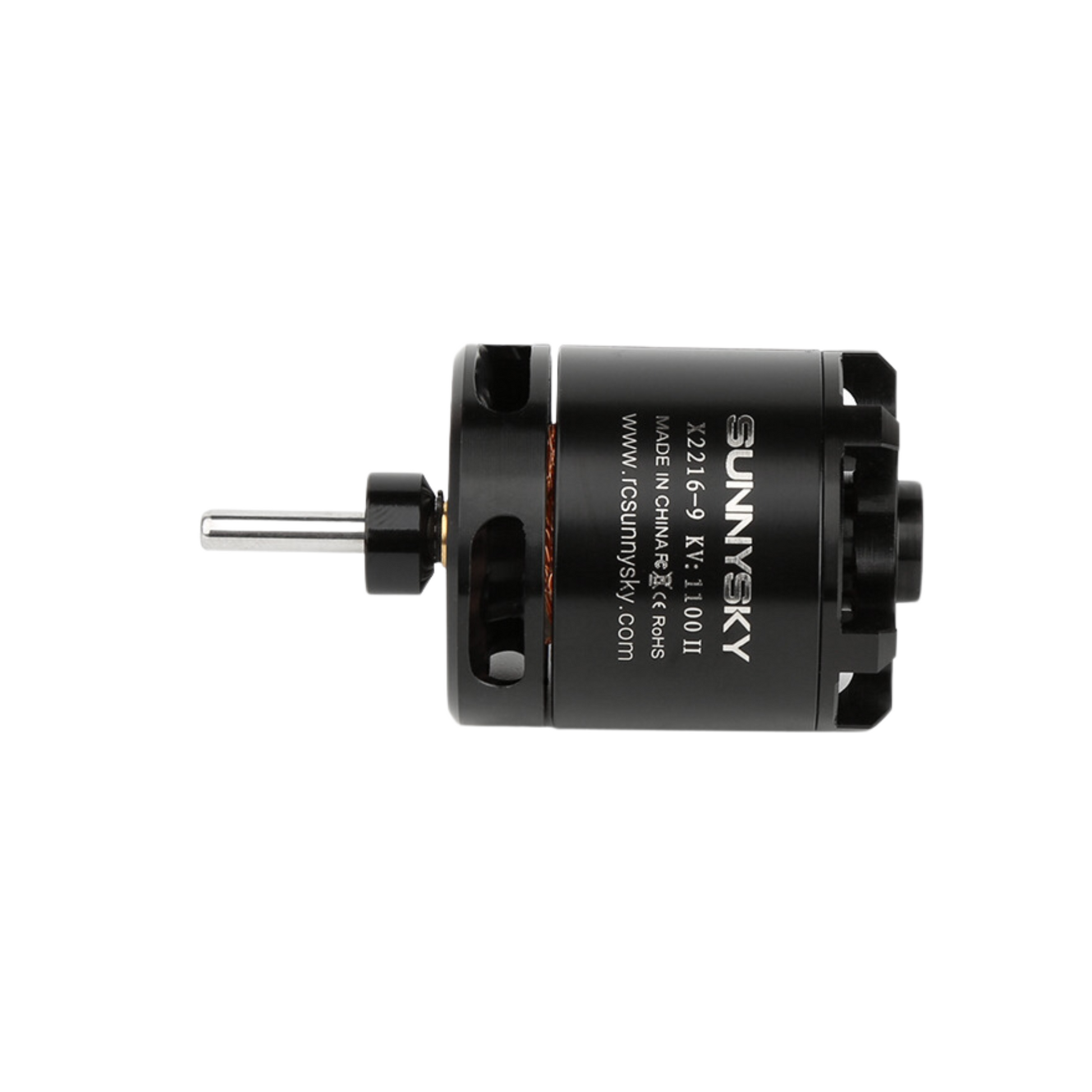

SunnySky V2 X2216 1100KV Motor:
The SunnySky V2 X2216 1100KV motor has a CNC milled body with a hollow design for optimal heat dissipation and weight reduction, giving it a robust appearance. Features a high-strength 420 stainless steel shaft for durability and resistance to bending. The upper and lower engine covers are made of 6061-T6 aircraft aluminum alloy for increased strength. The motor is equipped with imported NMB mini bearings, which ensure quiet, stable operation and extended service life. Hand wound spools increase efficiency and performance. Note: This is a short shaft version.
Specifications:
- Engine model: X2216
- KV: 1100Kv
- Number of stator/rotor poles: 12N14P
- Internal resistance: 54mΩ
- Motor length: 34 mm
- Shaft diameter: 3.175 mm
- AWG: 20AWG 100mm
- Motor weight (including cables): 69 g
- Rated operating voltage: 2-4S
- No load current: 0.8A
- Maximum constant power: 480 W
- Maximum continuous current: 34 A/30 s
- Recommended use of ESC: 30-40A
- Recommended propeller sizes: APC9047, APC9045, APC11x4.7, APC1047, APC8060

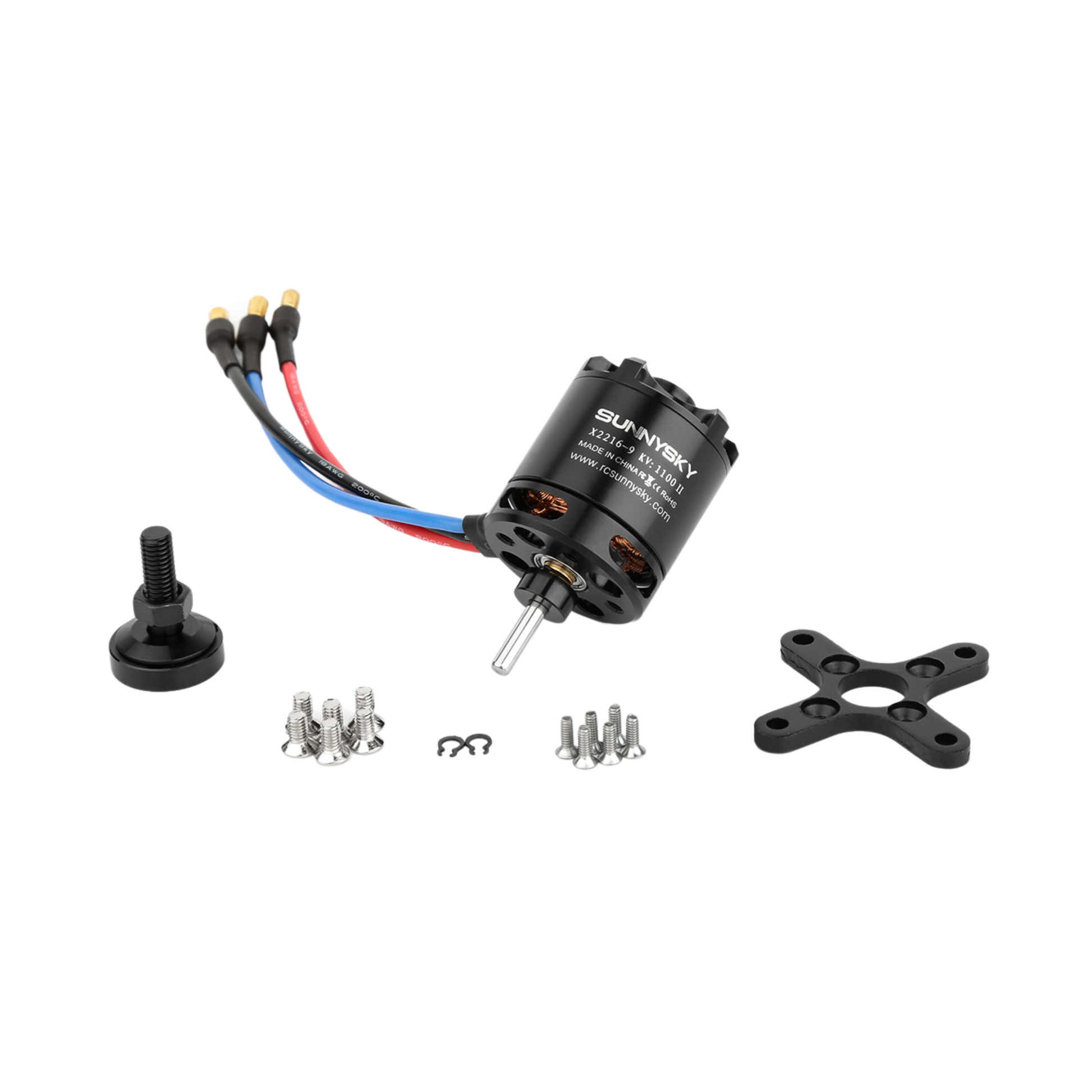

Package includes: 1x Motor SunnySky V2 X2216 1100KV
