    Code: 4250

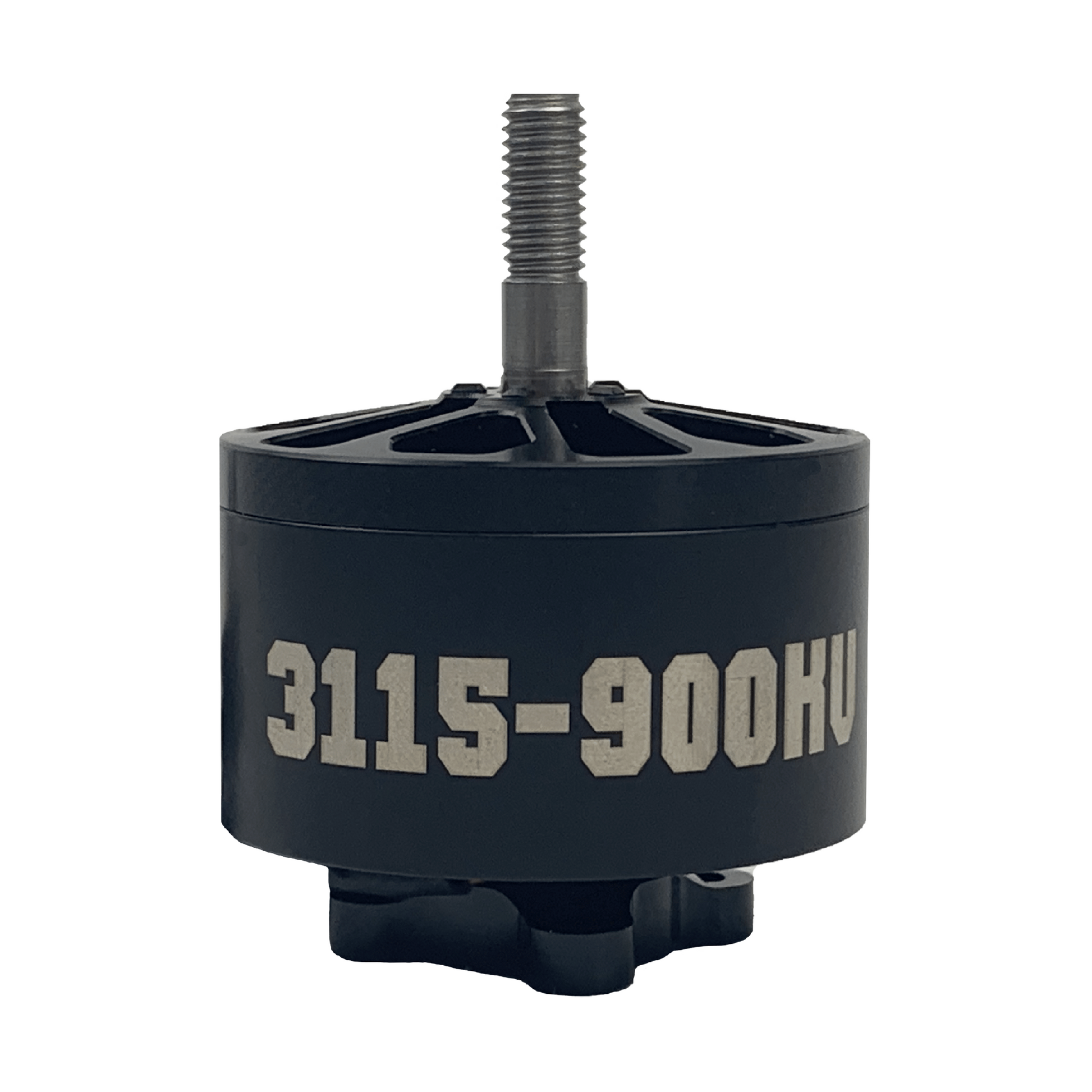

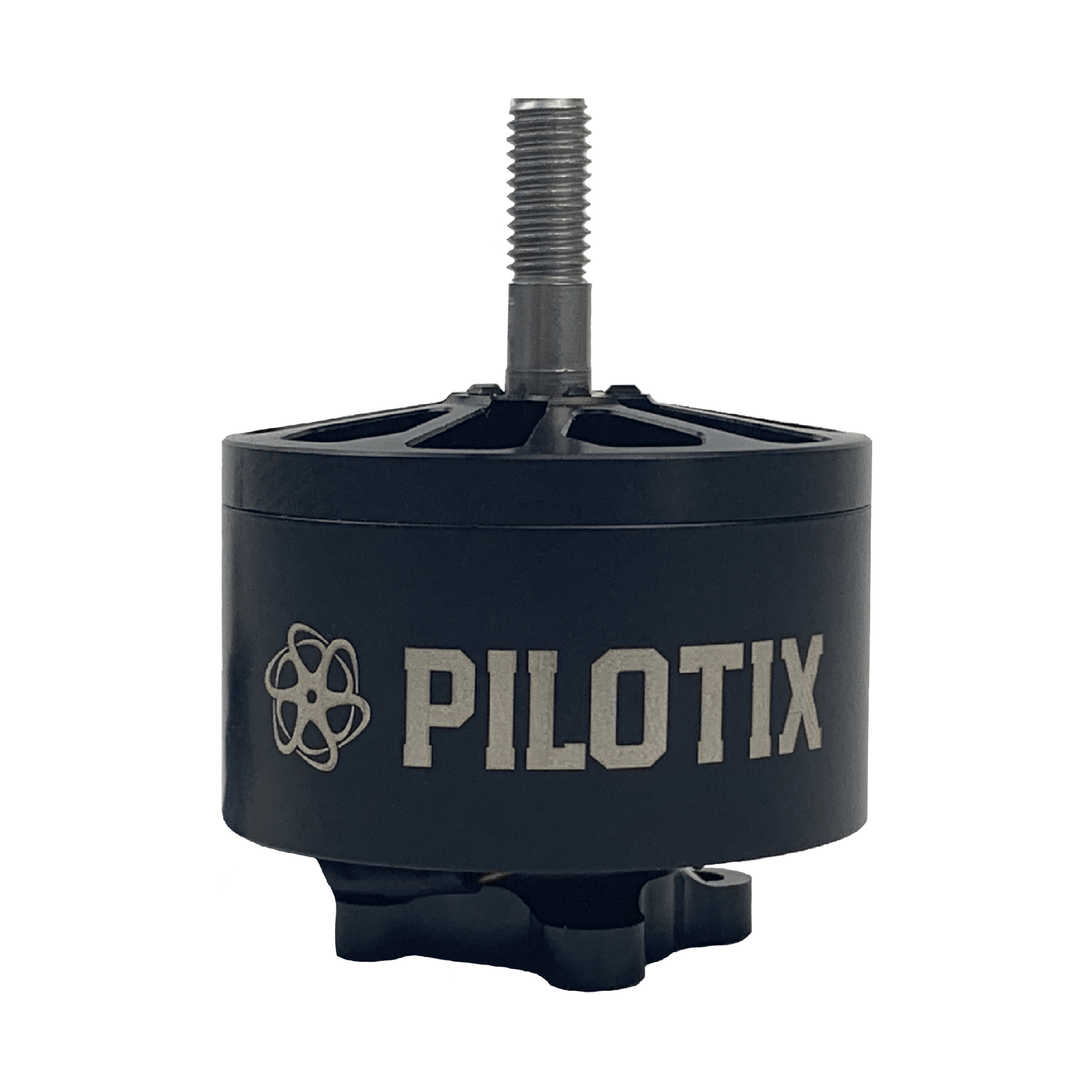

    Motor Pilotix A3115 900KV

    Motor Pilotix A3115 900KV

    Brand: Pilotix

    €27,95
    €41,26 €27,95
    -32% View Product
    Taxes included.
    In stock
    We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion
    Pilotix A3115 900KV motor

The Pilotix A3115 900kV brushless motor is compact and powerful. Its high torque and efficiency ensure stable performance, making it reliable for various RC models.

Specifications:
KV value: KV900
Weight (including cable): 113.5g
Engine size: ф37.1 x 32 mm
Internal resistance: 0.046Ω
Motor cable: 16#300(+5,-0)
Configuration: 12N/14P
Shaft diameter: 5 mm
Rated voltage (Lipo): 3-6S
No load current: 1.28A/12V
Peak current (60S): 63.7A
Maximum power: 1592W
Propeller mounting shaft diameter: 4-M3*7
Maximum thrust: 4080 g
