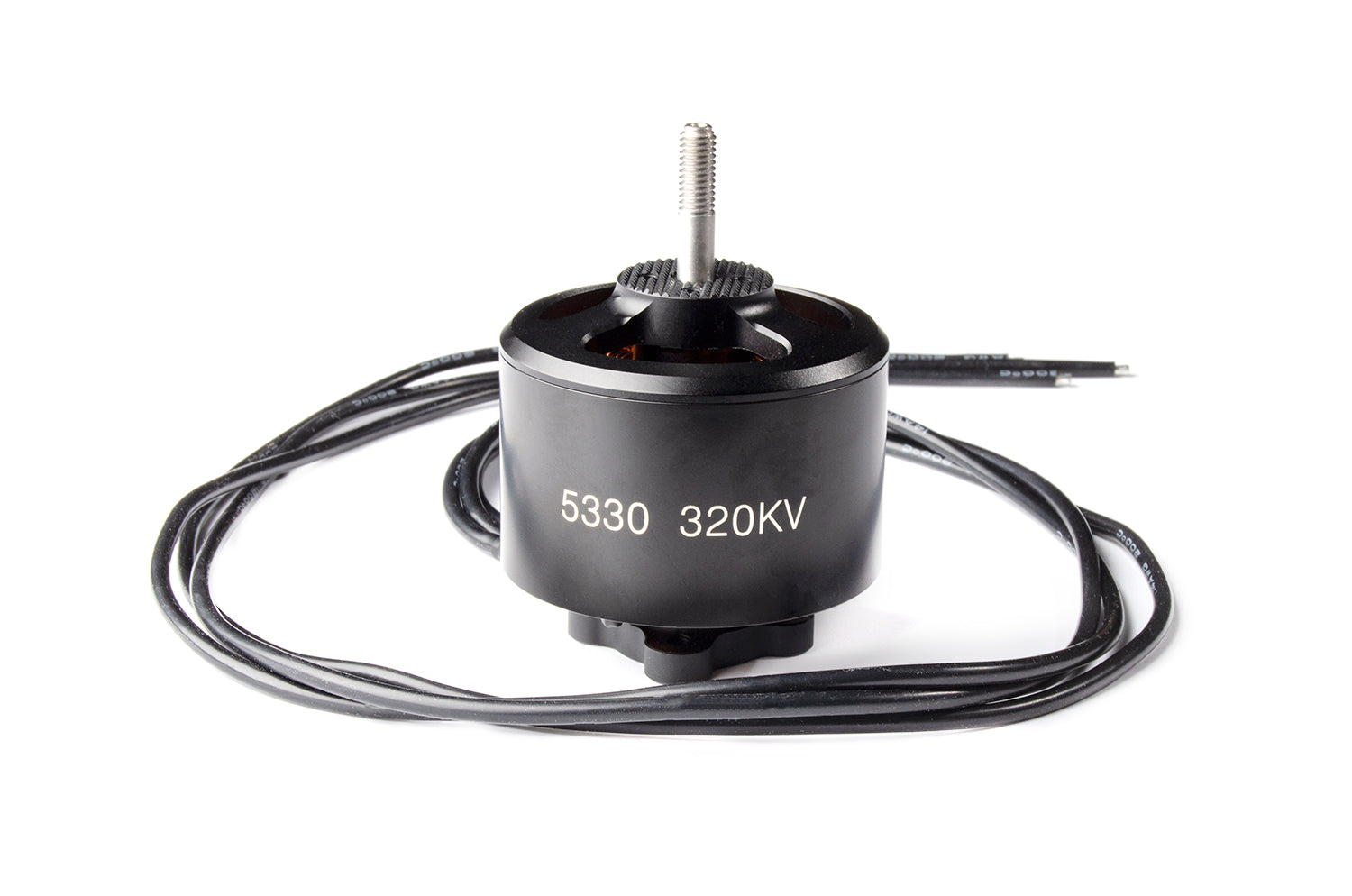

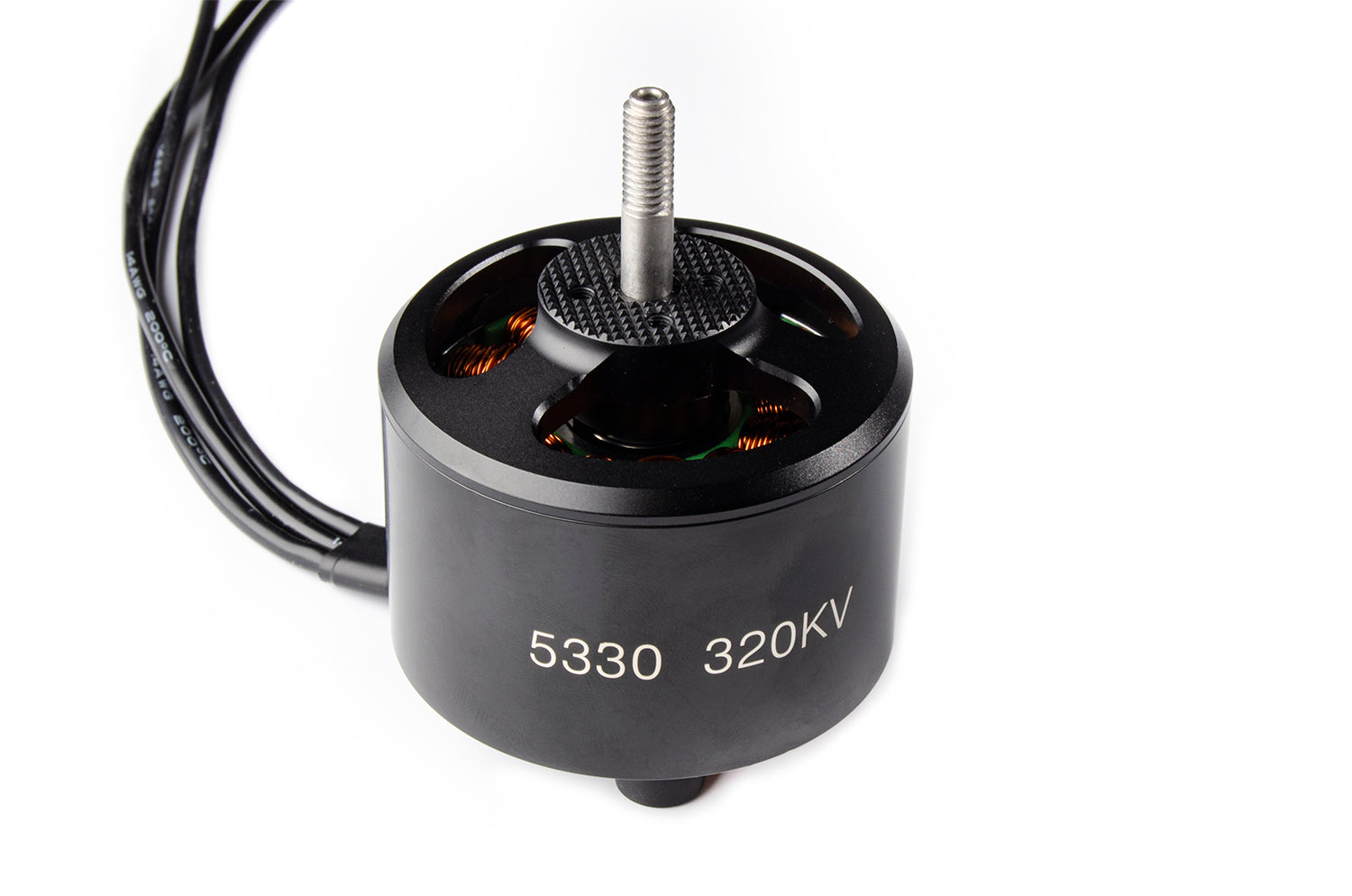

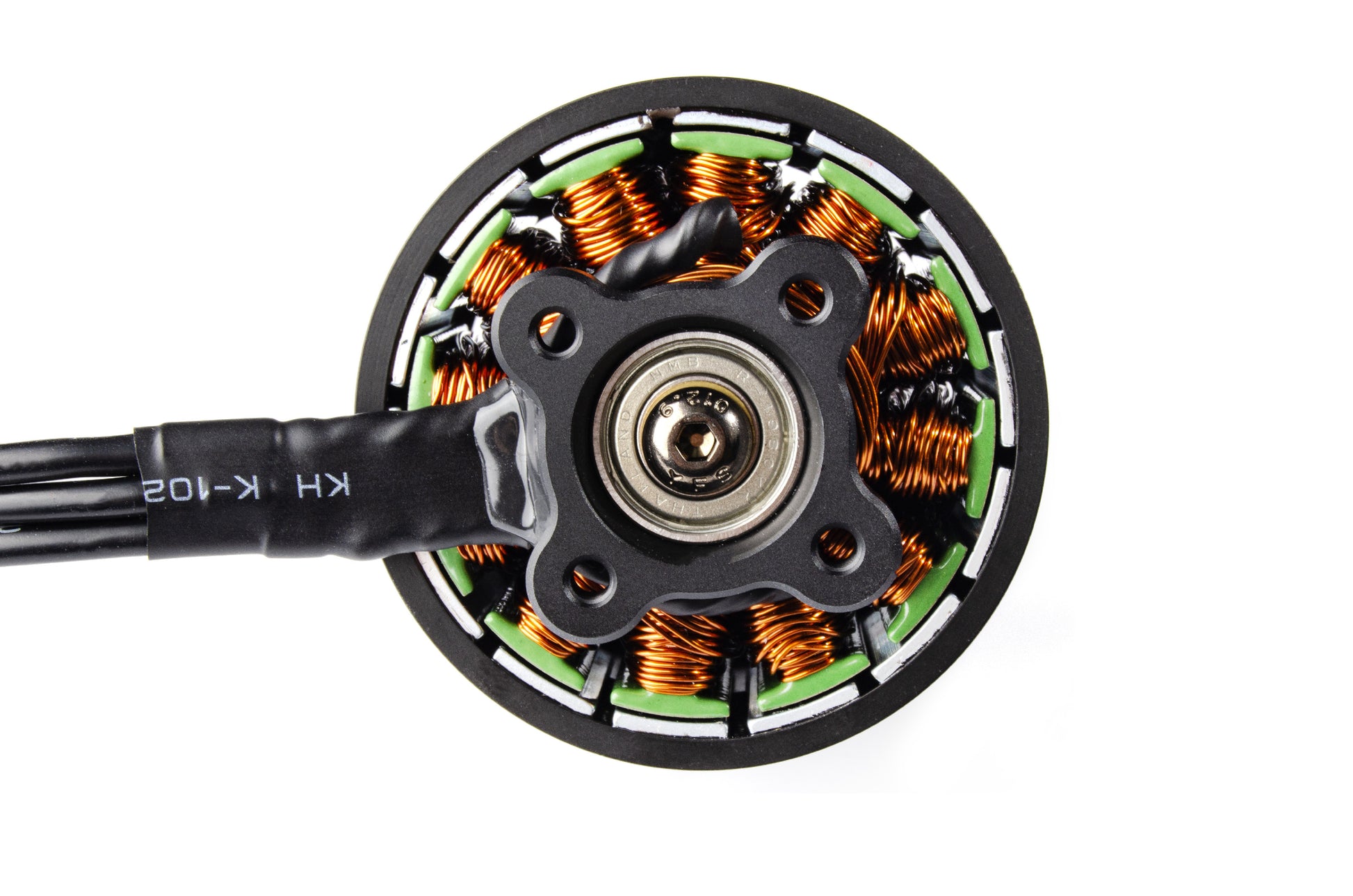

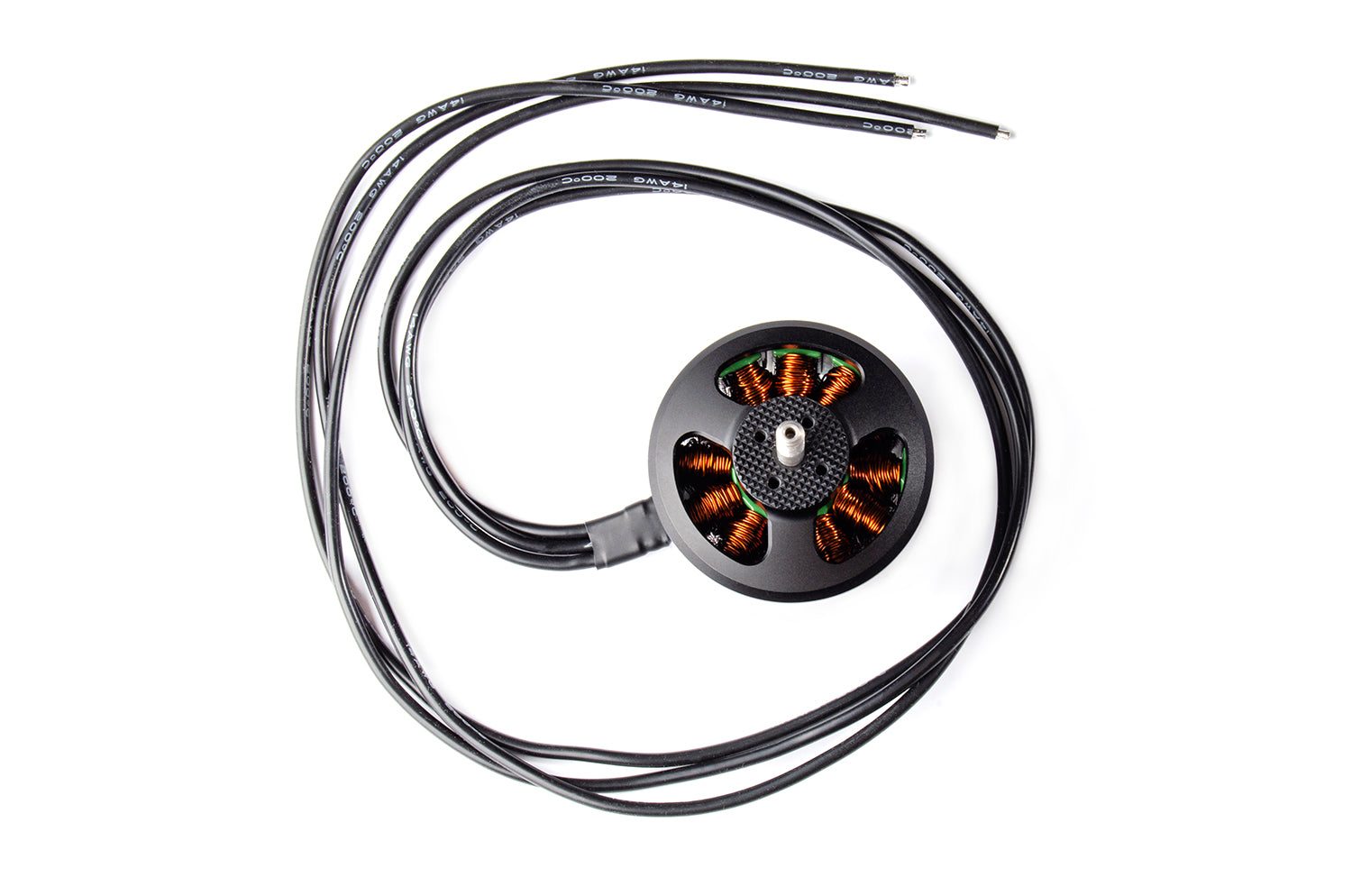

Pilotix 5330 320KV motor
The Pilotix 5330 320KV motor is a powerful and efficient AC motor designed for large drones and demanding applications where reliable performance and stability are important. Thanks to its robust construction and optimized specifications, this engine ensures exceptional operation even in demanding conditions. Ideal for use in professional drones, industrial applications and custom large models.
Specifications:
KV: 320kv
Internal resistance: 25mΩ
Battery: 12S
Shaft diameter: 6mm
Maximum force: 11025g
Maximum power: 4090.79w
Slot poles: 12N14P
Size: φ62.4*86.8mm
Silicone wire: 14AWG750mm
Weight (including wire): 653g
Maximum current: 96.39A
Current without payload: 1.8A
Package includes:
1x Pilotix 5330 320KV motor
