    Motor Pilotix 5315 420KV

    Motor Pilotix 5315 420KV

    Brand: Pilotix

    €87,00
    €87,00 €87,00
    -0% View Product
    In stock
    We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion

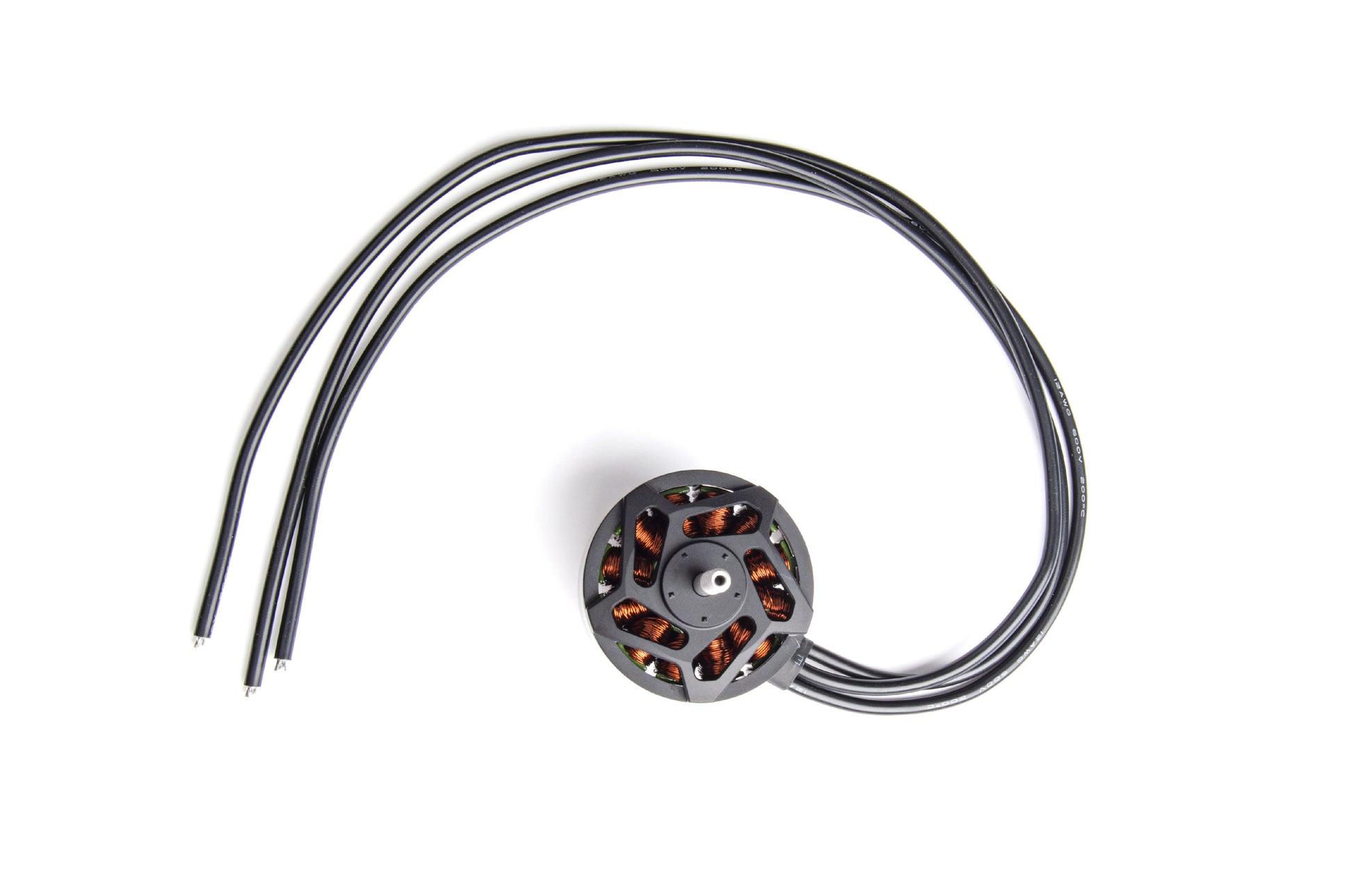

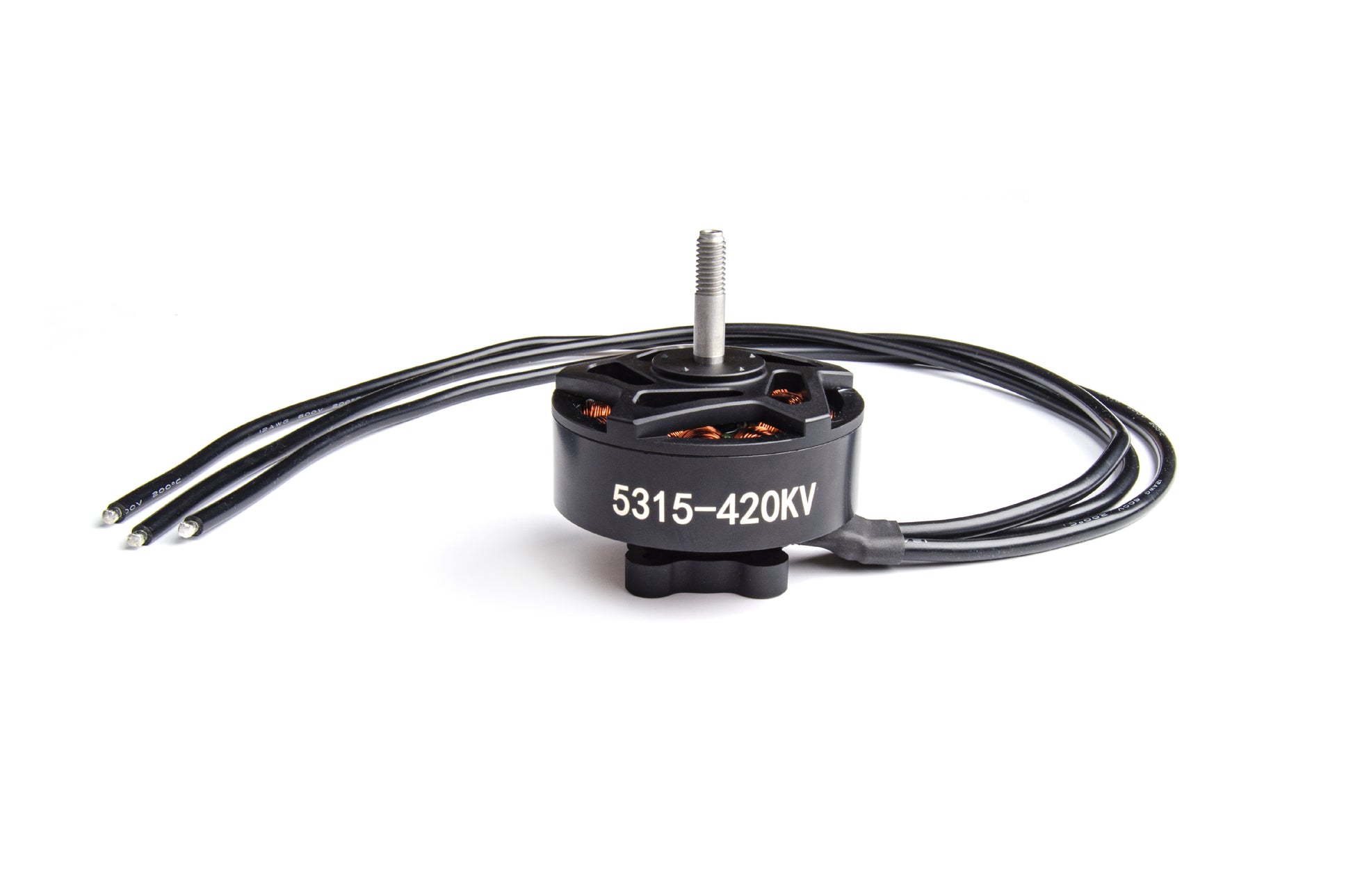

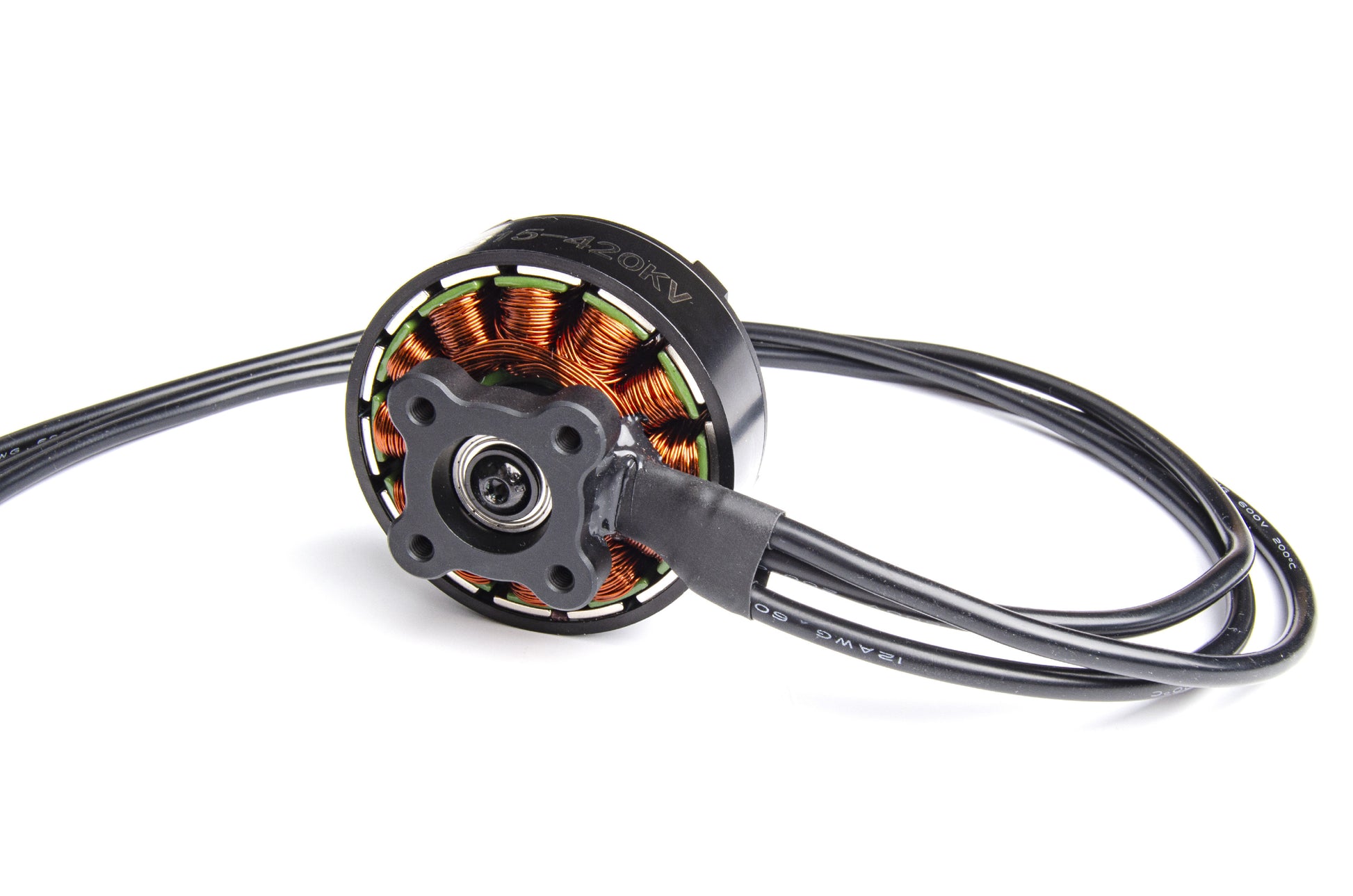

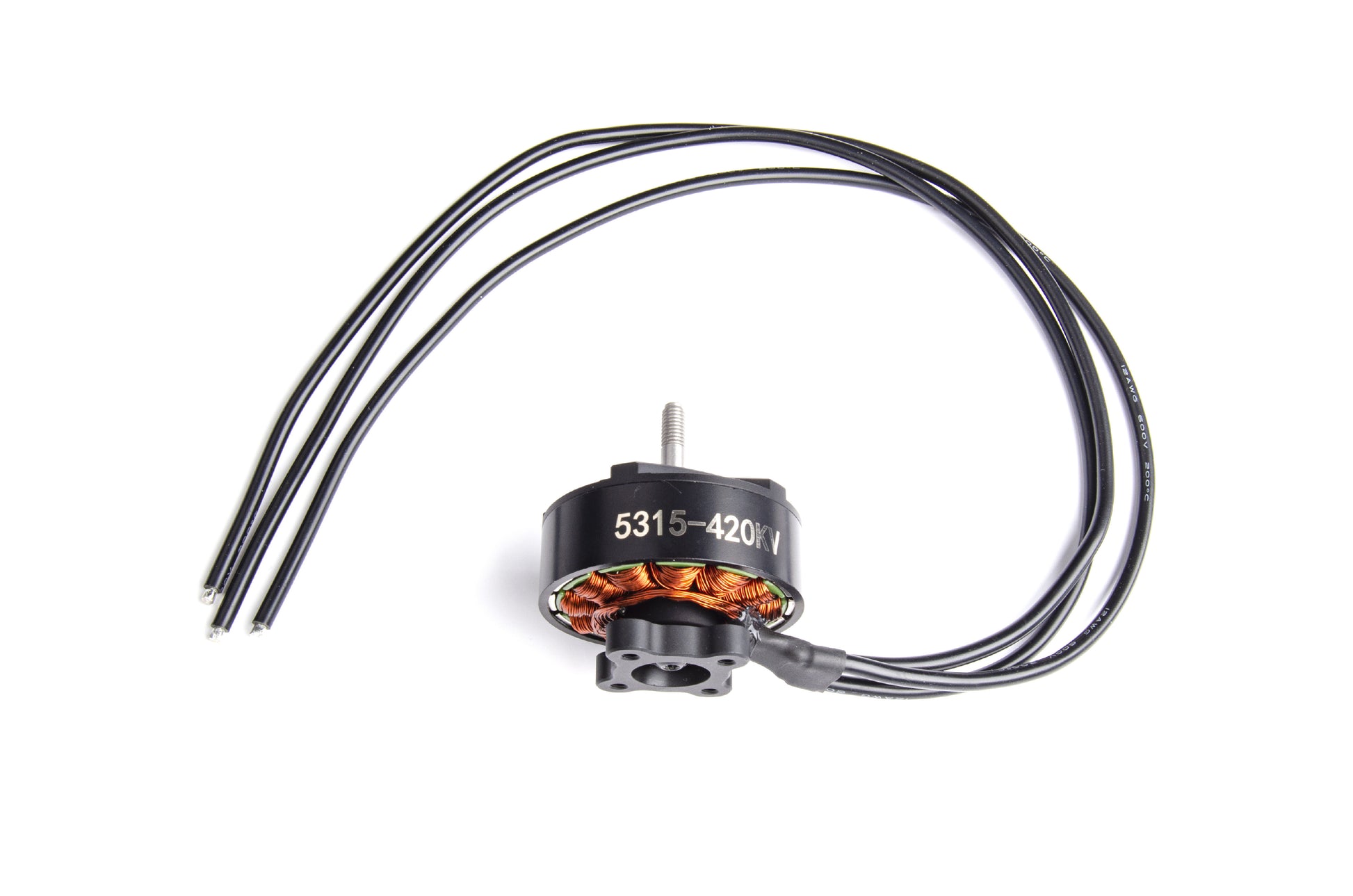

    Pilotix 5315-420KV motor

    Pilotix 5315-420KV is a high performance AC motor for powerful and efficient drones. It provides impressive thrust and consistent reliability, making it an excellent choice for heavy drones and demanding aviation applications. Built from durable materials and optimized for smooth operation, this engine ensures peak performance in every flight.

    Specifications:

    Model: F5315
    Slot and pole: 12N14P
    Motor size: Ø61xH44mm
    Magnet: 120°C
    Enameled wire: 180°C
    Insulation test: 500V
    Motor mounting dimensions: 4×M4@D30mm
    Recommended propeller size: GF1507
    KV: 420KV
    Battery (LiPo): 6-8S
    No load current /24V: ≤2.98A
    Resistance: 20.25 mΩ ± 3%
    Max. thrust (g): 6128g / 8324g
    Max power: 1588.9W / 2980W
    Wire size (AWG): 12#
    Wire length (mm): 600mm ± 3
    Dynamic balance: ≤20mg
    Weight (with wire): 401g

    Package includes:
    1x Pilotix 5315-420KV
