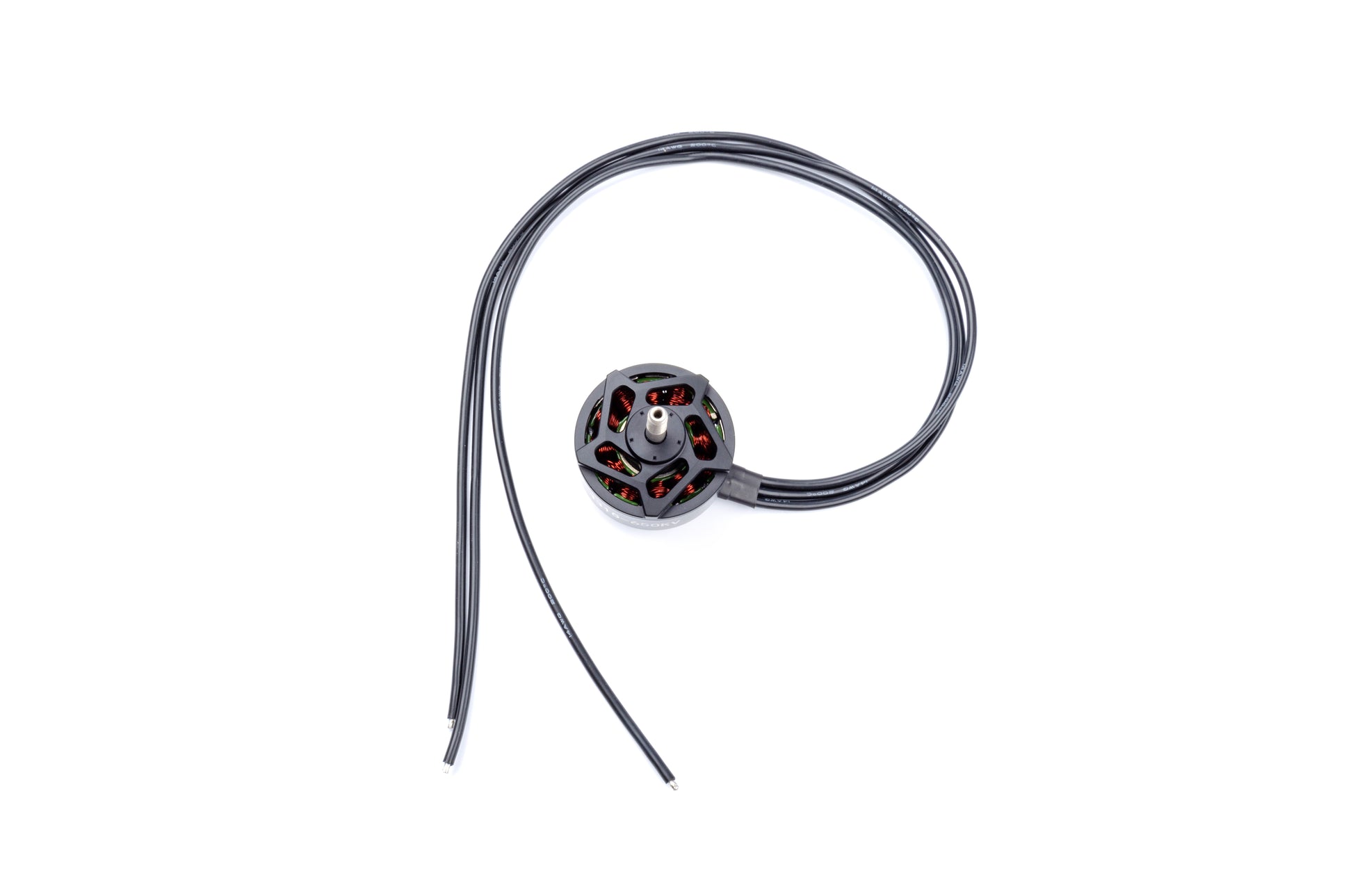

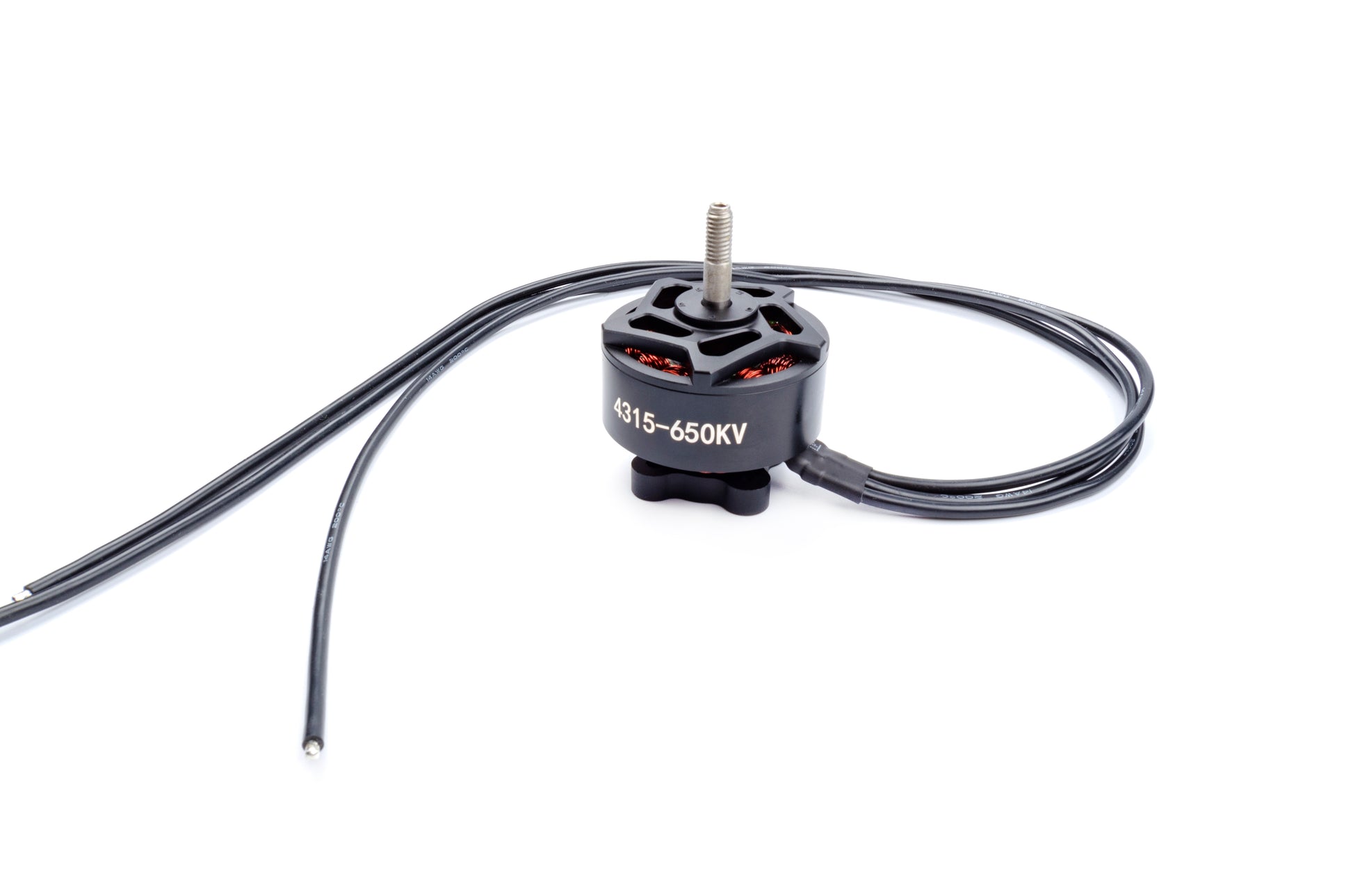

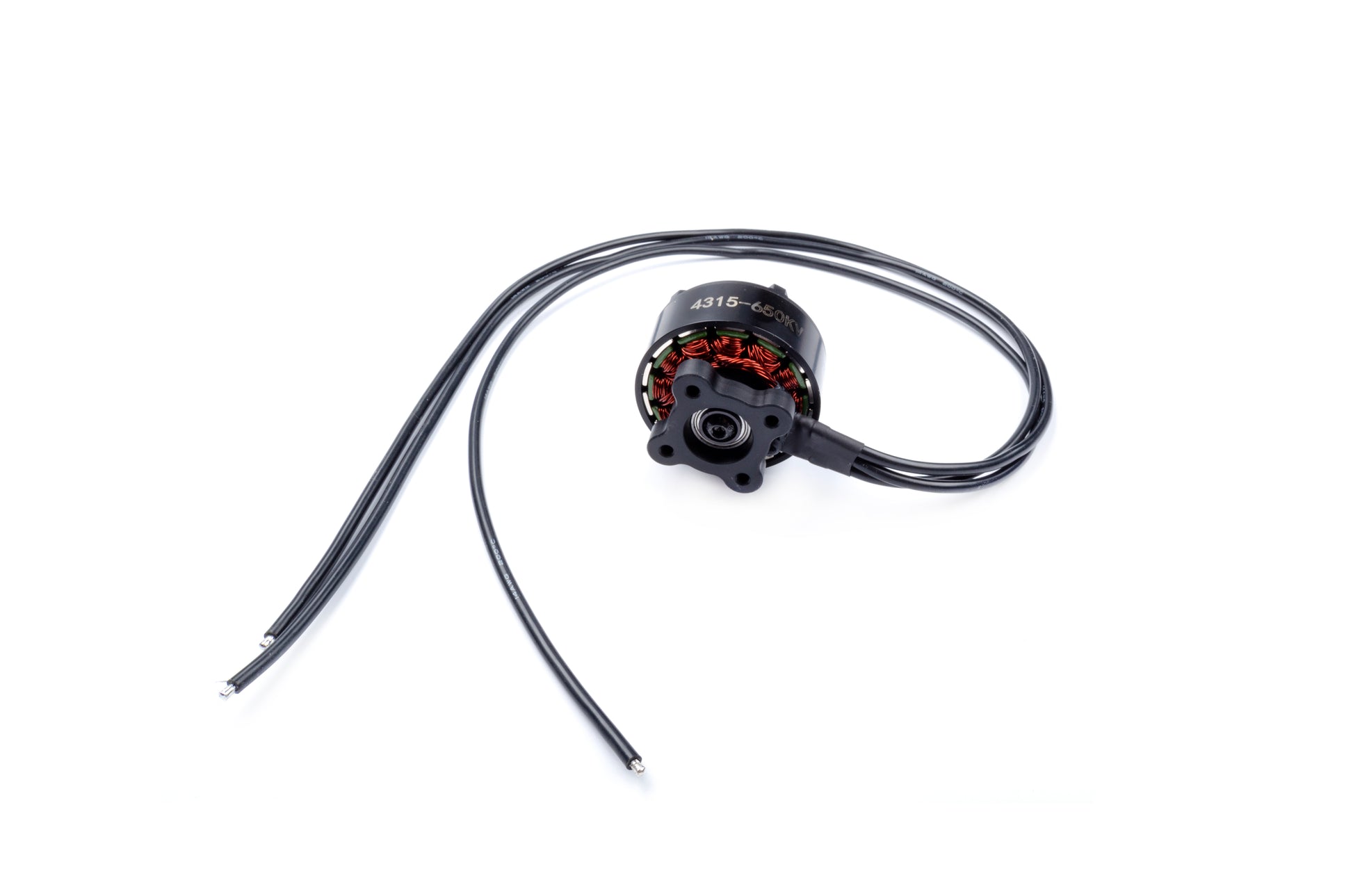

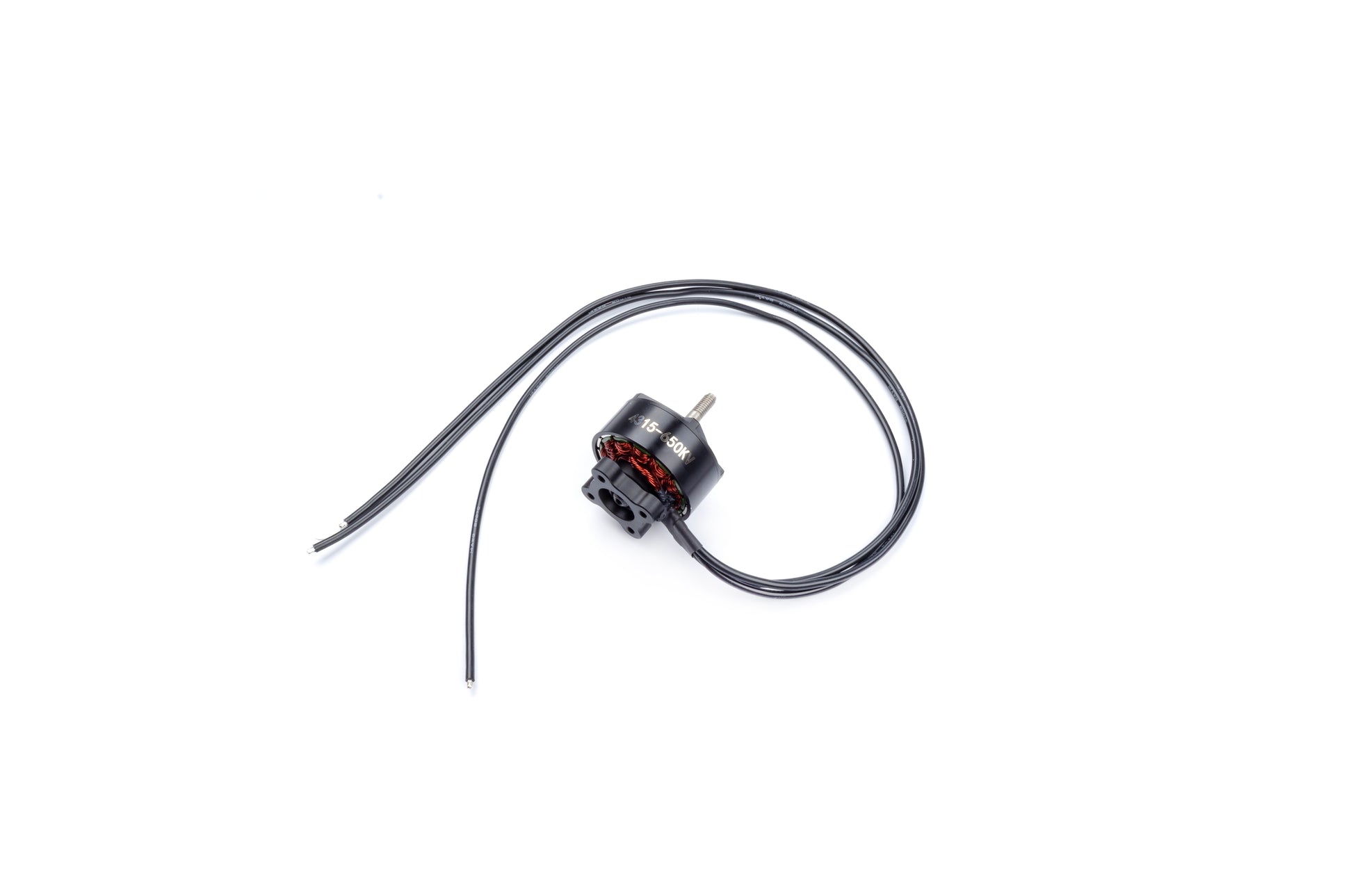

    Motor Pilotix 4315-650KV

The Pilotix 4315-650KV is a high performance brushless motor designed for applications requiring a balance between power, efficiency and durability. Thanks to its robust construction and components resistant to high temperatures, this engine ensures reliable operation even in demanding conditions.

Specifications:

- Groove and Pole: 12N14P
- Motor size: Φ50 x H43.6mm
- Temperature resistance of the magnet: 120 ℃
- Temperature resistance of enameled wire: 180℃
- Insulation test: 500V
- Motor mounting dimensions: 4×M4 @ D30mm
- KV rating: 650KV
- Battery compatibility: 8S LiPo
- No load current: ≤4.35A
- Resistance: 23.60 mΩ ±3%
- Maximum pull: 6137g
- Maximum power: 1986.6W
- Wire size: 14AWG
- Wire length: 500 mm ±3 mm
- Dynamic balance: ≤20mg
- Weight (with wire): 264.09g

The package contains:
- 1 x Motor Pilotix 4315-650KV
