Code: SKU:4836
Motor Pilotix 4312 660KV
Motor Pilotix 4312 660KV
Brand: Pilotix
Regular price
€66,00
Regular price
€66,00
Sale price
€66,00
Unit price
/
per
Upon request
We need to check the product availability with our supplier. Please contact us for details.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion
Pilotix 4312 660KV motor
The Pilotix 4312 660KV motor is a high performance brushless motor designed for demanding applications. This motor delivers strong and efficient performance with a KV value of 660 RPM/V. It works in a voltage range of up to 22.2V and at full power provides a lifting force of over 7900g. Weighing 167.5g, the Pilotix 4312 660KV motor is the ideal choice for professionals looking for reliability and power.

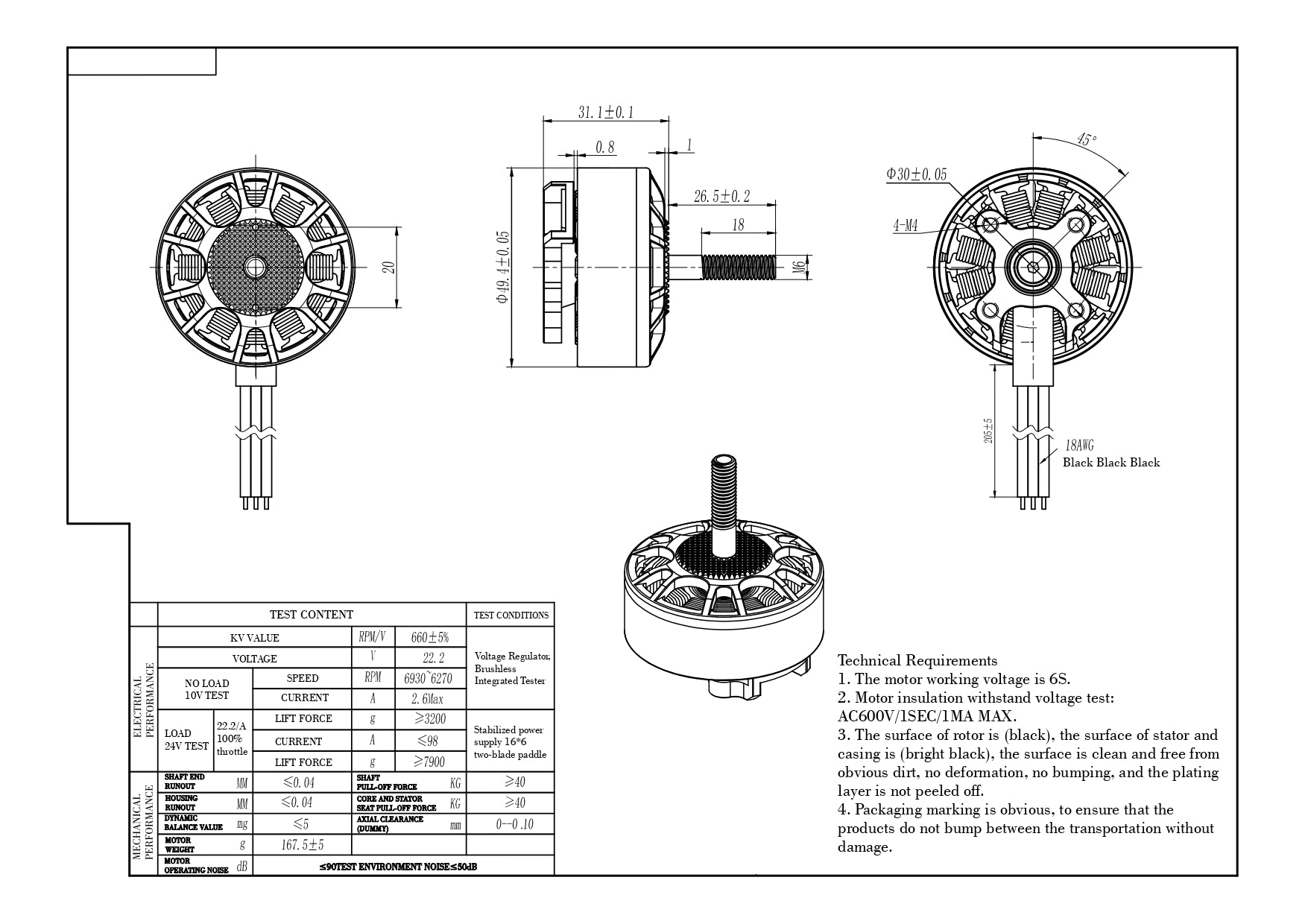

Specifications:
- Model: Pilotix 4312
- KV value: KV660
- Weight: 167.5g
- Diameter: 42 mm
- Height: 31.1mm
- Shaft length: 18 mm
- Diameter of mounting hole: 4 mm
- Shaft diameter: 6 mm
- Rated voltage (Lipo): 6S
-
Voltage (Test without load): 10V
- Speed: 6930 ± 670 RPM
- Current: 2.6A Max
- Lifting force: ≥ 3200 g
-
Voltage (Load Test): 22.2V at 100% power
- Current: ≤ 98A
- Lifting force: ≥ 7900 g
Mechanical properties:
- Radial shaft runout: ≤ 0.04 mm
- Radial casing runout: ≤ 0.04 mm
- Dynamic balance: ≤ 5 mg
- Engine weight: 167.5 ± 5 g
- Tensive shaft force: ≥ 40 kg
- Tensive force of core and stator: ≥ 5 kg
- Axial clearance (when mounting): 0 ~ -0.10mm
Engine noise:
- Operating noise: ≤ 90 dB
- Noise of the test environment: ≤ 50 dB
Testing conditions:
- Stabilized power supply
- Voltage regulator, brushless integrated tester
- Stabilized power supply 16*6 two-blade propeller

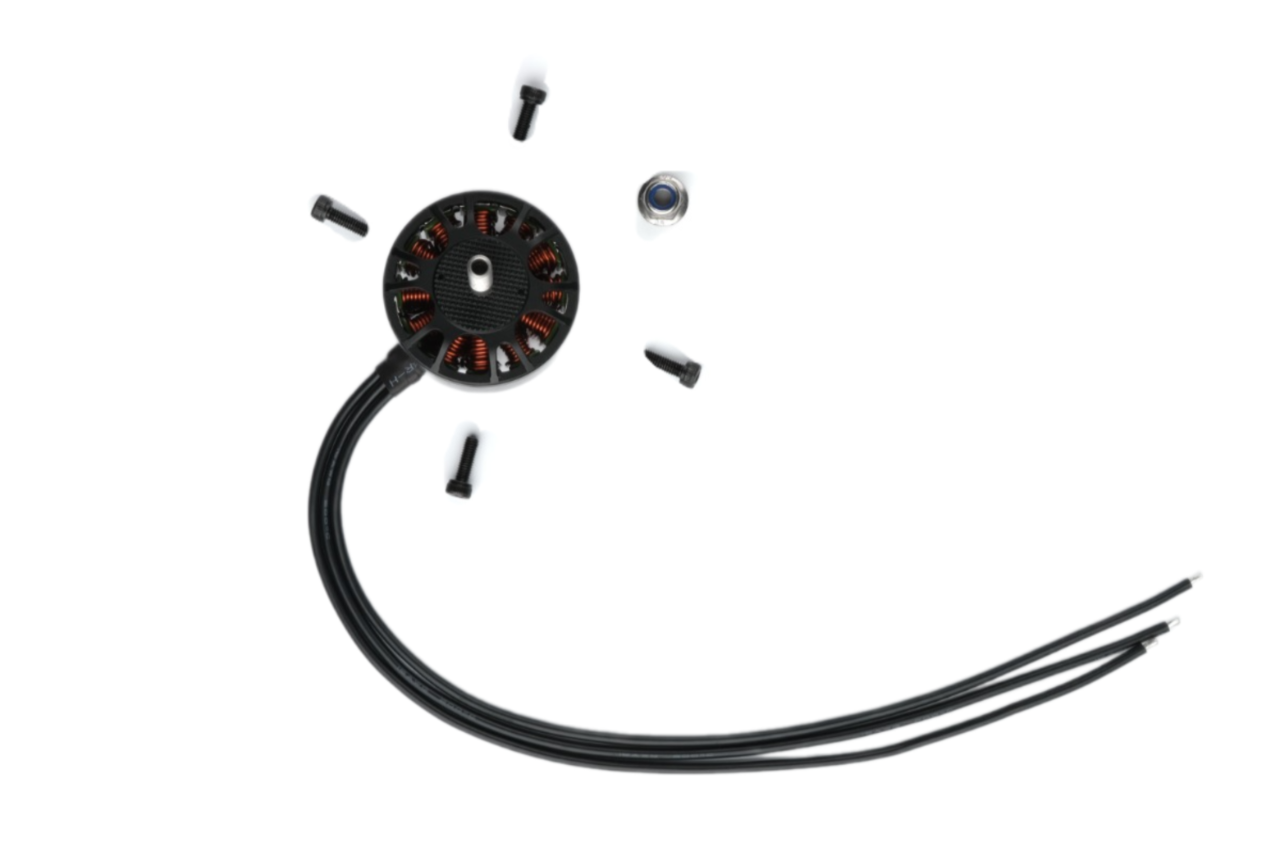

The package contains:
- 1x Motor Pilotix 4312 660KV
