Motor Pilotix 2006 2150KV
Motor Pilotix 2006 2150KV
Brand: Pilotix
Regular price
€24,00
Regular price
€24,00
Sale price
€24,00
Unit price
/
per
In stock
We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion

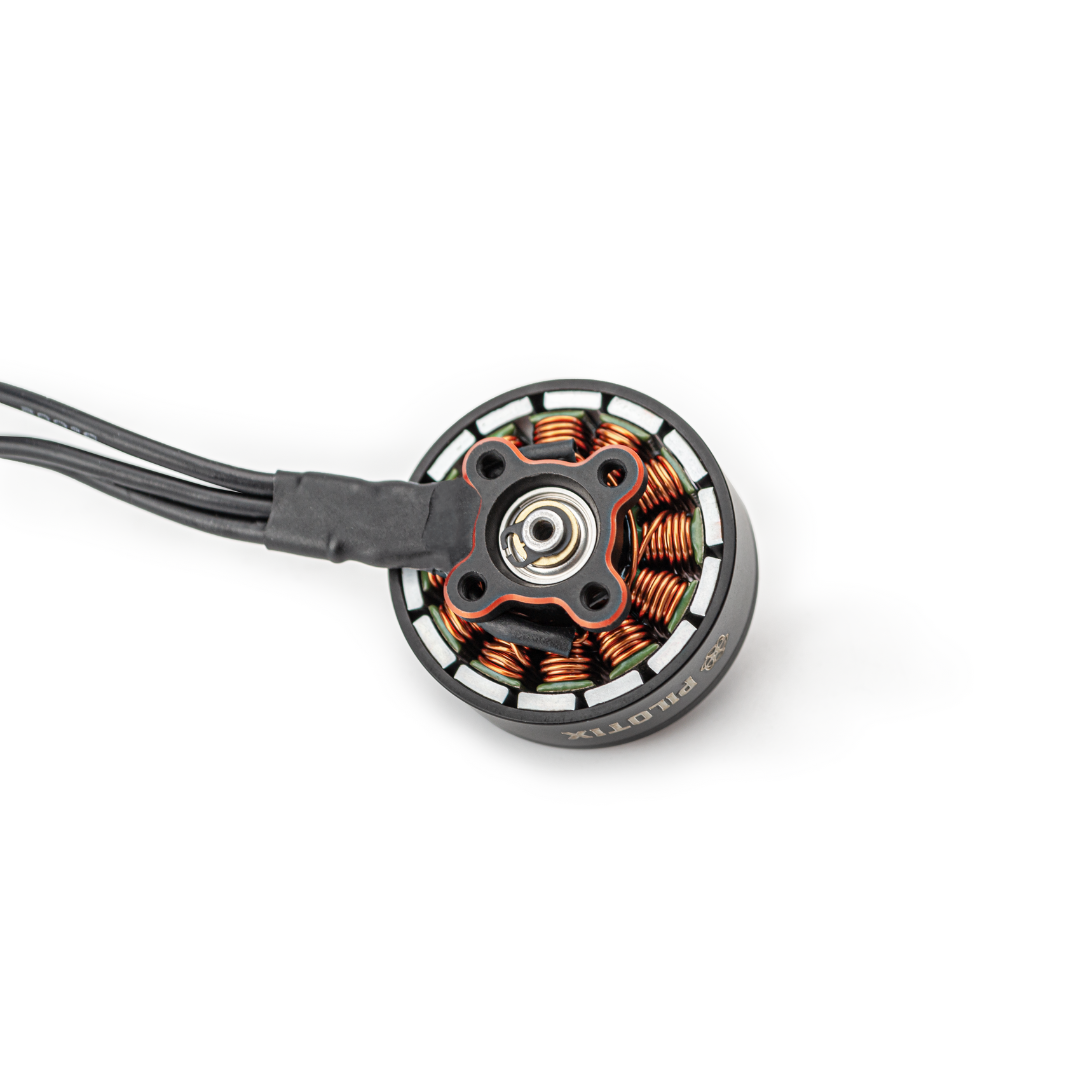

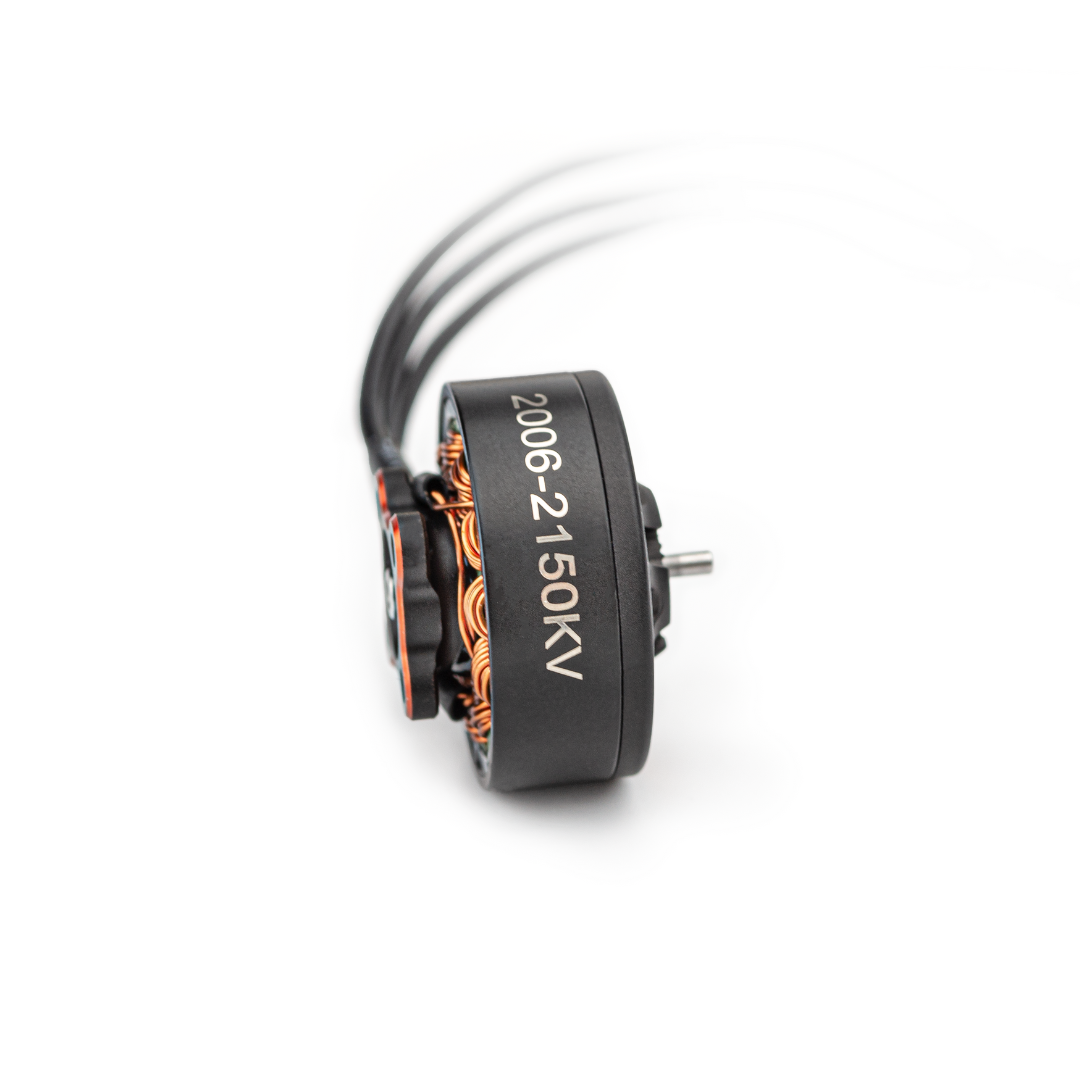

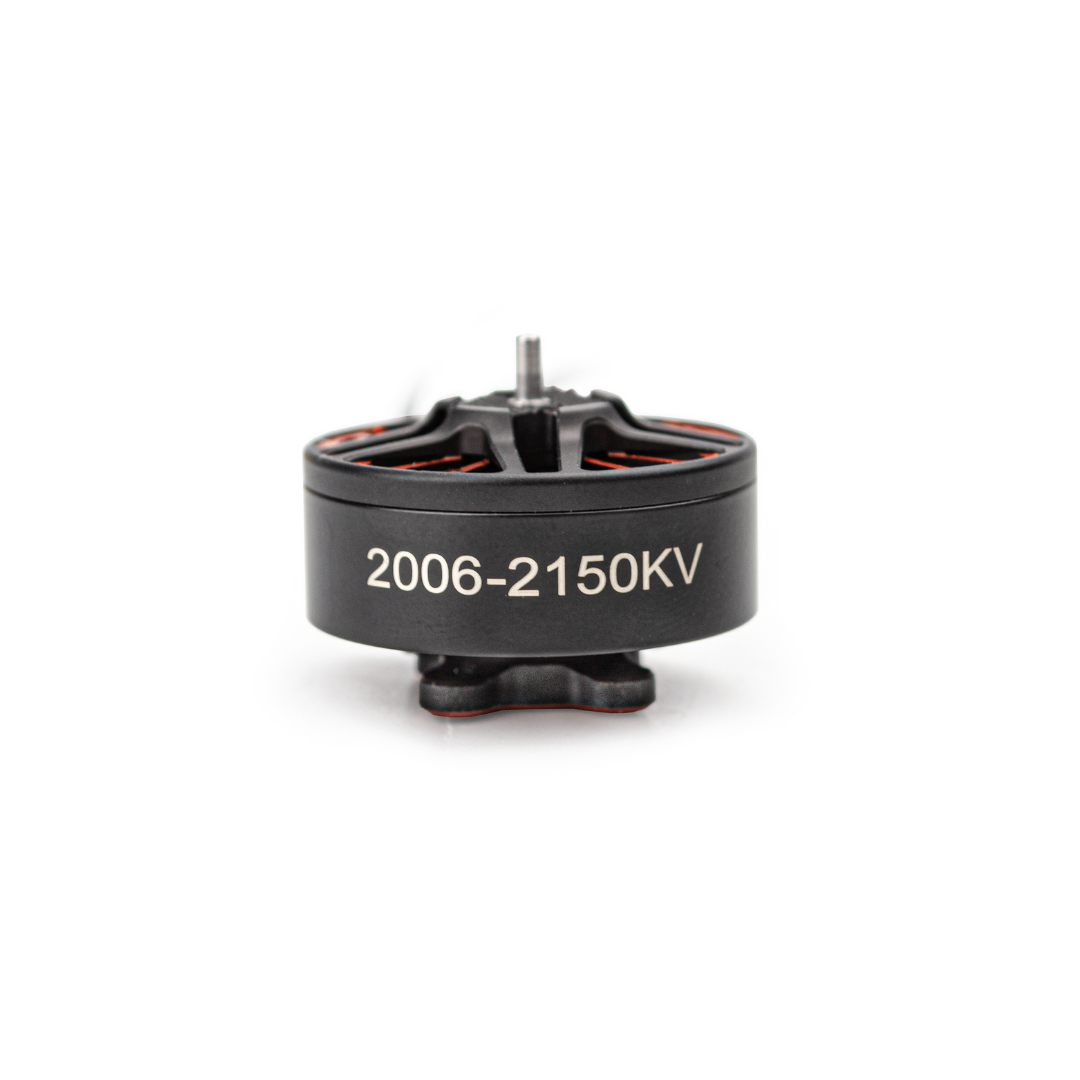

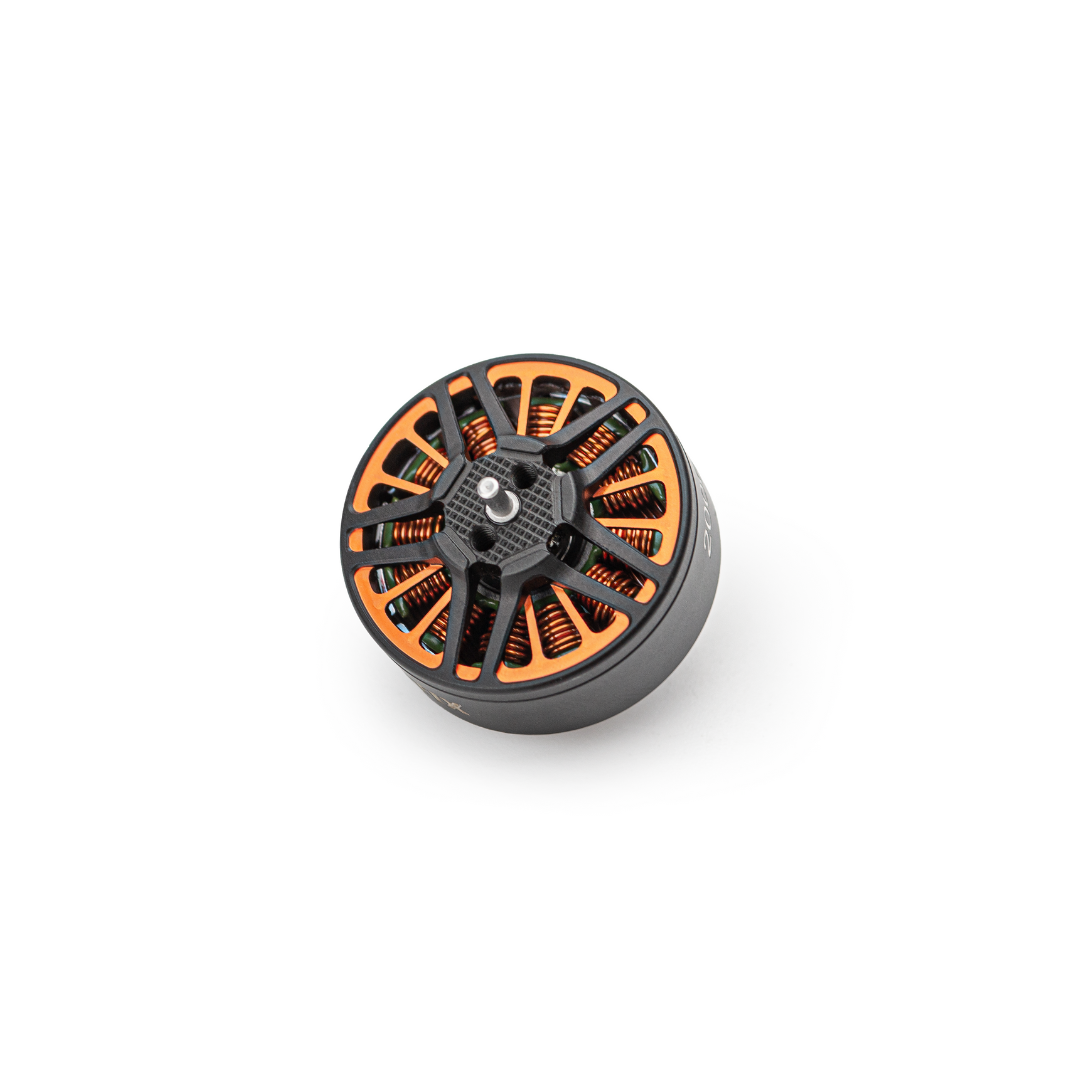

Motor Pilotix 2006 2150KV The Pilotix 2006 2150KV motor is designed for 3.5 inch drones that require stable performance on 6S power supply. The motor provides efficient power transfer with reduced heat production thanks to the 20mm stator and low internal resistance. It maintains accurate operation even under load, supports high current draw and is dynamically balanced to minimize vibration – making it a reliable choice for responsive and controlled flight. Specifications: Model: Pilotix 2006-2150KV KV: 2150KV Internal resistance: 83 mΩ Stator diameter: 20 mm Stator height: 6 mm Number of stator slots: 12 Number of stator poles: 14 Dynamic balance: ≤10 mg No-load current: 1 A Maximum current: 21.81 A Maximum power: 523.44 W Overall dimensions: 25.6 x 19 mm Shaft diameter: 1.5 x 3.5 mm Propeller Size: 3.5 inches Feed wire size: 22 AWG*L100mm ESC: 30A Rated voltage: 25.2V (6S) The package contains: 1 x Pilotix 2006 2150KV motor
