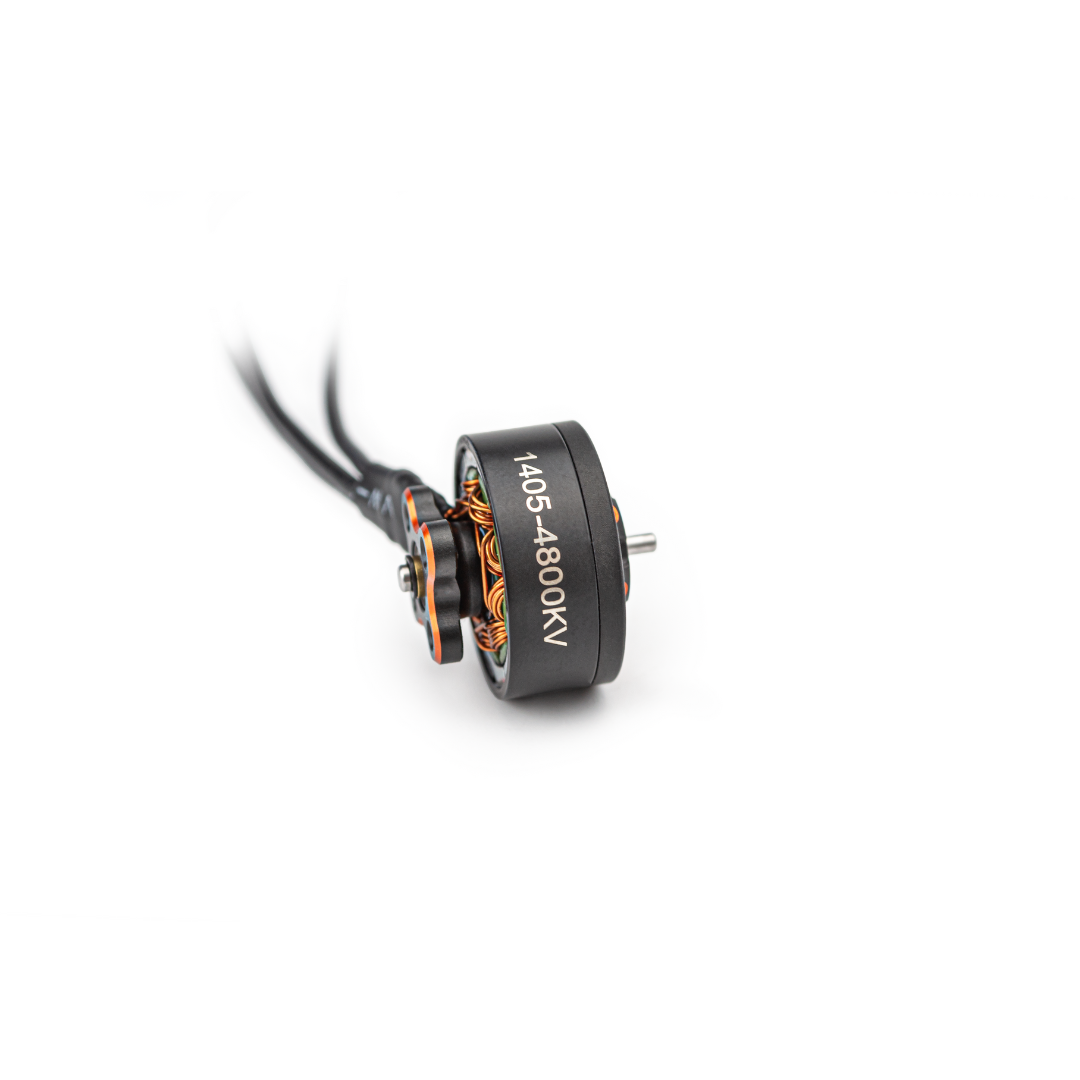

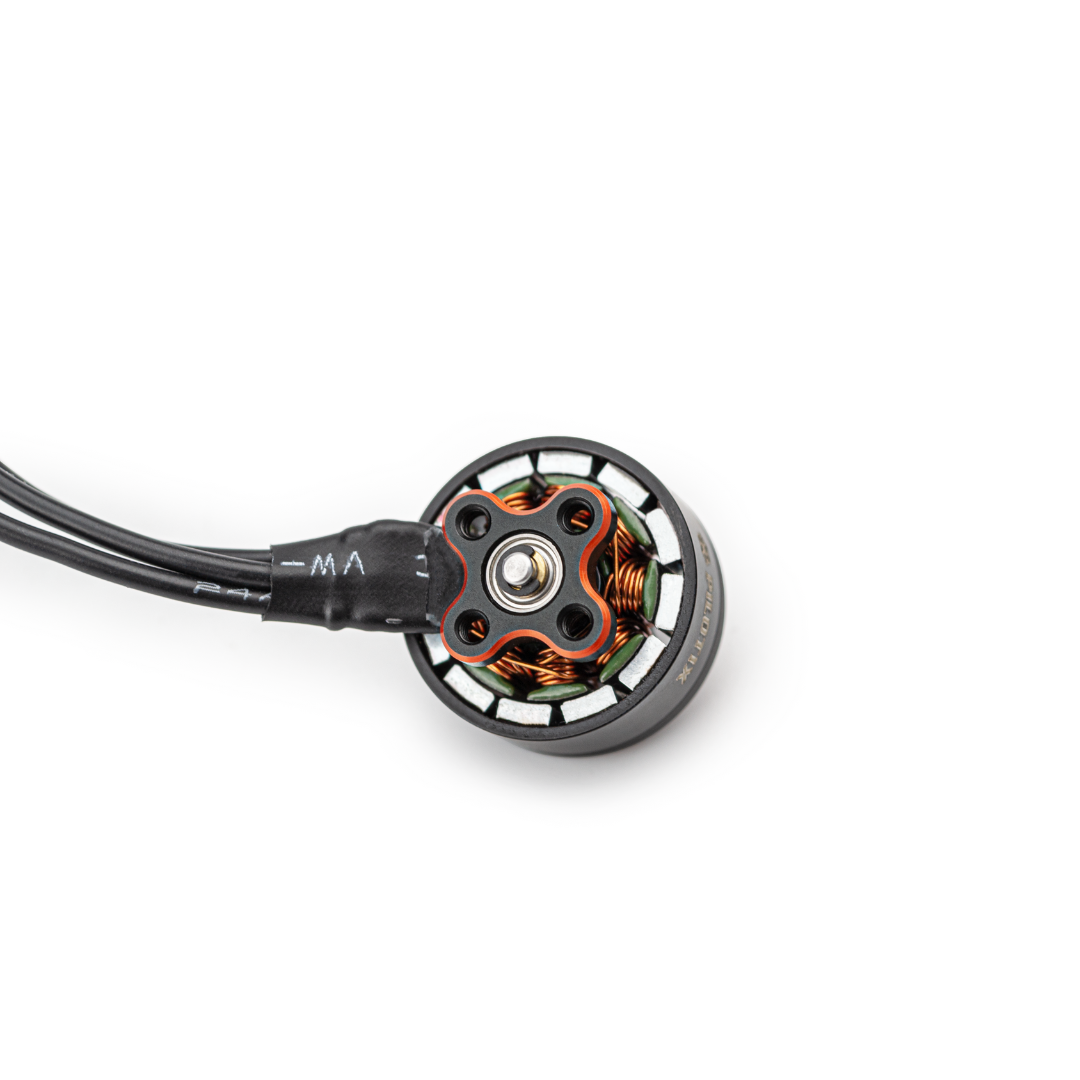

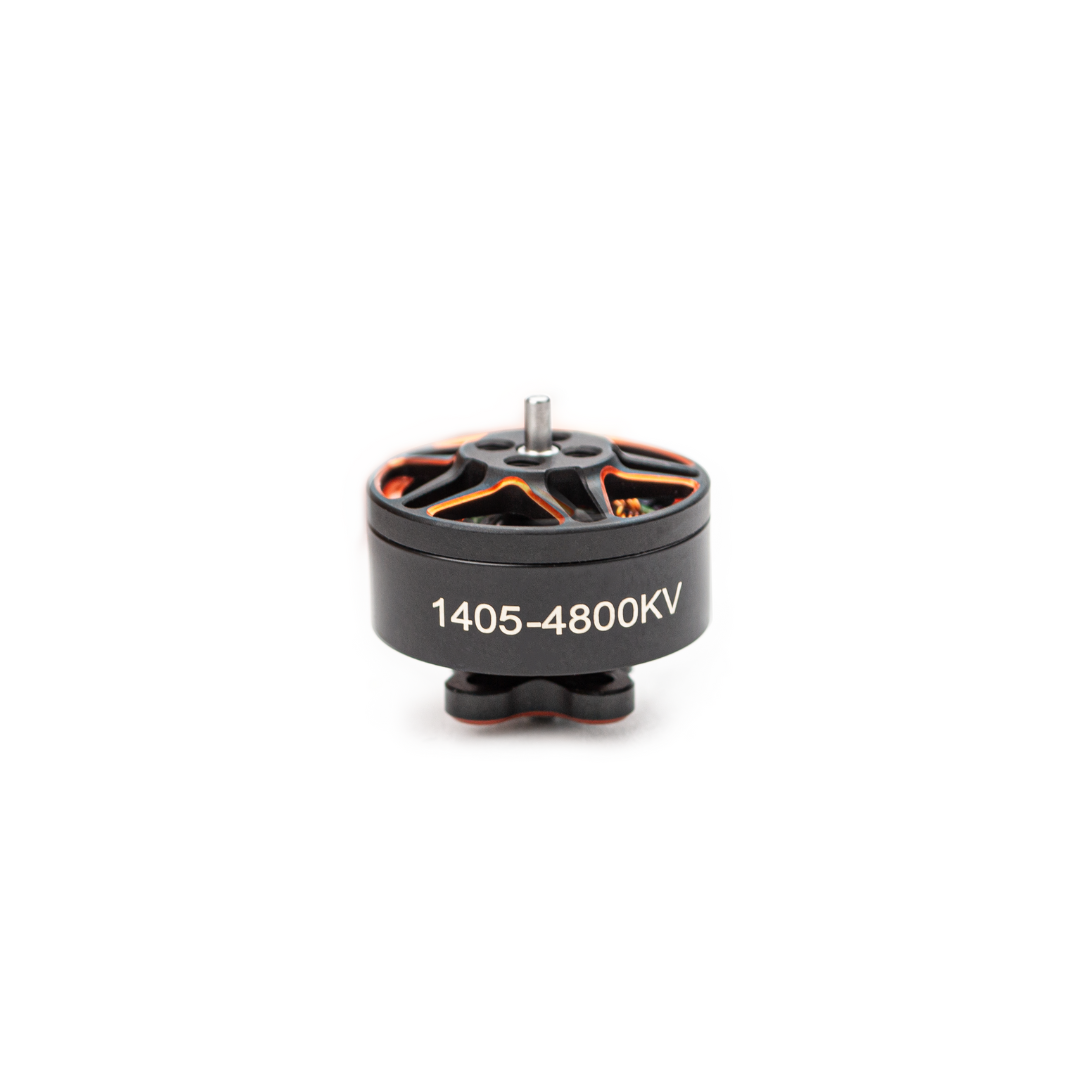

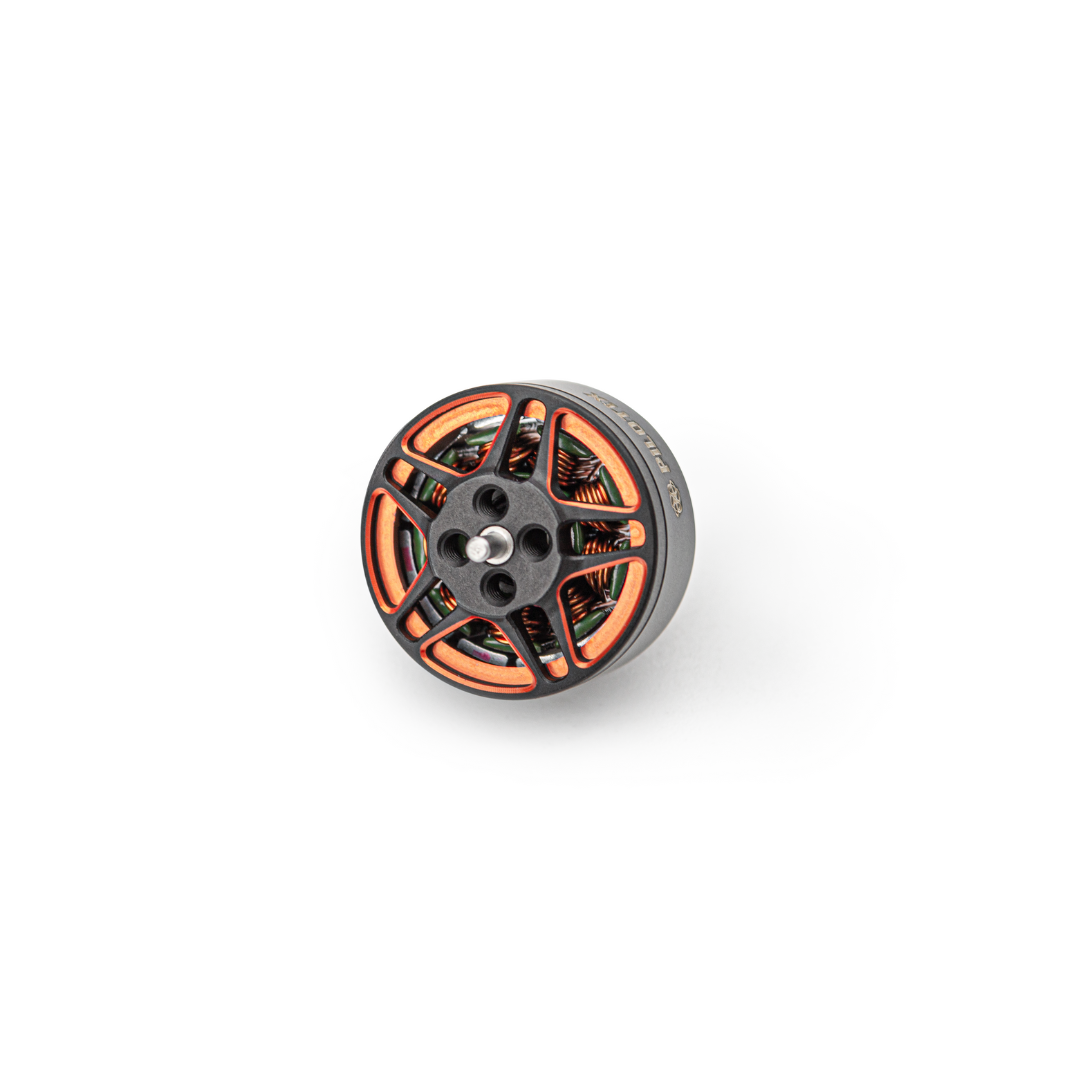

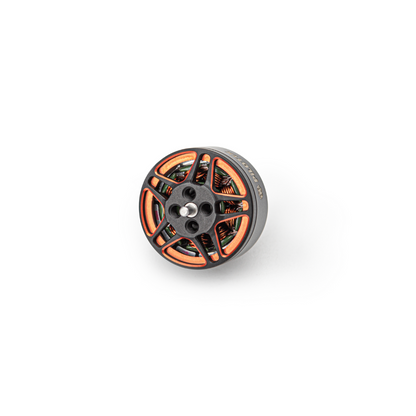

    Motor Pilotix 1405 4800KV

The Pilotix 1405 4800KV motor is designed for small FPV drones and offers a balance between power and efficiency. This motor features high-quality N52SH arc magnets and a compact design that ensures stable thrust and reliable performance. Compatible with 4S configurations, it is suitable for pilots looking for smooth acceleration and consistent power delivery in flight.

Specifications:

Model: Pilotix 1405-4800KV
KV: 4800KV
Magnets: N52SH arc
Configuration: 9S12P
Stator size: 14xL5mm
Internal resistance: 125mΩ
Dimensions: 19xL17.4mm
Shaft length: 3mm
Rated voltage: 4S (16V)
Peak current: 18 A
Shaft diameter: 1.5 mm
Propeller: 2-3 inches
Silicone wire: 24 AWG 100 mm
Maximum instantaneous power: 288 W
Quiescent current (10 V): 0.7 A
Weight (including cable): 12.4 g

The package contains:
1 x Pilotix 1405 4800KV motor
