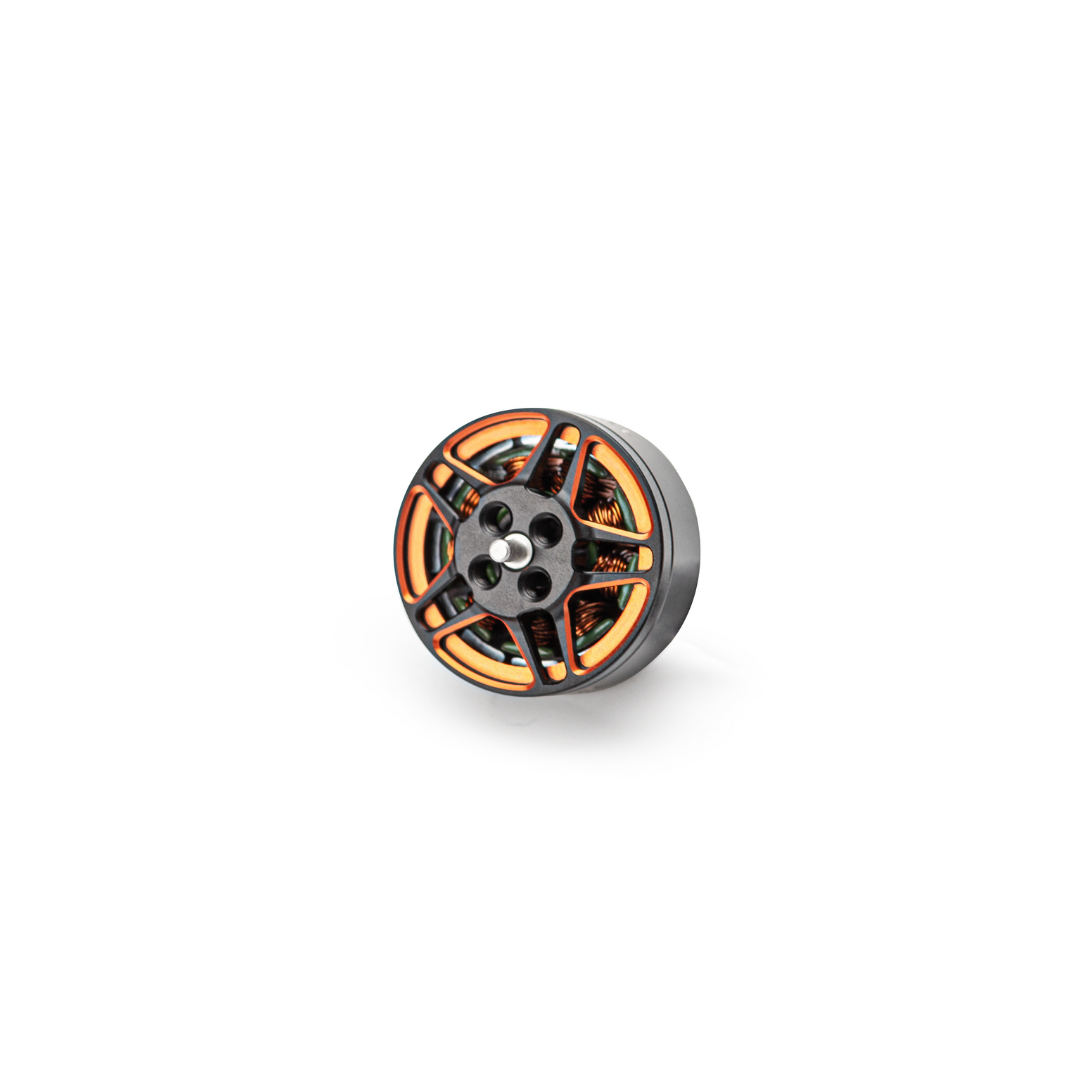

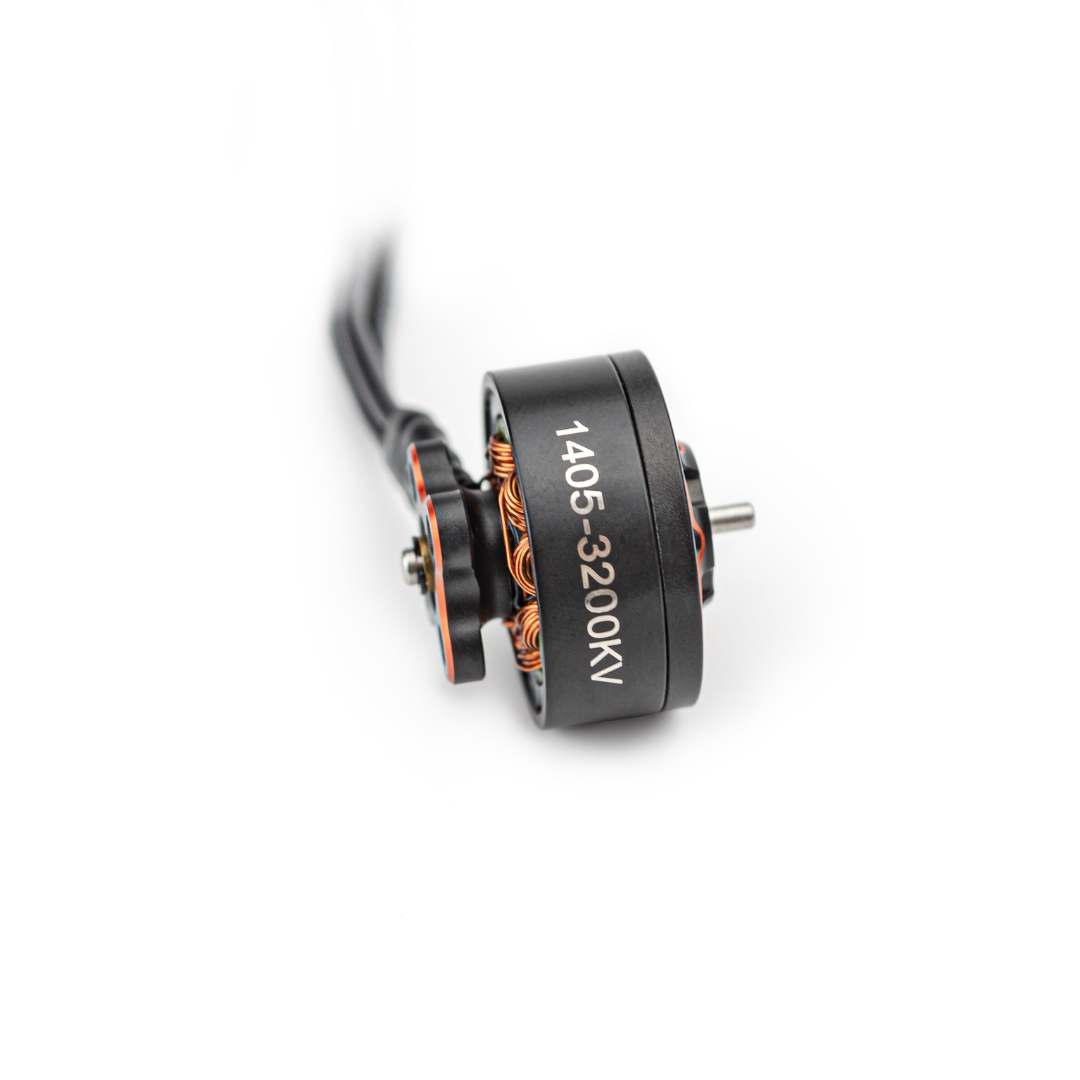

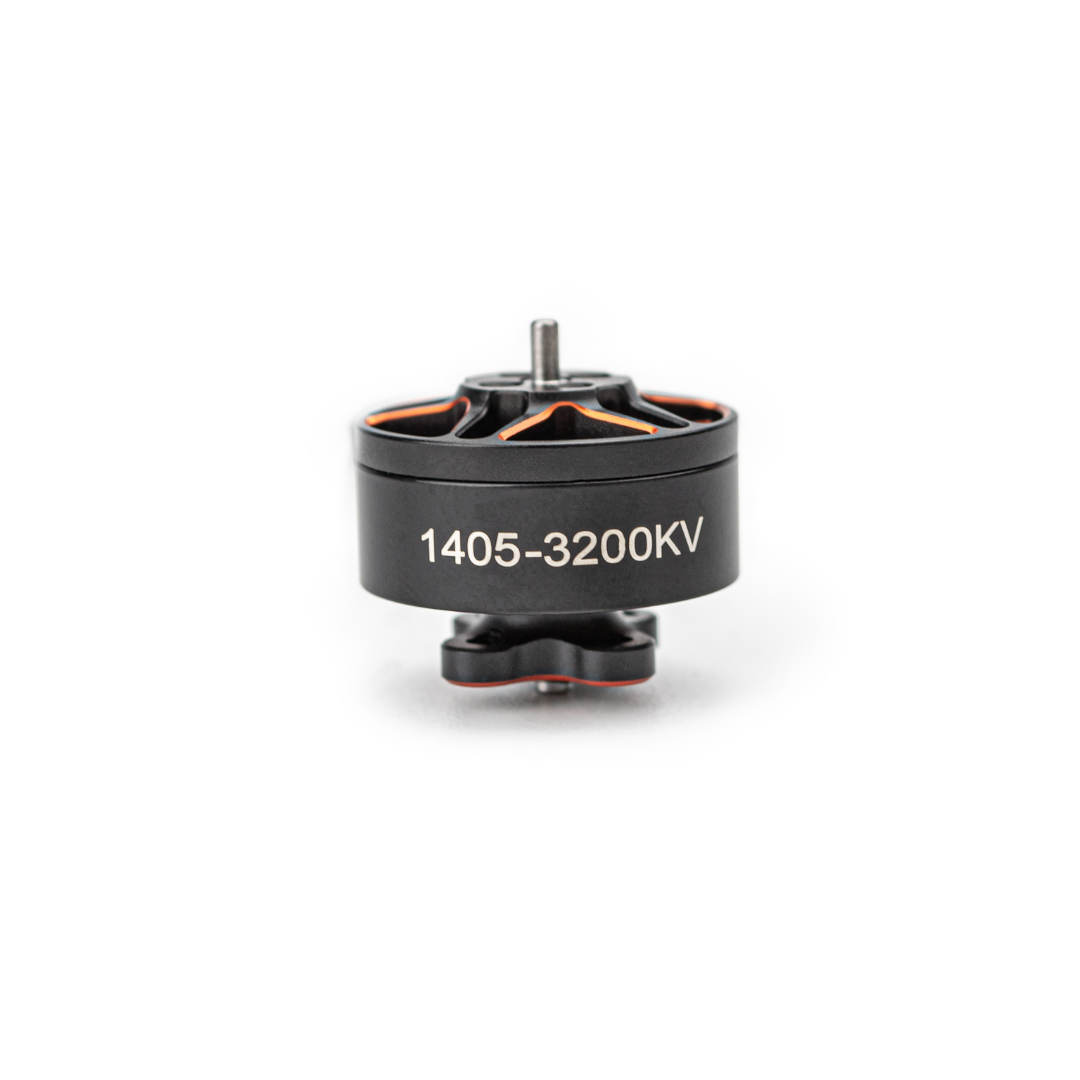

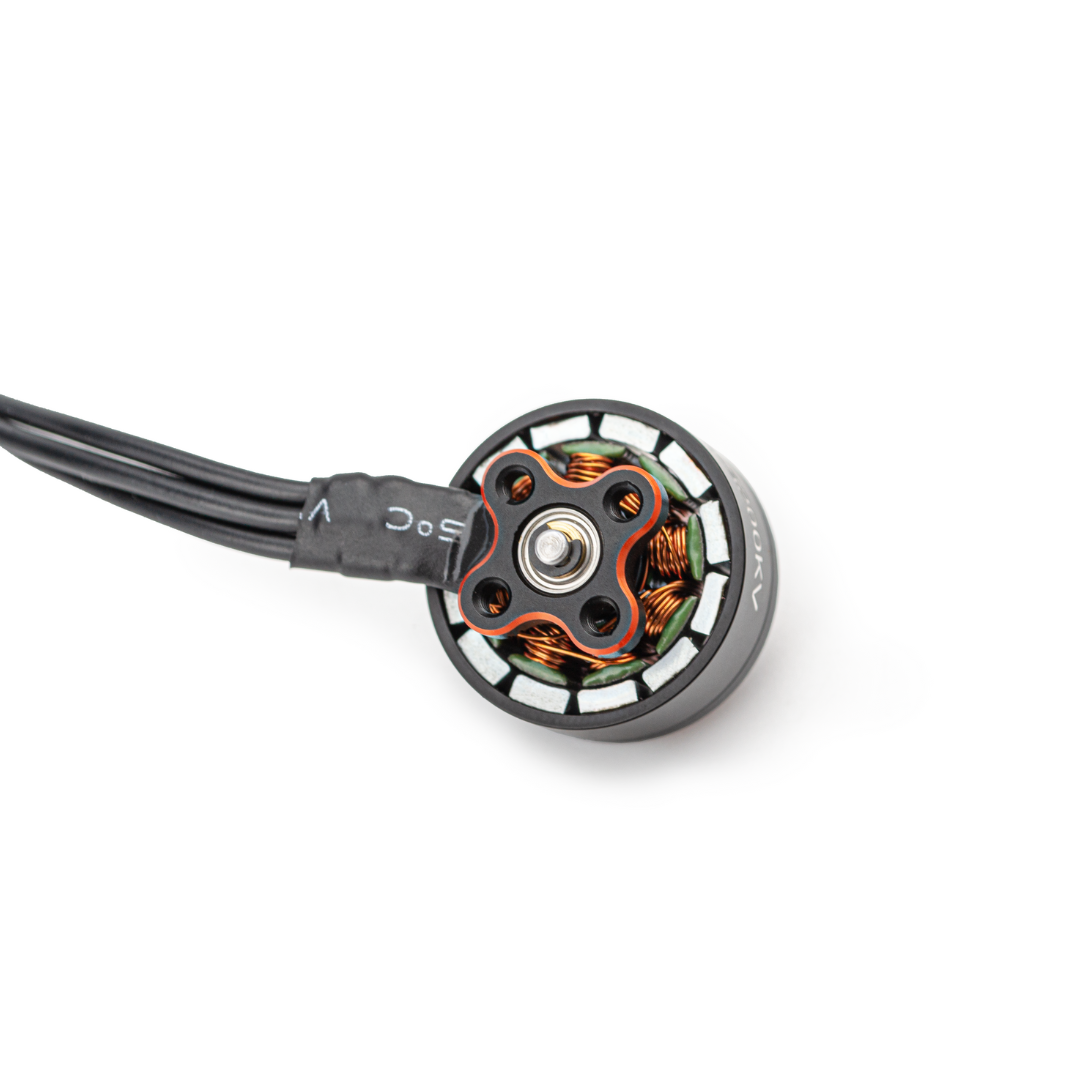

    Motor Pilotix 1405 3200KV

The Pilotix 1405 3200KV motor is designed for small FPV drones and offers a balance between power and efficiency. This motor features high-quality N52SH arc magnets and a compact design that ensures stable thrust and reliable performance. Compatible with 6S configurations, it is suitable for pilots looking for smooth acceleration and consistent power delivery in flight.

Specifications:

Model: Pilotix 1405-3200KV
KV: 3200KV
Magnets: N52SH arc
Stator size: 14xL5mm
Dimensions: 19xL17.4mm
Configuration: 9S12P
Internal resistance: 270 mΩ
Shaft length: 3 mm
Rated voltage: 6S (24V)
Peak current: 12.01A
Shaft diameter: 1.5 mm
Propeller: 2.5 inches
Silicone wire: 24 AWG 100 mm
Maximum instantaneous power: 288.24 W
Quiescent current (10 V): 0.4 A
Weight (including cable): 12.3 g

The package contains:
1 x Pilotix 1405 3200KV motor
