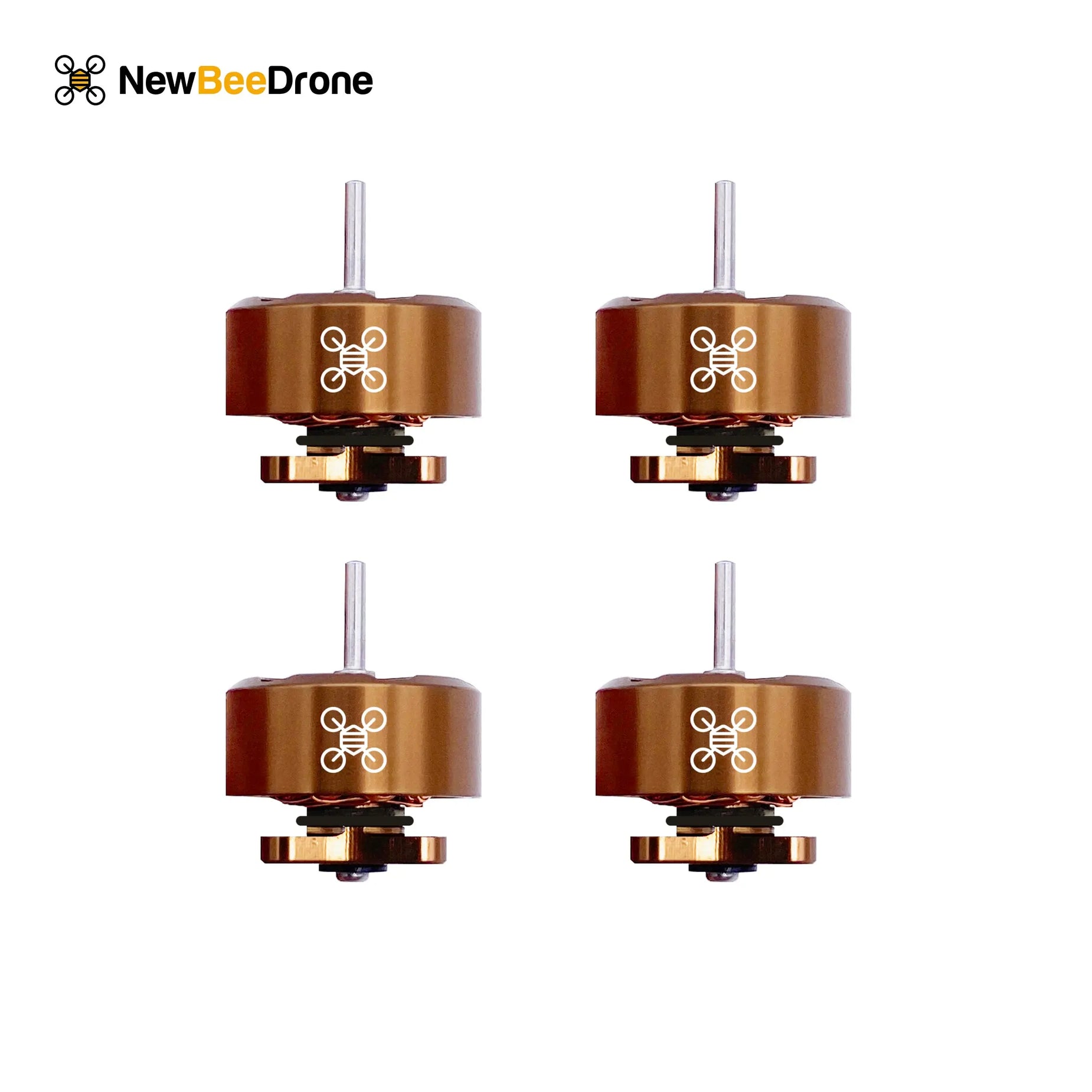

Motor NewBeeDrone 0802 14000KV Brushless Motors Espresso Edition (4 pcs)

NewBeeDrone 0802 14000KV AC Motors - Unibell Espresso Edition (Set of 4) are high performance micro drone motors designed for smooth and efficient power transfer at 2S (7.4V) voltage. As the second generation in the series, these engines are equipped with a durable Unibell construction combined with a two-stage shaft for better reliability and balance. Removing the C-clips on top of the bell improves the dynamic balance and overall smoothness of the engine.

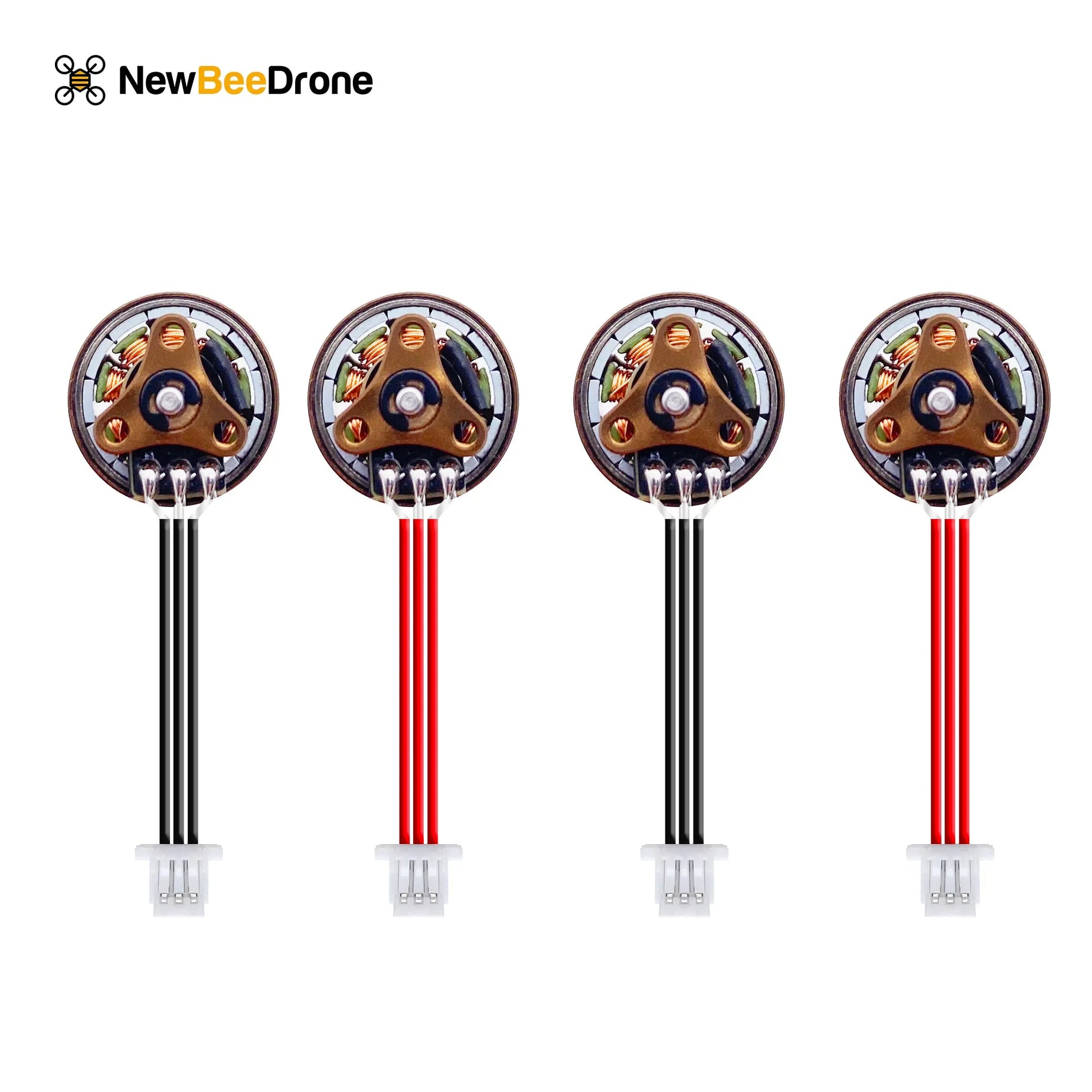

Each motor comes with pre-installed JST-1.0 connectors that are fully compatible with BeeBrain Brushless flight controllers and includes an additional set of Micro JST-1.25 connectors for flexible setup options. These motors are ideal for high speed, precision indoor flying or racing on lightweight 2S whoops.

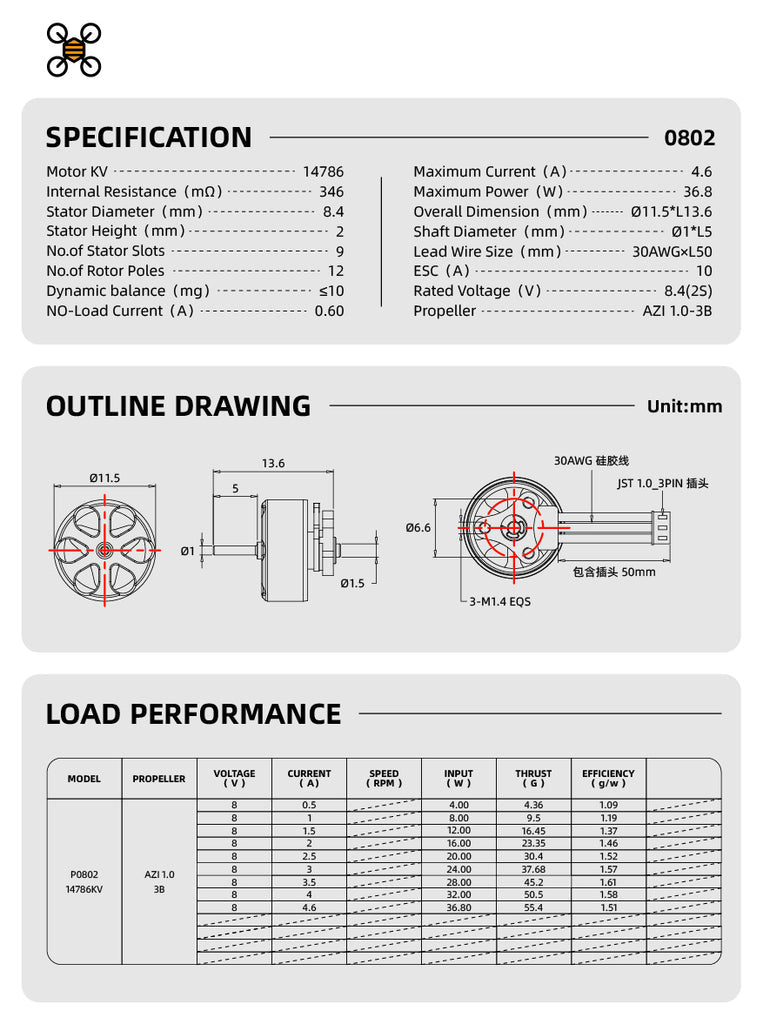

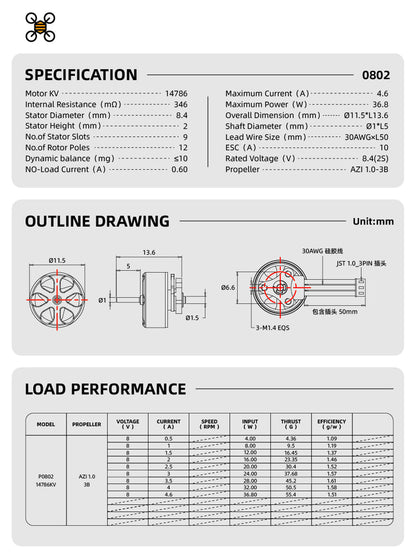

Specifications:

Engine size: 0802
Engine KV: 14786
Internal resistance (mΩ): 346
Stator diameter (mm): 8.4
Stator height (mm): 2
Number of slots in the stator: 9
Number of rotor poles: 12
Dynamic balance (mg): ≤10
No load current (A): 0.60
Maximum current (A): 4.6
Maximum power (W): 36.8
Overall dimensions (mm): Ø11.5 × D13.6
Shaft diameter (mm): Ø1 × D5
Lead Wire Size (mm): 30AWG × L50
ESC (A): 10
Rated voltage (V): 8.4 (2S)
Propeller: PROPELLER: AZI 1.0-3B

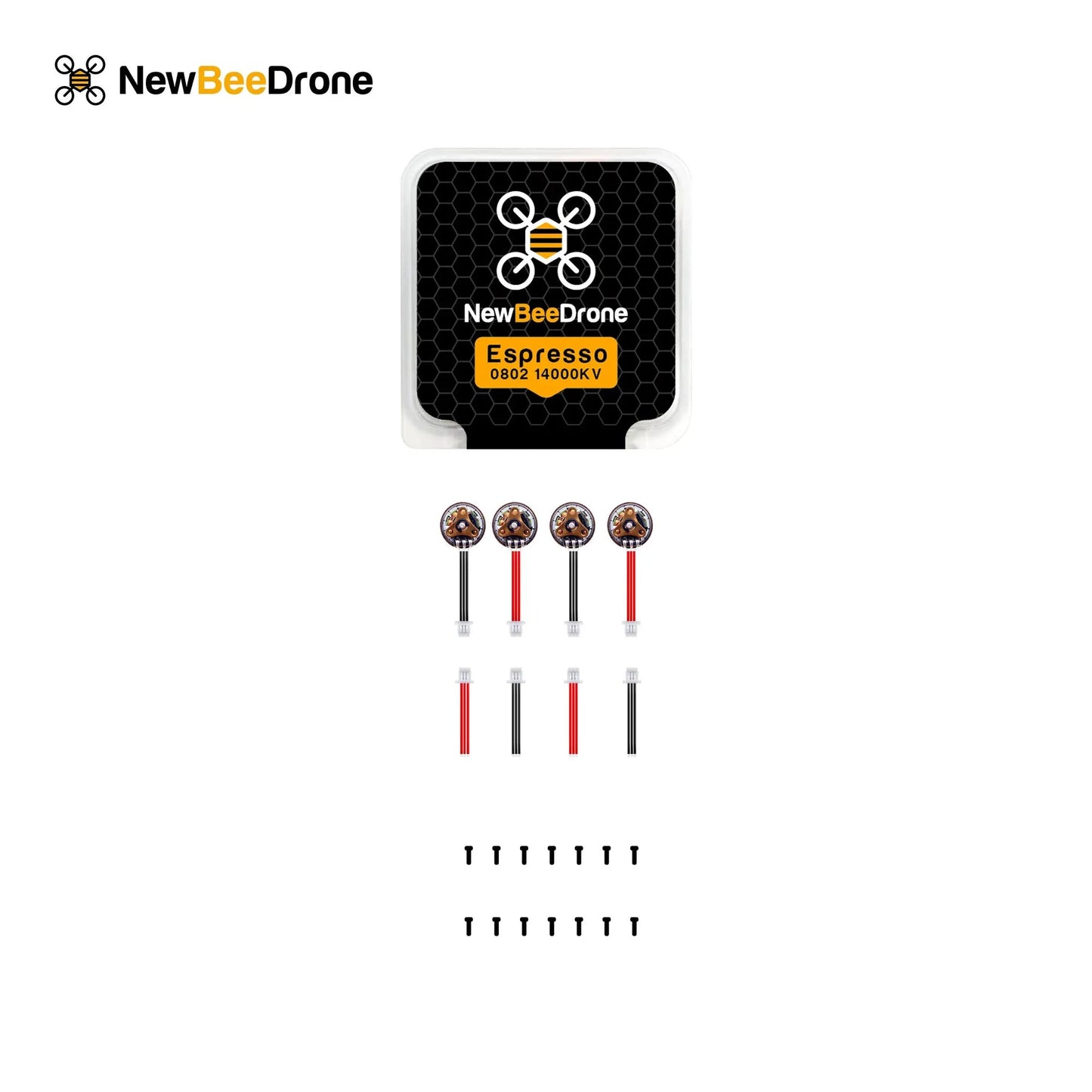

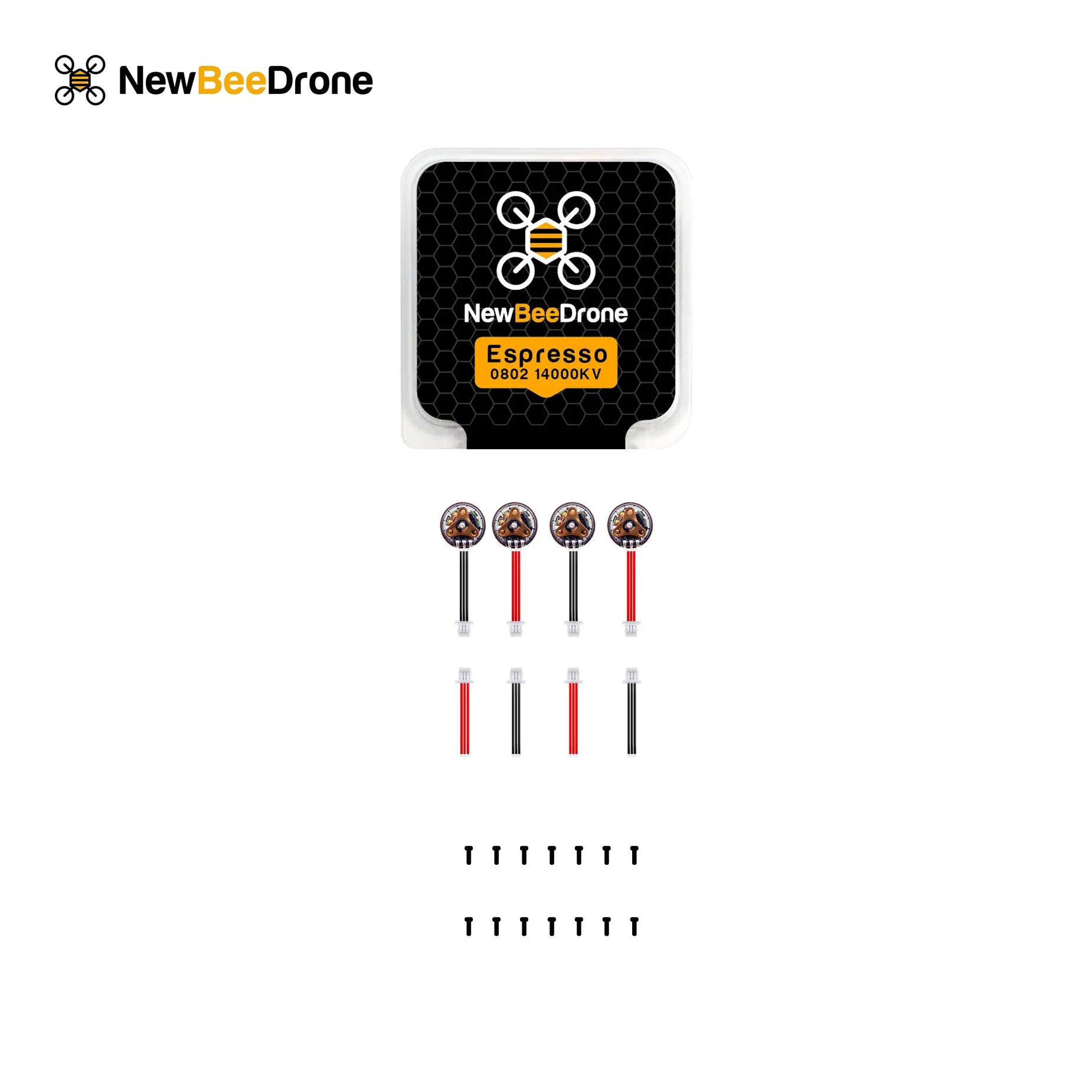

The package contains:

4 x NewBeeDrone 0802 14000KV Brushless Motors Espresso Edition
