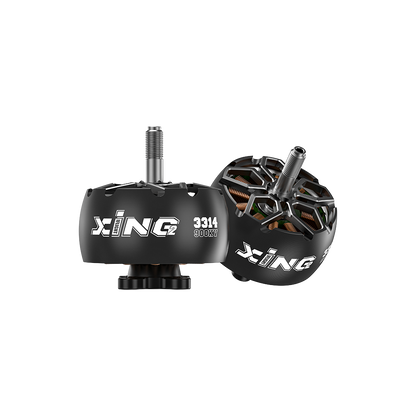

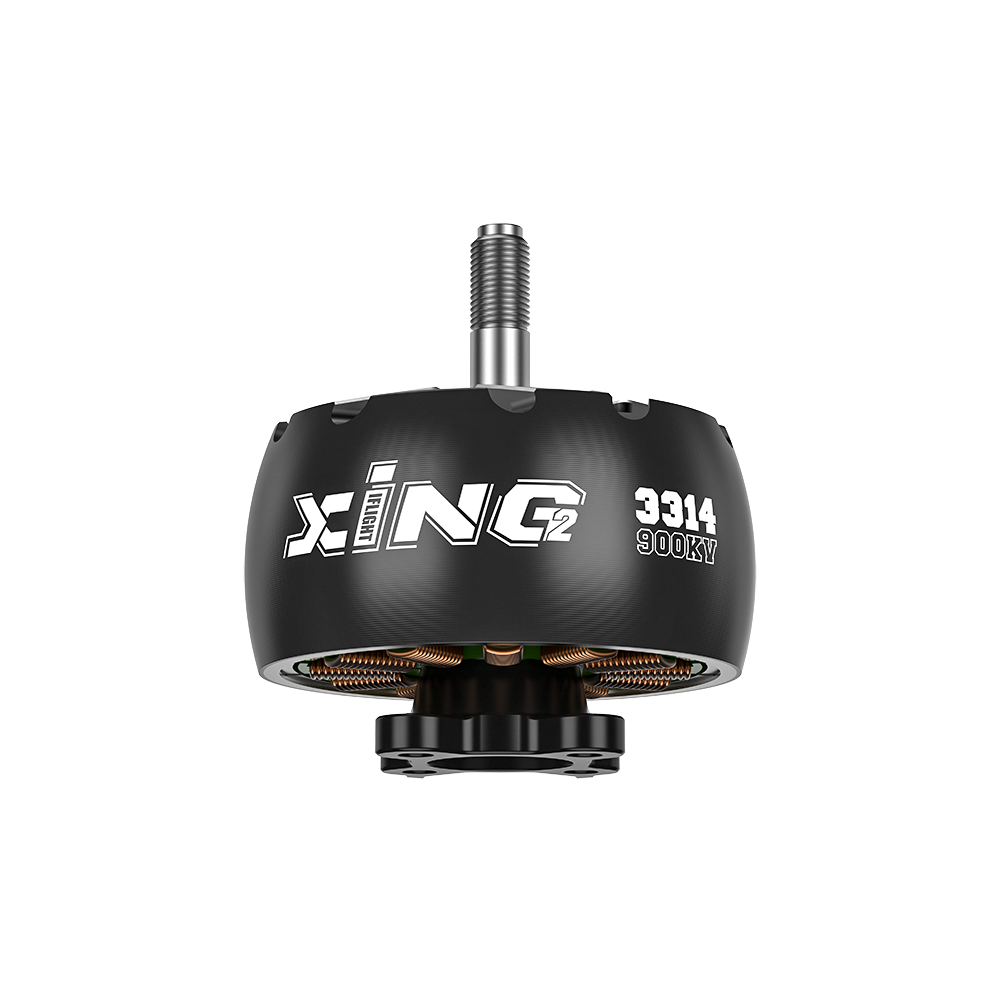

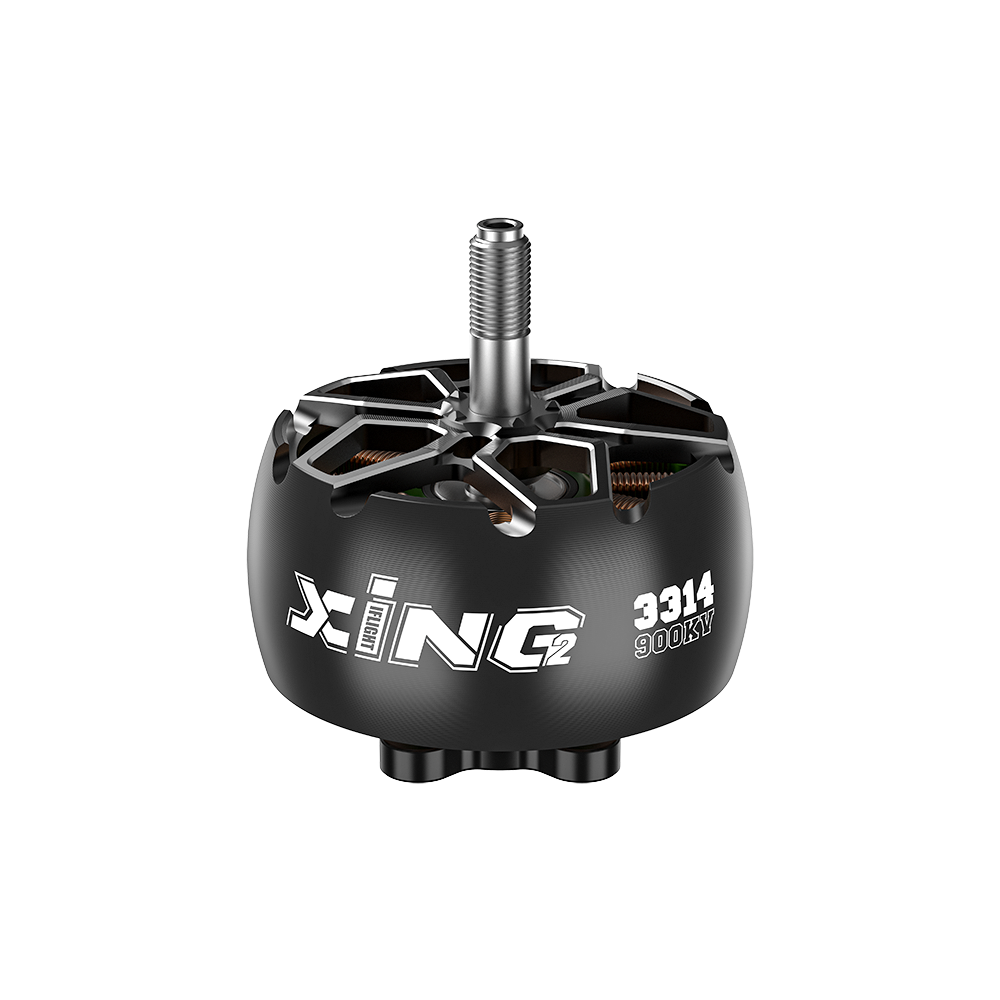

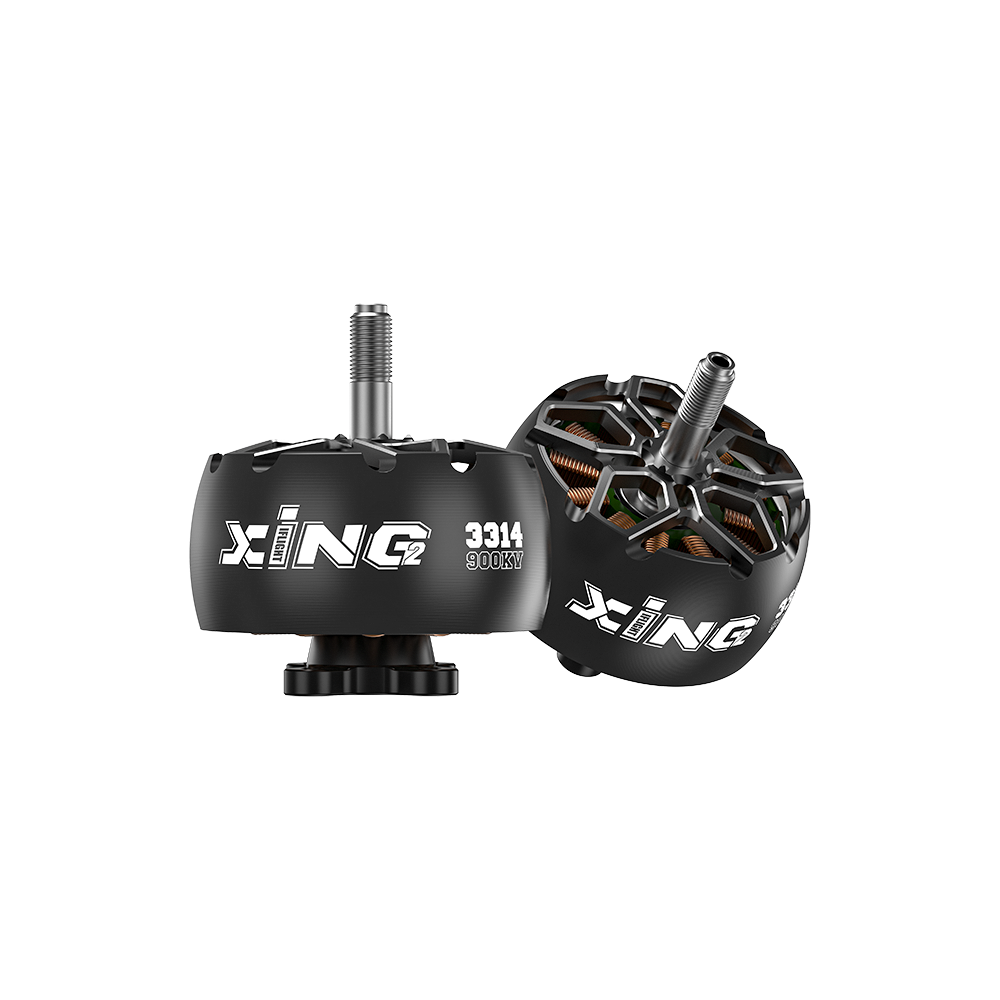

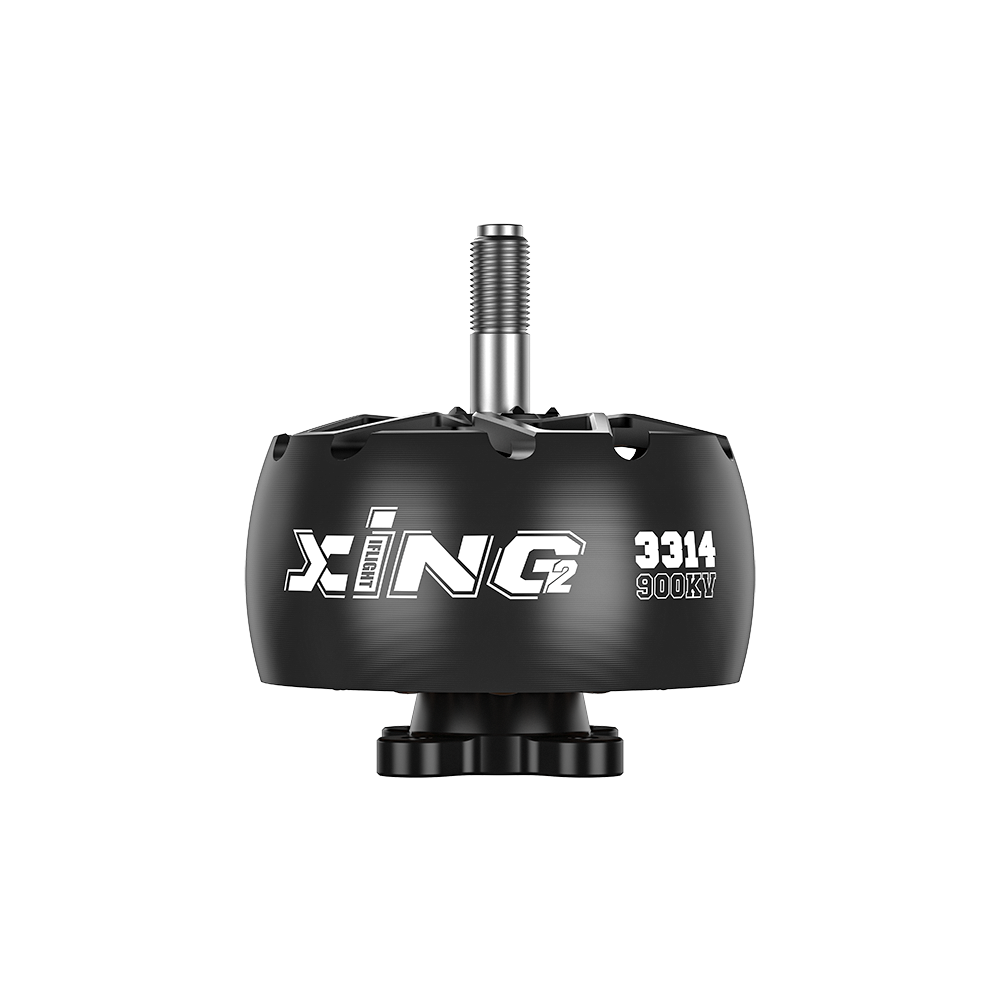

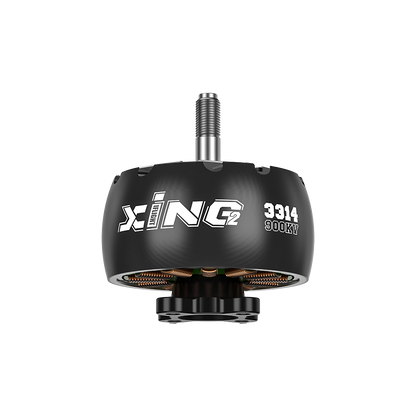

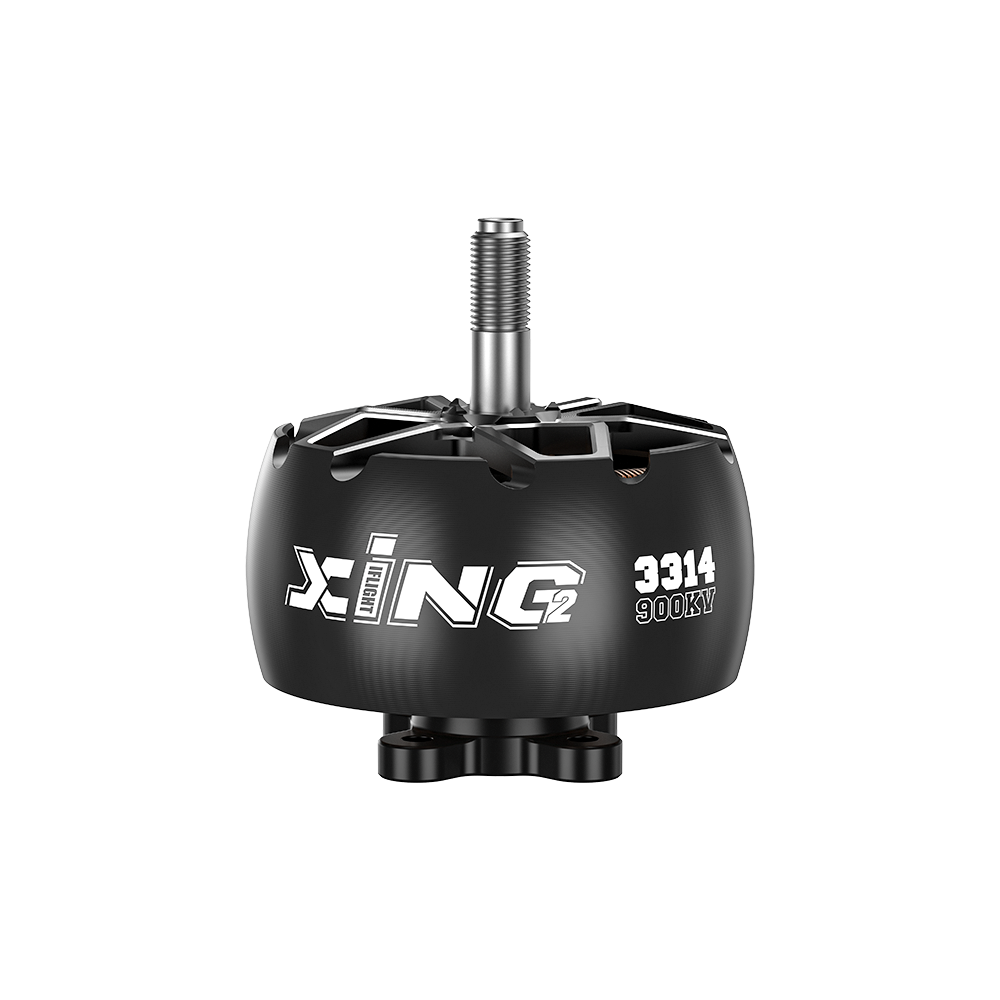

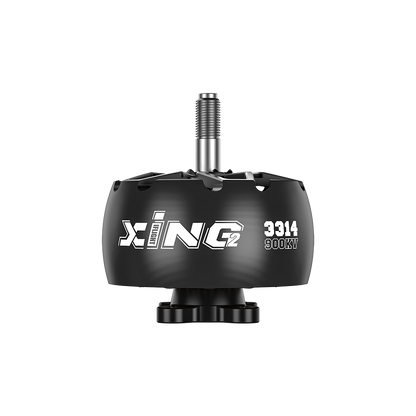

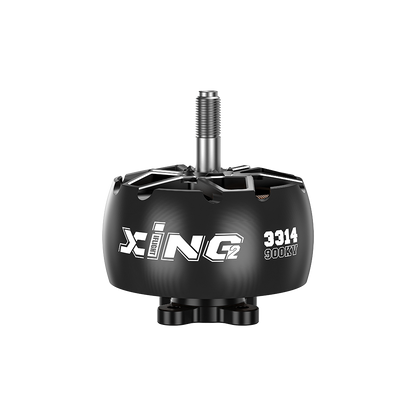

Motor iFlight XING2 3314 Unibell 900KV
Motor iFlight XING2 3314 Unibell 900KV
Brand: iFlight
Regular price
€49,00
Regular price
€49,00
Sale price
€49,00
Unit price
/
per
Upon request
We need to check the product availability with our supplier. Please contact us for details.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion

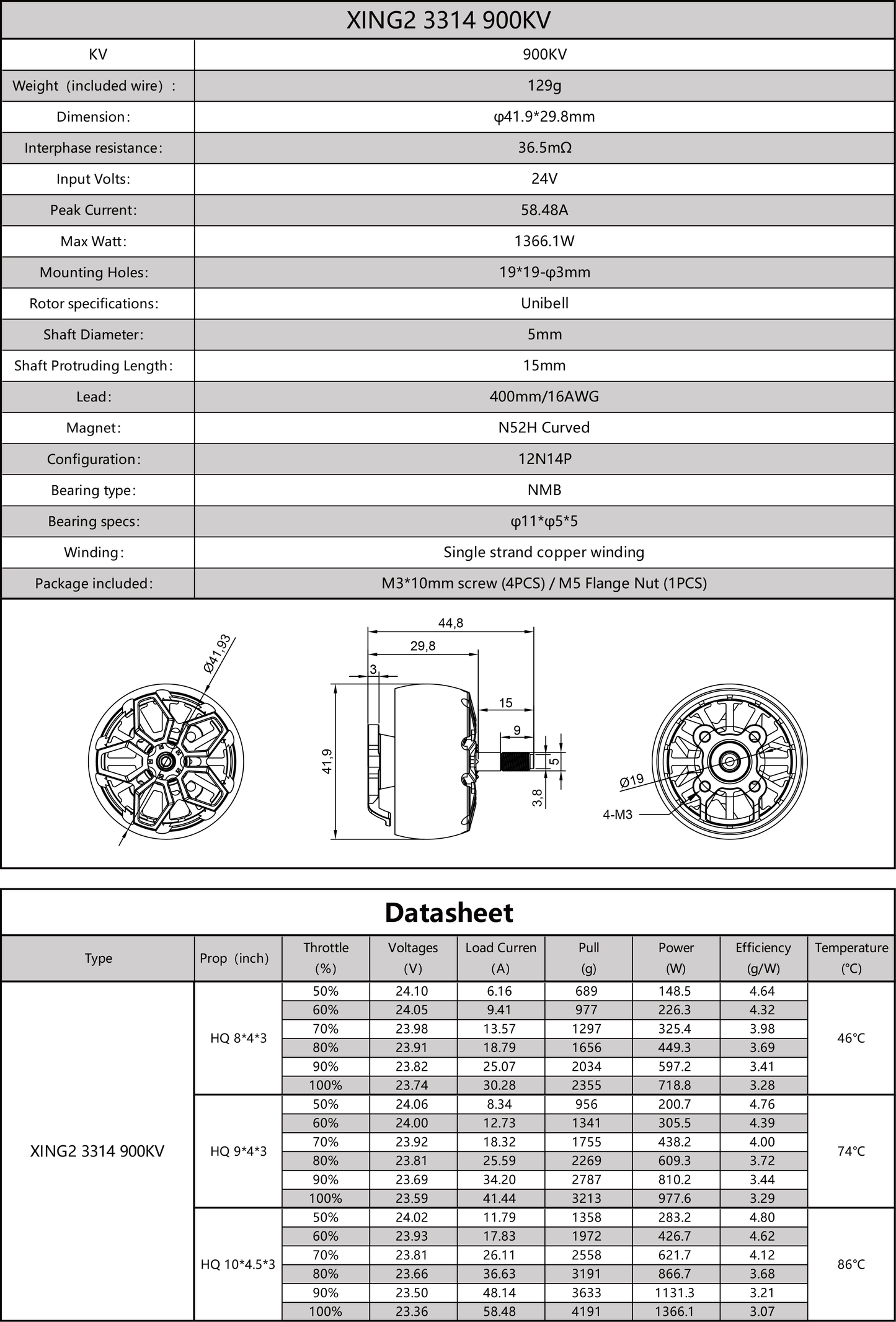

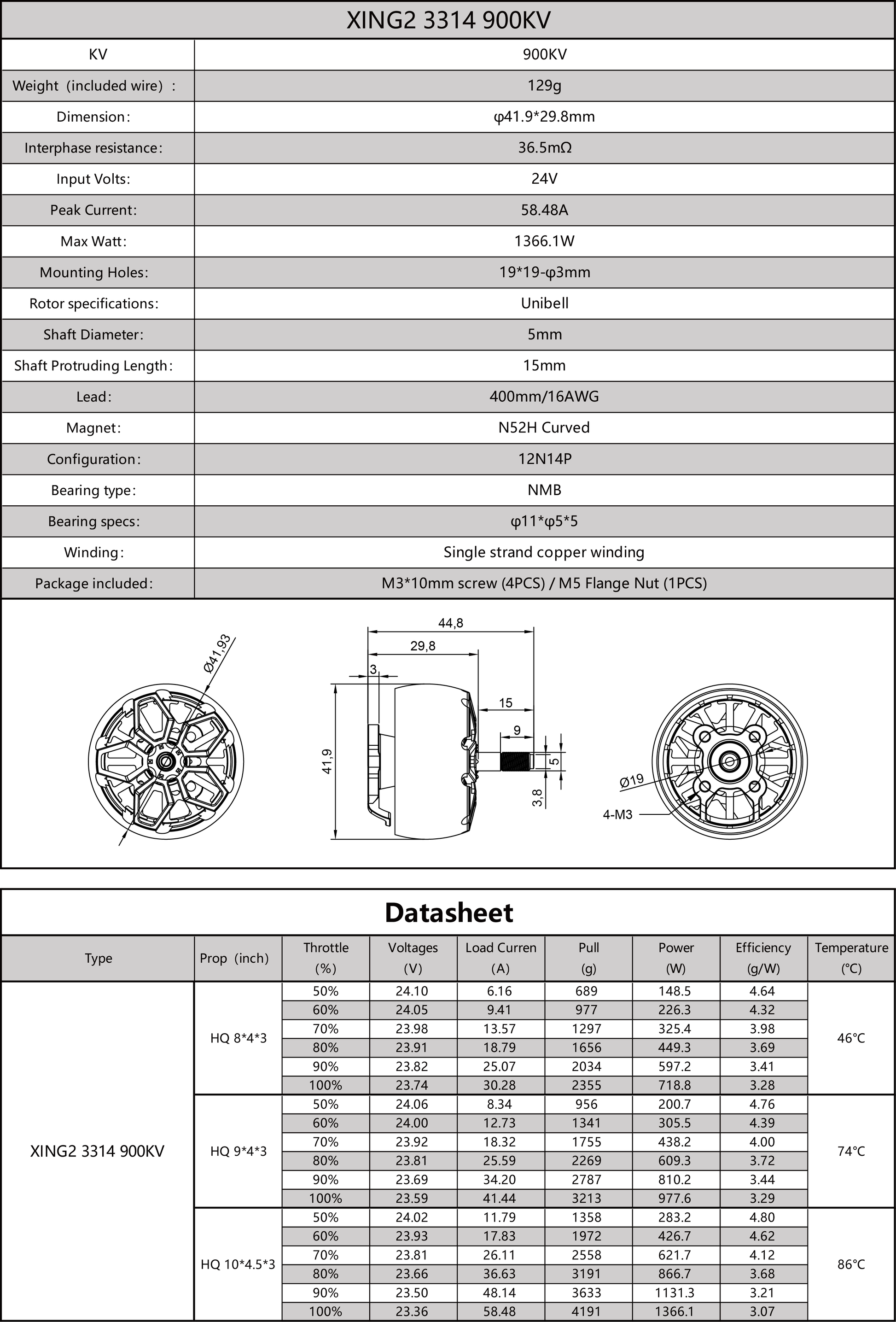

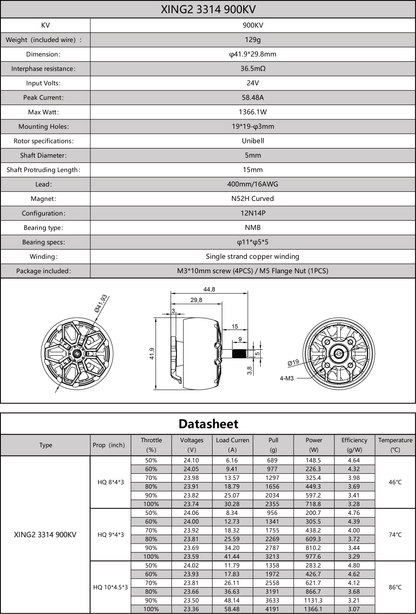

XING2 3314 Unibell 900KV motor The upgraded XING2 motors feature new N52H curved arc magnets with a center groove for faster response time, solving a common bottleneck in FPV flight controllers. Thanks to improved materials and a durable bell-to-shaft connection, the magnet air gap and stator lamination are minimized, resulting in increased efficiency and performance. The length of the protruding motor shaft is available in 15mm and 17mm specifications and will be sent at random. Specifications: Model: Xing2 3314 KV: 900 KV Weight (including wire): 129 g Size: φ41.9*29.8mm Interphase resistance: 36.5Ω Input voltage: 24V Peak current: 58.48A Maximum wattage: 1366.1W Mounting holes: 19*19 φ3mm Rotor specifications: Unibell Shaft diameter: 5 mm Length of protruding shaft: 15 mm / 17 mm Lead: 400mm/16AWG Magnet: N52H Curved Configuration: 12N14P Bearing type: NMB Bearing specifications: φ11*5*5 Winding: Single-core copper winding The package includes: 1 x XING2 3314 brushless motor 4x M3x10 screw 1 x M5 flange nut
