Code: SKU:X014406

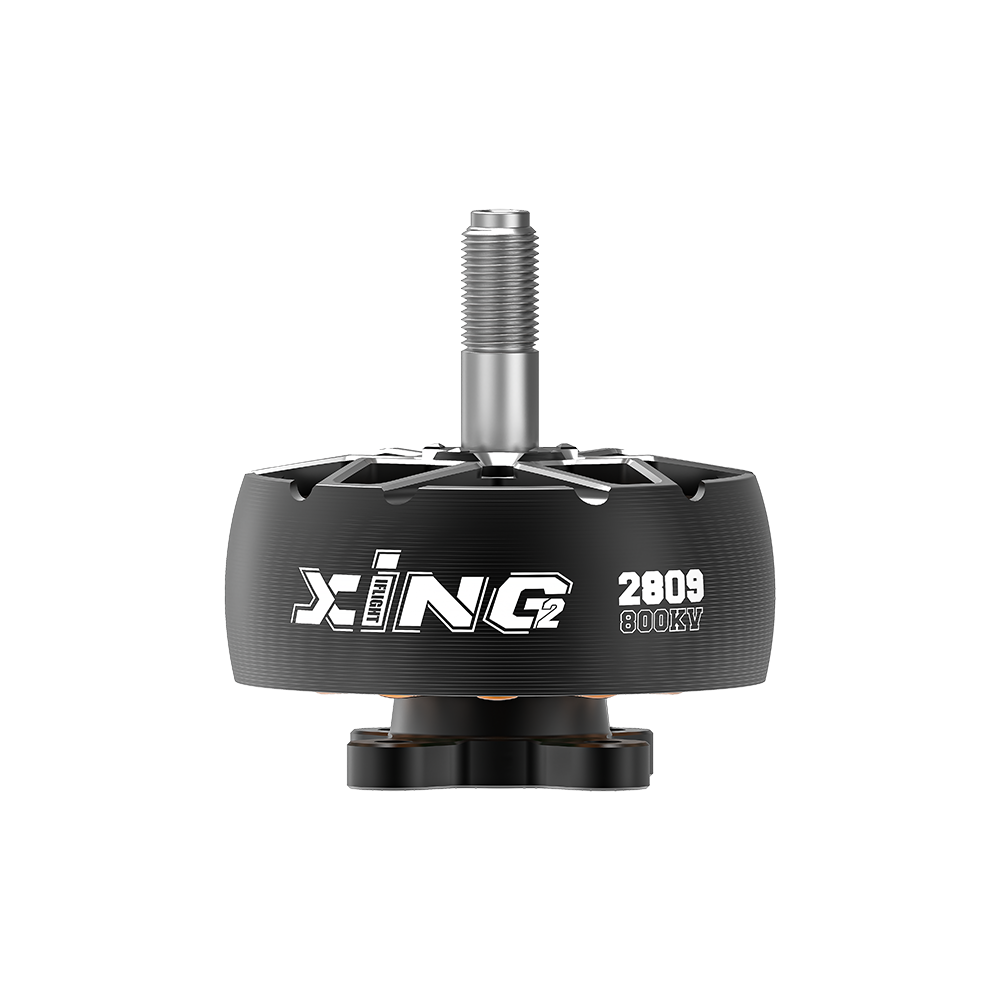

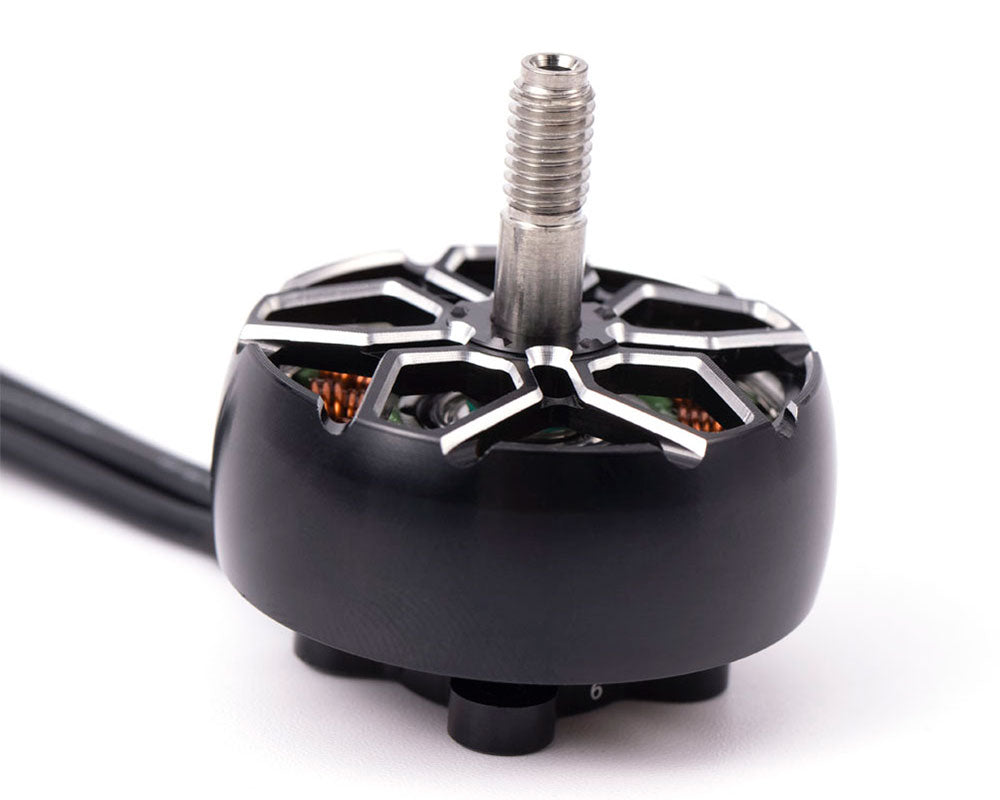

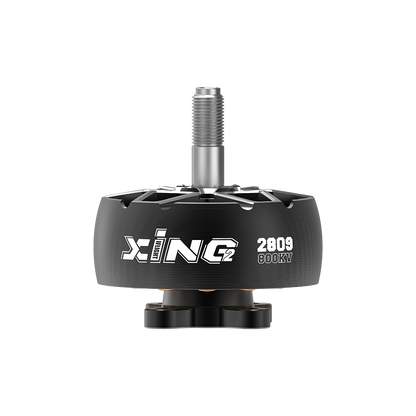

Motor iFlight XING2 2809 Black 800KV
Motor iFlight XING2 2809 Black 800KV
Brand: iFlight
Regular price
€35,90
Regular price
€35,90
Sale price
€35,90
Unit price
/
per
Upon request
We need to check the product availability with our supplier. Please contact us for details.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion

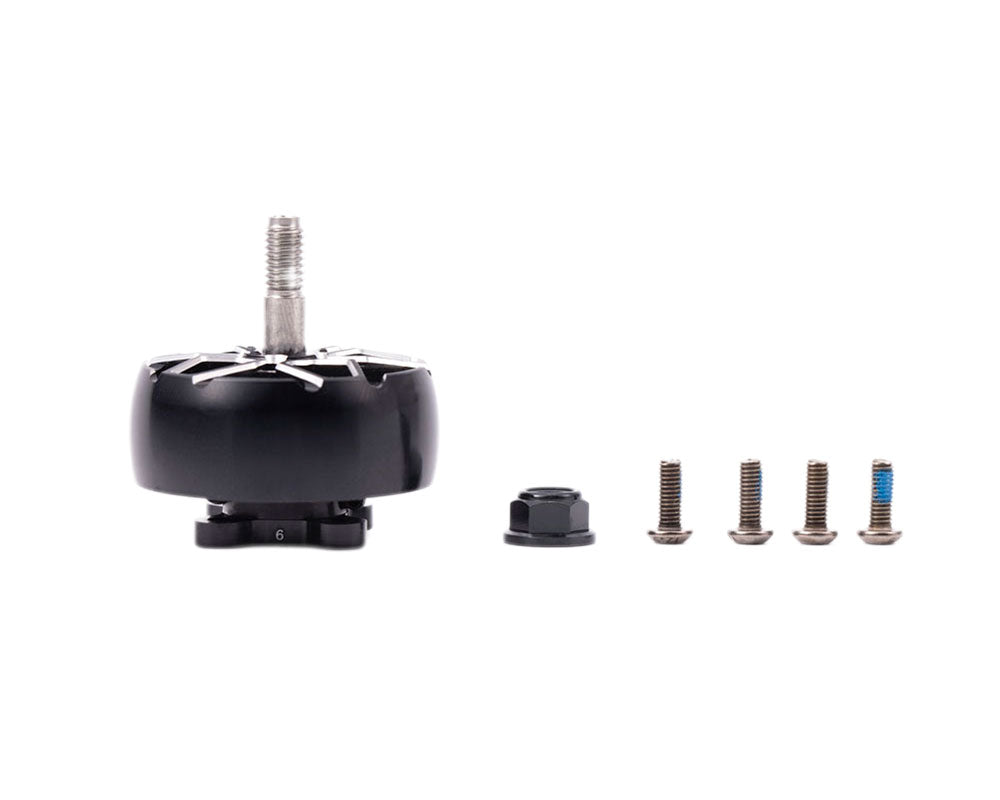

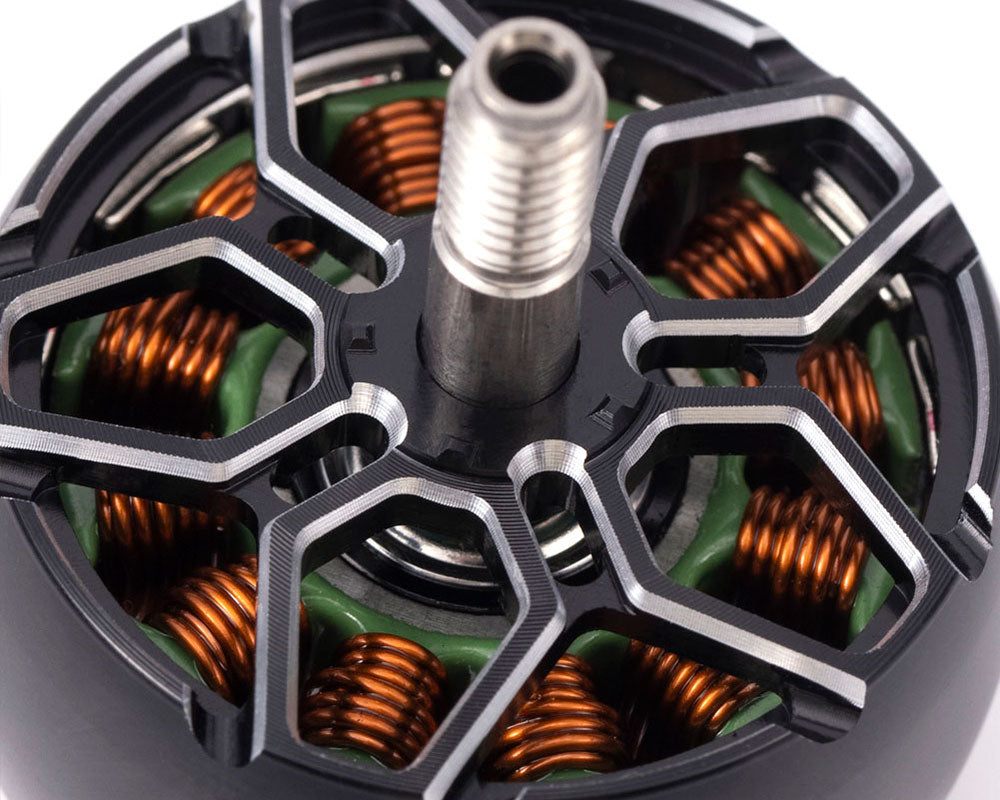

XING2 2809 FPV Black Motor 800KV The upgraded XING2 motors feature new N52H curved arc magnets with a center groove for faster response time and provide a locked-in feel for smoother flight. Due to the high quality materials and durable bell shaft joint, the air gap of the magnet and the stator lamination are minimized, resulting in increased efficiency and performance. Function - 5mm titanium alloy shaft, our strongest propeller shaft ever! - Impact resistant 7075 aluminum bell - NSK 11x5x5 smooth bearings with long service life - N52H Curved Arc Magnets with Center Groove - Bearing gap protection with XING O-ring - Motor wire protector - Dynamically balanced Specifications: Model: XING2 2809 engine KV: 800 KV Weight (including wire): 60.7 g Size: φ35.33*21.7mm Phase-to-phase resistance: 65.46 mΩ Input voltage: 24V Peak current: 25.63A Maximum wattage: 610.3W Mounting holes: 19*19 φ3mm Rotor specifications: Unibell Shaft diameter: 5 mm Length of protruding shaft: 15 mm Lead: 260mm/18AWG Magnet: N52H Curved Configuration: 12N14P Bearing type: NSK Bearing specifications: φ11*φ5*5 Winding: Single-core copper winding The package includes: 1 x XING2 2809 brushless motor 4x M3x8 screw 1 x M5 flange nut
