    Code: X009419

    Motor iFlight XING2 2604 Unibell 1650KV

    Motor iFlight XING2 2604 Unibell 1650KV

    Brand: iFlight

    €24,24
    €24,24 €24,24
    -0% View Product
    Upon request
    We need to check the product availability with our supplier. Please contact us for details.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion
    XING2 2604 FPV Motor Unibell 1650KV

Function:

- 5mm titanium alloy shaft, our strongest propeller shaft ever!
- NSK 9x4x4 smooth bearings with long service life
- N52H Curved Arc Magnets with Center Groove
- Bearing gap protection with XING O-ring
- Impact resistant 7075 aluminum bell
- Motor wire protector
- Dynamically balanced

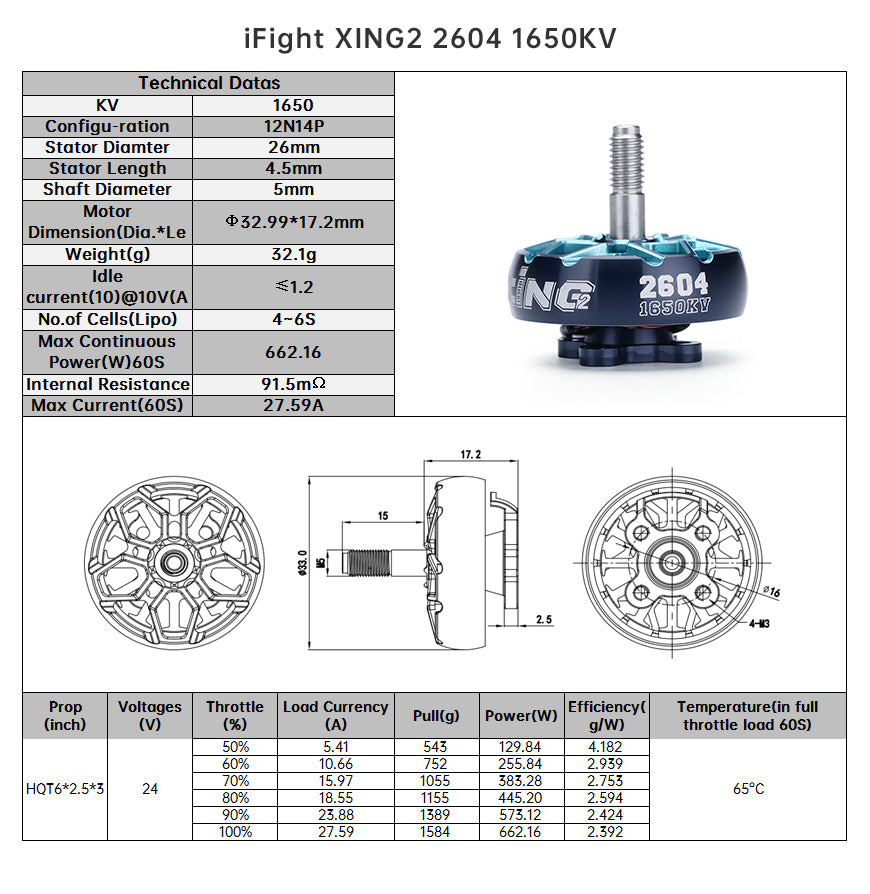

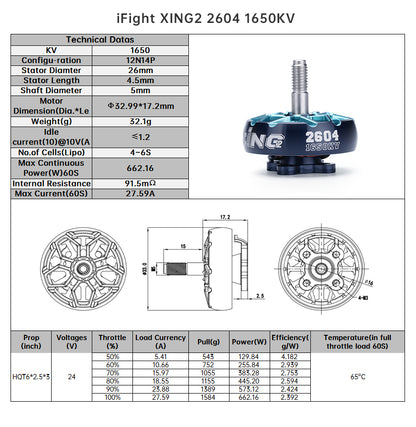

Specifications:

Model: XING2 2604 engine
KV: 1650 KV
Weight (including wire): 34.4g
Size: φ33*17.2mm
Interphase resistance: 91.5 mΩ
Input voltage: 4-6S
Peak current: 39.55A
Maximum wattage: 949W
Mounting holes: 16*16 φ3mm
Rotor specifications: Unibell
Shaft diameter: 5 mm
Length of protruding shaft: 15 mm
Lead: 160mm/20AWG
Magnet: N52H Curved
Configuration: 12N14P
Bearing type: NSK
Bearing specifications: φ9*φ4*4
Winding: Single-core copper winding

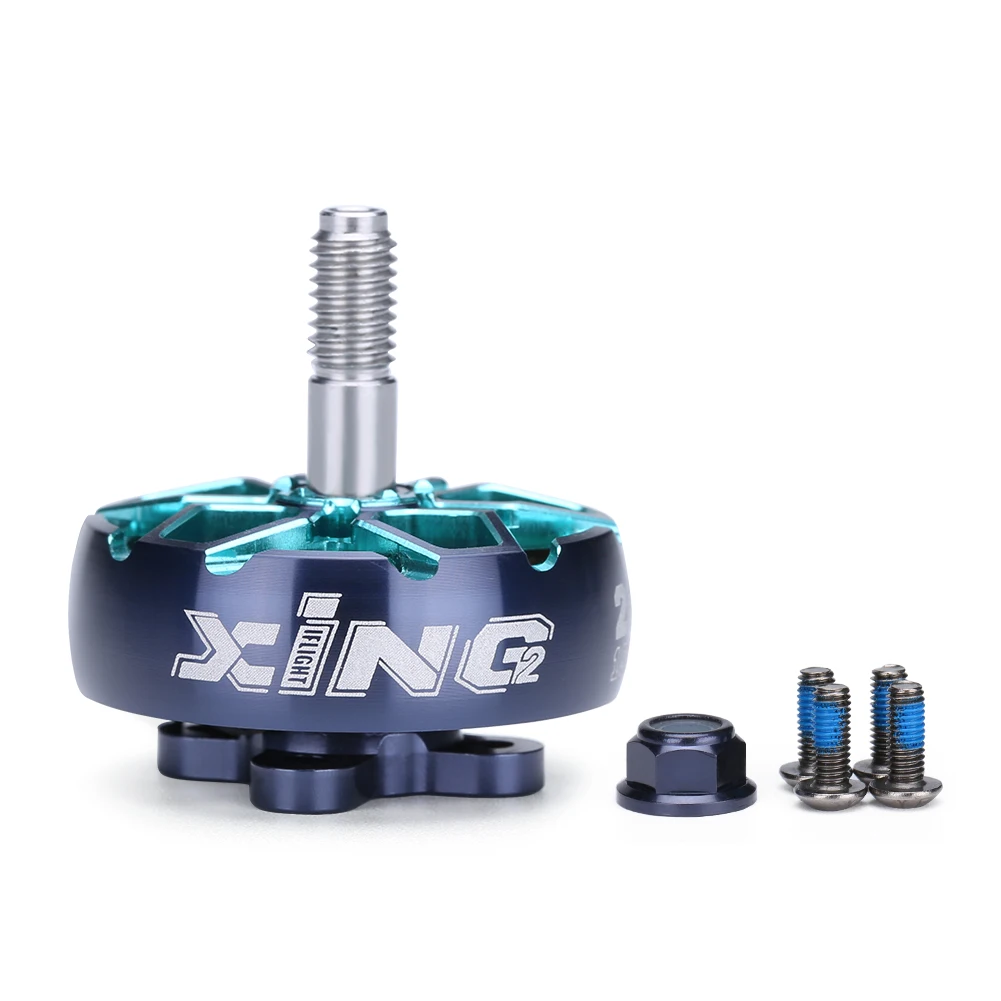

The package includes:
1x XING2 2604 brushless motor
4x M3x7 screws
1x M5 flange nut
