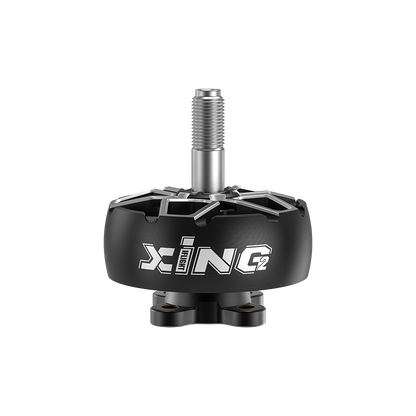

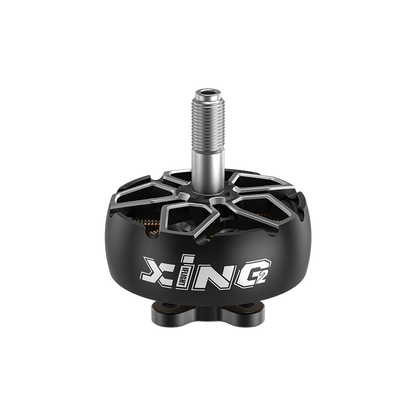

    Motor iFlight XING2 2506 Unibell 1500KV

    Motor iFlight XING2 2506 Unibell 1500KV

    Brand: iFlight

    €23,70
    €23,70 €23,70
    -0% View Product
    In stock
    We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion

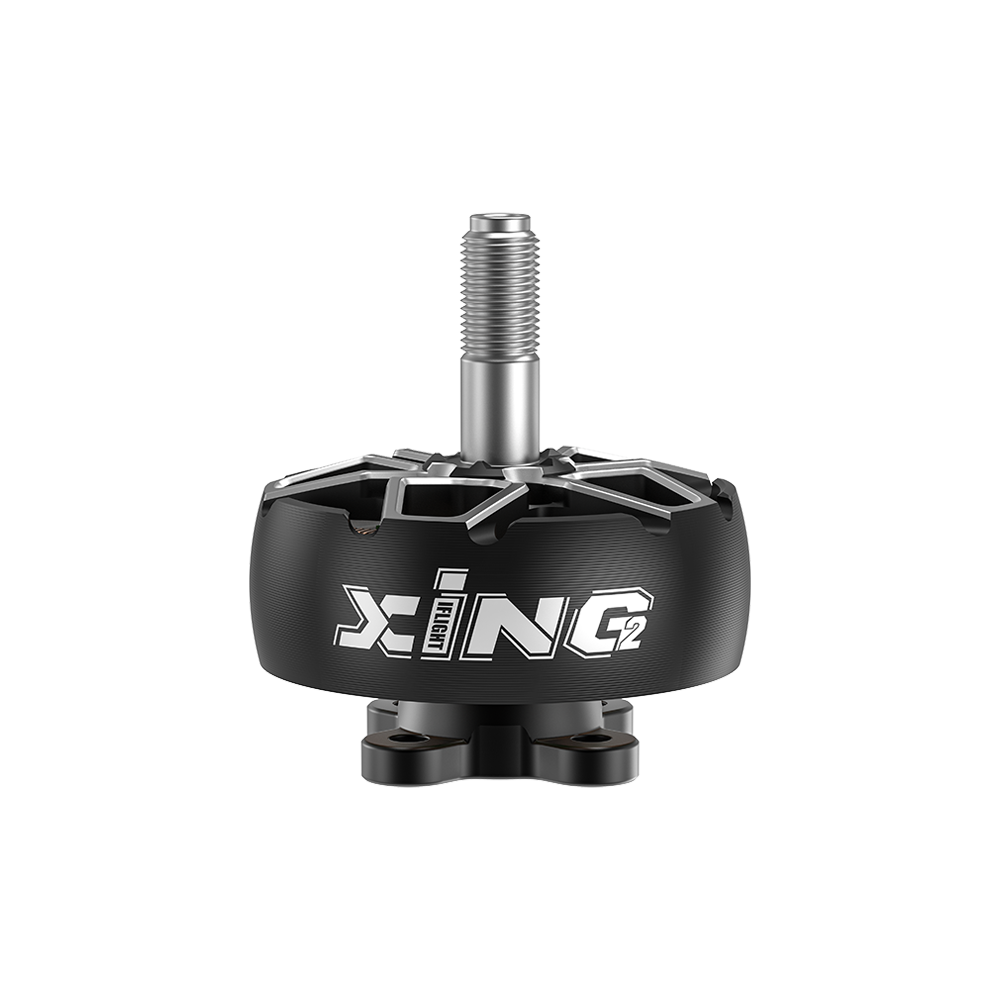

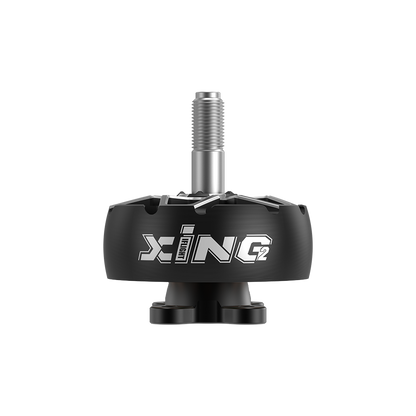

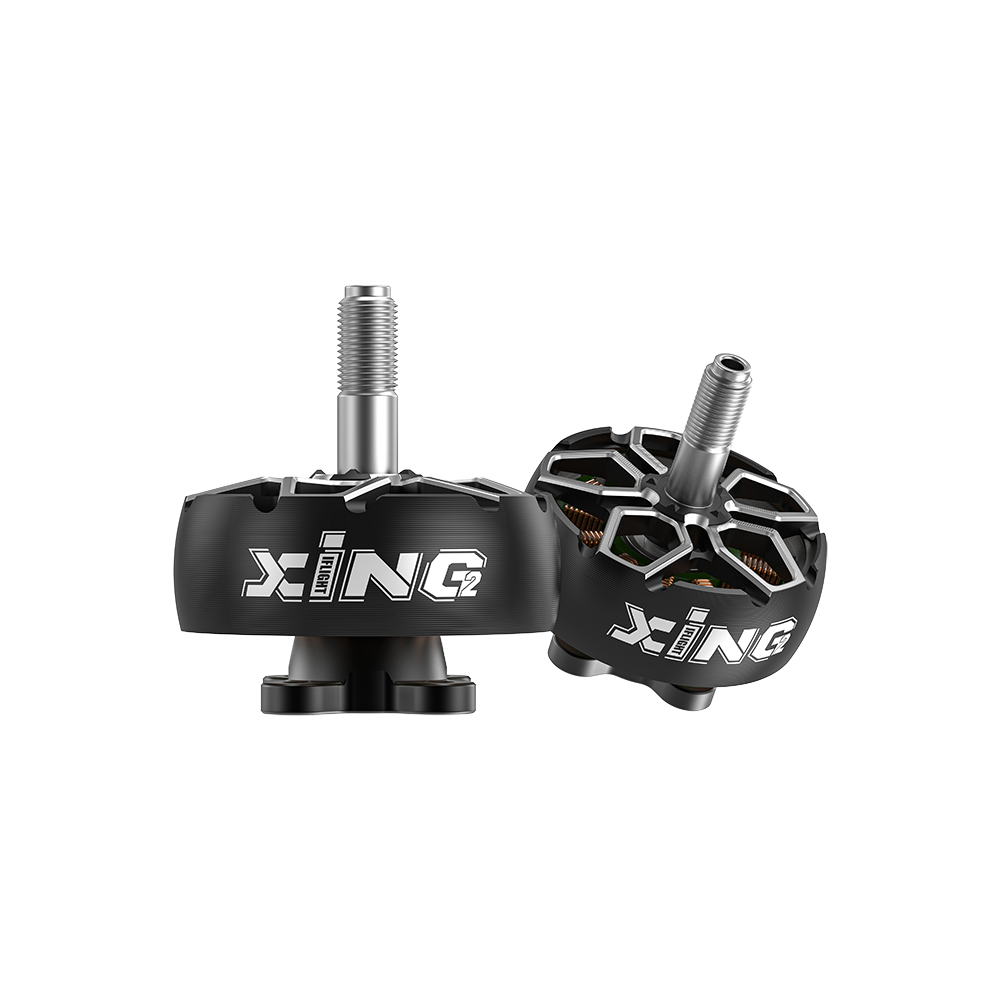

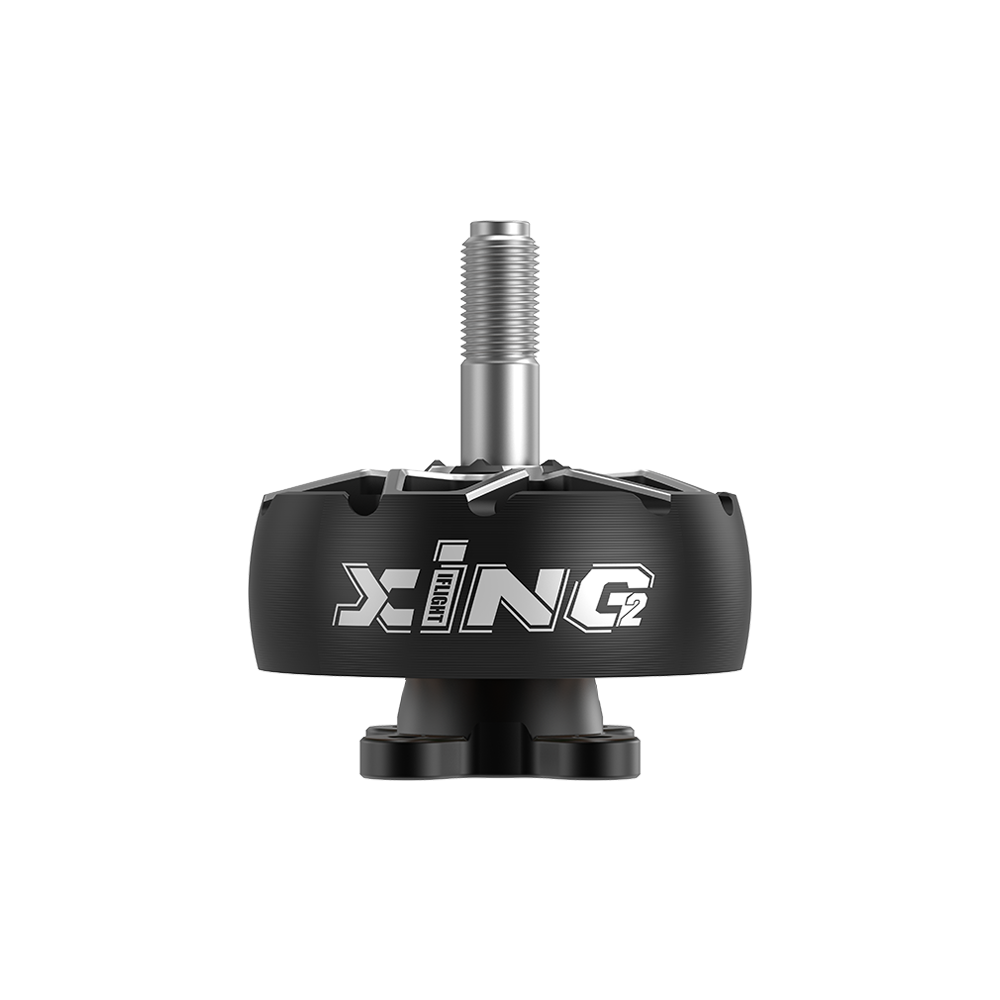

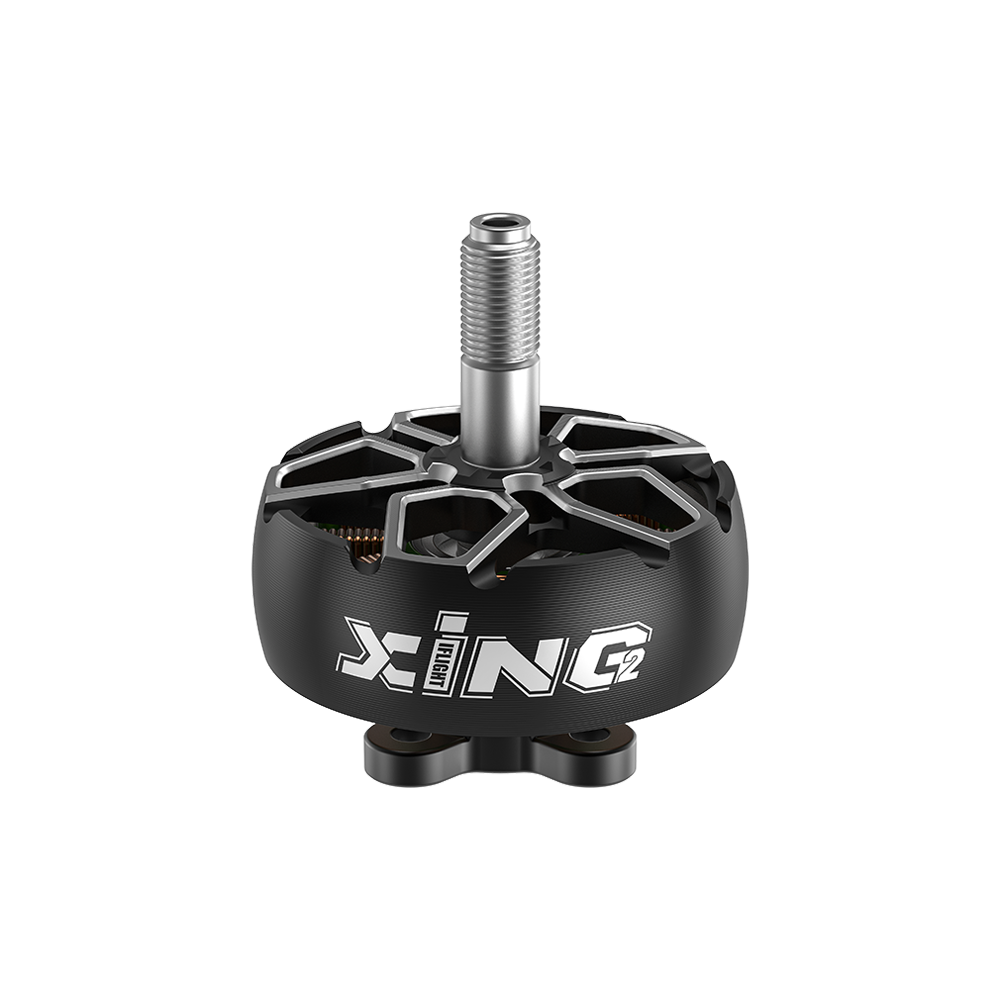

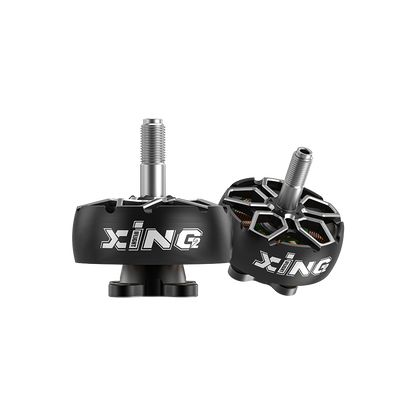

    XING2 2506 FPV Motor Unibell 1500KV

Function:

- 5mm titanium alloy shaft, our strongest propeller shaft ever!
- NSK 10x4x4 smooth bearings with long service life
- N52H Curved Arc Magnets with Center Groove
- Bearing gap protection with XING O-ring
- Impact resistant 7075 aluminum bell
- Motor wire protector
- Dynamically balanced

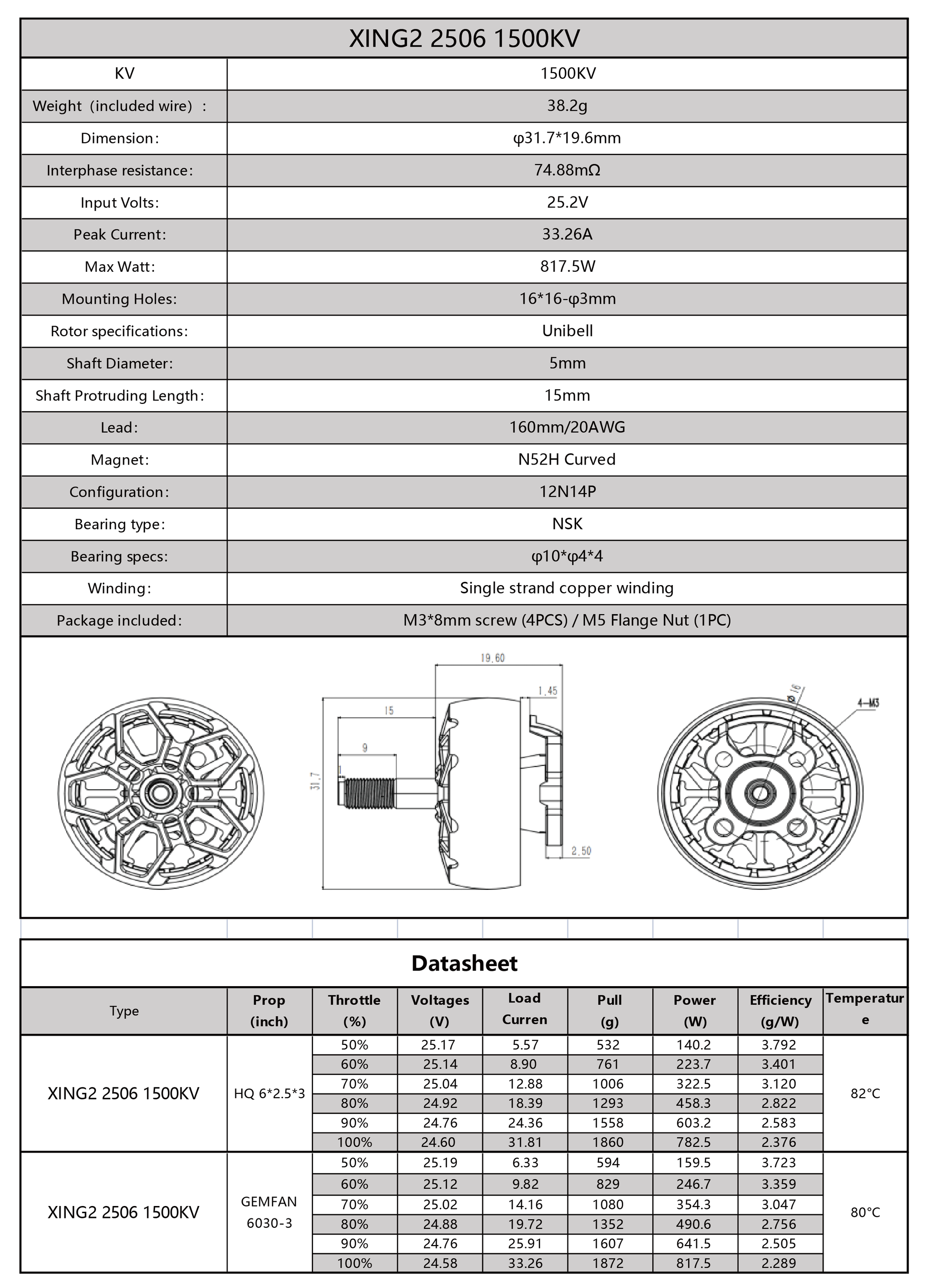

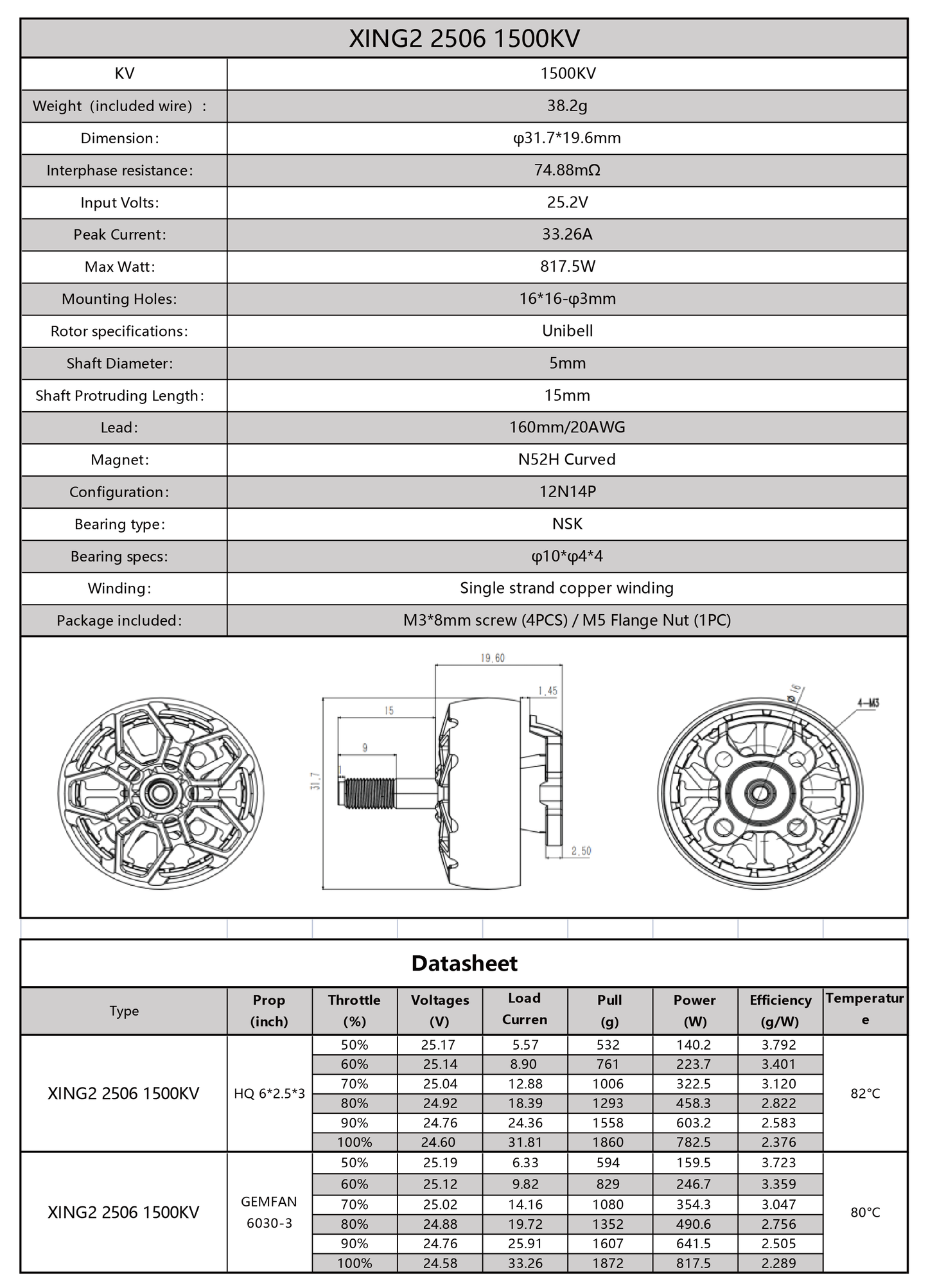

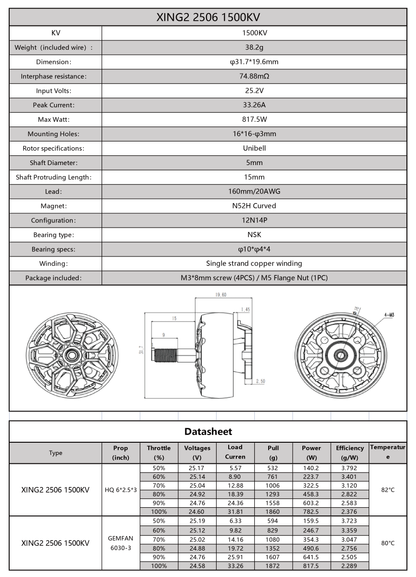

Specifications:

Model: XING2 2506 Black Motor
KV: 1500 KV
Weight (including wire): 38.2g
Size: φ31.7*19.6mm
Interphase resistance: 74.88 mΩ
Input voltage: 25.2V
Peak current: 33.26A
Maximum wattage: 817.5W
Mounting holes: 16*16 φ3mm
Rotor specifications: Unibell
Shaft diameter: 5 mm
Length of protruding shaft: 15 mm
Lead: 160mm-20AWG
Magnet: N52H Curved
Configuration: 12N14P
Bearing type: NSK
Bearing specifications: φ10*φ4*4
Winding: Single-core copper winding

The package includes:
1 x M5 flanged nylon lock nut
1 x XING2 2506 motor black
4x M3*8mm screws
