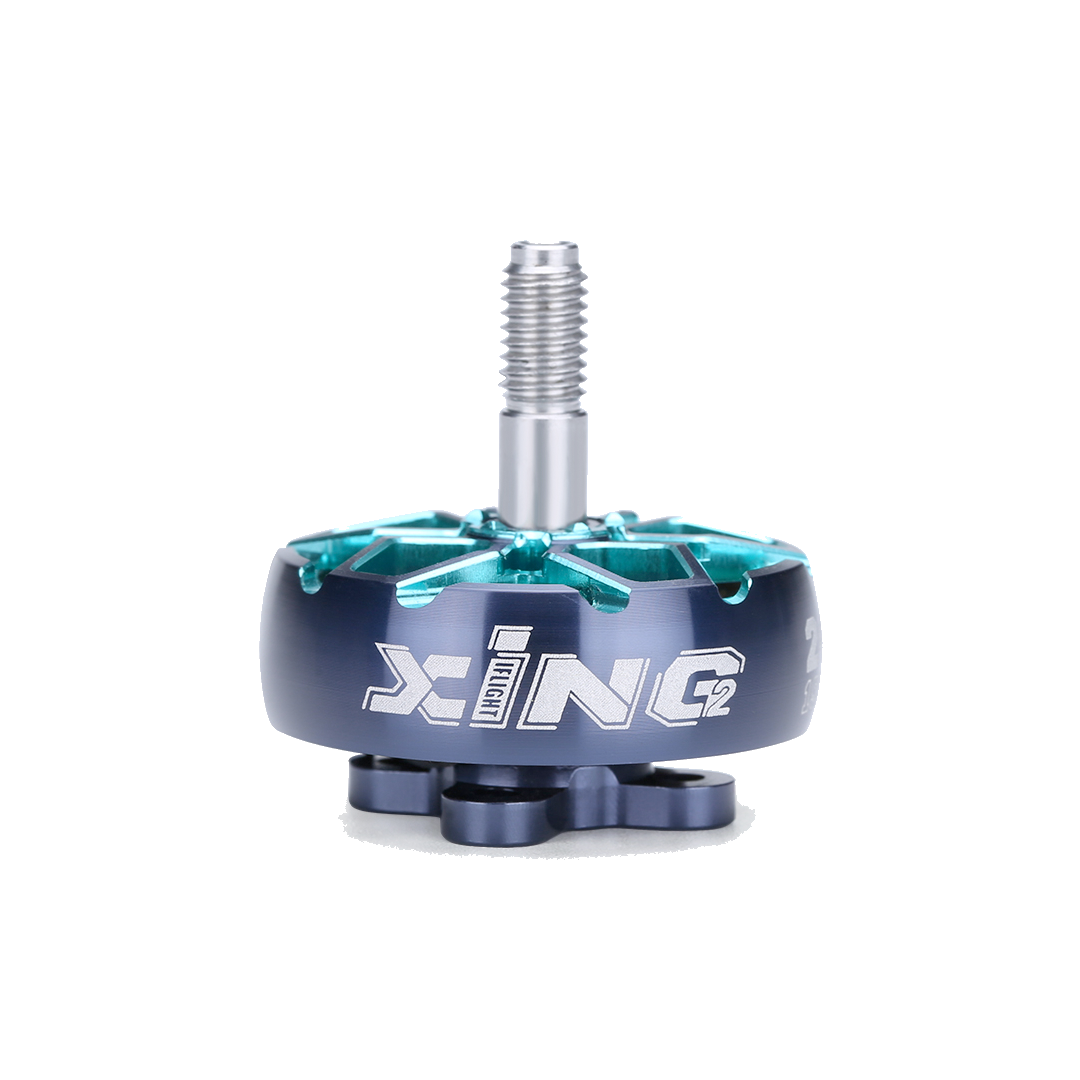

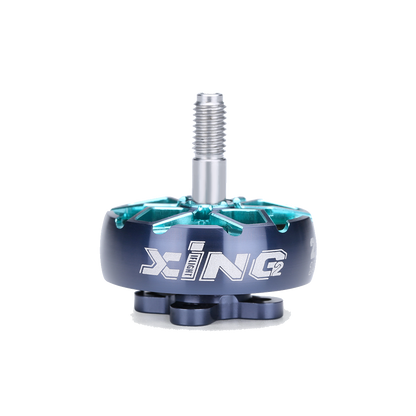

Motor iFlight XING2 2405 Unibell 1950KV
Motor iFlight XING2 2405 Unibell 1950KV
Brand: iFlight
Regular price
€22,90
Regular price
€22,90
Sale price
€22,90
Unit price
/
per
Upon request
We need to check the product availability with our supplier. Please contact us for details.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion

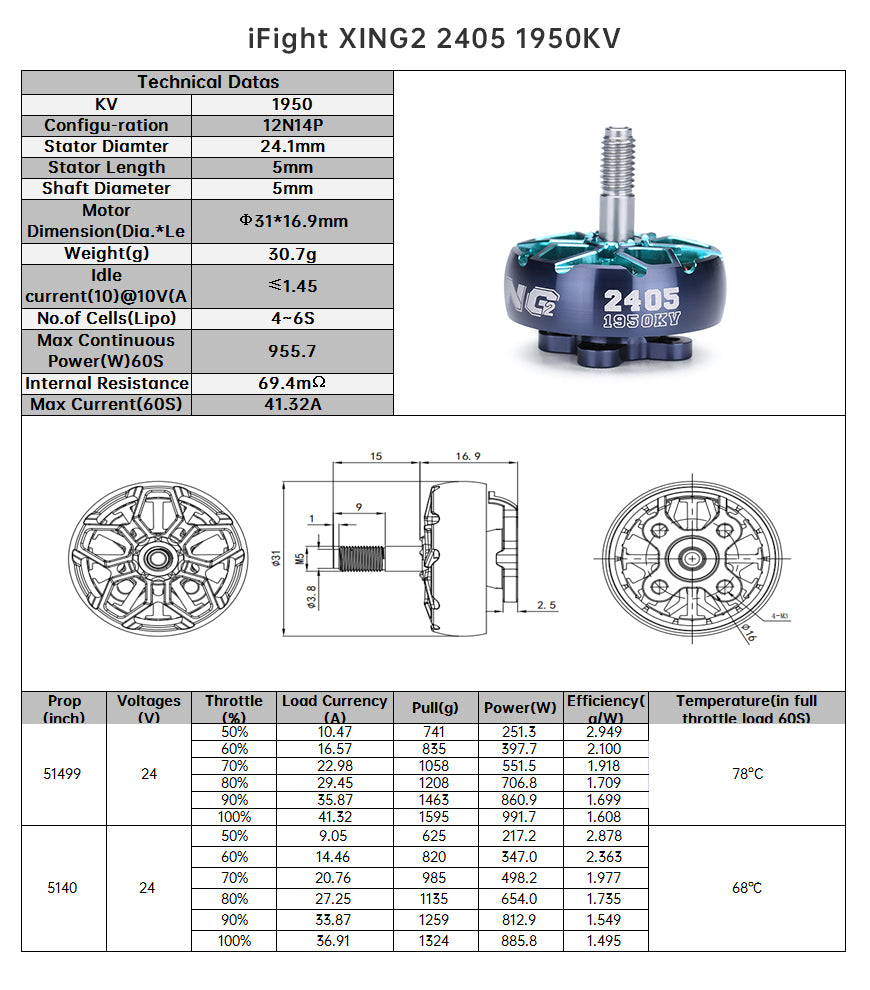

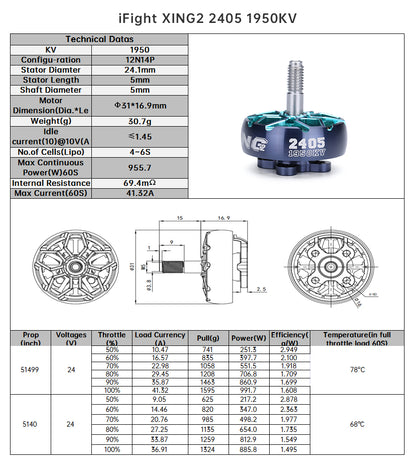

XING2 2405 FPV Motor Unibell 1950KV The upgraded XING motors are equipped with new N52H curved arc magnets with a center groove for faster response time, reducing shift lag during braking and acceleration. This enhancement increases the performance of FPV flight controllers and provides faster PID loop conversion for a greater sense of lock-in. Additionally, high-quality materials and a durable bell-to-shaft connection minimize magnet air gap and stator lamination, resulting in increased efficiency and higher performance. Function: - 5mm titanium alloy shaft - Impact resistant 7075 aluminum bell - NSK 9x4x4 smooth bearings with long service life - N52H Curved Arc Magnets with Center Groove - Bearing gap protection with XING O-ring - Motor wire protector - Dynamically balanced Specifications: Model: XING2 2405 engine KV: 1950 KV Weight (including wire): 31.2 g Size: φ31*16.9mm Interphase resistance: 69.4 mΩ Input voltage: 24V Peak current: 41.32A Maximum wattage: 992W Mounting holes: 16*16 φ3mm Rotor specifications: Unibell Shaft diameter: 5 mm Length of protruding shaft: 13.5 mm Lead: 160mm/20AWG Magnet: N52H Curved Configuration: 12N14P Bearing type: NSK Bearing specifications: φ9*φ4*4 Winding: Single-core copper winding The package includes: 1x XING2 2405 brushless motor 4x M3x7 screws 1x M5 flange nut
