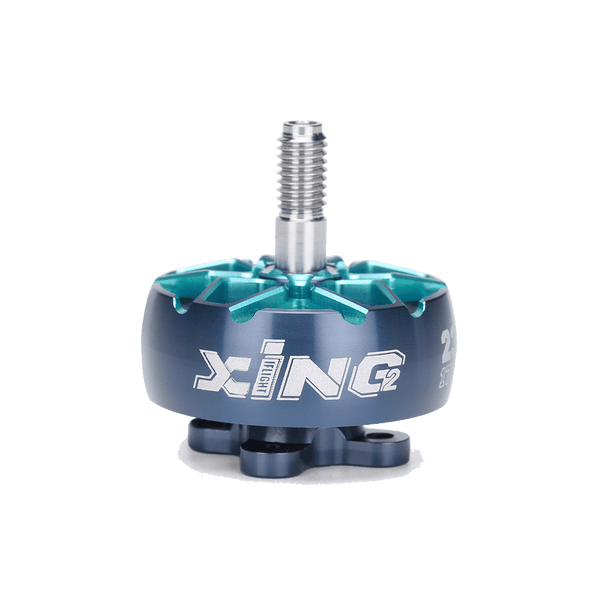

    XING2 2306 FPV Motor Unibell 1755KV

Function:

- 5mm titanium alloy shaft
- Impact resistant 7075 aluminum bell
- NSK 9x4x4 smooth bearings with long service life
- N52H Curved Arc Magnets with Center Groove
- Bearing gap protection with XING O-ring
- Motor wire protector
- Dynamically balanced

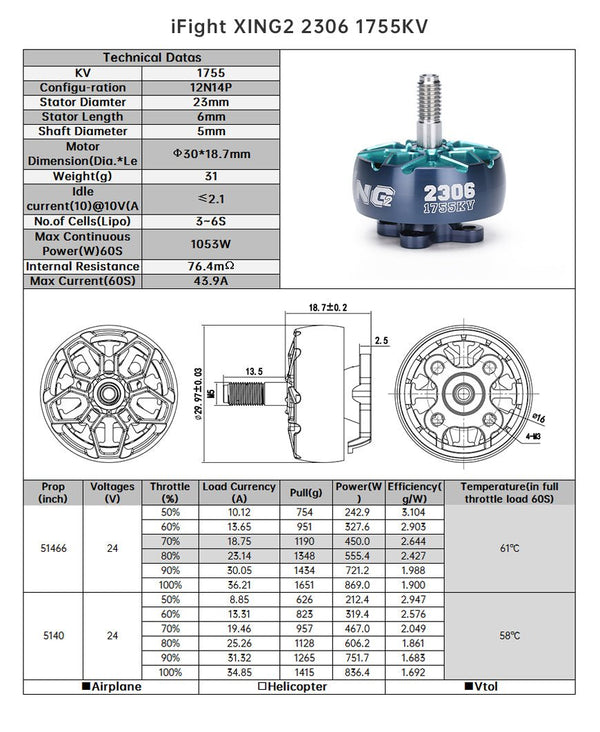

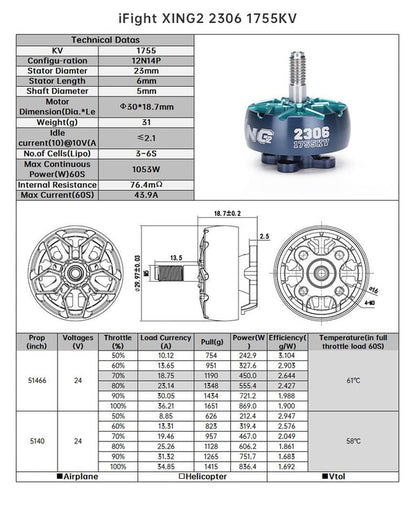

Specifications

Model: XING2 2306 Engine
KV: 1755KV
Weight (including wire): 32.5 g
Size: φ30*18.7mm
Interphase resistance: 76.4 mΩ
Input voltage: 24V
Peak current: 36.21A
Maximum wattage: 869W
Mounting holes: 16*16 φ3mm
Rotor specifications: Unibell
Shaft diameter: 5 mm
Length of protruding shaft: 13.5 mm
Lead: 160mm/20AWG
Magnet: N52H Curved
Configuration: 12N14P
Bearing type: NSK
Bearing specifications: φ9*φ4*4
Winding: Single-core copper winding

The package includes:
1x XING2 2306 brushless motor
4x M3*8 screws
1x M5 flange nut
