    Code: X011031

    Motor iFlight XING2 2207 Unibell 2750KV (4S)

    Motor iFlight XING2 2207 Unibell 2750KV (4S)

    Brand: iFlight

    €22,00
    €22,00 €22,00
    -0% View Product
    Upon request
    We need to check the product availability with our supplier. Please contact us for details.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion
    XING2 2207 FPV Motor Unibell 2750KV (4S)

Function

- 5mm titanium alloy shaft, our strongest propeller shaft ever!
- Impact resistant 7075 aluminum bell
- NSK 9x4x4 smooth bearings with long service life
- N52H Curved Arc Magnets with Center Groove
- Bearing gap protection with XING O-ring
- Motor wire protector
- Dynamically balanced

Specifications:
KV: 2750 KV
Weight (including wire): 30.5 g
Size: φ29*19.25mm
Interphase resistance: 74.23 mΩ
Input voltage: 16.8V
Peak current: 46.05A
Maximum wattage: 706.9W
Mounting holes: 16*16 φ3mm
Rotor specifications: Unibell
Shaft diameter: 5 mm
Length of protruding shaft: 13.5 mm
Lead: 160mm/20AWG
Magnet: N52H Curved
Configuration: 12N14P
Bearing type: NSK
Bearing specifications: φ9*φ4*4
Winding: Single-core copper winding

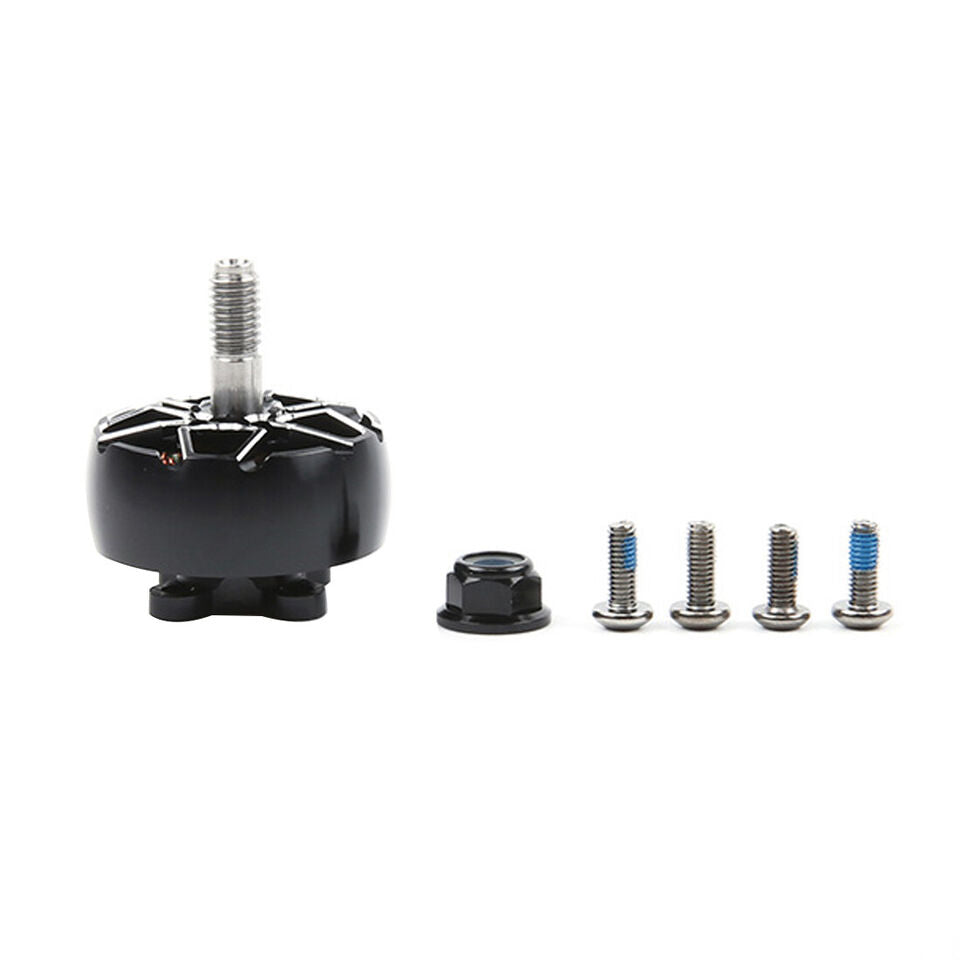

The package includes:
1 x XING2 2207 Black Brushless Motor
4 x M3*7 screws
1 x M5 flanged nylon lock nut
