Motor iFlight XING2 2207 Unibell 1750KV (6S)

1 4

Code: SKU:X011032

Motor iFlight XING2 2207 Unibell 1750KV (6S)

Name: Motor iFlight XING2 2207 Unibell 1750KV (6S)
Brand: My Store
SKU: X011032
Price: 29.28 EUR
Availability: InStock

Brand: iFlight

€29,28

~~€29,28~~ €29,28

-0% View Product

Taxes included.

In stock

Quantity

Detailed information

View full details

Description
Related Files
Discussion

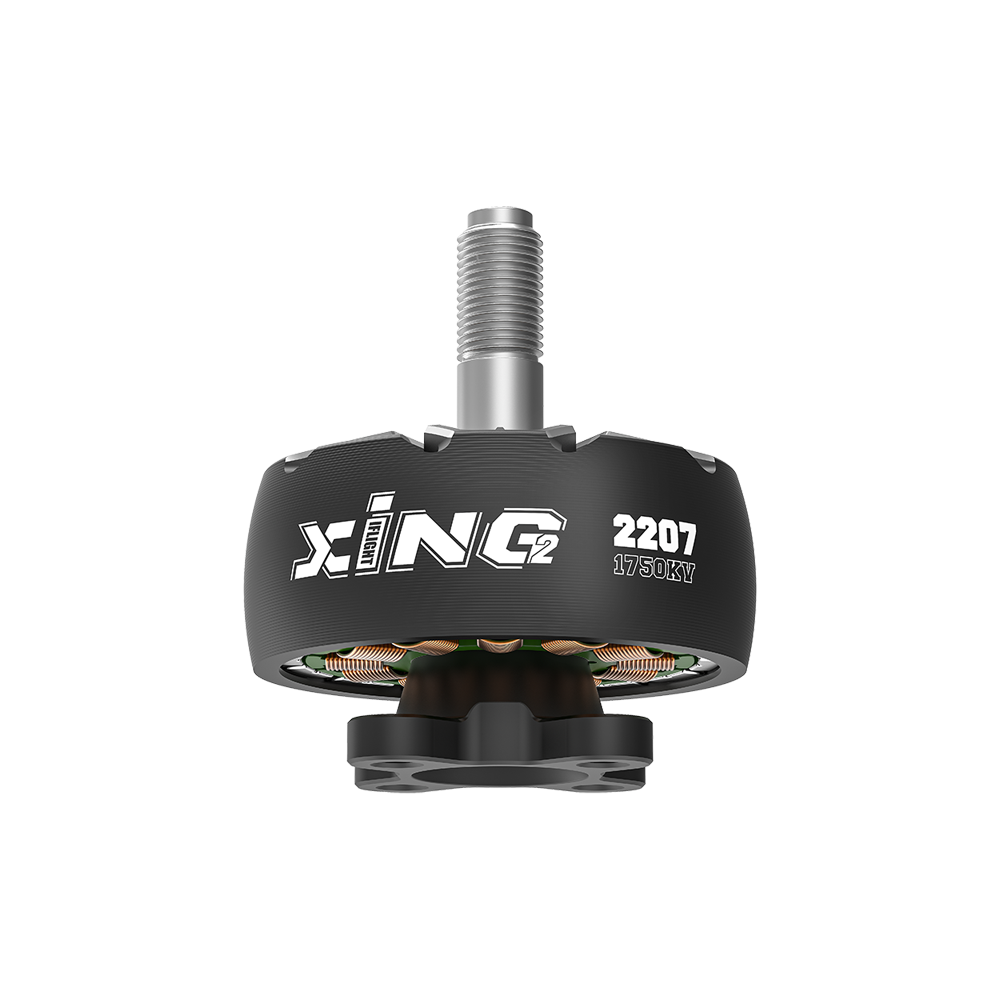

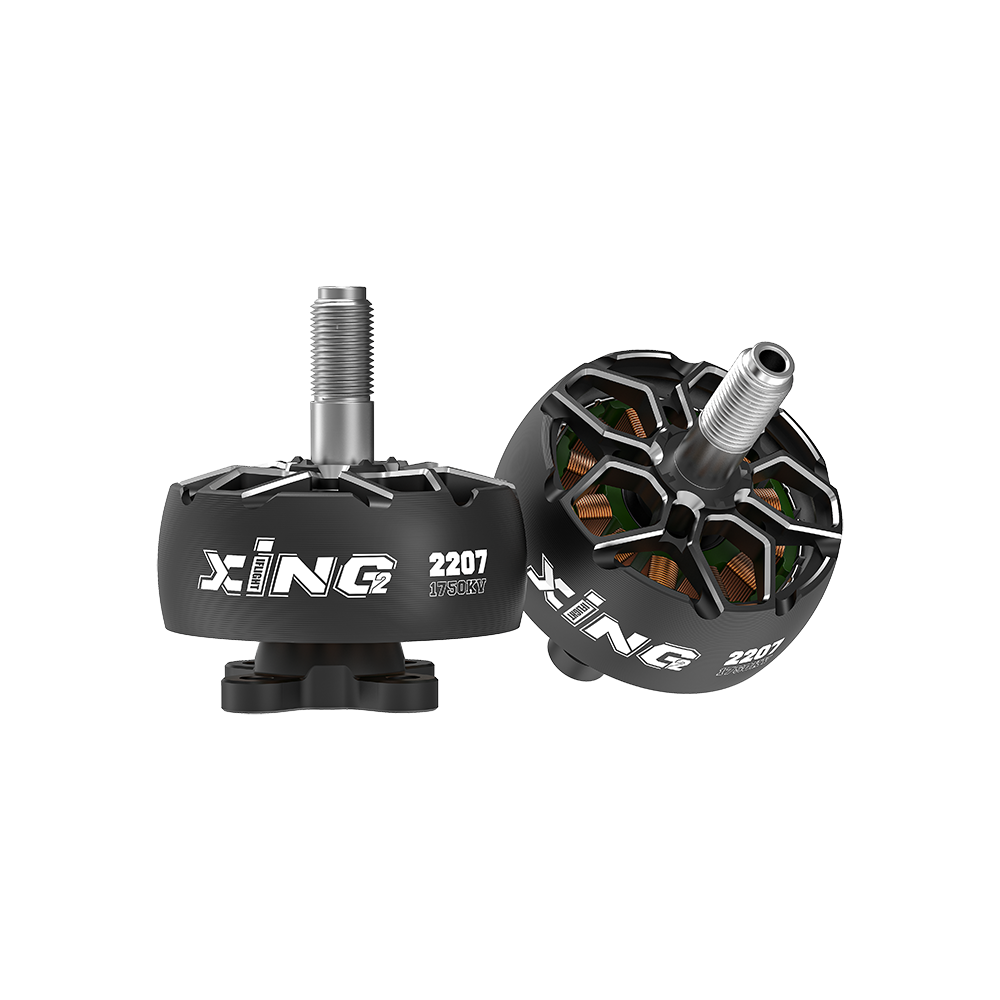

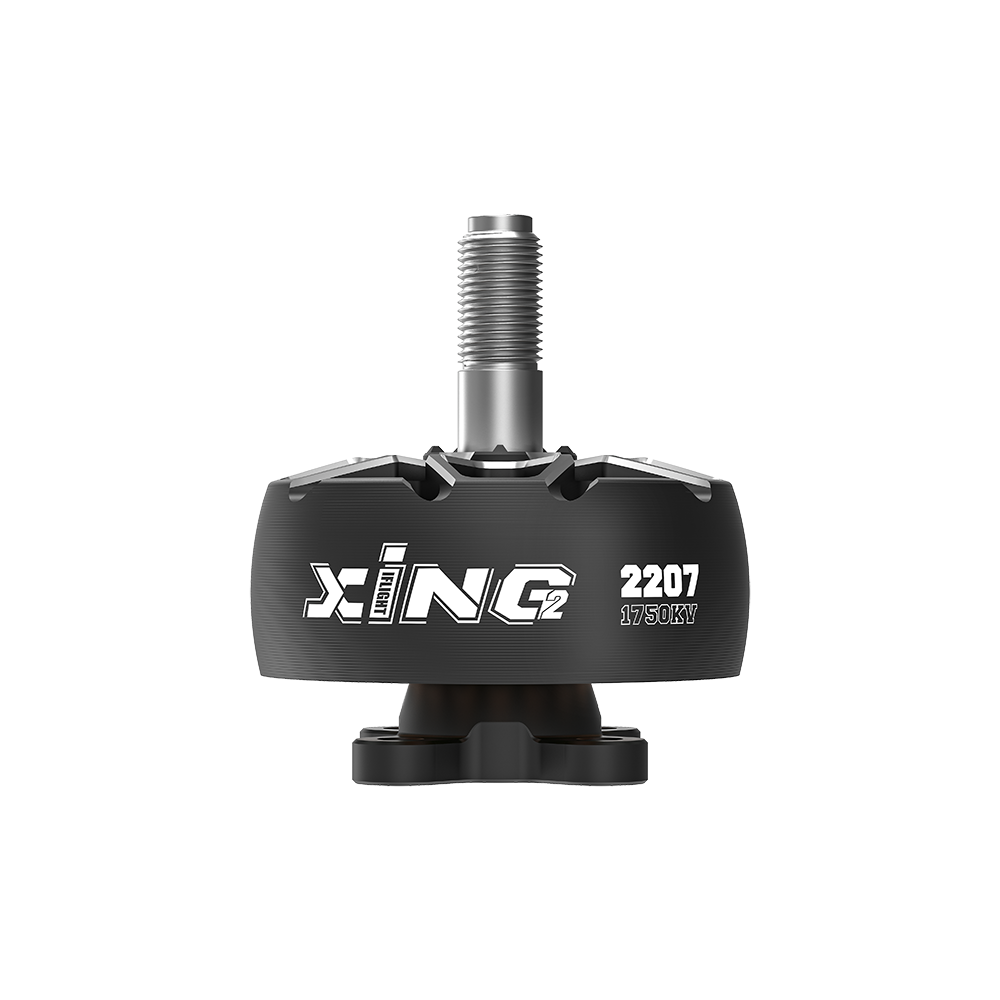

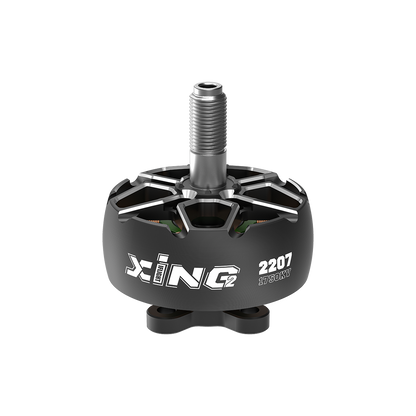

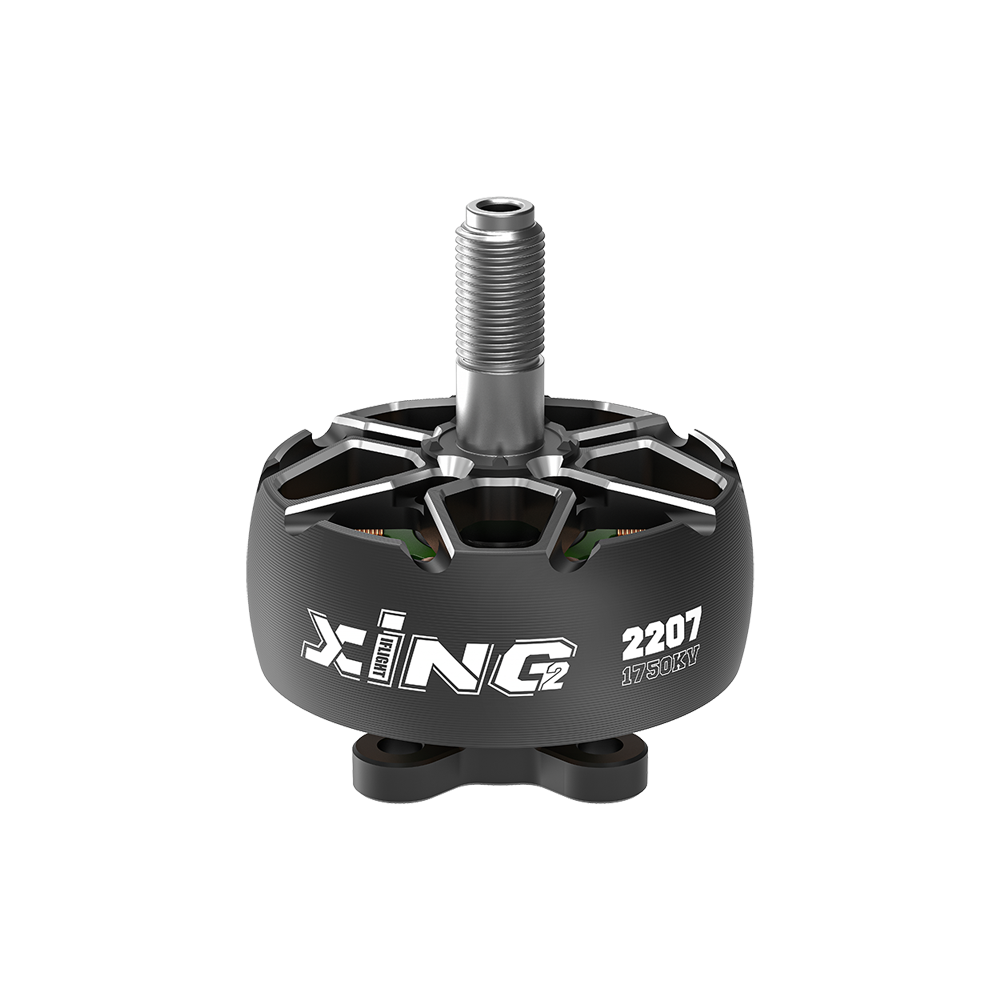

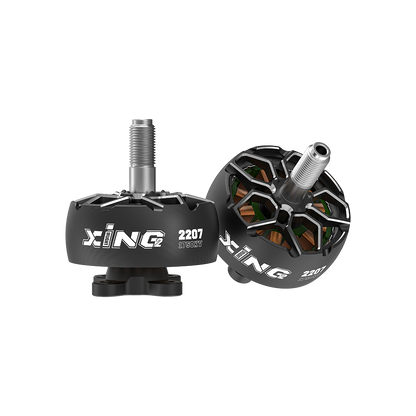

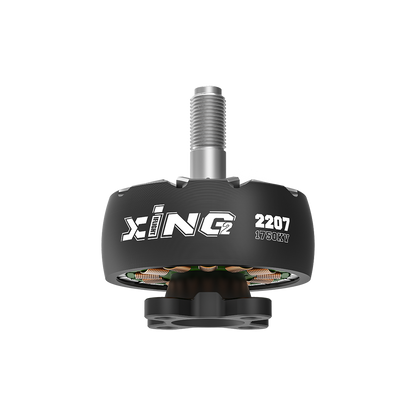

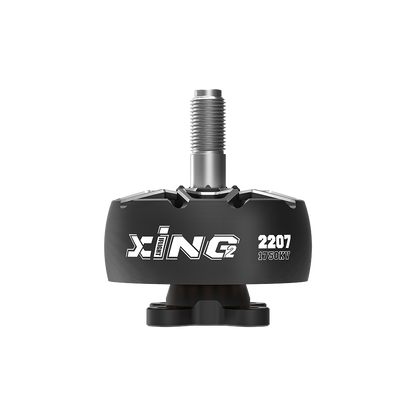

XING2 2207 FPV Motor Unibell 1750KV (6S)

Function

- 5mm titanium alloy shaft, our strongest propeller shaft ever!
- Impact resistant 7075 aluminum bell
- NSK 9x4x4 smooth bearings with long service life
- N52H Curved Arc Magnets with Center Groove
- Bearing gap protection with XING O-ring
- Motor wire protector
- Dynamically balanced

Specifications:
KV: 1750 KV
Weight (including wire): 30.5 g
Size: φ29*19.25mm
Interphase resistance: 74.23 mΩ
Input voltage: 25.2V
Peak current: 36.3A
Maximum wattage: 898W
Mounting holes: 16*16 φ3mm
Rotor specifications: Unibell
Shaft diameter: 5 mm
Length of protruding shaft: 13.5 mm
Lead: 160mm/20AWG
Magnet: N52H Curved
Configuration: 12N14P
Bearing type: NSK
Bearing specifications: φ9*φ4*4
Winding: Single-core copper winding

The package includes:
1 x XING2 2207 Black Brushless Motor
4 x M3*7 screws
1 x M5 flanged nylon lock nut
