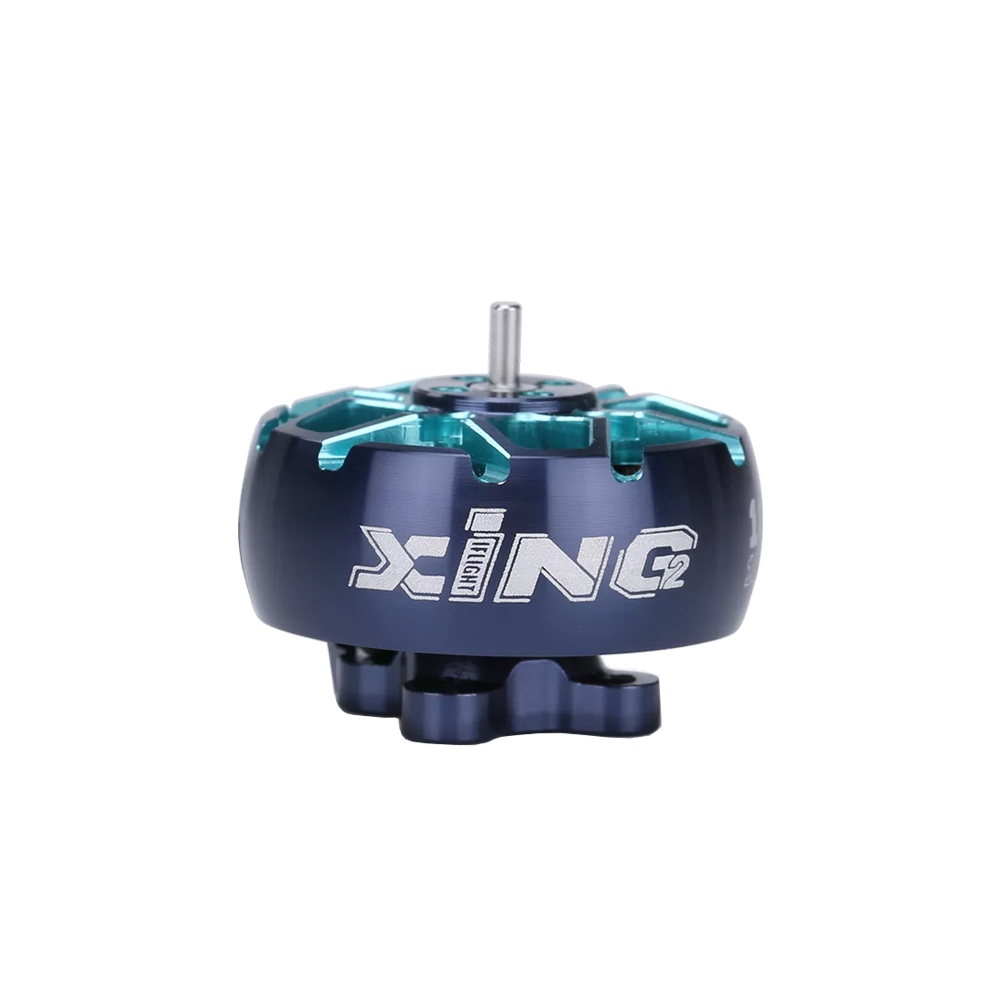

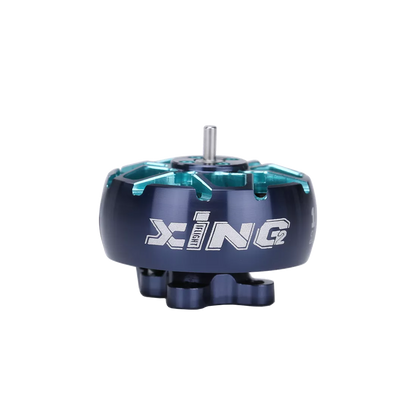

    Motor iFlight XING2 1806 Unibell 2500KV

    Motor iFlight XING2 1806 Unibell 2500KV

    Brand: iFlight

    €17,10
    €17,10 €17,10
    -0% View Product
    Upon request
    We need to check the product availability with our supplier. Please contact us for details.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion

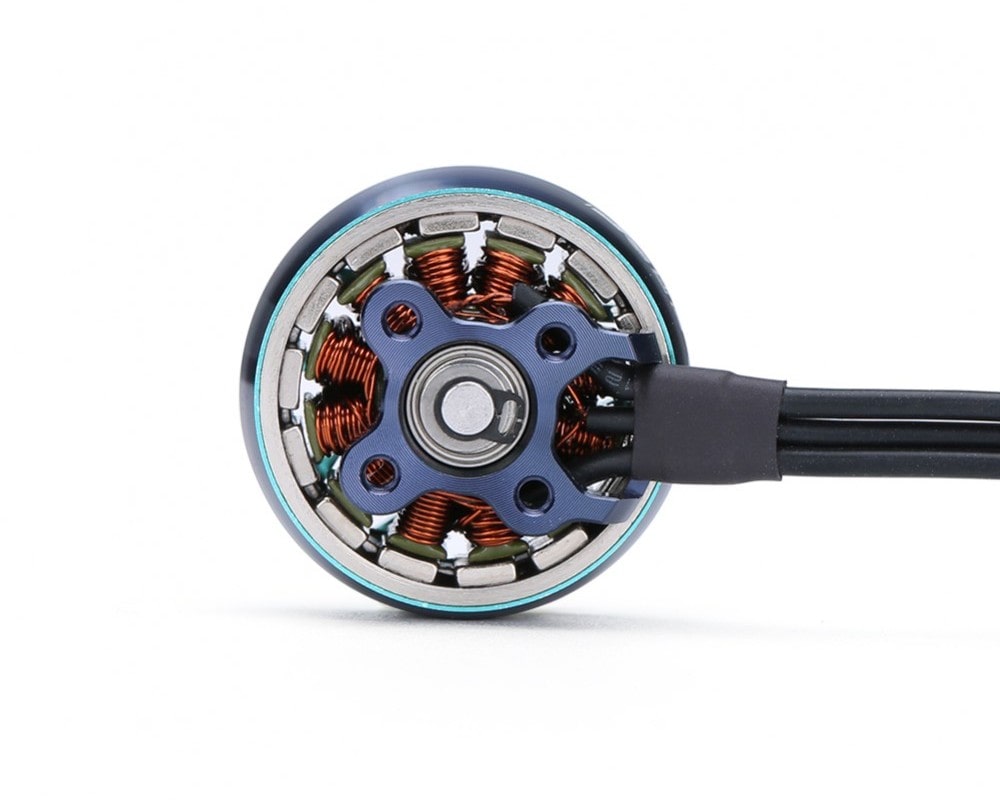

    XING2 1806 FPV Motor Unibell 2500KV

Function:

- 1.5mm titanium alloy outer shaft
- Japanese NSK bearings φ9*φ4*4mm
- N52H curved magnets
- Protected motor leads
- Dynamically balanced

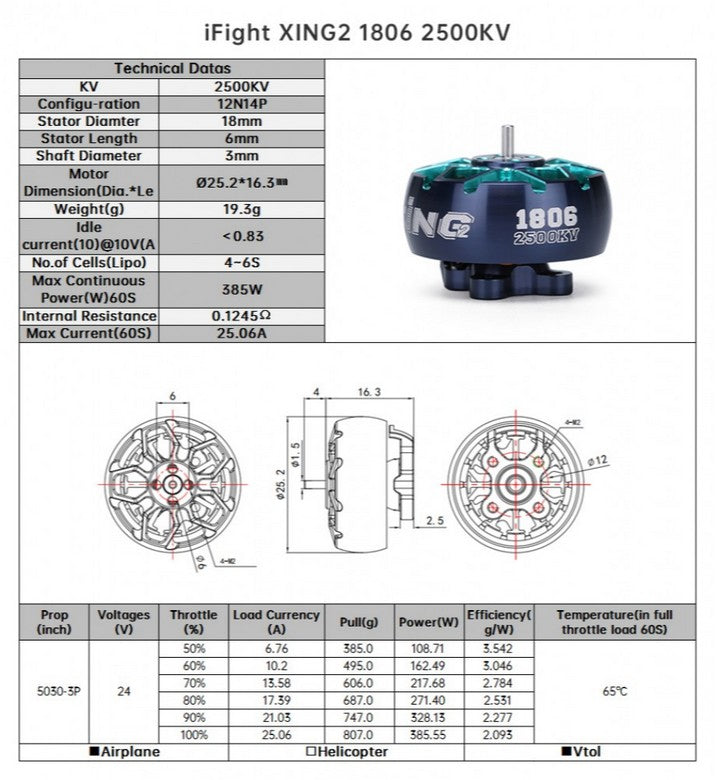

Specifications:

Model: XING2 1806 Engine
KV: 2500 KV
Weight (including wire): 20.2g
Size: φ25.2*16.3mm
Phase-to-phase resistance: 0.1245Ω
Input voltage: 24V
Peak current: 25.06A
Maximum wattage: 601W
Mounting holes: 12*12 φ2mm
Rotor specifications: Unibell
Shaft diameter: 1.5 mm
Length of protruding shaft: 4 mm
Lead: 160mm/22AWG
Magnet: N52H Curved
Configuration: 12N14P
Bearing type: NSK
Bearing specifications: φ8*φ3*4
Winding: Single-core copper winding

The package includes:
1 x brushless motor XING2 1806 1.5 mm shaft
6x M2*8mm screws
