    Code: X009437

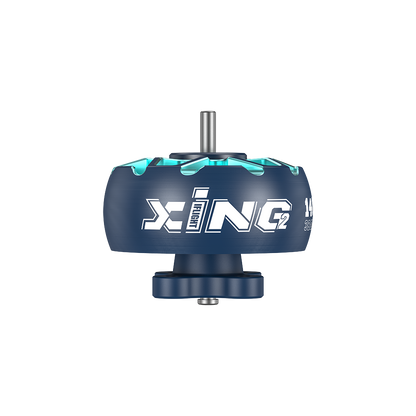

    Motor iFlight XING2 1404 Unibell 4600KV

    Motor iFlight XING2 1404 Unibell 4600KV

    Brand: iFlight

    €16,30
    €16,30 €16,30
    -0% View Product
    In stock
    We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion

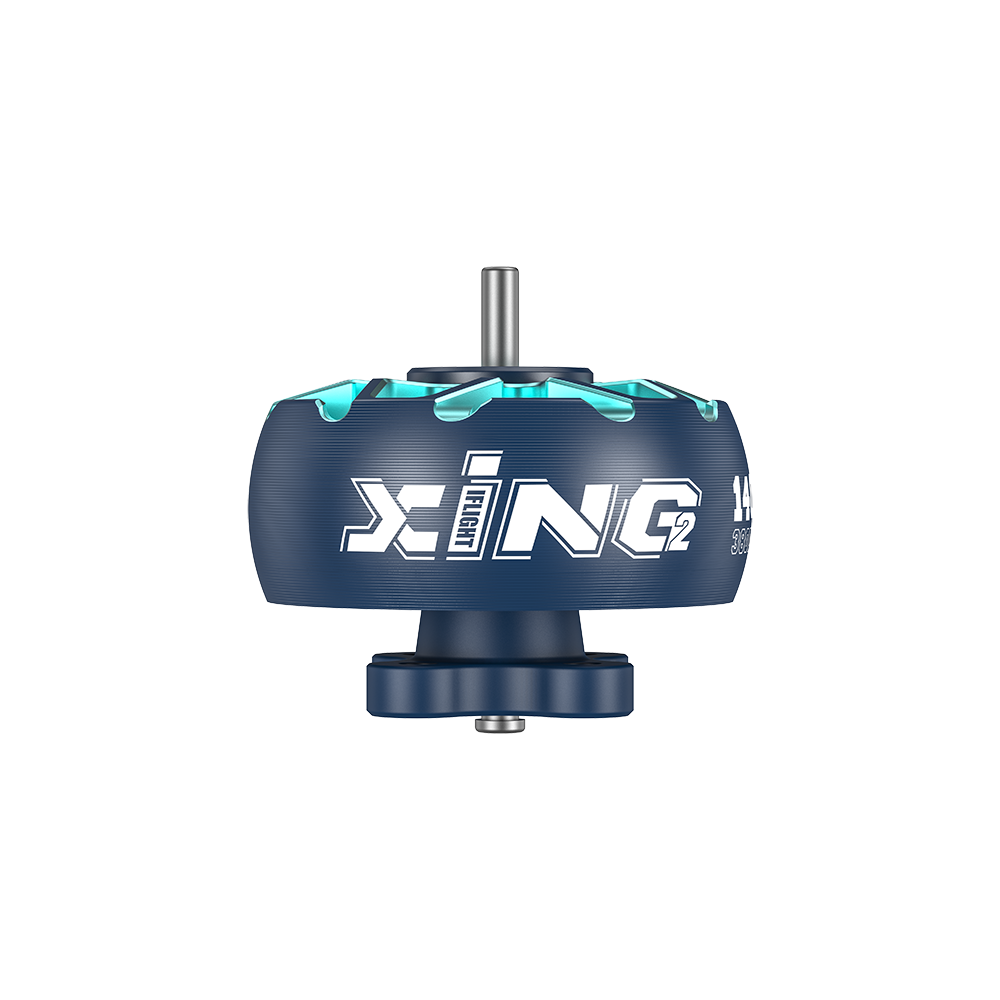

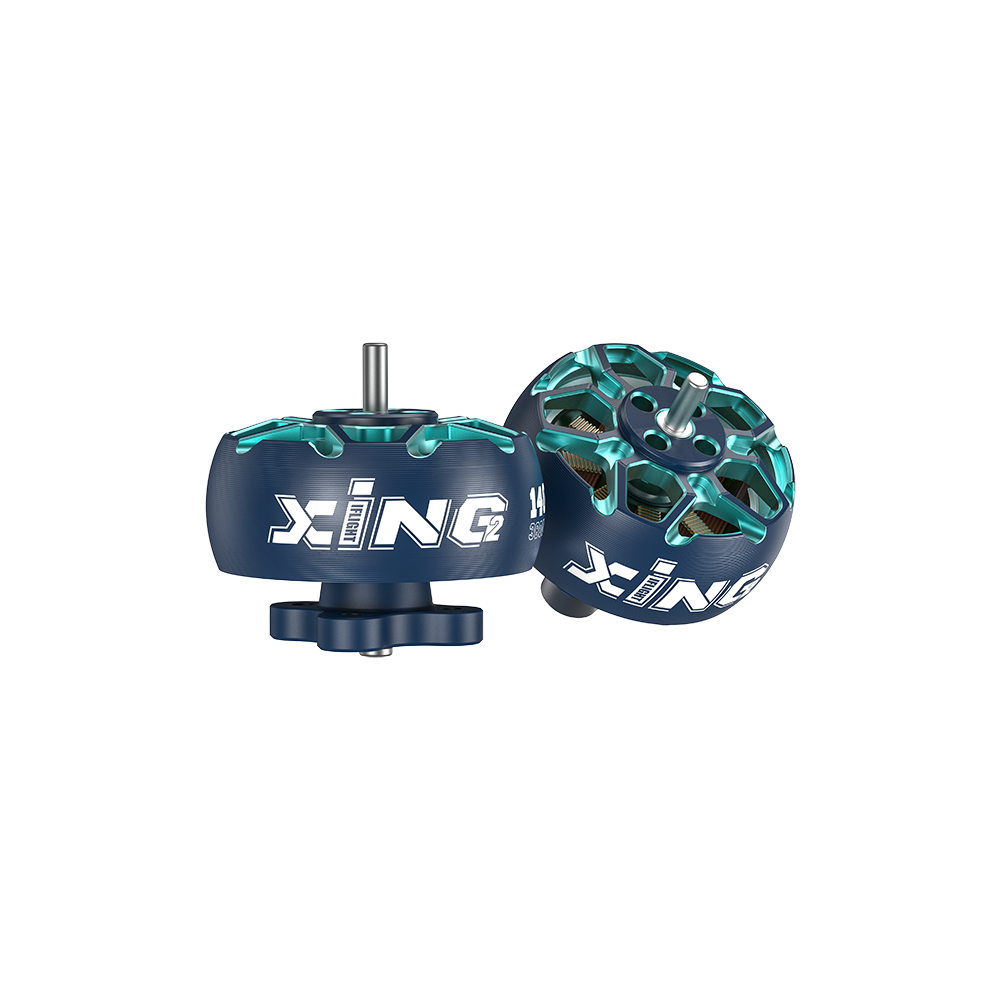

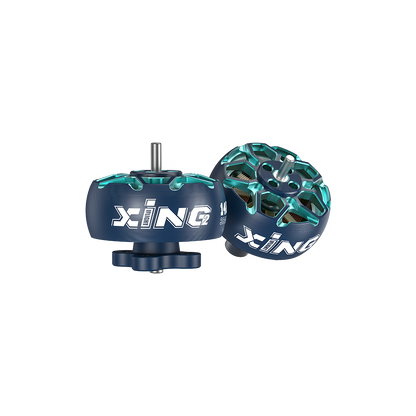

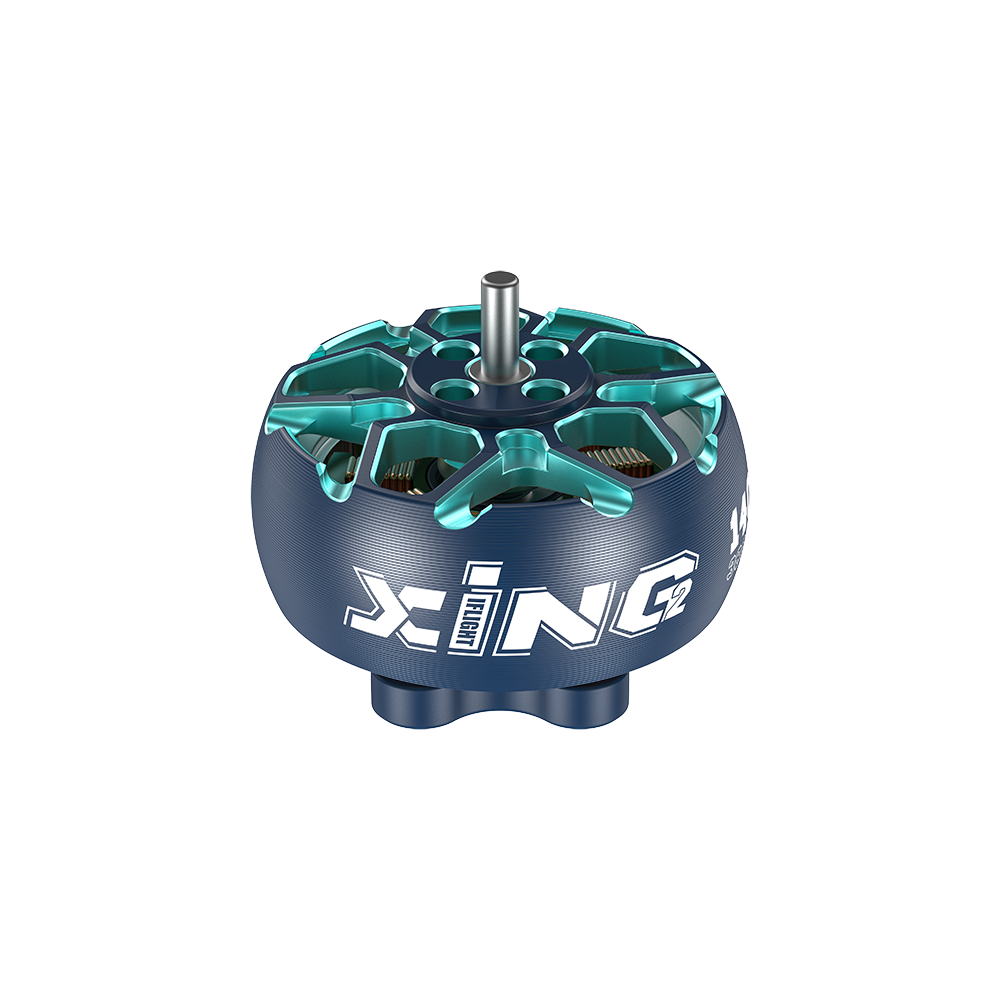

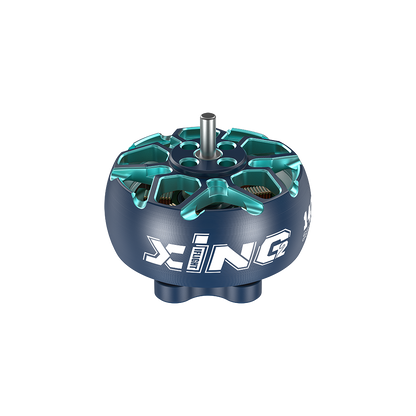

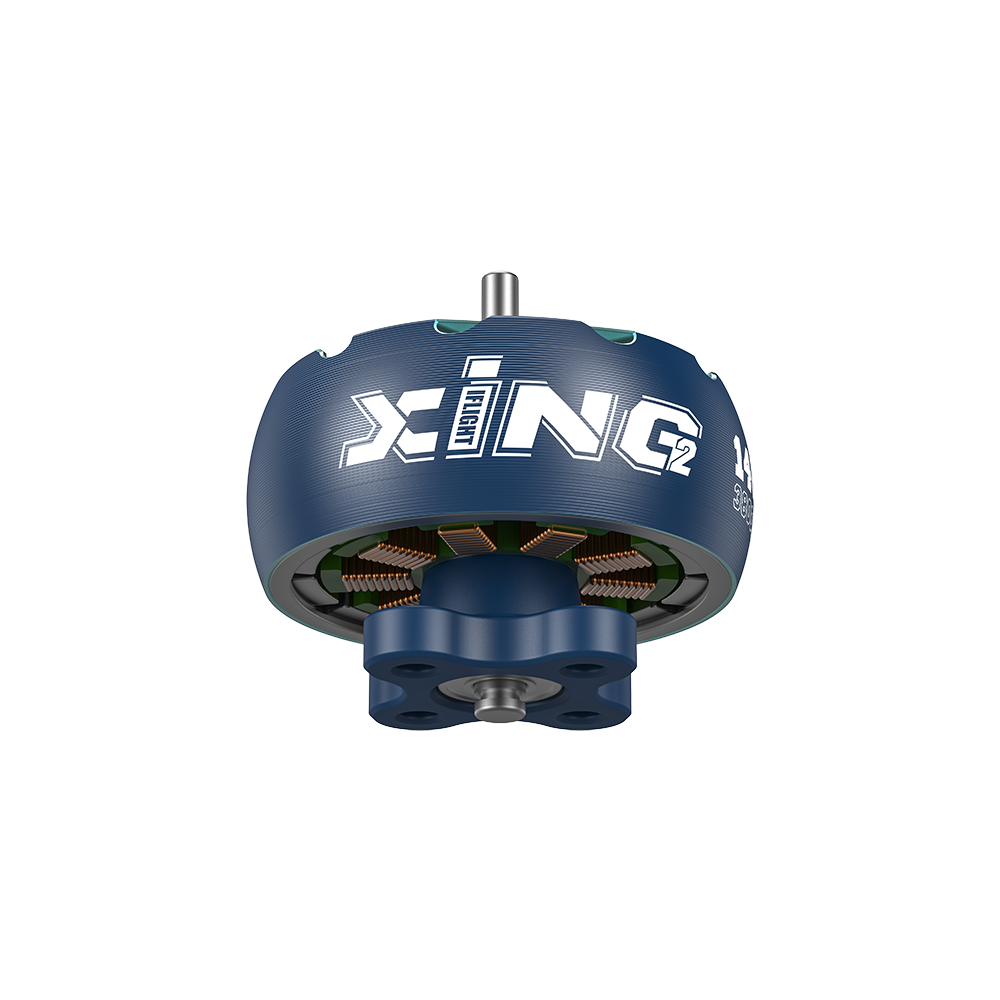

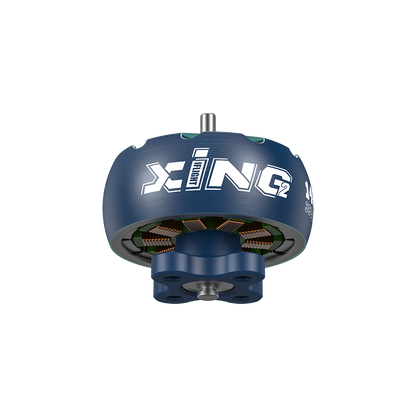

    XING2 1404 FPV Motor Unibell 4600KV

The new XIN2 X1404 MOTOR is designed for ultralight drones with toothpicks. Featuring N52H curved arc magnets with a center groove, these motors provide a faster response time, reducing shift lag during braking and acceleration. This improvement ensures faster PID loop conversion and gives FPV pilots a greater sense of lock-in. In addition, with high-quality materials and a durable bell-shaft connection, we have minimized magnet air gap and stator lamination, resulting in increased efficiency and performance.

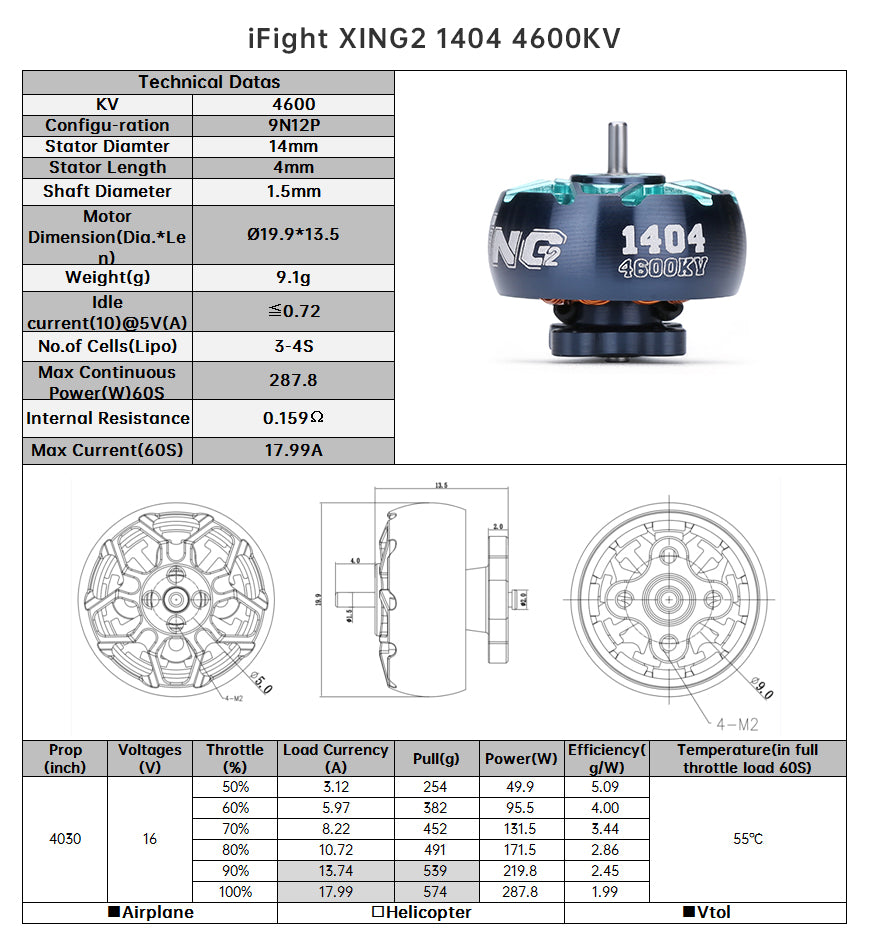

Specifications:

KV: 4600 KV
Weight (including wire): 9.1 g
Size: φ19.9*13.5mm
Phase-to-phase resistance: 0.159Ω
Input voltage: 3S-4S
Peak current: 17.99A
Maximum wattage: 287.8W
Mounting holes: 9*9 φ2mm
Rotor specifications: Unibell
Lead: 120mm/26AWG
Magnet: N52H Curved
Configuration: 9N12P
Bearing type: NSK
Winding: Single-core copper winding

The package includes:
1 x XING2 1404 Motor Unibell
4x M2x7 mounting screws
