Code: SKU:XE10381

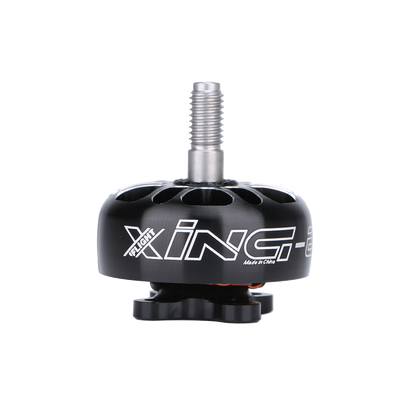

Motor iFlight XING-E Pro 2306 2-6S 2450KV Unibell
Motor iFlight XING-E Pro 2306 2-6S 2450KV Unibell
Brand: iFlight
Regular price
€16,30
Regular price
€16,30
Sale price
€16,30
Unit price
/
per
Upon request
We need to check the product availability with our supplier. Please contact us for details.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion

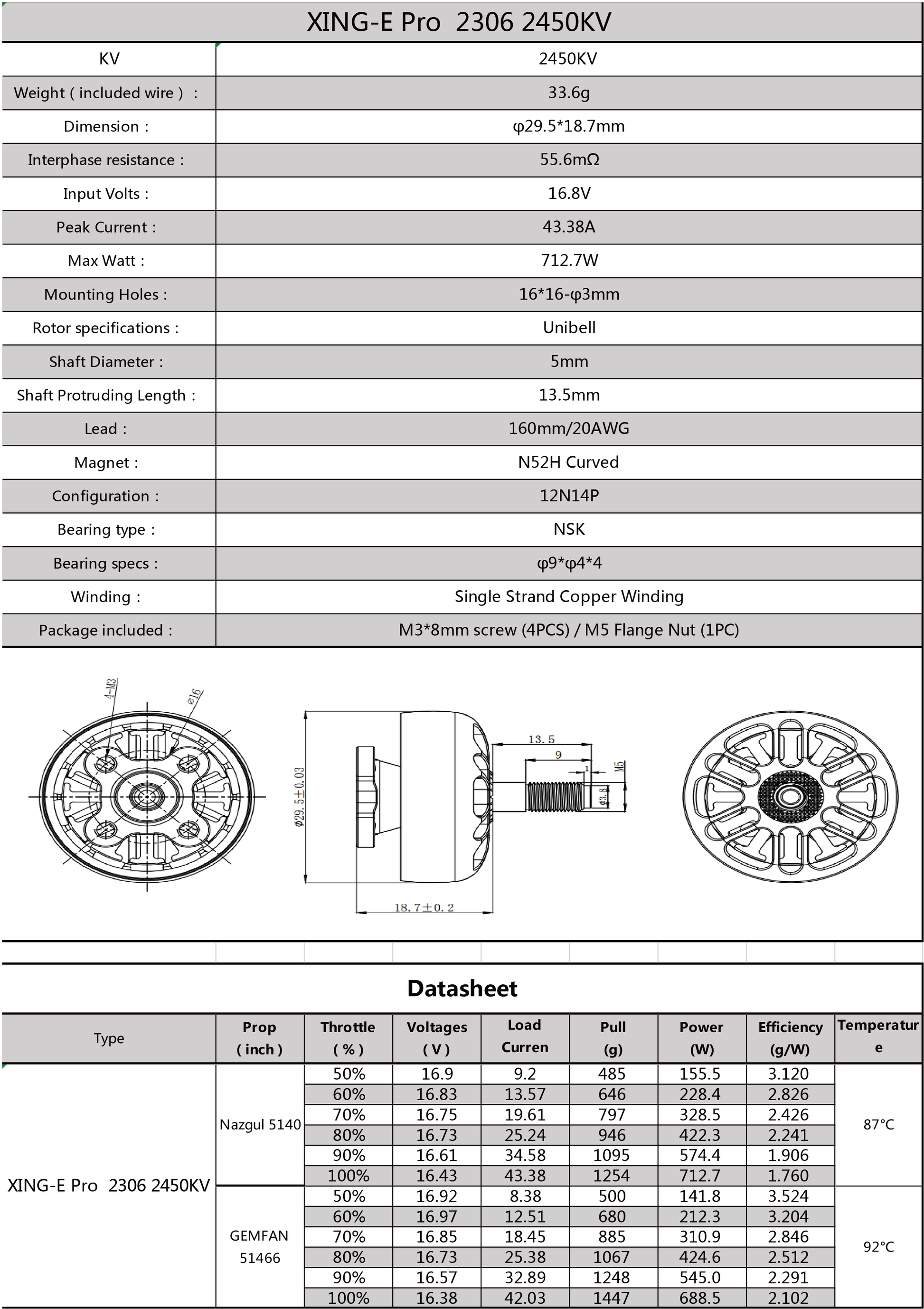

XING-E Pro 2306 2-6S FPV Motor 2450KV (Unibell) The XING-E series offers robust and high performance FPV motors designed for racing, providing excellent performance. Affordable XING-E Pro series motors that are strong and durable. This 2306 size motor features a high strength 4mm steel hollow shaft, monofilament winding for increased performance, M3 shaft bolt and larger 9x4x4mm NSK bearings to ensure durability and reliability during intense flights. Function: - High strength 4mm steel shaft - N52SH High temperature magnets, NSK bearings - Hole pattern 16x16mm - Single-core copper winding - 6061 CNC machined aluminum upper and lower parts - Hexagon screw shaft set screw Specifications: Model: XING-E Pro 2306 Motor KV: 2450KV Weight (including wire): 33.8 g Size: φ29*18.7mm Interphase resistance: 55.6 mΩ Input voltage: 16.8V Peak current: 43.38A Maximum wattage: 712.7W Mounting holes: 16*16 φ3mm Rotor specifications: Unibell Shaft diameter: 4 mm Length of protruding shaft: 13.5 mm Lead: 160mm/20AWG Magnet: N52H Curved Configuration: 12N14P Bearing type: NSK Bearing specifications: φ9*φ4*4 Winding: Single-core copper winding The package includes: 1 x XING-E Pro 2306 motor 4 x M3*8 screws 1 x M5 flanged nylon lock nut
