    Code: XE15287

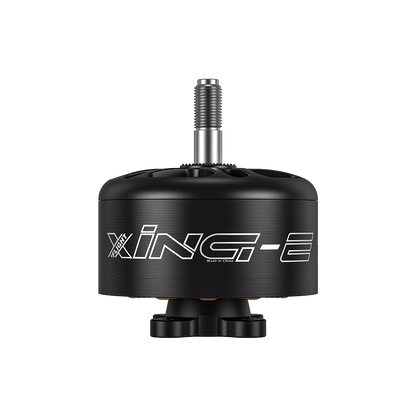

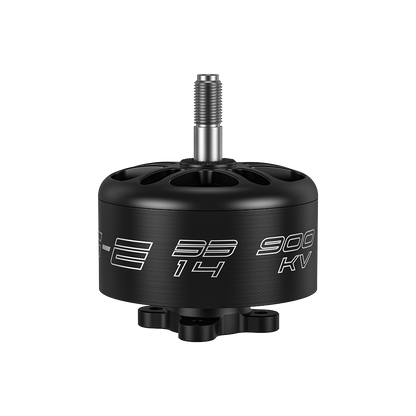

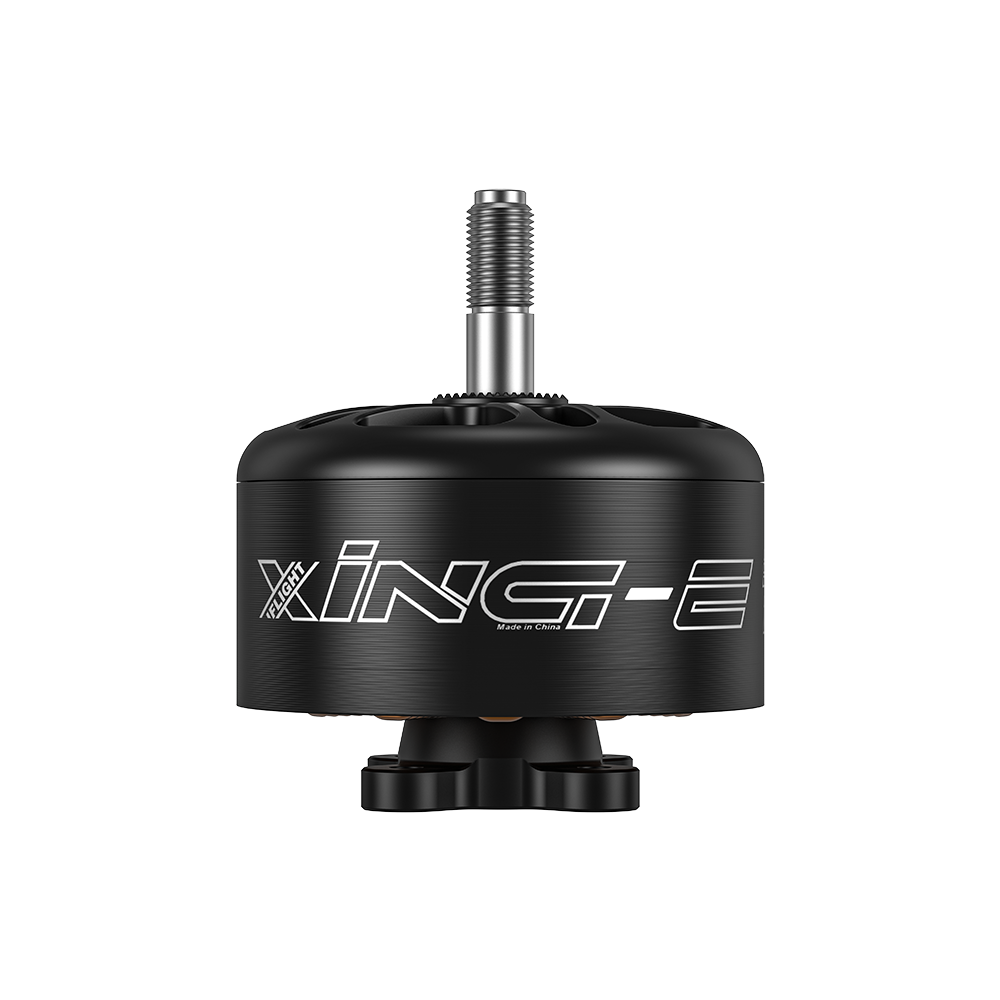

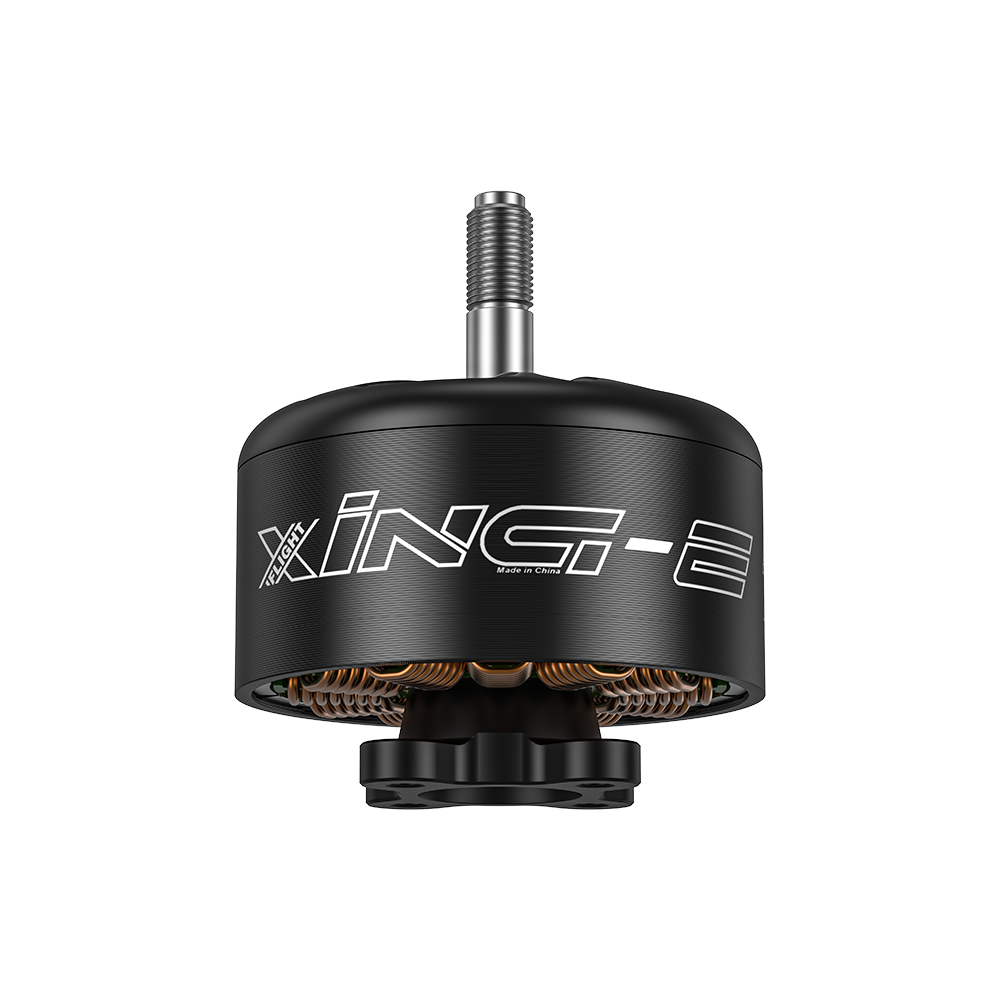

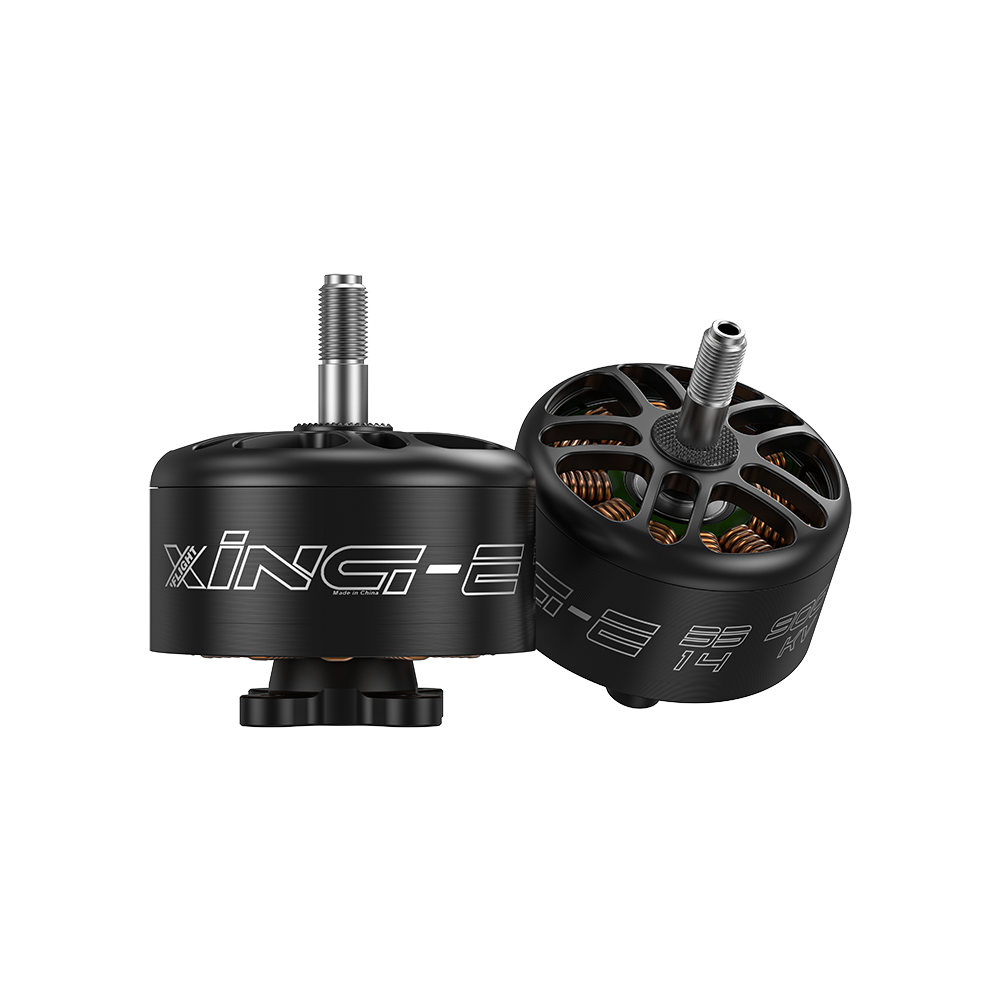

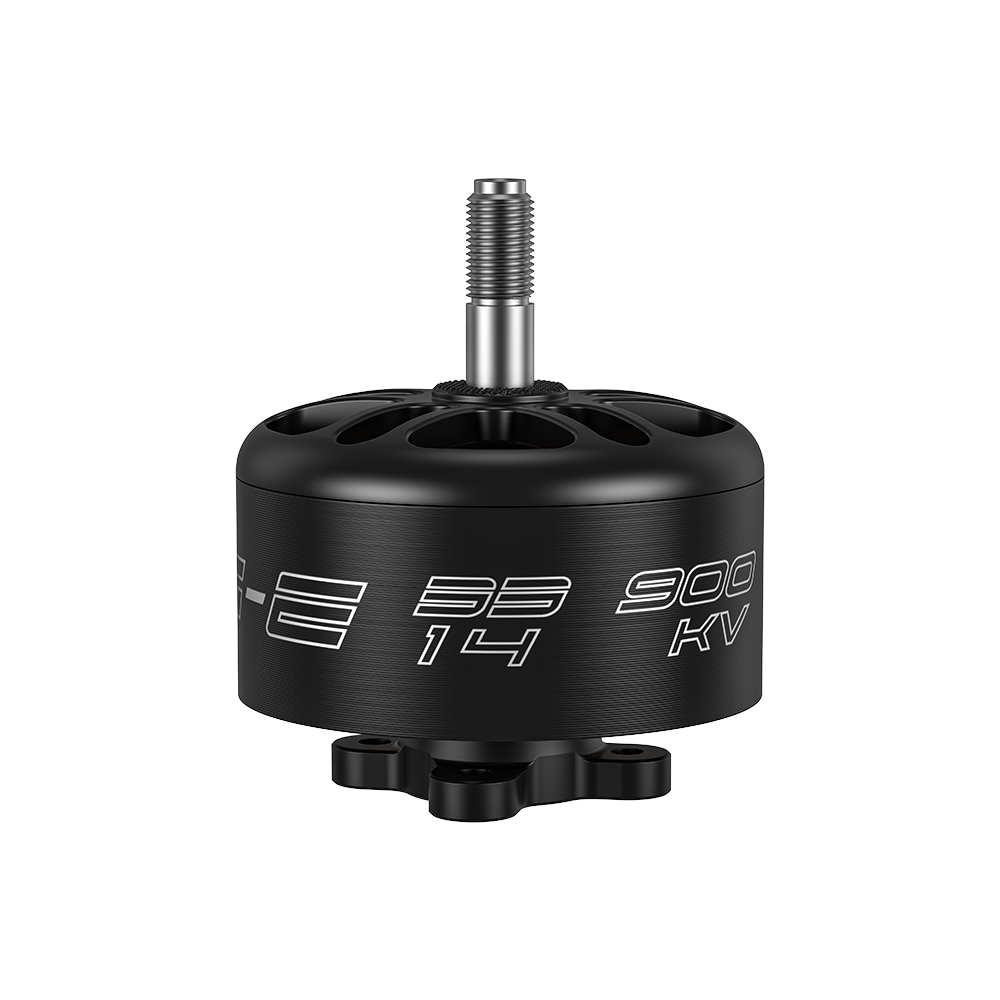

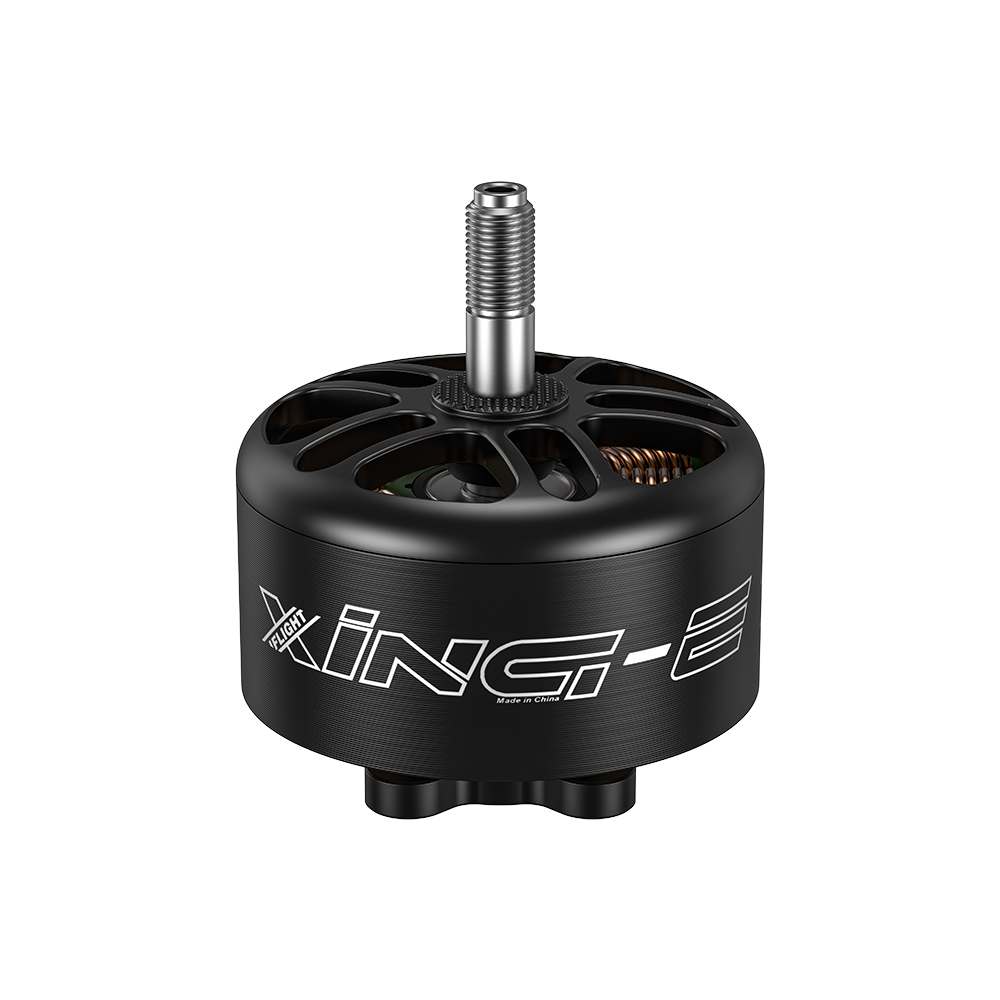

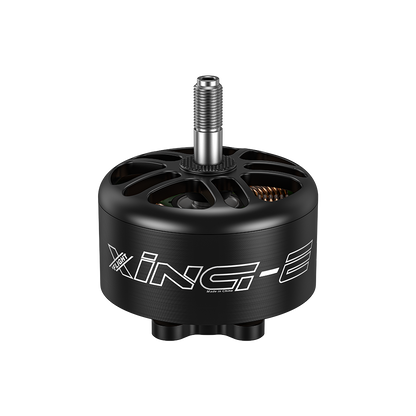

    Motor iFlight XING-E 3314 Cinelifter Motor 900KV

    Motor iFlight XING-E 3314 Cinelifter Motor 900KV

    Brand: iFlight

    €39,20
    €39,20 €39,20
    -0% View Product
    Upon request
    We need to check the product availability with our supplier. Please contact us for details.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion
    Motor Cinelifter XING-E 3314 900KV

The XING-E 3314 900 kV motor offers a balanced combination of power and efficiency for FPV applications. Its precisely designed construction ensures reliable performance and smooth operation during flights. The length of the protruding motor shaft is available in 15mm and 17mm specifications and will be sent at random.

Specifications:
Model: XING-E 3314 engine
KV: 900 KV
Weight (including wire): 120 g
Size: φ38.6*29.8mm
Interphase resistance: 48.1 mΩ
Input voltage: 24V
Peak current: 58.48A
Maximum wattage: 1366.1W
Mounting holes: 19*19 φ3mm
Shaft diameter: 5 mm
Length of protruding shaft: 15 mm / 17 mm
Lead: 400mm/16AWG
Magnet: N52H Curved
Configuration: 12N14P
Bearing specifications: φ11*φ5*5
Winding: Single-core copper winding

The package includes:
1 x XING-E 3314 900KV brushless motor
4 x M3*10 screws
1 x M5 flange nut
