    Code: XE14992

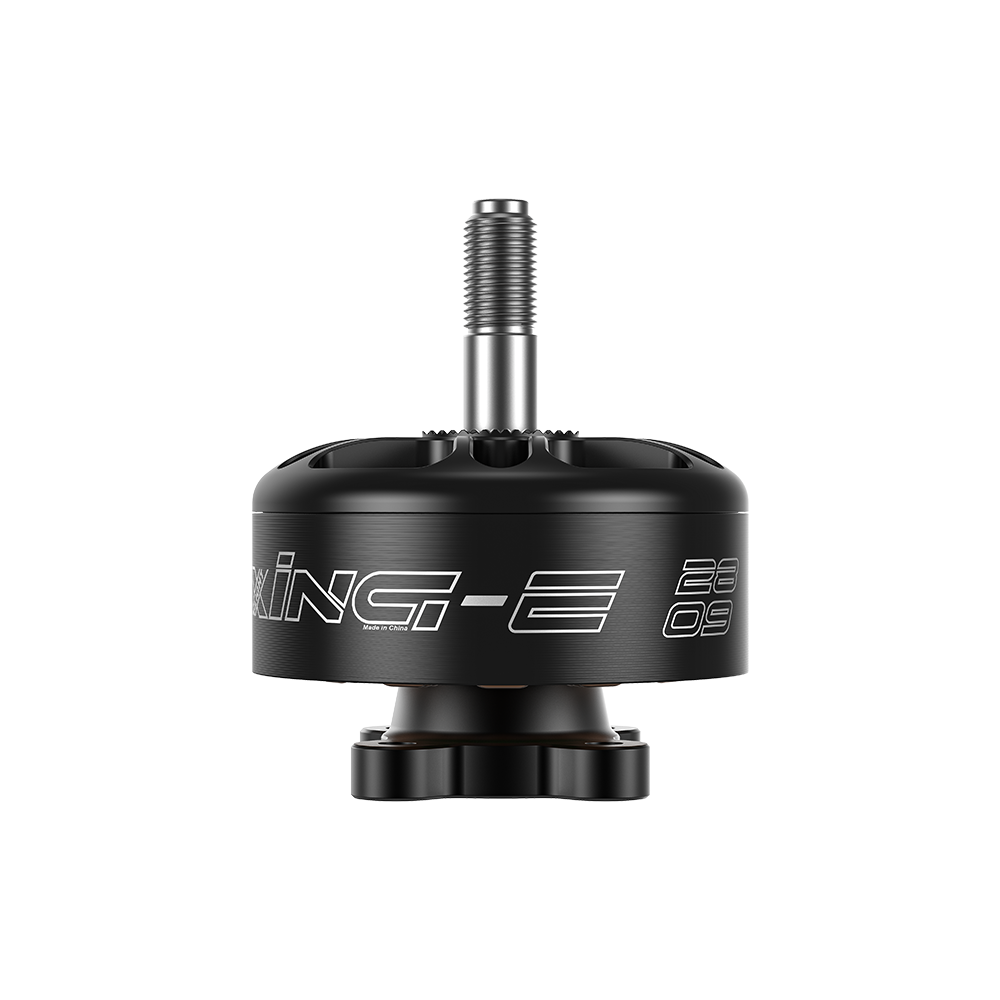

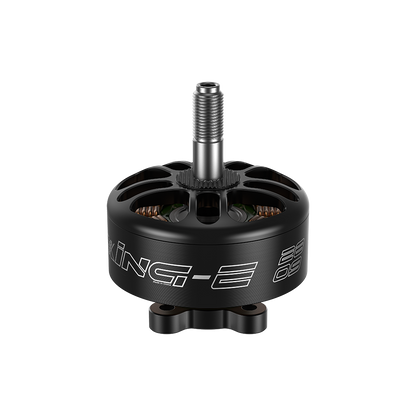

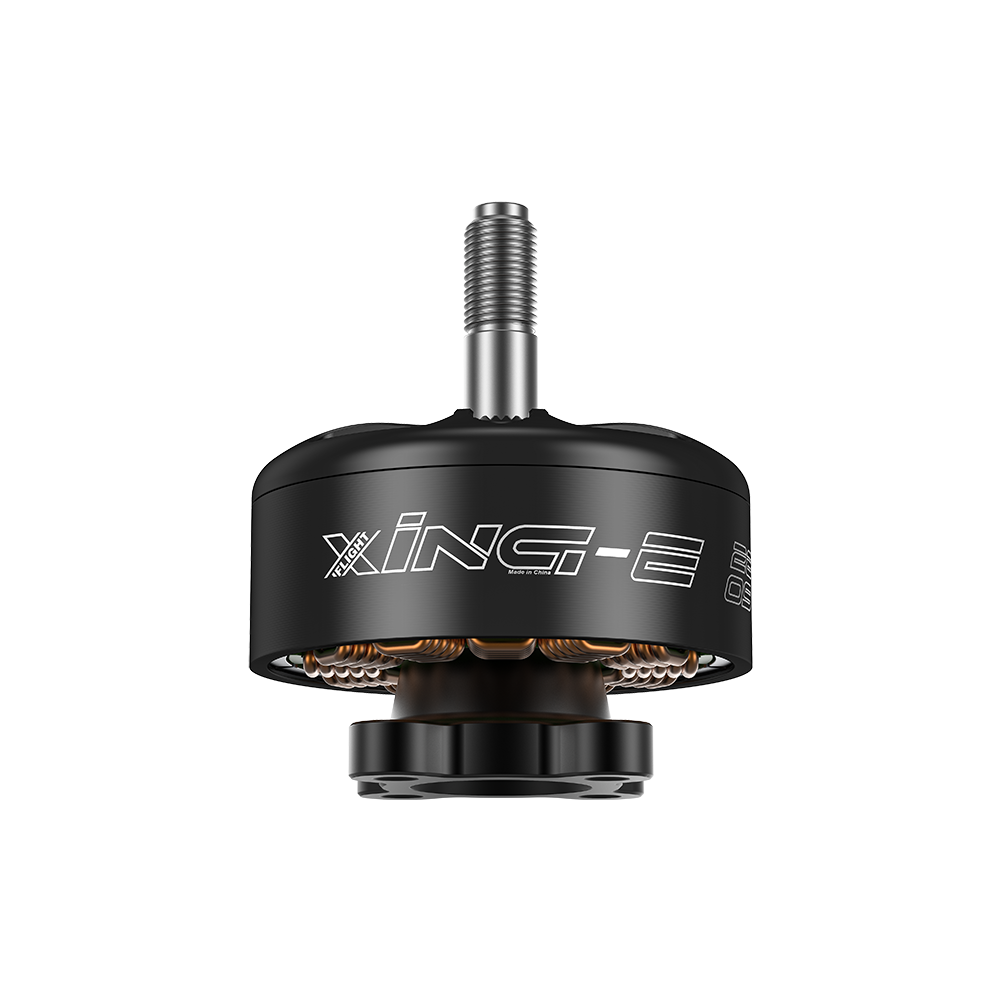

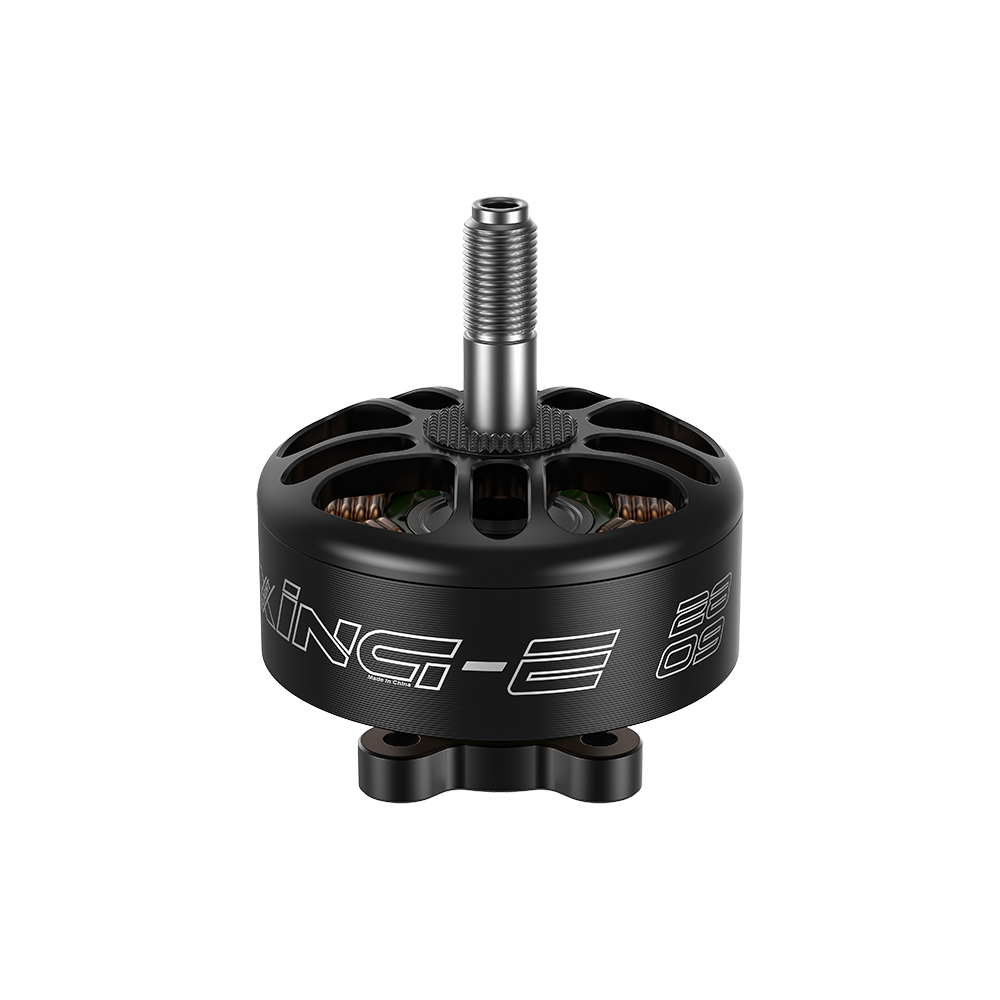

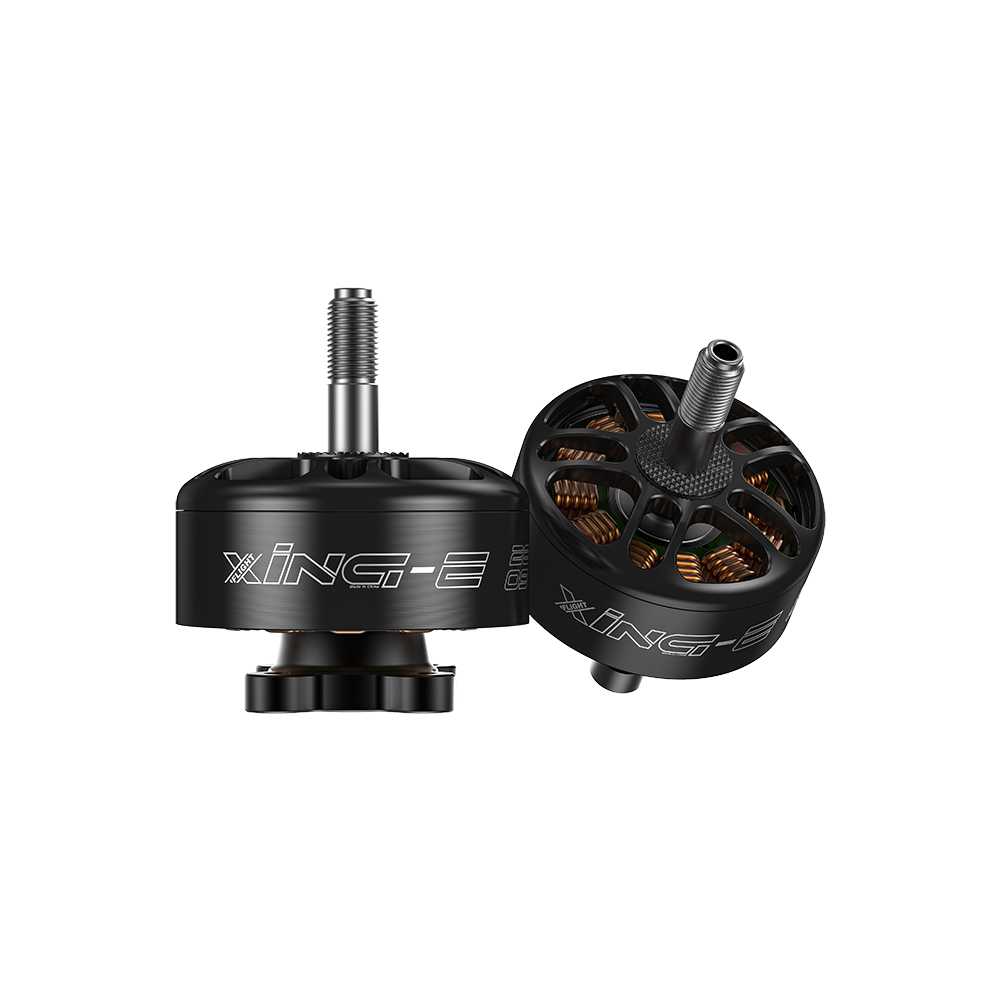

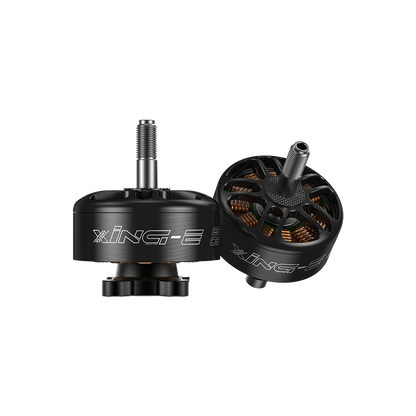

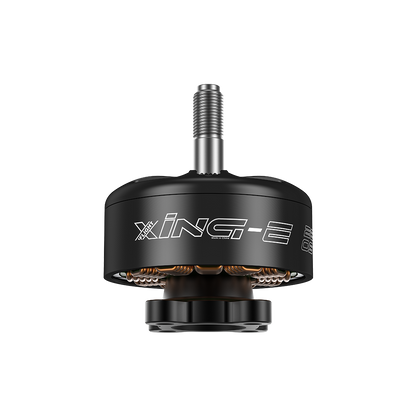

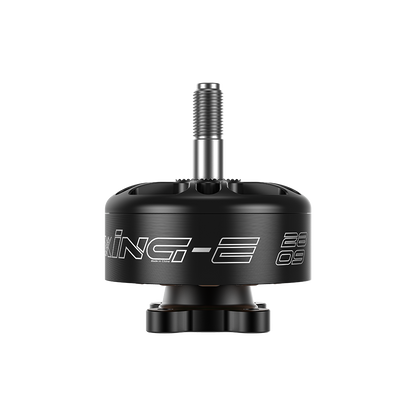

    Motor iFlight XING-E 2809 Cinelifter Motor 1250KV

    Motor iFlight XING-E 2809 Cinelifter Motor 1250KV

    Brand: iFlight

    €29,40
    €29,40 €29,40
    -0% View Product
    Upon request
    We need to check the product availability with our supplier. Please contact us for details.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion
    XING-E 2809 Cinelifter Motor 1250KV

Function
- High strength 5mm steel shaft
- N52H High temperature magnets
- Hole pattern 19x19mm
- Single-core copper winding

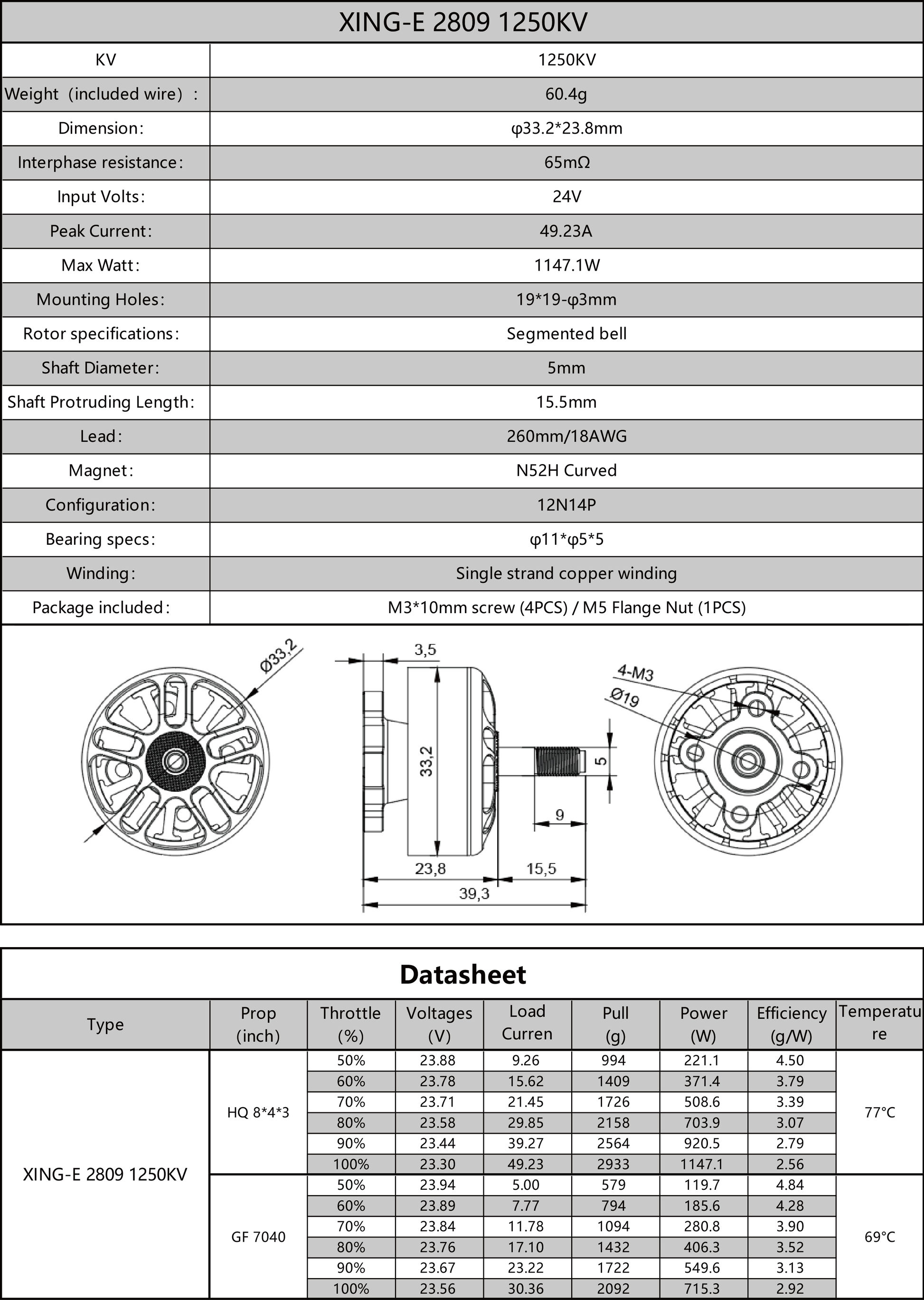

Specifications:

Model: XING-E 2809 Engine
KV: 1250 KV
Weight (including wire): 60.4 g
Size: φ33.2*23.8mm
Interphase resistance: 65mΩ
Input voltage: 24V
Peak current: 42.23A
Maximum wattage: 1147.1W
Mounting holes: 19*19 φ3mm
Rotor specifications: Segmented bell
Shaft diameter: 5 mm
Length of protruding shaft: 15 mm
Lead: 260mm/18AWG
Magnet: N52H Curved
Configuration: 12N14P
Bearing specifications: φ11*φ5*5
Winding: Single-core copper winding

The package includes:
1 x XING-E 2809 brushless motor
4x M3x10 screw
1 x M5 flange nut
