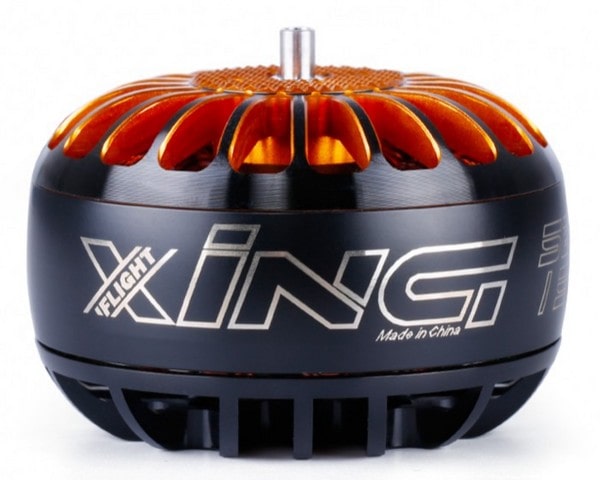

    XING 5215 Class X 500KV Motor

The XING 5215 motor is designed for large X-class drones, such as 11-15 inch quadcopters. Equipped with Japanese NSK bearings and N52H arc magnets, the motor provides incredible thrust, high response and extremely smooth flight characteristics.

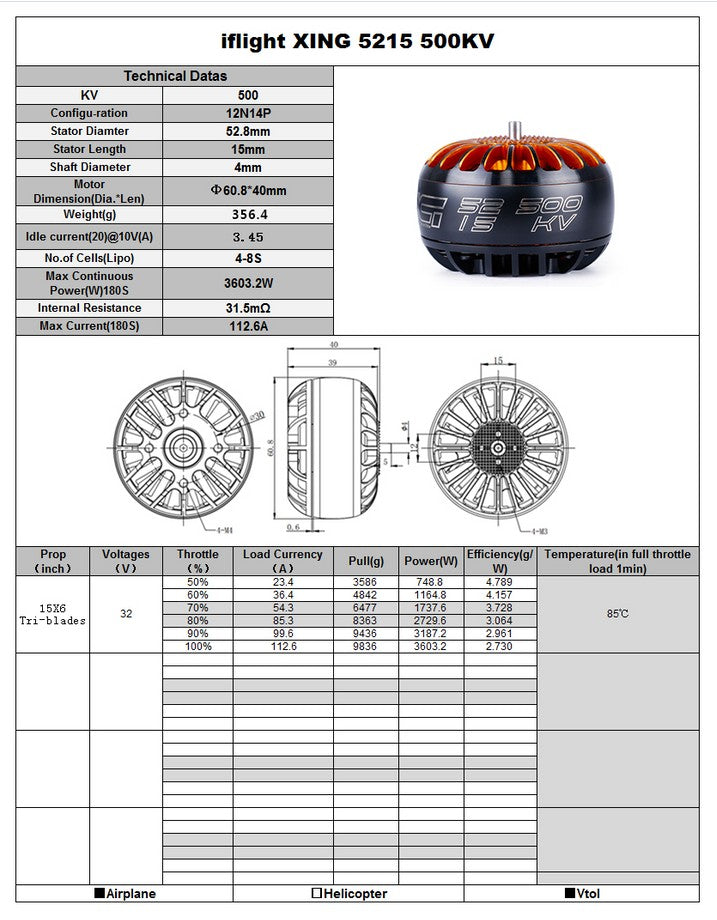

Specifications:
Model: XING 5215 Motor
KV: 500 KV
Weight (including wire): 356.4
Size: φ60.8*40mm
Interphase resistance: 31.5 mΩ
Peak current: 112.6A
Maximum wattage: 3603.2W
Shaft diameter: 4 mm
Stator diameter: 52.8 mm
Stator length: 15 mm
Configuration: 12N14P
Mounting holes: 30*30 φ4mm

The package includes:
1 x 5215 motor with screw pack
