Motor iFlight XING 2814 Race 1100KV
Motor iFlight XING 2814 Race 1100KV
Brand: iFlight
Regular price
€38,40
Regular price
€38,40
Sale price
€38,40
Unit price
/
per
Upon request
We need to check the product availability with our supplier. Please contact us for details.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion

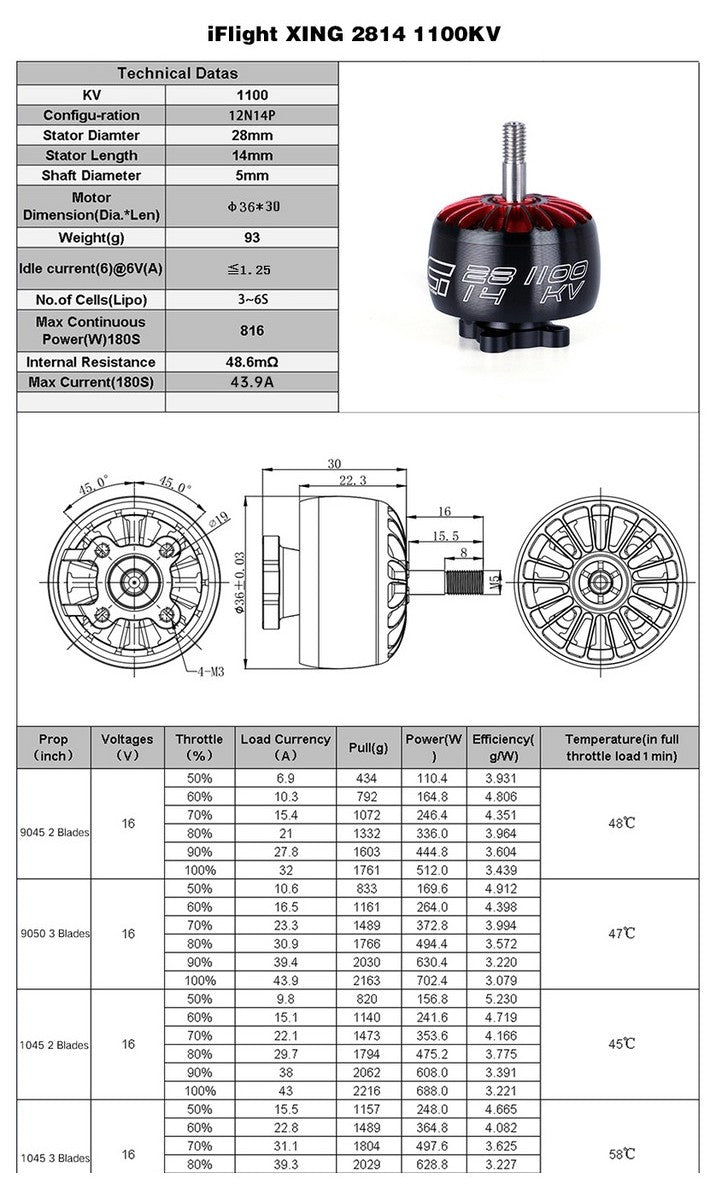

XING 2814 Racing motor 1100KV The XING 2814 motor is designed for larger quadcopters with a 9-10 inch frame and offers increased efficiency in this size range. With its Japanese NSK bearing and N52H arc magnets, it delivers impressive thrust, response and smooth flight characteristics. Its larger stator size allows for instant power delivery, making it ideal for maneuvers such as steep mountain jumps. Function: - 7075 aluminum bell and base - Electromagnetically matched magnets and stator - Japanese bearings NSK 11*5*5 - Arc magnets N52H - Protected motor leads - Hexagon screw shaft set screw - Rotor specifications are available on Segmented Bell and Unibell, supplied at random. Specifications Model: XING X2814 engine KV: 1100KV Weight (including wire): 93 g Size: φ36*30mm Interphase resistance: 48.6 mΩ Peak current: 43.9A Maximum wattage: 916W Shaft diameter: 5 mm Length of protruding shaft: 14 mm Configuration: 12N14P Mounting holes: 19*19 φ3mm The package includes: 1 x X2814 motor 1 x M5 nut 4 x M3*8 screws
