Code: SKU:B007099

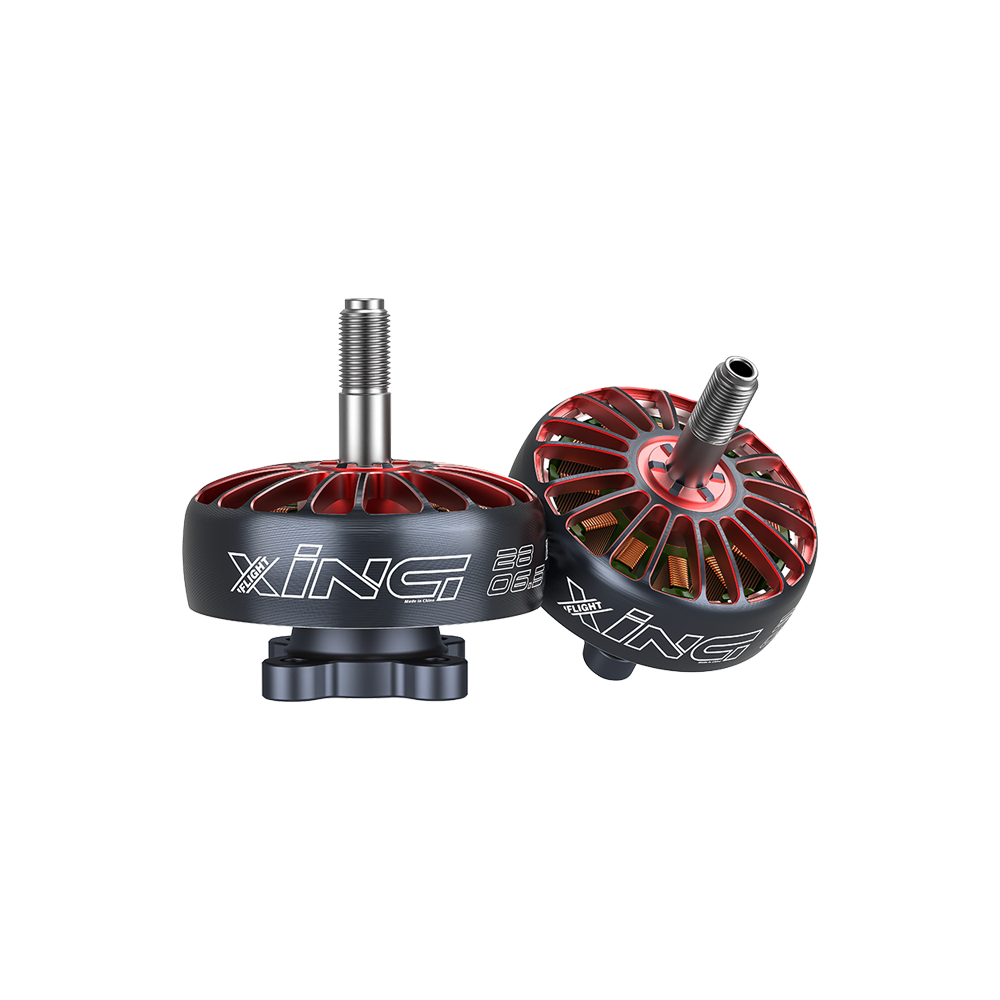

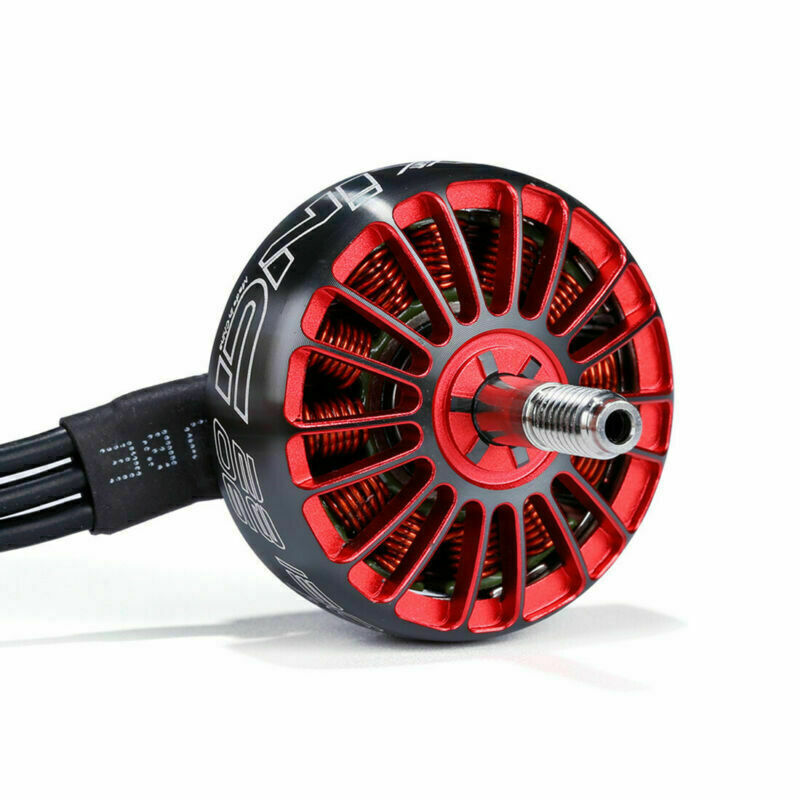

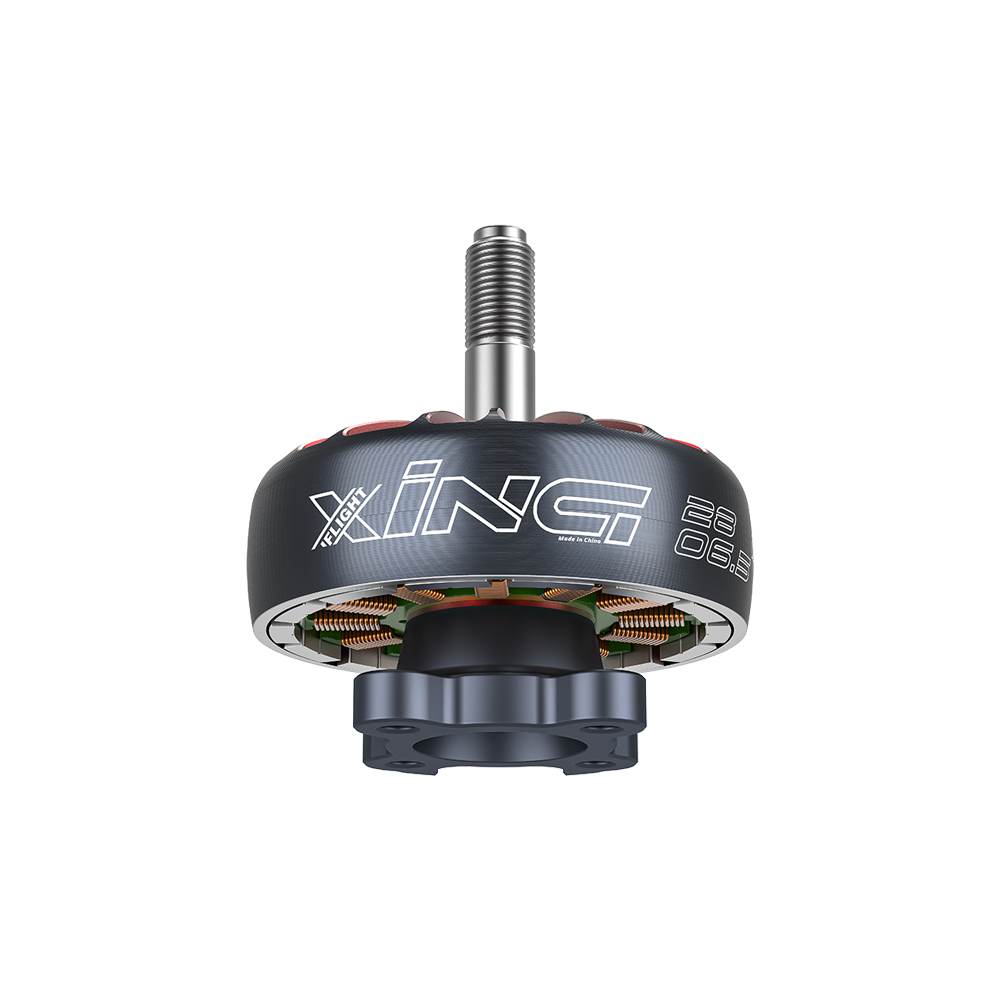

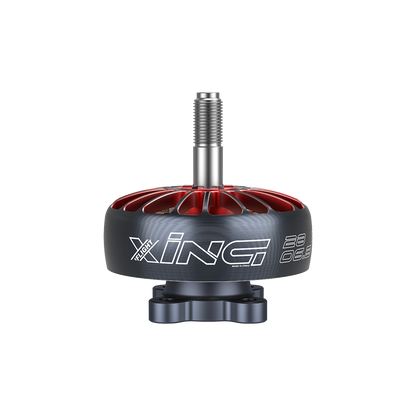

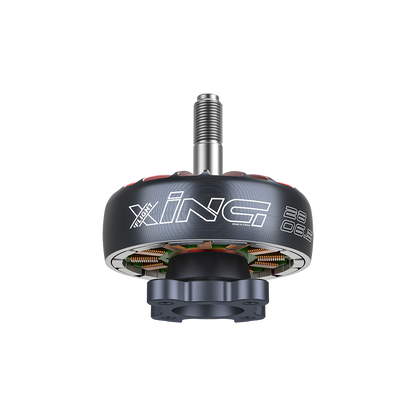

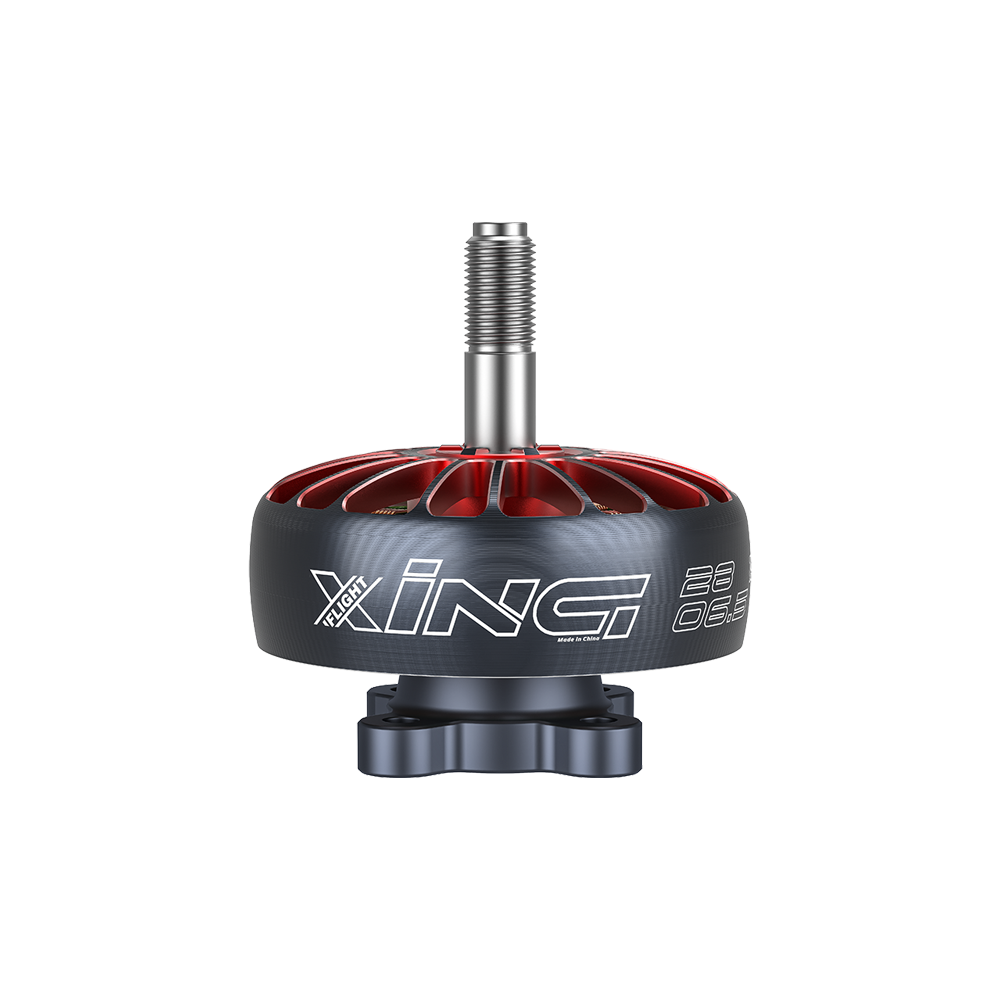

Motor iFlight XING 2806.5 Unibell Race 1800KV
Motor iFlight XING 2806.5 Unibell Race 1800KV
Brand: iFlight
Regular price
€33,50
Regular price
€33,50
Sale price
€33,50
Unit price
/
per
Upon request
We need to check the product availability with our supplier. Please contact us for details.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion
XING 2806.5 Unibell Race Motor 1800KV The XING 2806.5 motor is tailored for larger quadcopters (7-8 inch frames) offering increased efficiency in this size range. With its uni-bell design, Japanese NSK bearing and N52H arc magnets, it provides impressive thrust, response and smooth flight performance. Its larger stator size allows for instant power delivery, making it ideal for maneuvers such as steep mountain jumps. If you are building a larger drone, such as a 7-inch or 8-inch model, this motor is an excellent choice. Function: - High strength 4mm titanium alloy shaft - Unibell design - 7075 aluminum bell and base - Electromagnetically matched magnets and stator - Japanese bearings NSK 11*5*5 - Arc magnets N52H - Protected motor leads - Hexagon screw shaft set screw - Dynamically balanced Specifications Model: XING X2806.5 Engine KV: 1800 KV Weight (including wire): 53.3 Size: φ35.06*21.3mm Interphase resistance: 45.5 mΩ Input voltage: 24V Peak current: 72.3A Maximum wattage: 1681.0W Mounting holes: 19*19 φ3mm Rotor specifications: Unibell Shaft diameter: 5mm/4mm Length of protruding shaft: 15.5 mm Lead: 265mm/18AWG Magnet: N52H Curved Configuration: 12N14P Bearing type: NSK Bearing specifications: φ11*φ5*45 Winding: Single-core copper winding The package includes: 1 x X2806.5 motor 1 x M5 nut 4 x M3*8 screws
