    Motor iFlight XING 2205 (Φ12/M2) 2300KV

    Motor iFlight XING 2205 (Φ12/M2) 2300KV

    Brand: iFlight

    €17,10
    €17,10 €17,10
    -0% View Product
    In stock
    We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion
    XING 2205 FPV motor (Φ12/M2) 2300KV

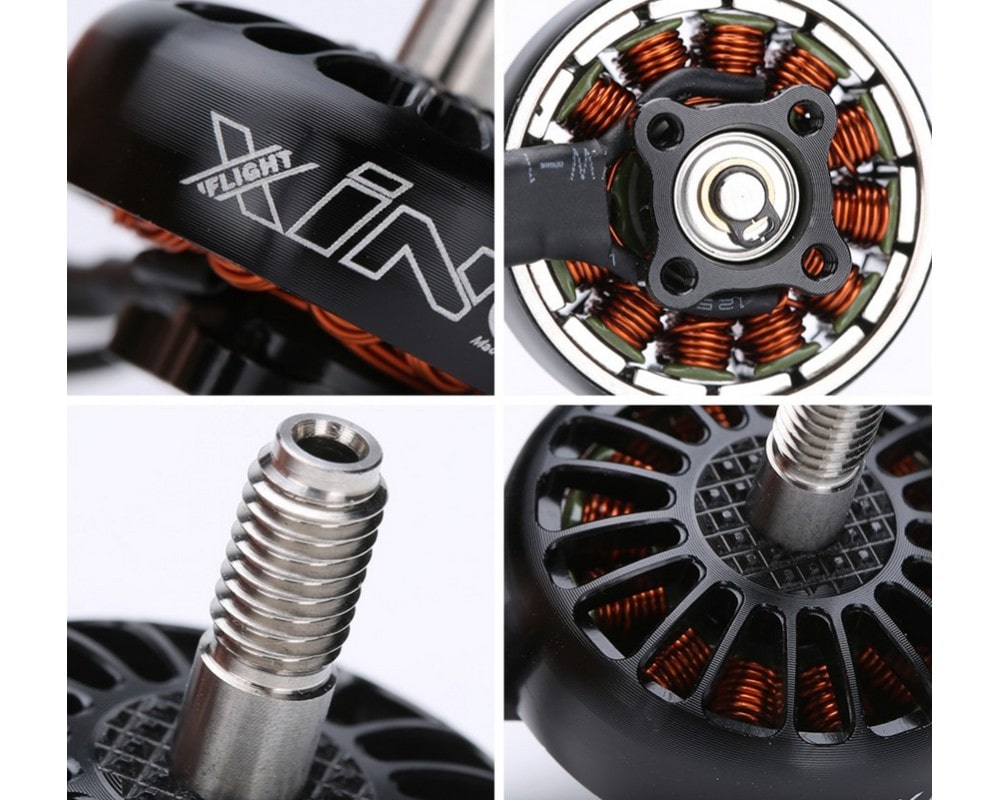

iFlight XING 2205 is a black brushless motor designed for FPV drones.

Function:

- High strength 5mm steel shaft
- Japanese NSK bearings φ8*φ3*4
- N52H curved magnets
- Motor leads are protected
- Dynamically balanced

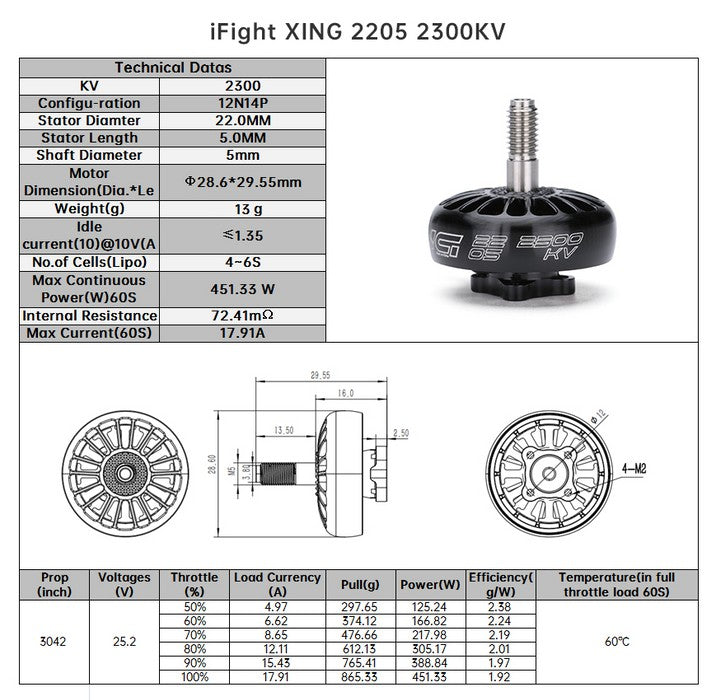

Specifications:

KV: 2300 KV
Input voltage: 4-6S LiPo
Configuration: 12N14P
Stator diameter: 22mm
Stator length: 5 mm
Shaft diameter: 5mm
Weight: 13 g (with short wires)
Mounting pattern: 12*12mm/M2

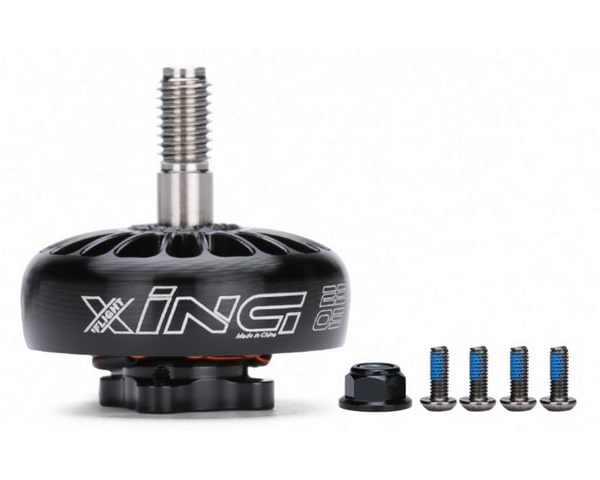

The package includes:
1x XING 2205 2300KV motor
4x M2*6mm screws

Note: The propeller is not included.
