    Code: X014082

    Motor iFlight XING 1002 22000KV

    Motor iFlight XING 1002 22000KV

    Brand: iFlight

    €13,00
    €13,00 €13,00
    -0% View Product
    Upon request
    We need to check the product availability with our supplier. Please contact us for details.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion
    XING 1002 FPV 22000KV motor

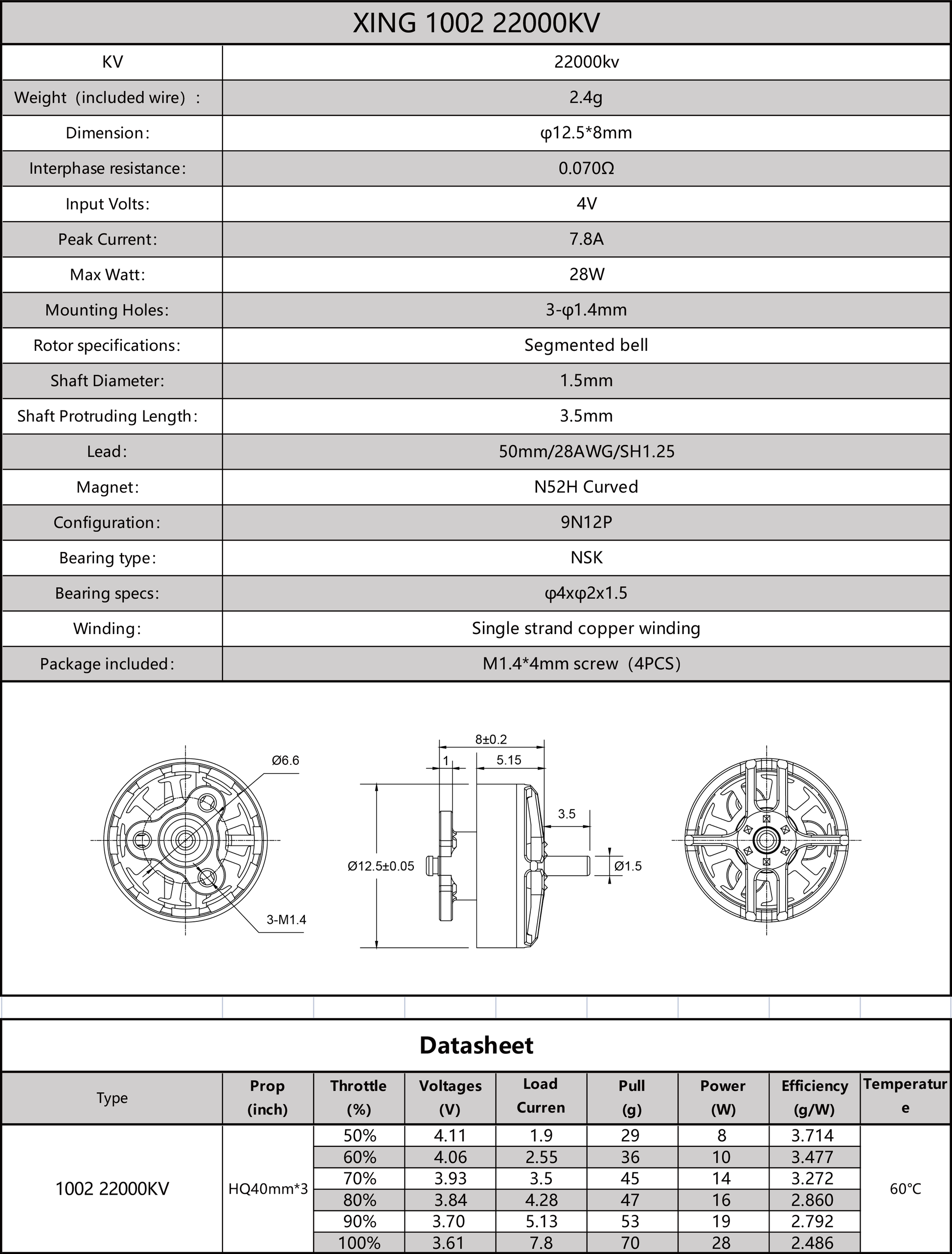

Specifications:
Model: XING 1002 Black Motor
KV: 22,000 KV
Weight (including wire): 2.4 g
Size: φ12.5*8mm
Interphase resistance: 0.070Ω
Input voltage: 4V
Peak current: 7.8A
Maximum wattage: 28W
Mounting holes: 3*3 φ1.4mm
Rotor specifications: Segmented bell
Shaft diameter: 1.5 mm
Length of protruding shaft: 3.5 mm
Lead: 50mm/28AWG/SH1.25
Magnet: N52H Curved
Configuration: 9N12P
Bearing type: NSK
Bearing specifications: φ4*φ2*1.5
Winding: Single-core copper winding

The package includes:
1x XING 1002 FPV motor
4 x M1.4*4mm screws
