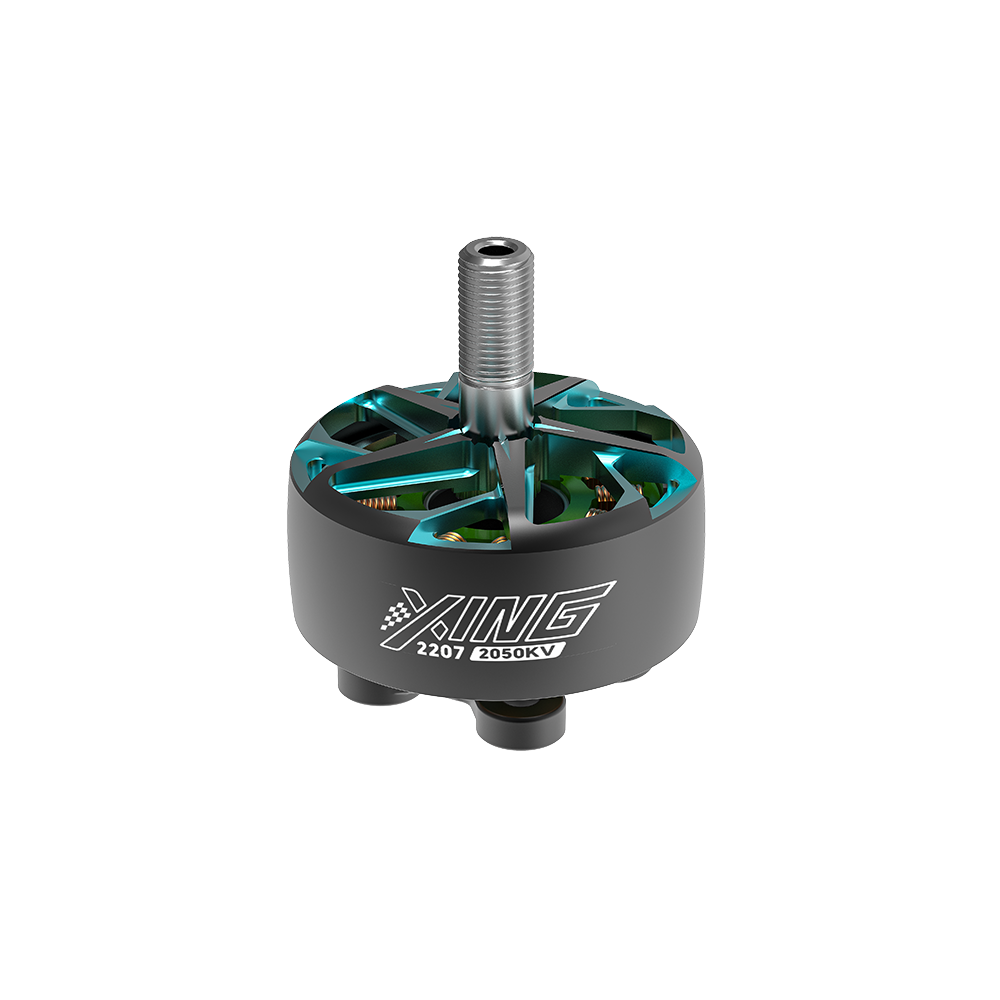

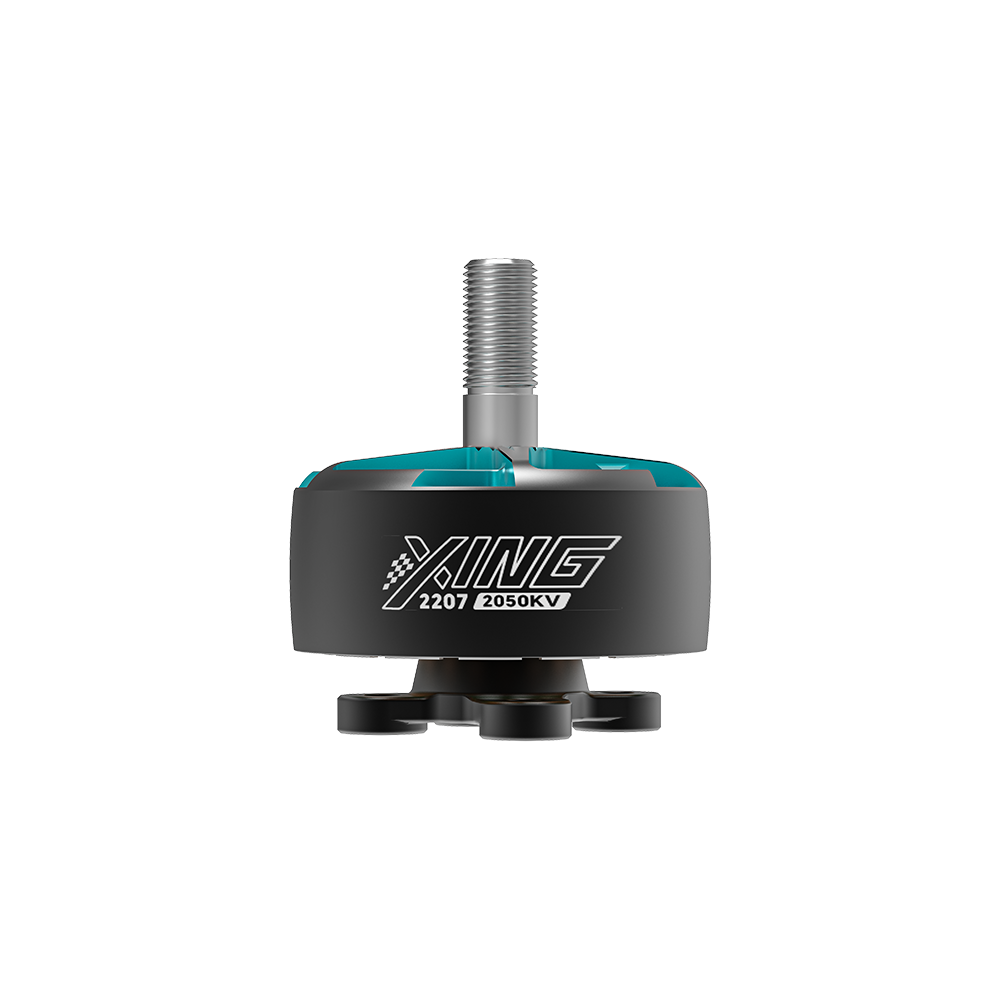

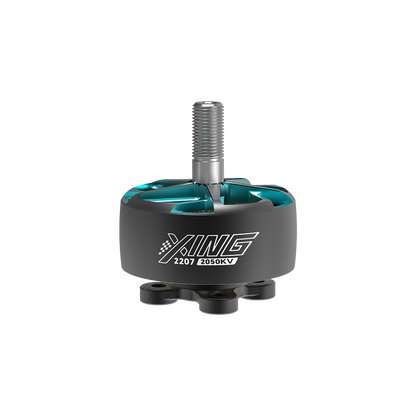

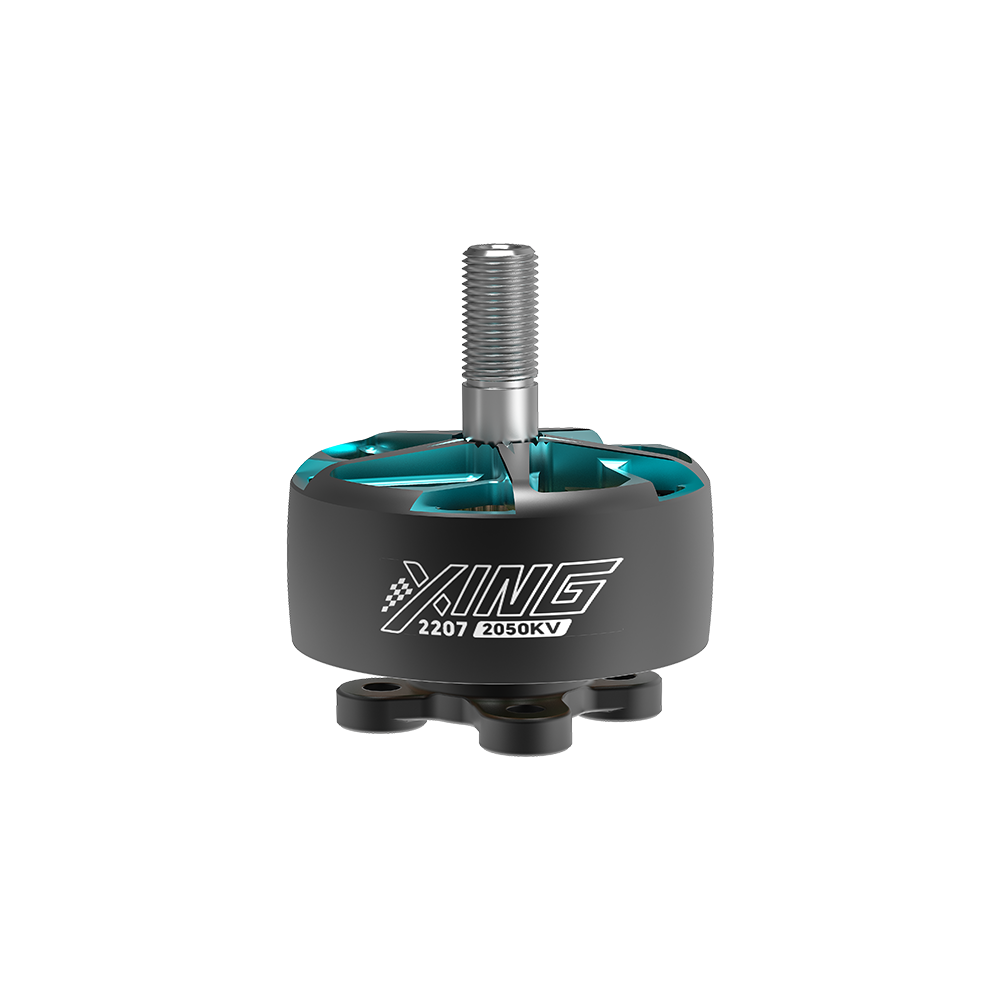

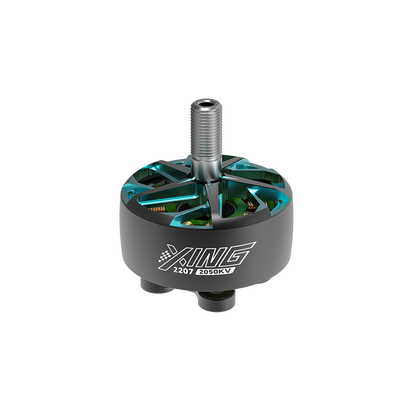

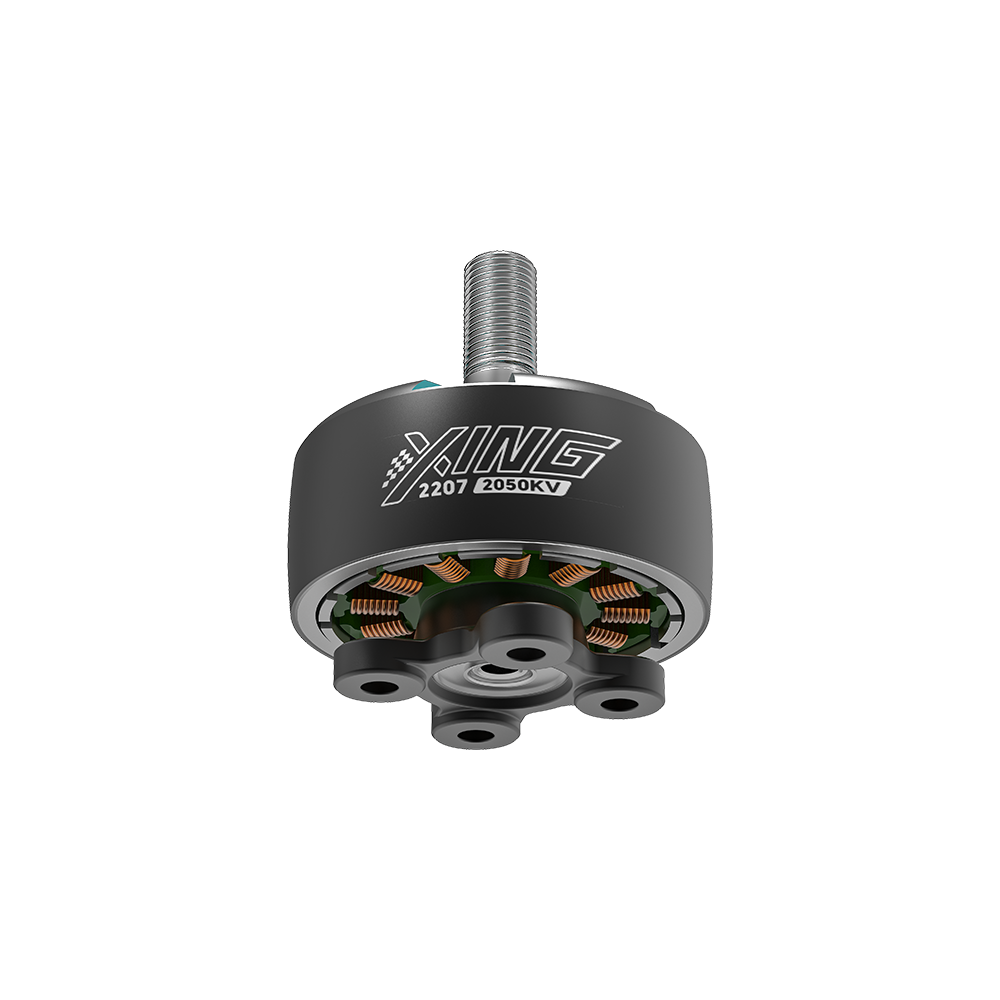

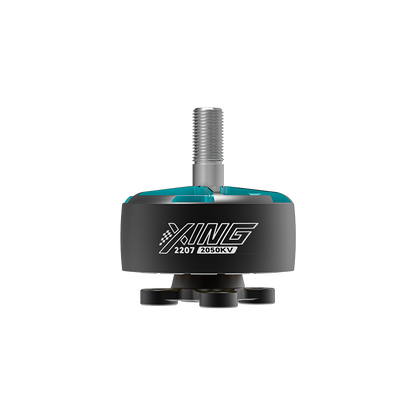

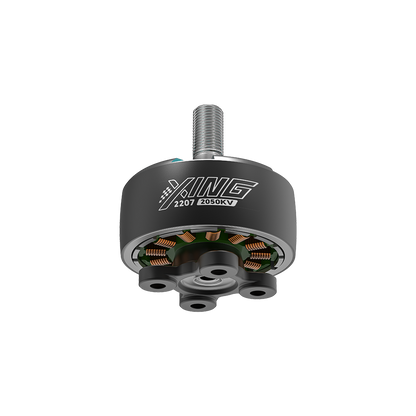

    R5 2207 2050KV FPV Motor

This motor is designed specifically for racing drones like the Mach R5 Racing drone.

Enhanced with new N52H center groove curved arc magnets, it delivers smoother, more reliable and more powerful performance than ever before.

Using high-quality materials and a durable bell-shaft connection, the motor minimizes magnet air gap and stator lamination, maximizing efficiency and power.

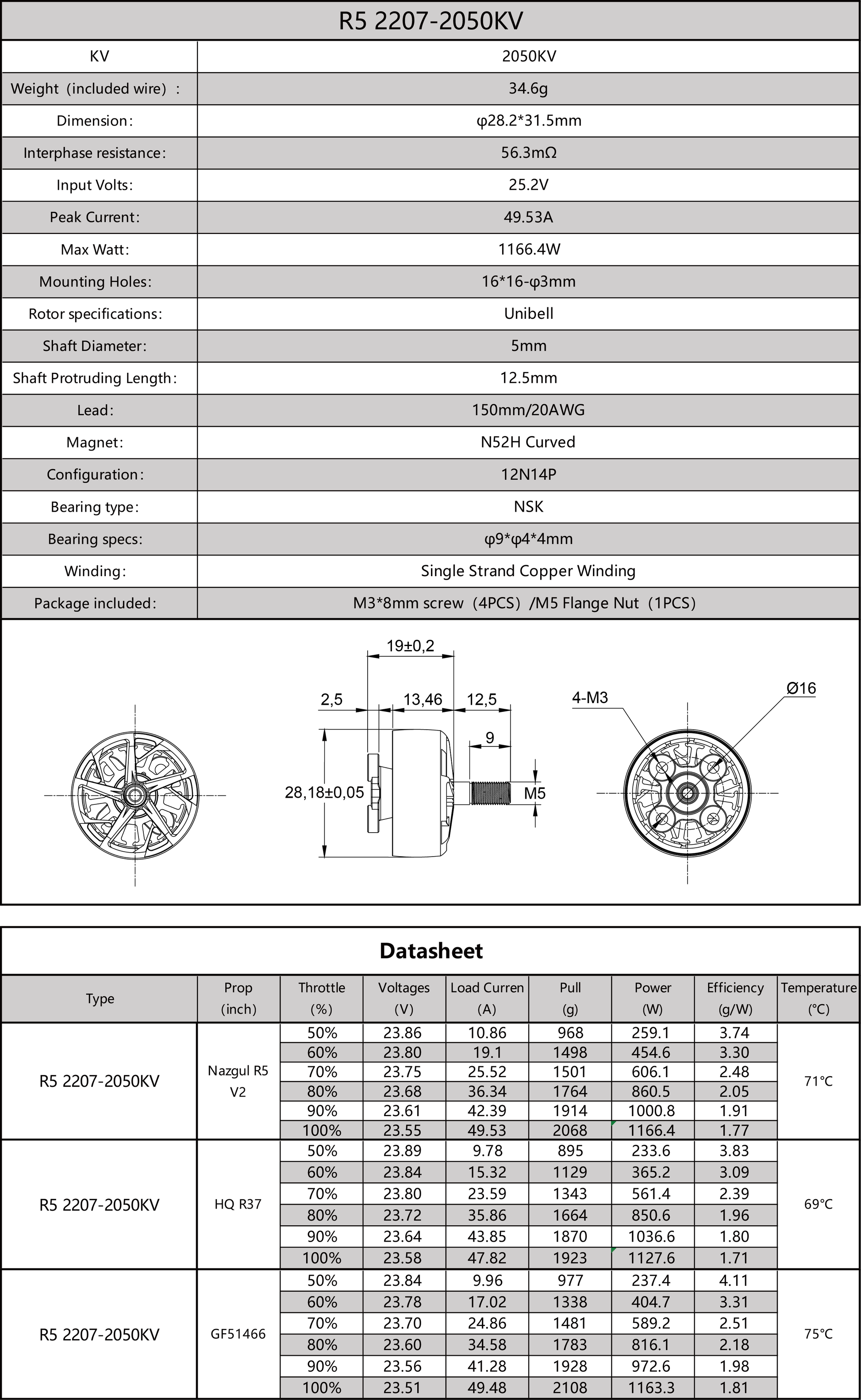

Specifications:
Model: R5 2207 engine
KV: 2050 KV
Weight (including wire): 34.6 g
Size: 28.2*31.5mm
Interphase resistance: 56.3 mΩ
Input voltage: 25.2V
Peak current: 49.53A
Maximum wattage: 1166.4W
Mounting holes: 16*16 φ3mm
Shaft diameter: 5 mm
Length of protruding shaft: 12.5 mm
Lead: 150mm/20AWG
Magnet: N52H Curved
Configuration: 12N14P
Bearing type: NSK
Bearing specifications: φ9*φ4*4
Winding: Single-core copper winding

The package includes:
1 x Xing 2207 2050KV brushless motor
4 x M3*8 screws
1 x M5 flanged nylon lock nut
