    Motor iFlight Helion 3110 900KV

    Motor iFlight Helion 3110 900KV

    Brand: iFlight

    €45,70
    €45,70 €45,70
    -0% View Product
    Upon request
    We need to check the product availability with our supplier. Please contact us for details.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion
    Helion 3110 FPV 900KV motor

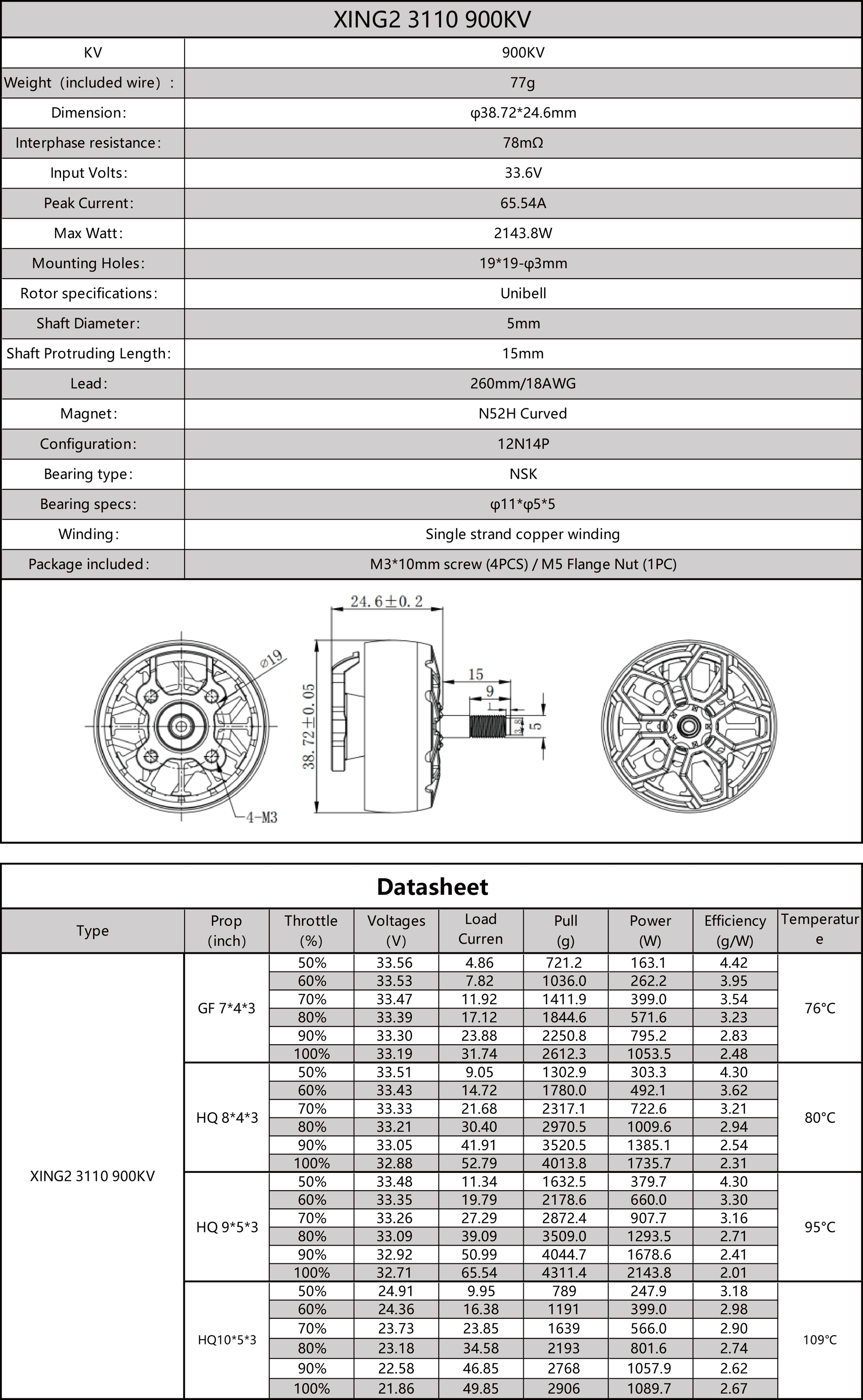

Specifications:

KV: 900 KV
Weight (including wire): 77 g
Size: φ38.72*24.6mm
Interphase resistance: 78mΩ
Input voltage: 33.6V
Peak current: 65.54A
Maximum wattage: 2143.8W
Mounting holes: 19*19 φ3mm
Rotor specifications: Unibell
Shaft diameter: 5 mm
Length of protruding shaft: 15 mm
Lead: 260mm/18AWG
Magnet: N52H Curved
Configuration: 12N14P
Bearing type: NSK
Bearing specifications: φ11*φ5*5
Winding: Single-core copper winding

The package includes:
1 x Helion 10 3110 engine
4x M3x10 screw
1 x M5 flange nut
