    Motor iFlight Defender 20 1204 6200KV CCW

    Motor iFlight Defender 20 1204 6200KV CCW

    Brand: iFlight

    €13,00
    €13,00 €13,00
    -0% View Product
    Upon request
    We need to check the product availability with our supplier. Please contact us for details.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion

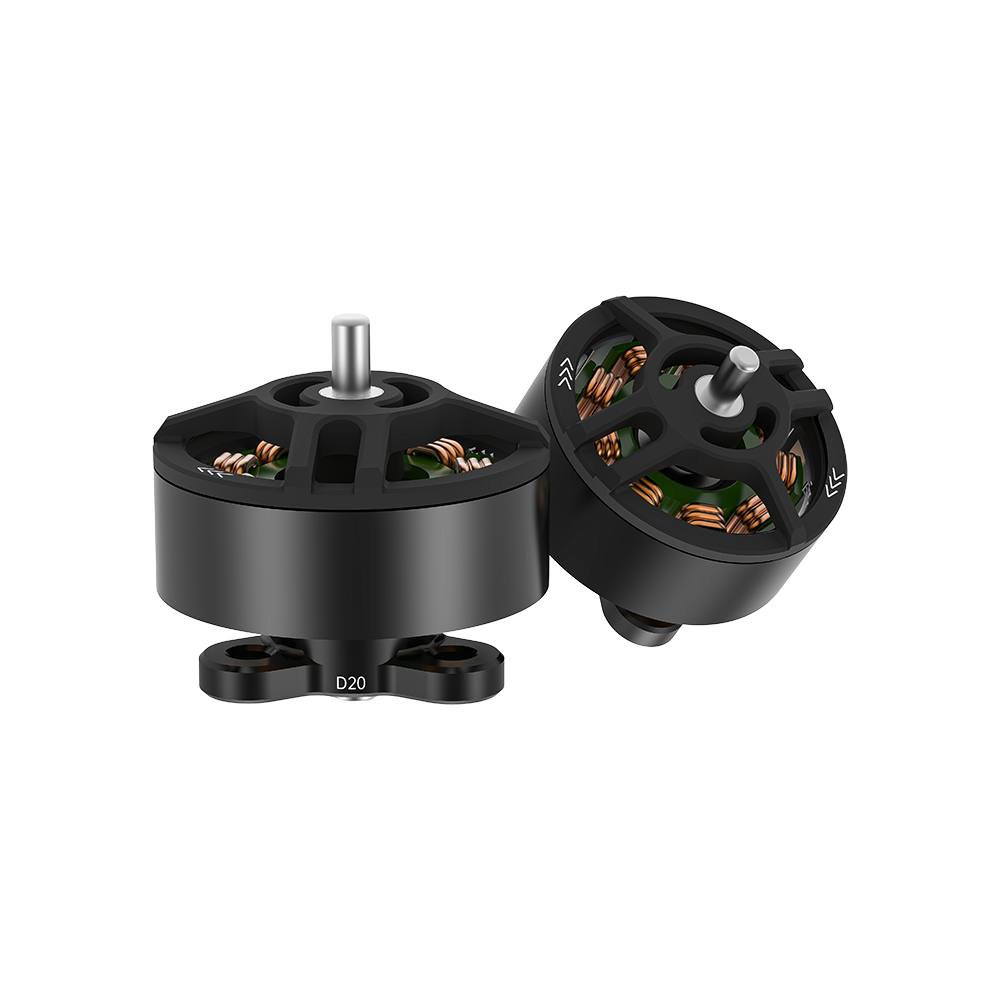

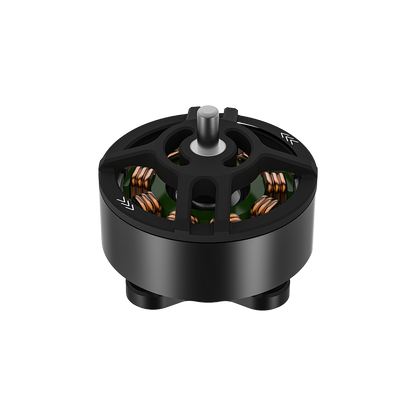

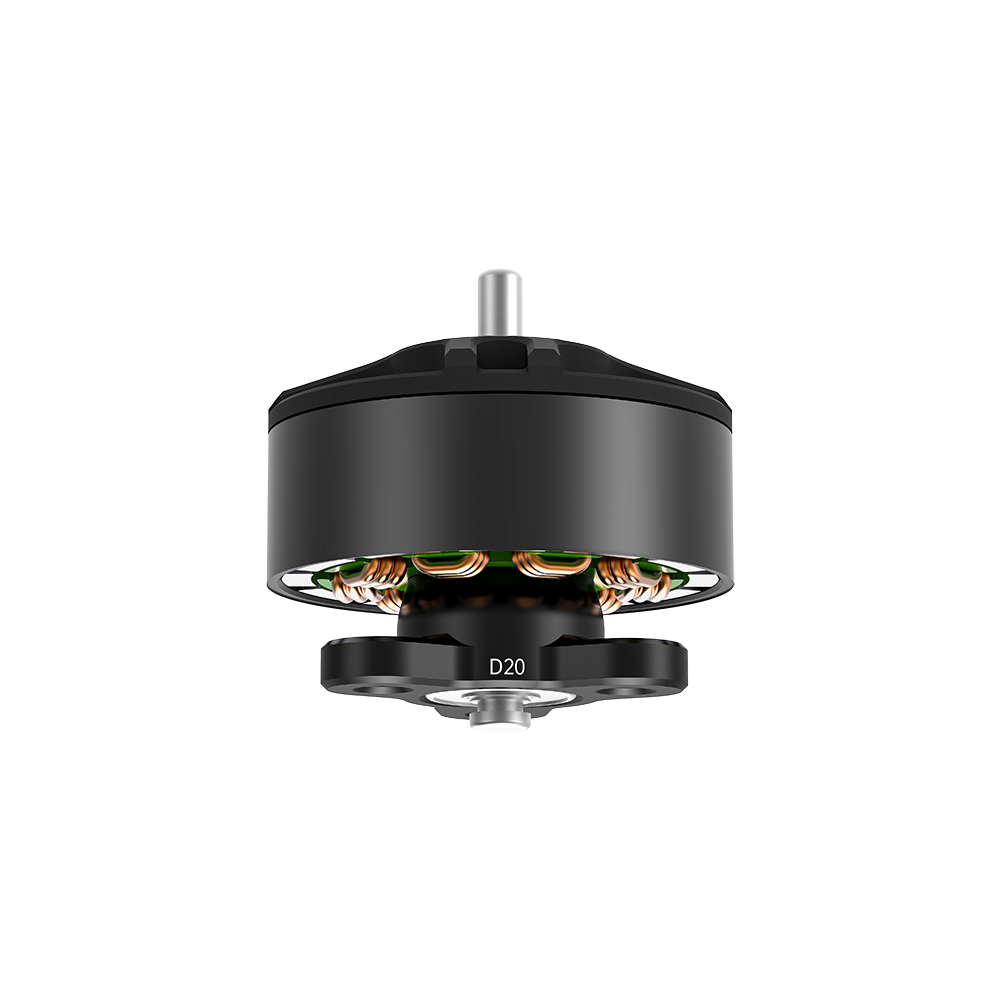

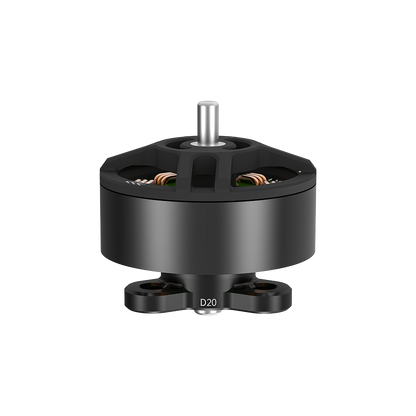

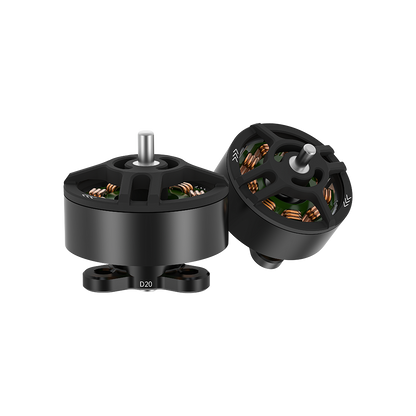

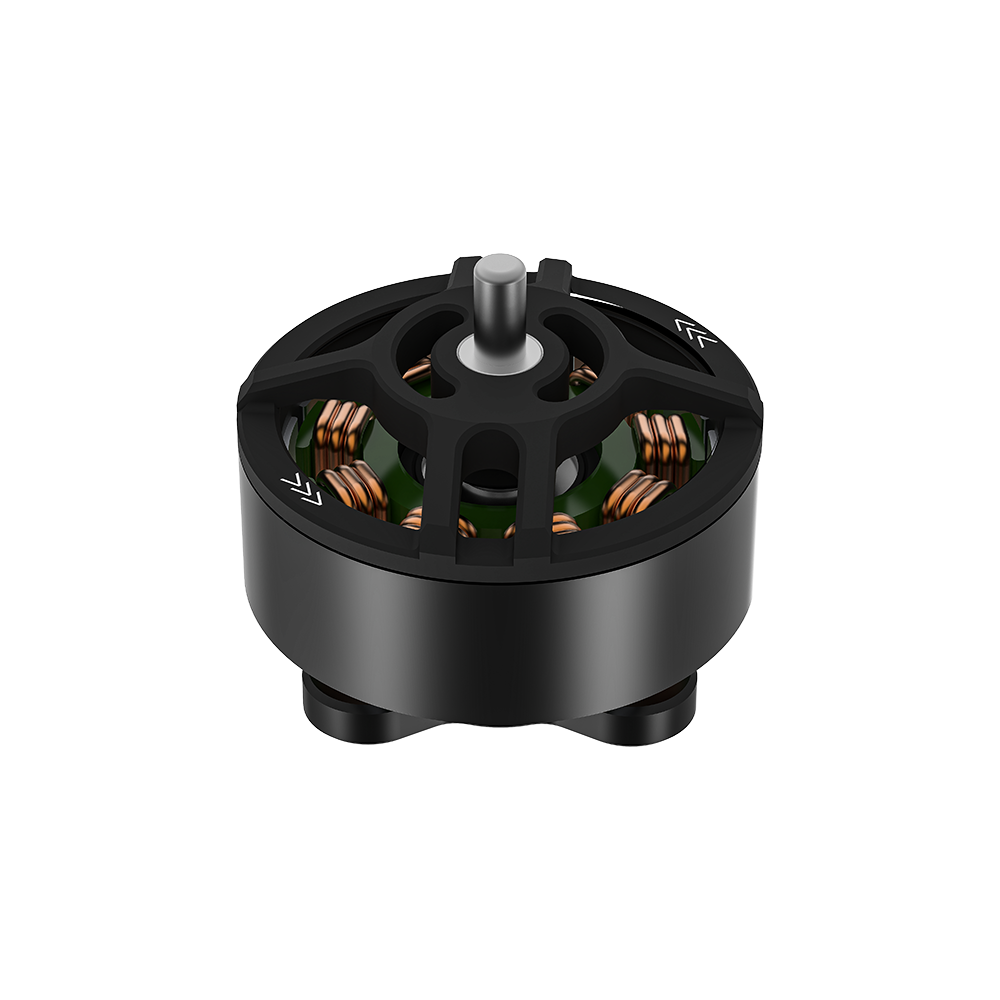

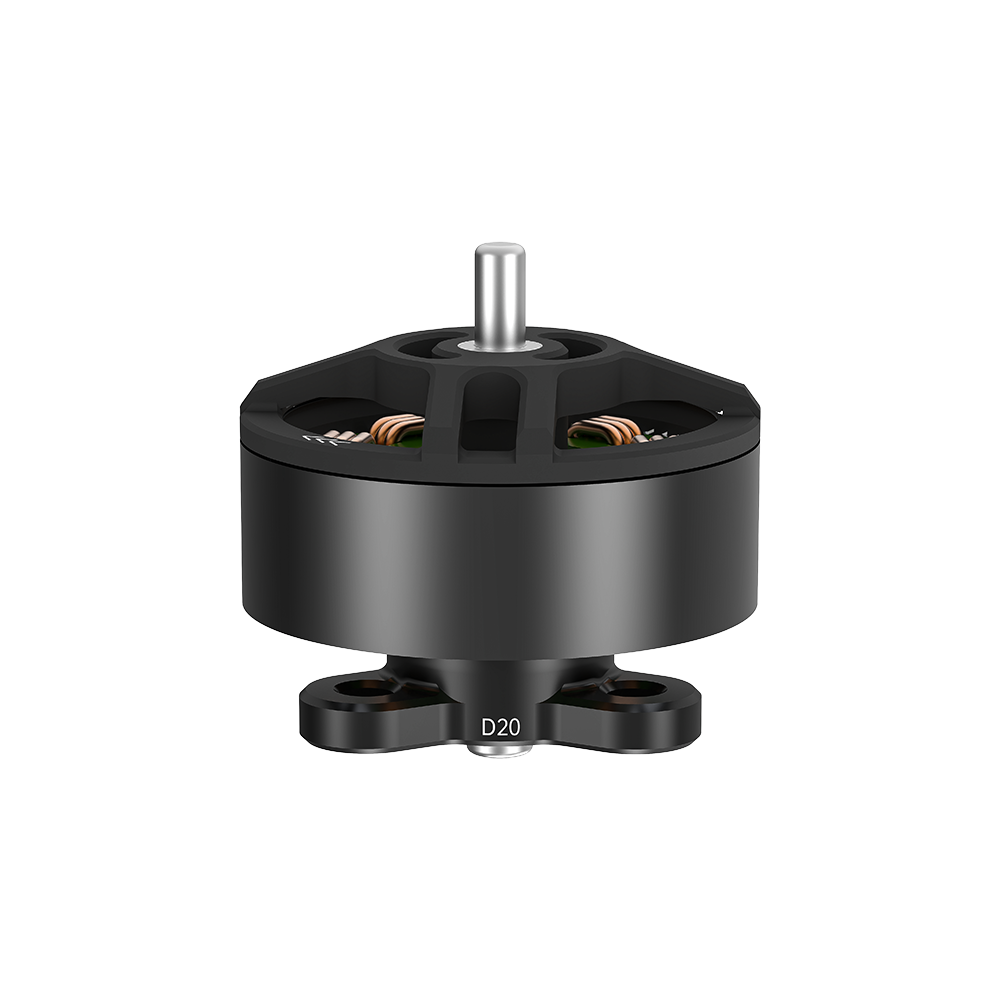

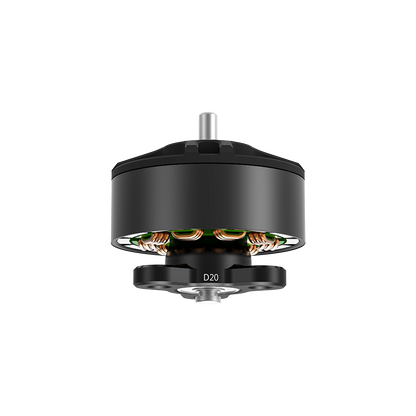

    Defender 20 1204 6200KV CCW

Specifications:
Model: Defender 20 1204 Engine
KV: 6200V
Weight (including wire): 5.8 g
Size: 13.5*14.2mm
Phase-to-phase resistance: 0.202Ω
Input voltage: 12V
Peak current: 7.85A
Maximum wattage: 89.7W
Mounting holes: φ9 φ2mm (3 mounting holes)
Rotor specifications: Segmented bell
Shaft diameter: 1.5 mm
Length of protruding shaft: 3 mm
Lead: 60mm/28AWG
Magnet: N52H Curved
Configuration: 9N12P
Bearing type: NMB
Bearing specifications: 5 * 2 * 2.5 mm
Winding: Single-core copper winding

The package includes:
1 x Defender 20 1204 CCW Engine
4x M2x4 mounting screws
