    Code: B015525

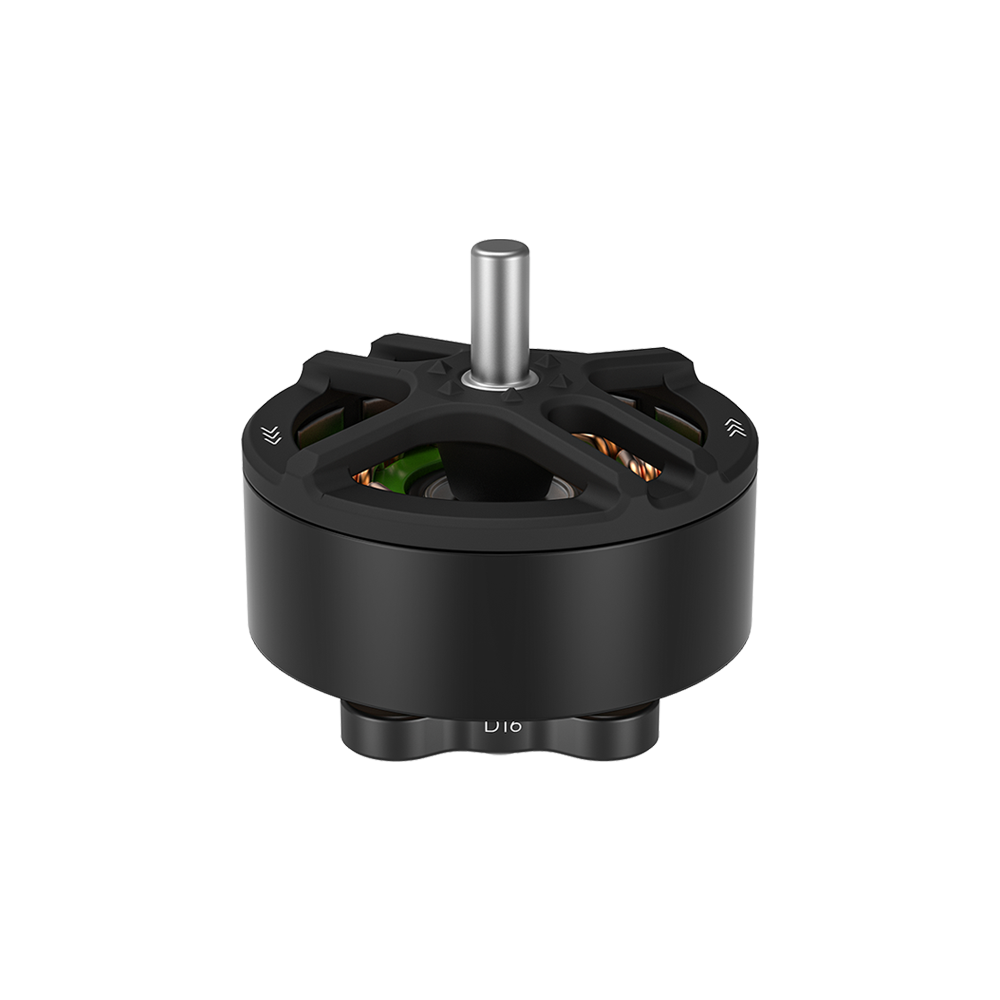

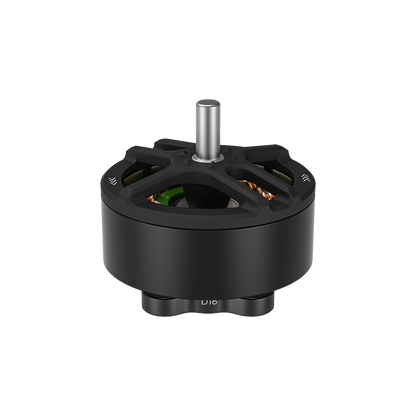

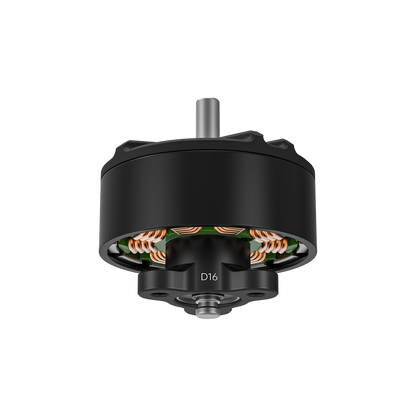

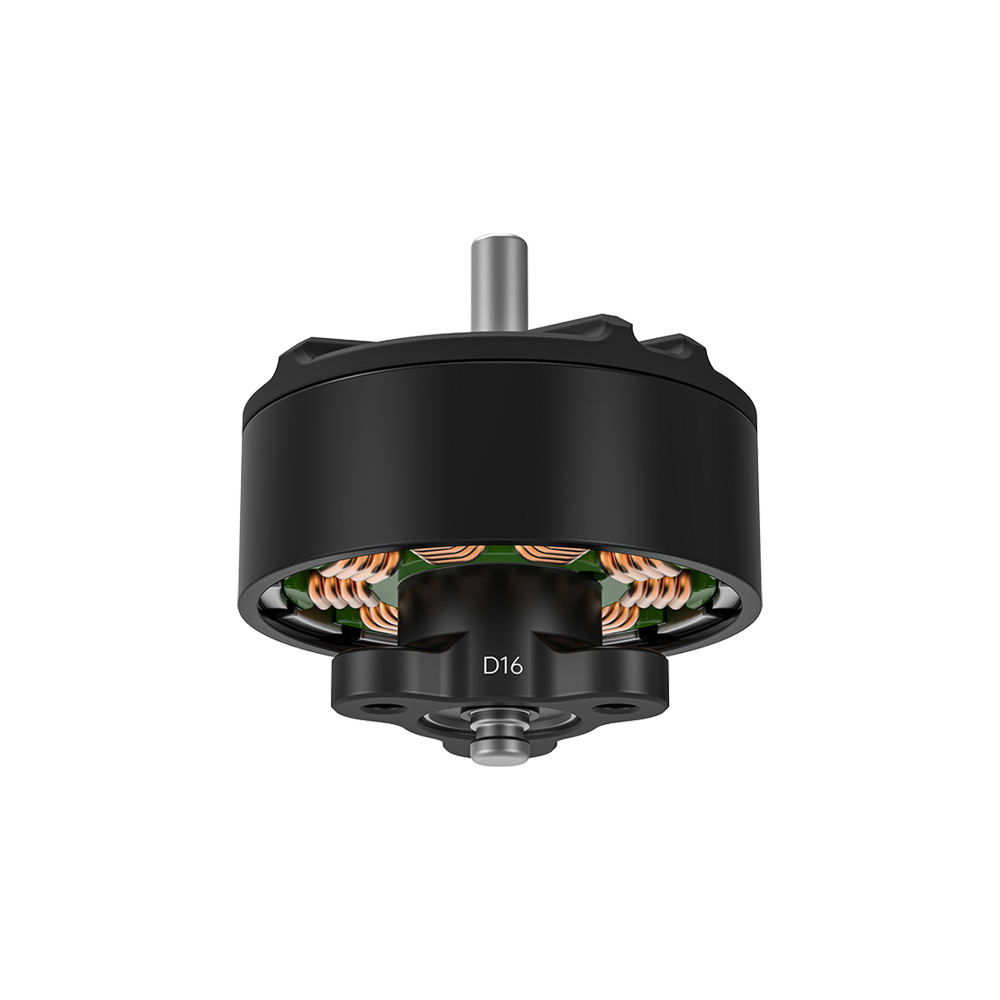

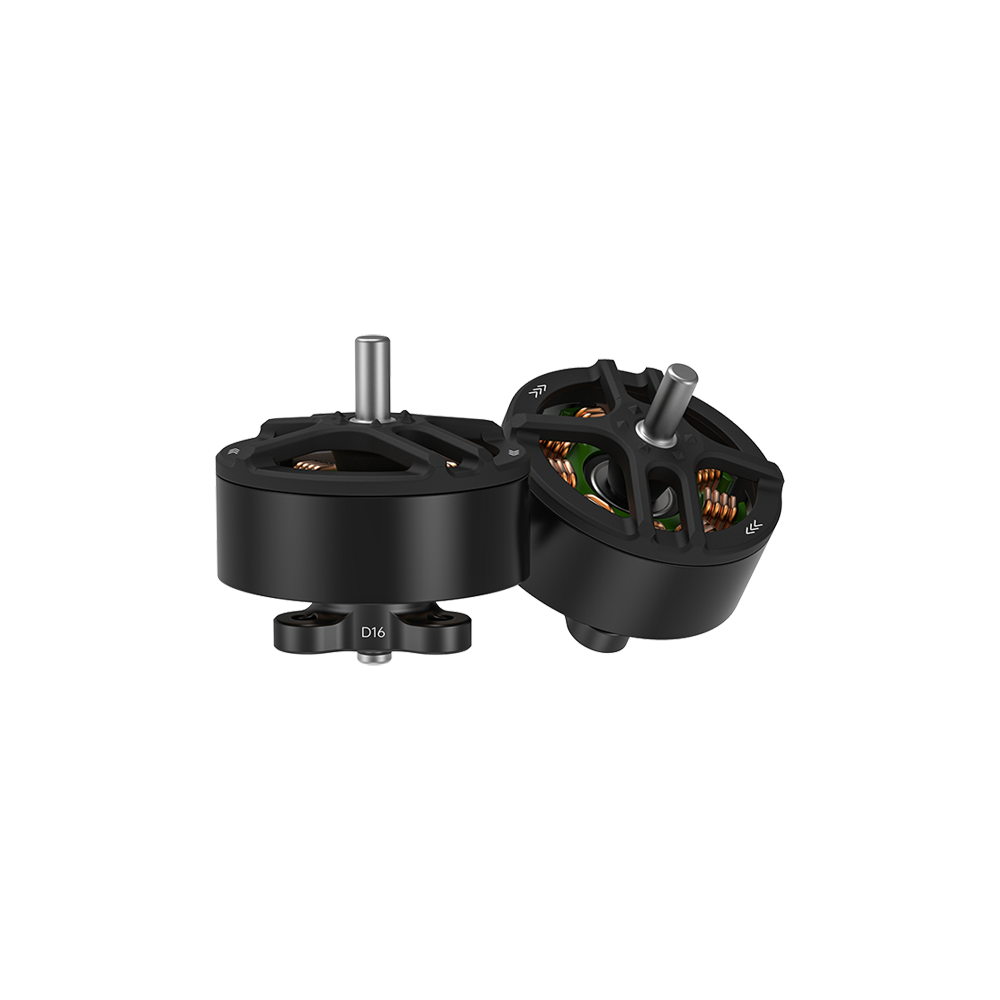

    Motor iFlight Defender 16 1103 14000KV CCW

    Motor iFlight Defender 16 1103 14000KV CCW

    Brand: iFlight

    €13,00
    €13,00 €13,00
    -0% View Product
    Upon request
    We need to check the product availability with our supplier. Please contact us for details.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion
    Defender 16 1103 14000KV CCW

The Defender 16 Motor is tailor-made for ultralight builds and transforms the FPV microdrone experience.

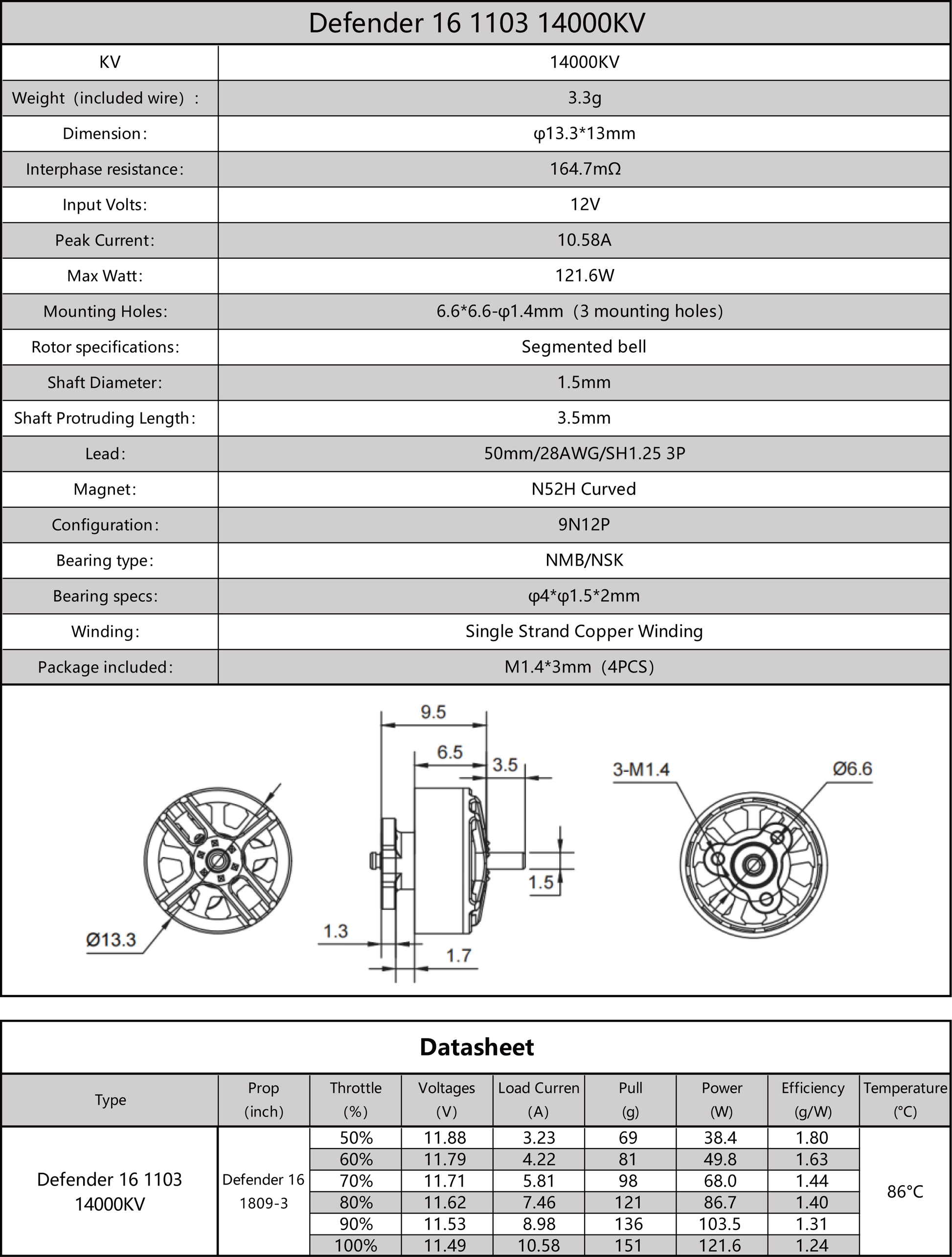

Specifications:
Model: Defender 16 1103 Engine
KV: 14000V
Weight (including wire): 3.3 g
Size: 13.3*13mm
Interphase resistance: 164.7 mΩ
Input voltage: 12V
Peak current: 10.58A
Maximum wattage: 121.6W
Mounting holes: 6.6mm/φ1.4mm (3 mounting holes)
Rotor specifications: Segmented bell
Shaft diameter: 1.5 mm
Length of protruding shaft: 3 mm
Terminal: 50mm/28AWG/SH1.25 3P
Magnet: N52H Curved
Configuration: 9N12P
Bearing type: NMB
Bearing specification: φ4*1.5*2.mm
Winding: Single-core copper winding

The package includes:
1 x Defender 16 1103 CCW Engine
4 x M1.4 x 3mm mounting screws
