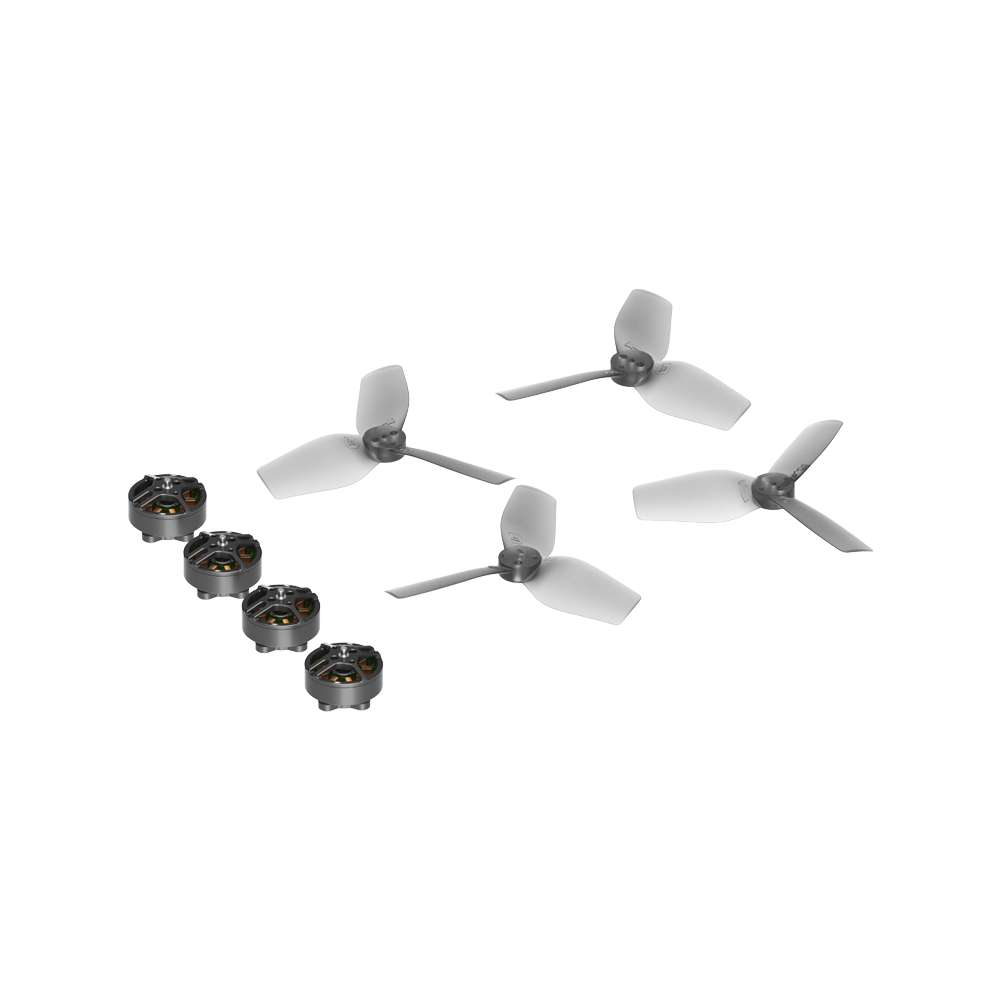

    • 12846 4 motor iflight 4150kv defender 25 1404 4150kv ccw
    1 5

    Code: B013790

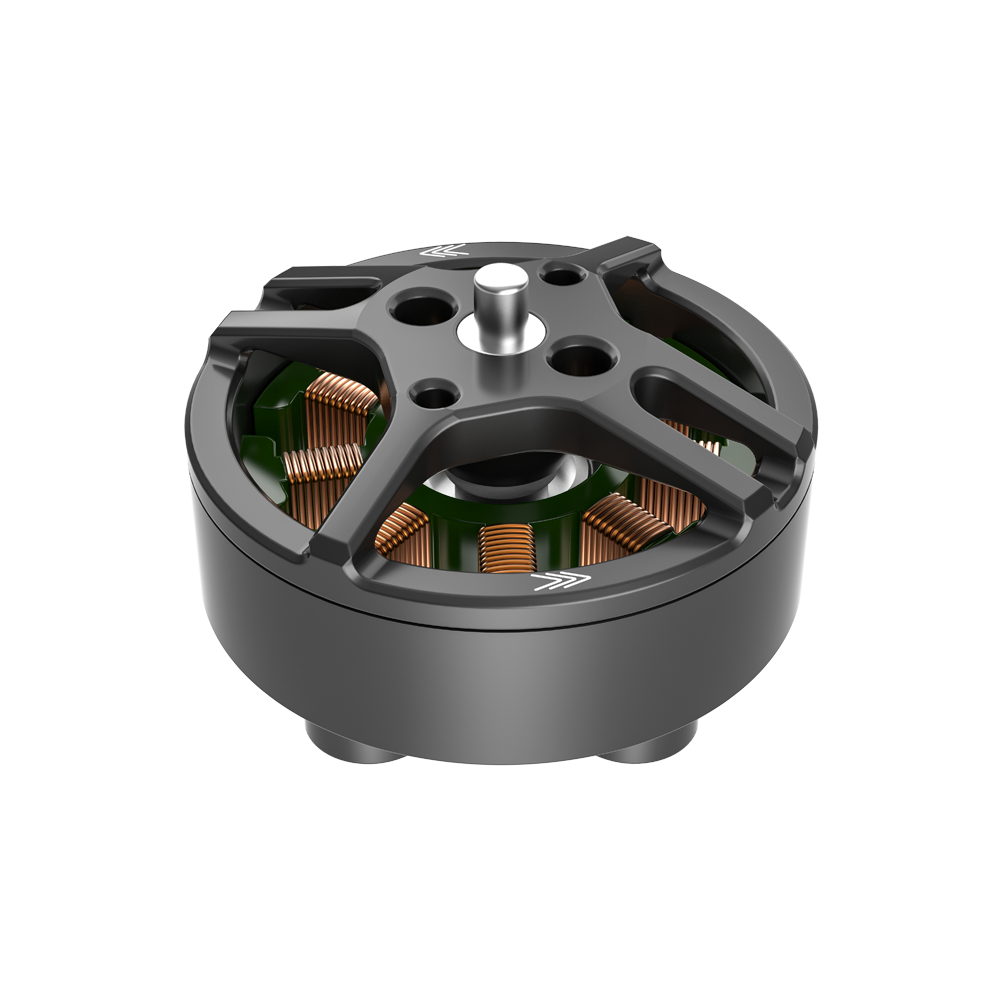

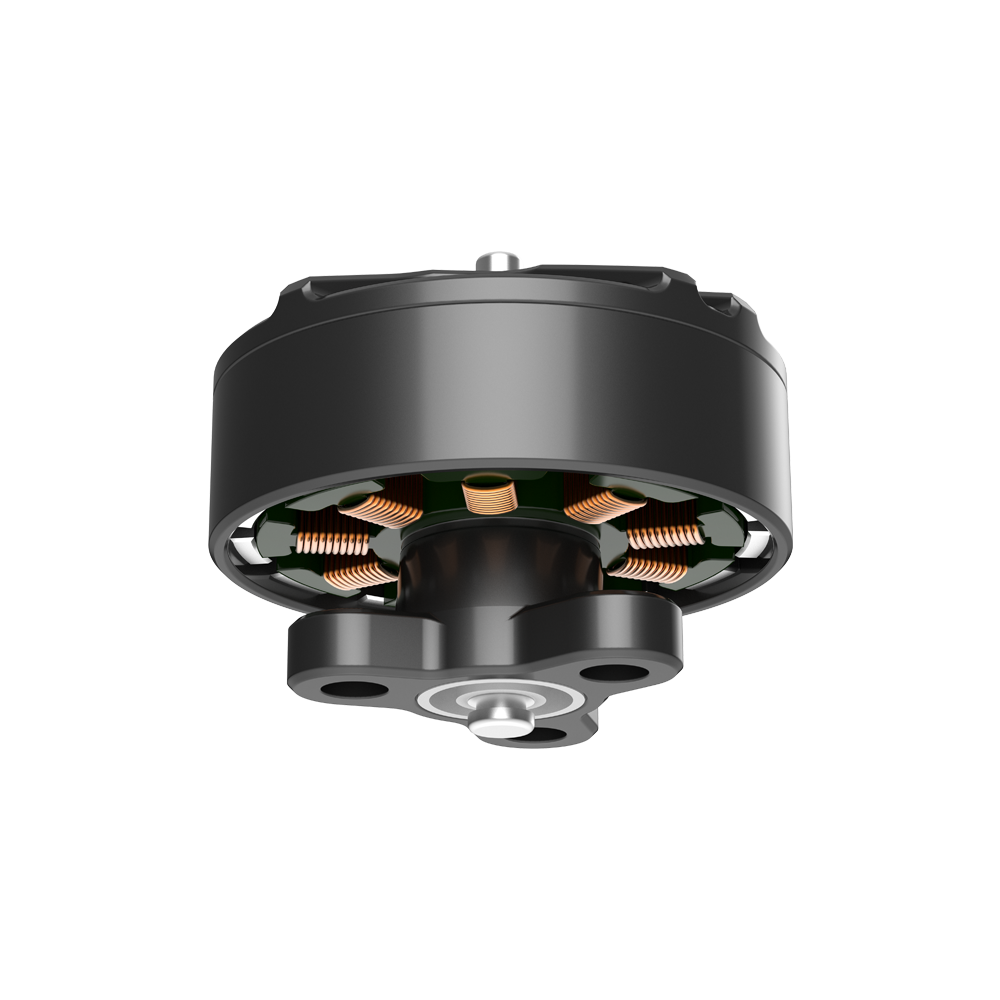

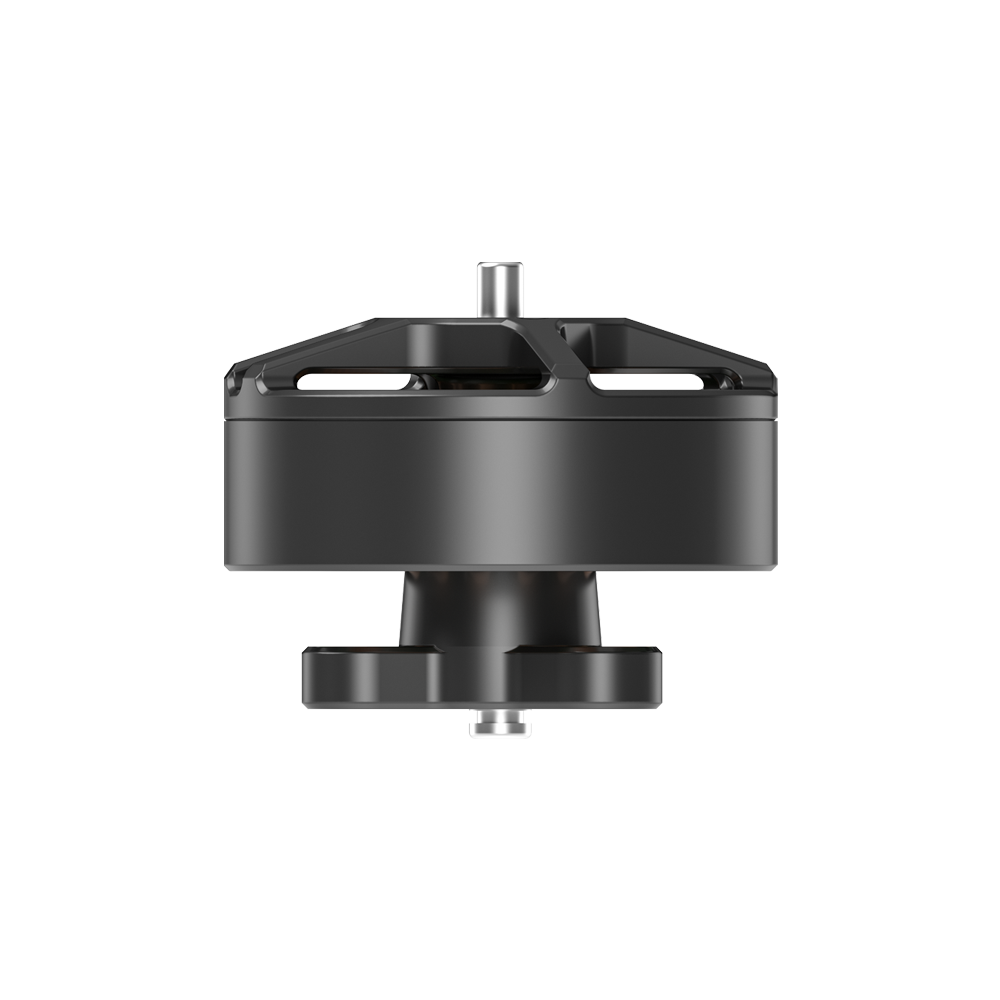

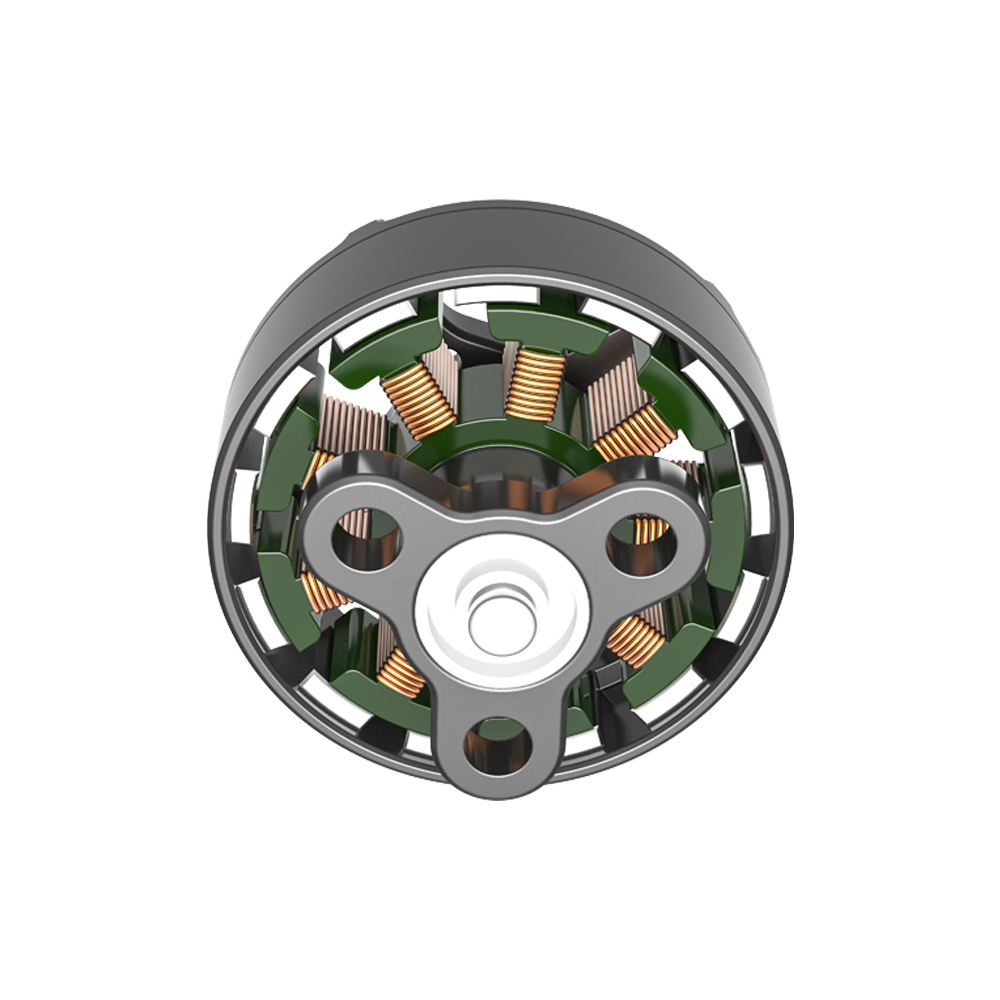

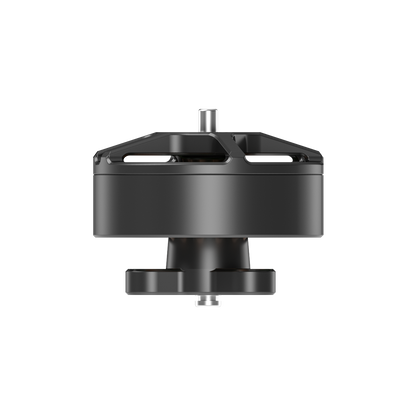

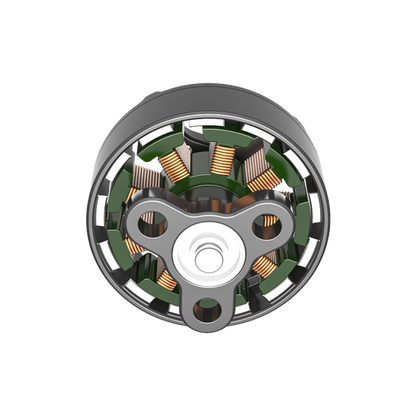

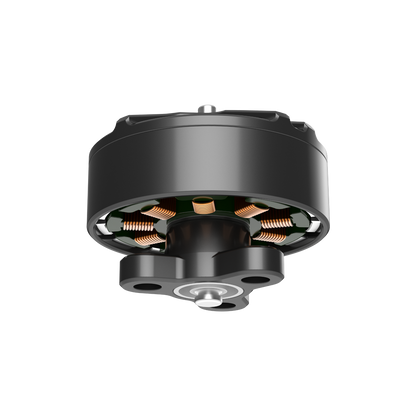

    Motor iFlight 4150KV Defender 25 1404 4150KV CCW

    Motor iFlight 4150KV Defender 25 1404 4150KV CCW

    Brand: iFlight

    €13,05
    €13,05 €13,05
    -0% View Product
    In stock
    We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion
    4150KV Defender 25 1404 4150KV CCW

Specifications:
Model: Defender 25 Engine
KV: 4150 kV
Weight (including wire): 8g±0.5g
Size: φ17.7*12.5mm
Phase-to-phase resistance: 0.188Ω
Input voltage: 4S
Peak current: 12.03A
Maximum wattage: 200.8W
Mounting holes: 3 x 9*9 φ2mm (3 mounting holes)
Rotor specifications: Segmented bell
Shaft diameter: 1.5 mm
Length of protruding shaft: 1.8 mm ± 0.2 mm
Lead: 65mm/26AWG
Magnet: N52H Curved
Configuration: 9N12P
Bearing type: NMB
Bearing specifications: φ5*φ2*2.5
Winding: Single-core copper winding

The package includes:
1 x Defender 25 1404 CCW Engine
4x M2x5 mounting screws
