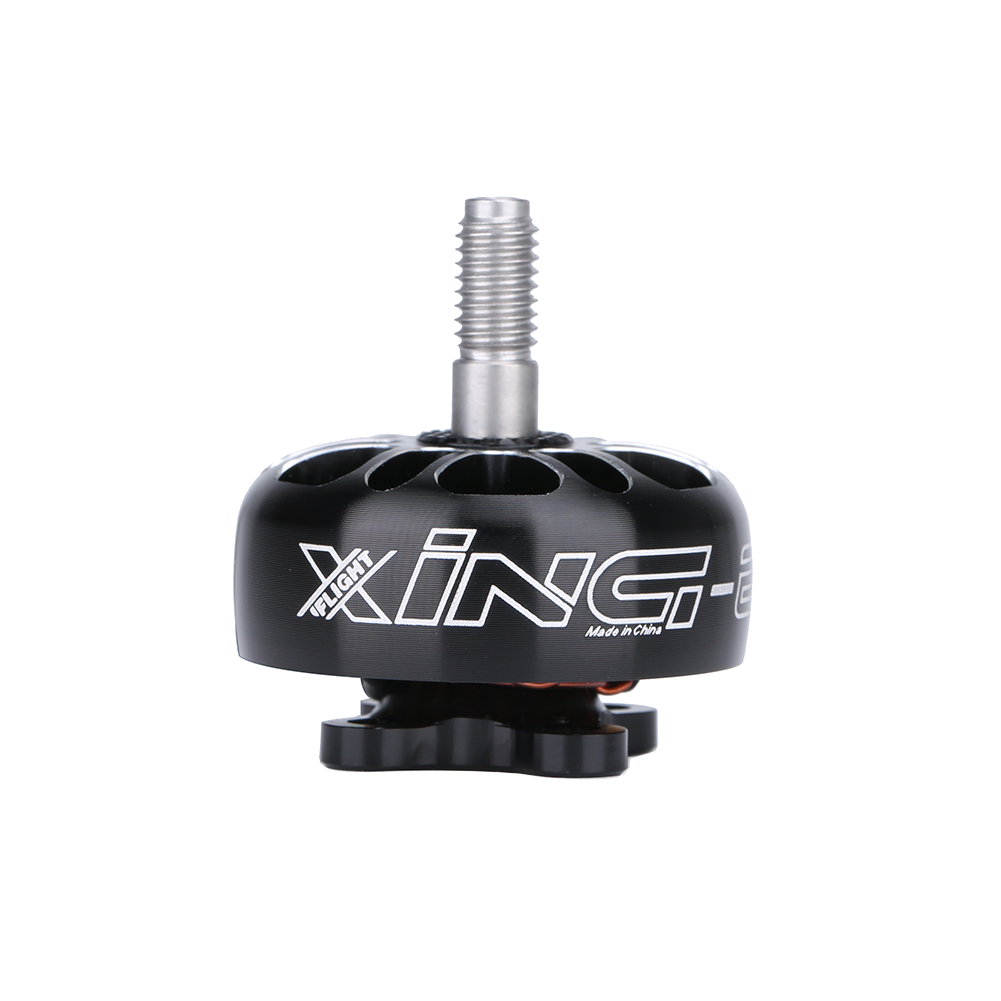

    1700KV XING-E Pro 2306 2-6S FPV Motor

The XING-E Pro series are very powerful and powerful FPV motors for FPV racing. This 2306 size motor features a high strength 4mm steel hollow shaft, single filament winding for increased power, M3 shaft bolt and larger NSK 9x4x4mm bearings.

Function:
- High strength 4mm steel shaft
- N52SH High temperature magnets, NSK bearings
- Hole pattern 16x16mm
- Single-core copper winding
- 6061 CNC machined aluminum upper and lower parts
- Hexagon screw shaft set screw

Specifications:
Model: XING-E Pro 2306 Motor
KV: 1750 KV
Weight (including wire): 33.6g / 33.8g
Size: φ29*18.7mm
Phase-to-phase resistance: 85.63 mΩ / 55.6 mΩ
Input voltage: 25.2V / 16.8V
Peak current: 36.66A / 43.38A
Maximum wattage: 920.2W / 712.7W
Mounting holes: 16*16 φ3mm
Rotor specifications: Unibell
Shaft diameter: 4 mm
Length of protruding shaft: 13.5 mm
Lead: 160mm/20AWG
Magnet: N52H Curved
Configuration: 12N14P
Bearing type: NSK
Bearing specifications: φ9*φ4*4
Winding: Single-core copper winding

Packing List:
1 x XING-E Pro 2306 motor
4 x M3*8 screws
1 x M5 flanged nylon lock nut
