Code: SKU:6194

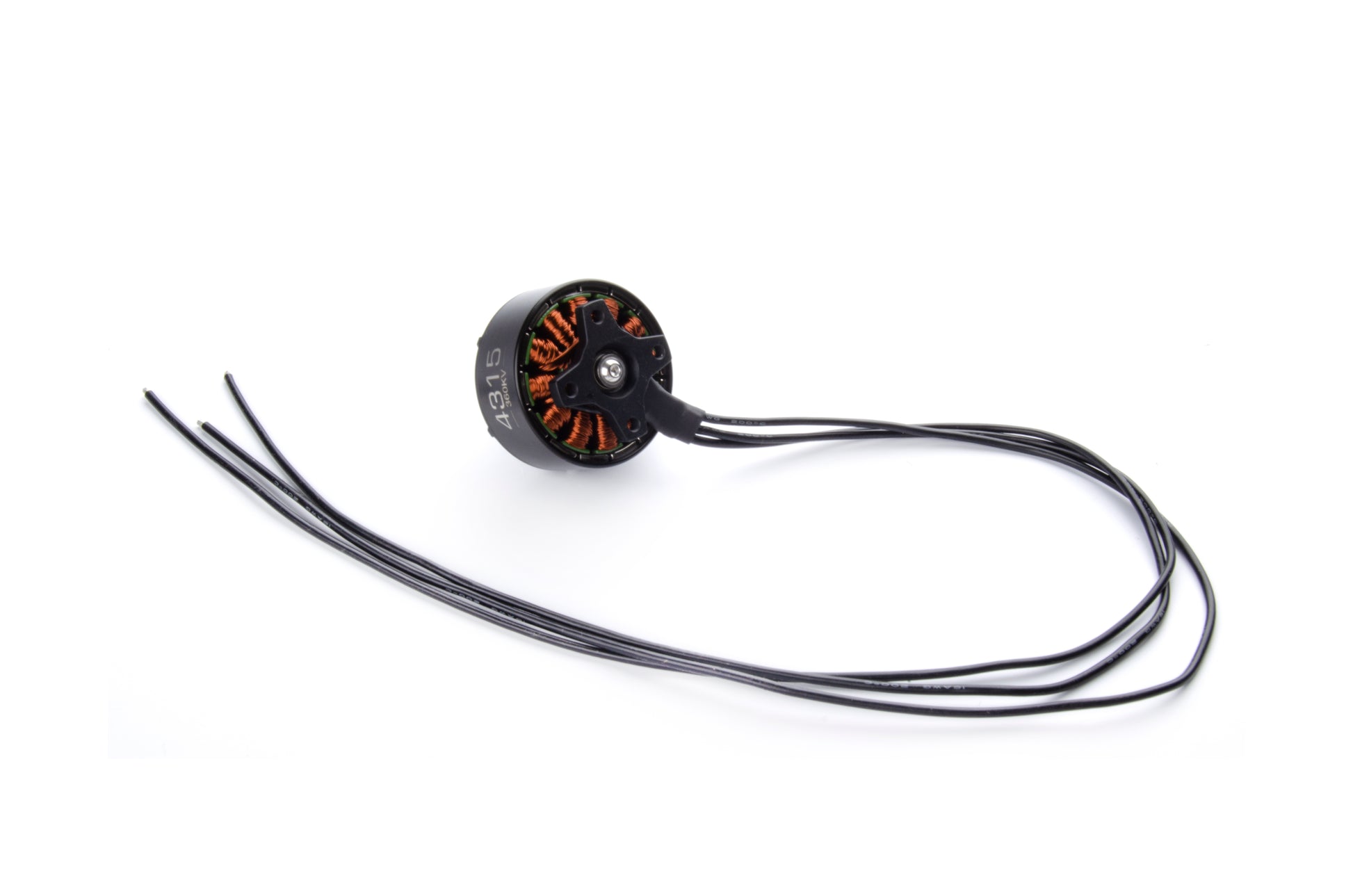

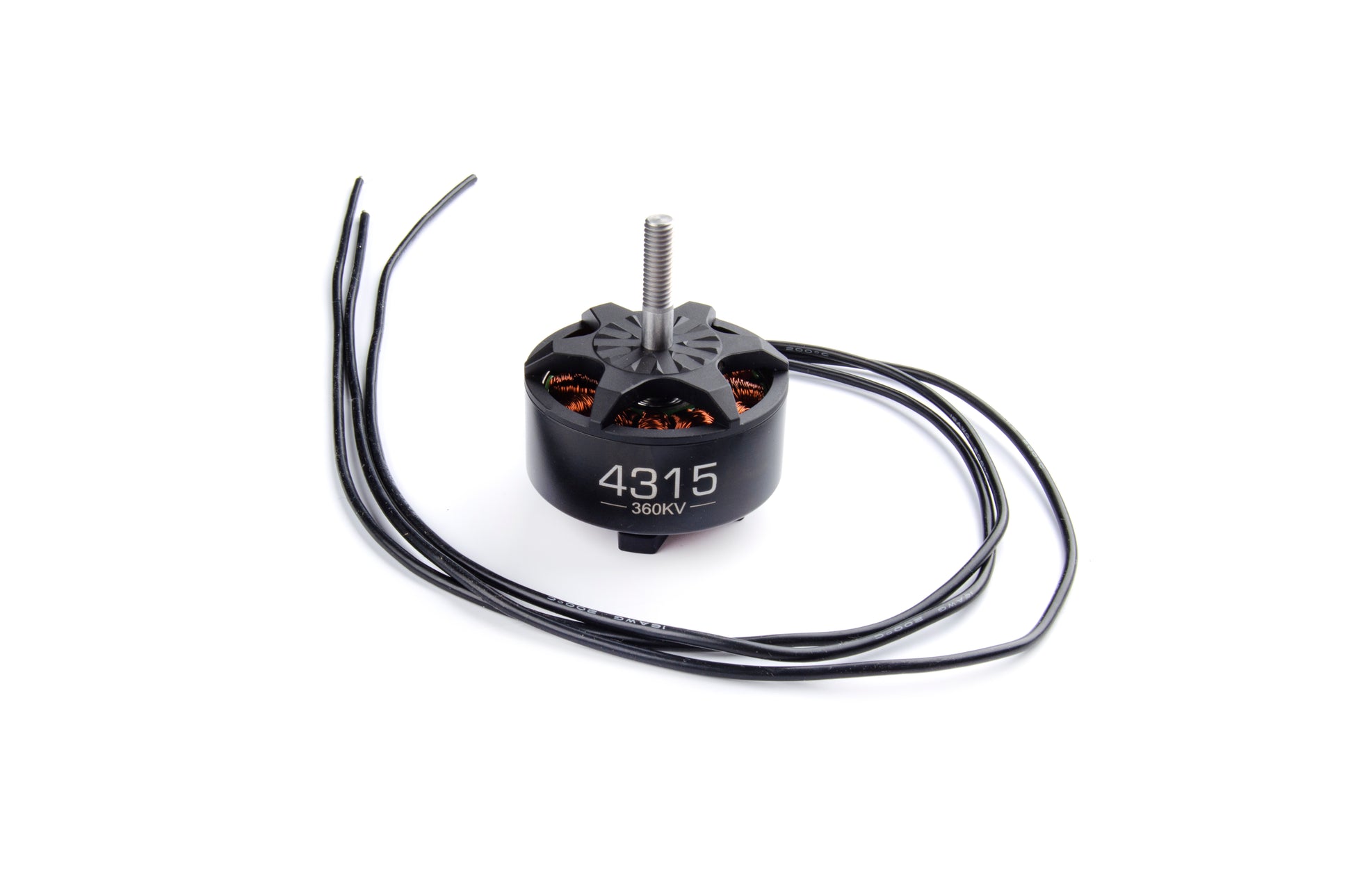

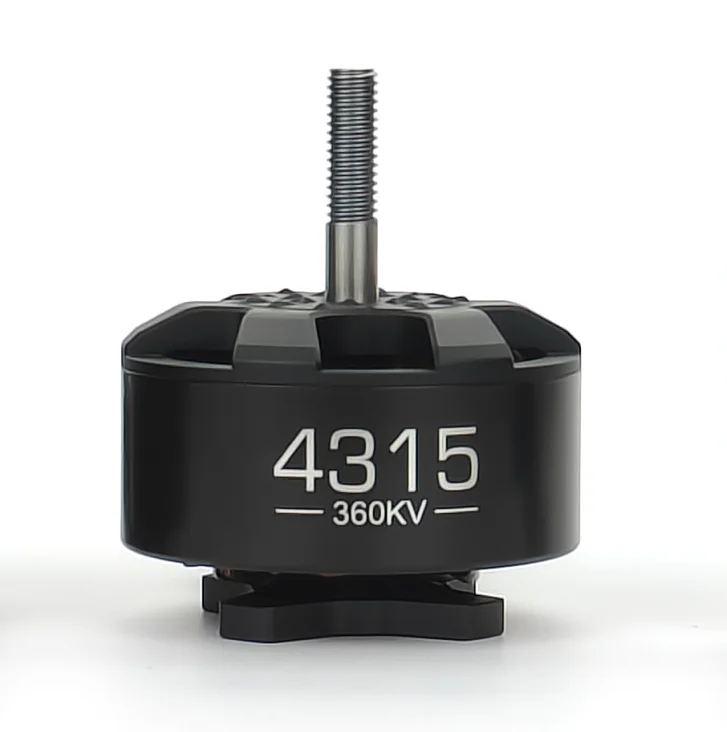

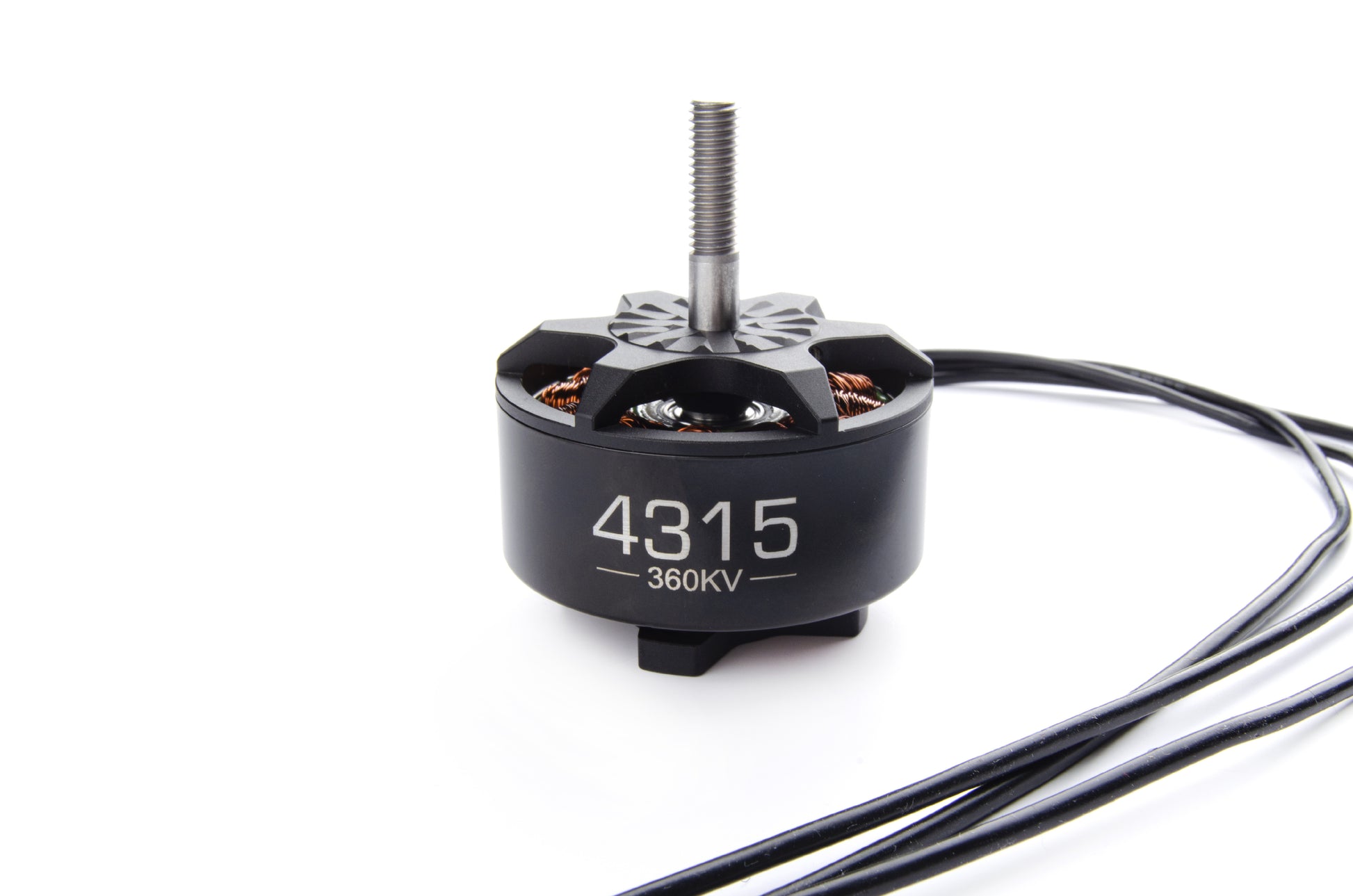

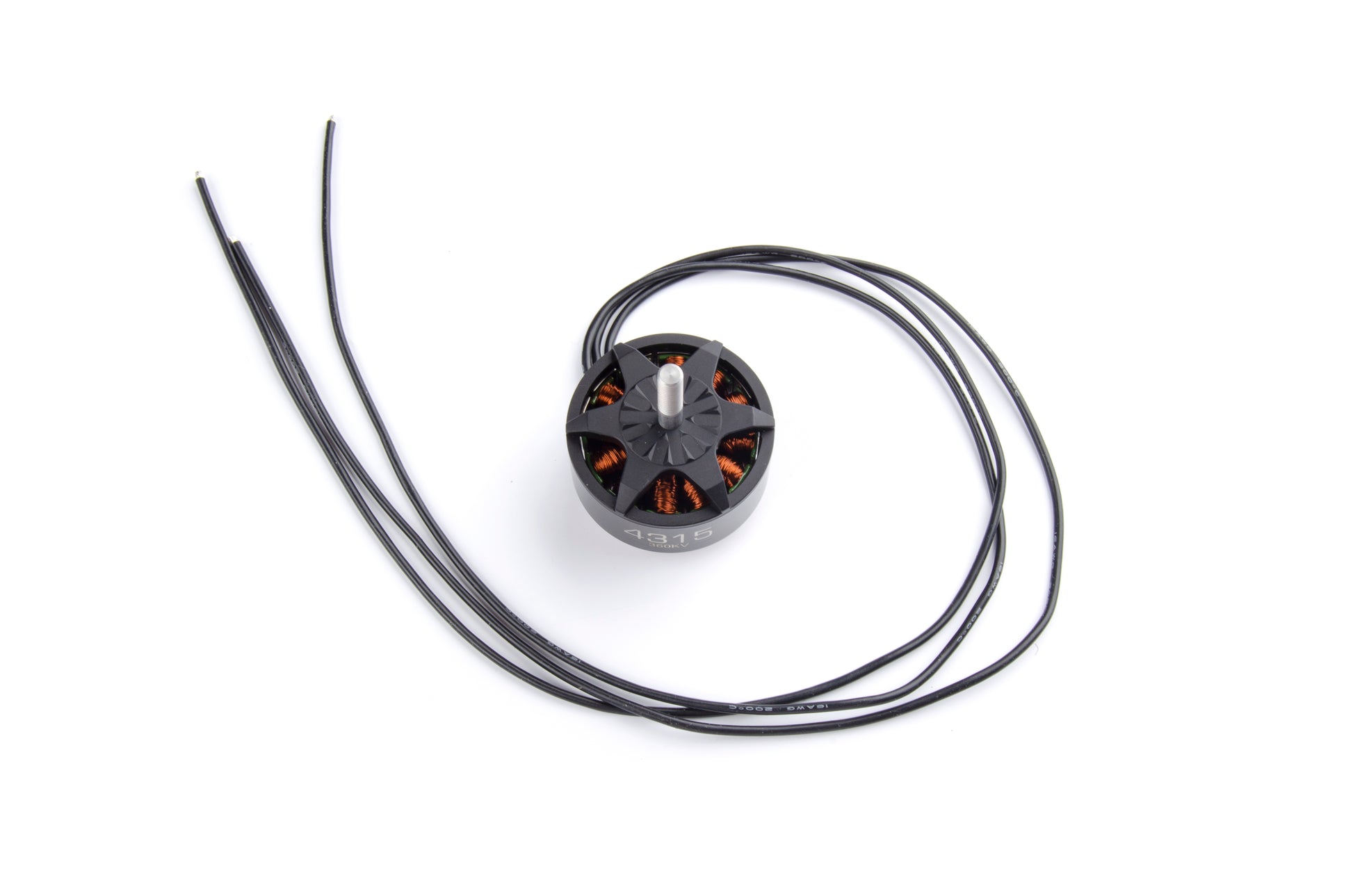

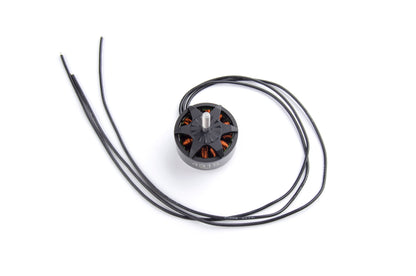

Motor Hobbywing RTF-4315SL-360KV-BLACK-V1
Motor Hobbywing RTF-4315SL-360KV-BLACK-V1
Brand: Hobbywing
Regular price
€30,45
Regular price
€30,45
Sale price
€30,45
Unit price
/
per
In stock
We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion
Motor Hobbywing RTF-4315SL-360KV-BLACK-V1 The Hobbywing RTF 4315-360KV motor is a high-performance AC motor designed for demanding applications such as RC planes, drones and other hobby projects. This engine combines advanced technology and high quality materials to deliver exceptional efficiency, performance and durability. Features: - High efficiency and power: With a KV rating of 360, this motor ensures optimal speed and torque for various applications. - Durable Construction: It features a high standard silicon steel stator with 180°C high temperature resistant coating to increase reliability. - Precision construction: Equipped with MR126ZZ bearings and 6mm motor axis for smooth operation and stability. - IPX5 protection: Thanks to its water resistance, it is suitable for outdoor and harsh environments. - Wide Compatibility: Designed for 8S LiPo batteries, providing versatility for powerful builds. Specifications: - Motor size: Φ50.8 × 36.3mm - Stator size: Φ43 × 15mm - Groove & pole: 12N14P - Bearing type: MR126ZZ - Motor axis diameter: Φ6mm - Shaft length: 25 mm - Dimensions for motor mounting: Φ30mm-4×M4 - Rated power KV: 360 - Battery compatibility: LiPo 8S - Current without load: 1.8 A - Maximum current: 56.8 A (at ambient temperature ≤25 °C) - Maximum power: 1813.5W - Maximum pull: 7.18 kg - Resistance: 1.5m: 56mΩ - Wire size: 16AWG - Wire length: 500 mm - Weight (with wire): 250g The package contains: 1 × Hobbywing RTF-4315SL-360KV-BLACK-V1 motor
