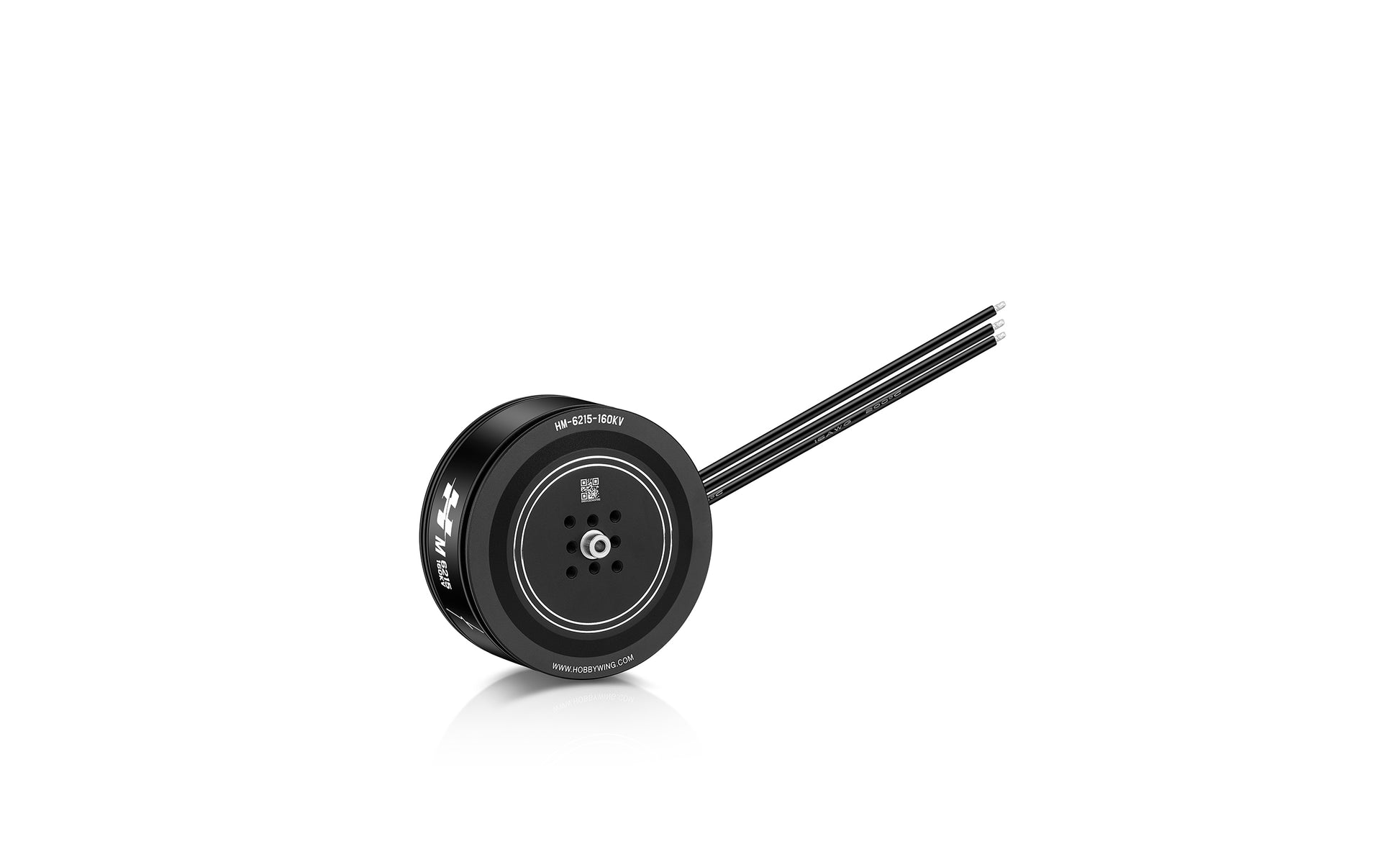

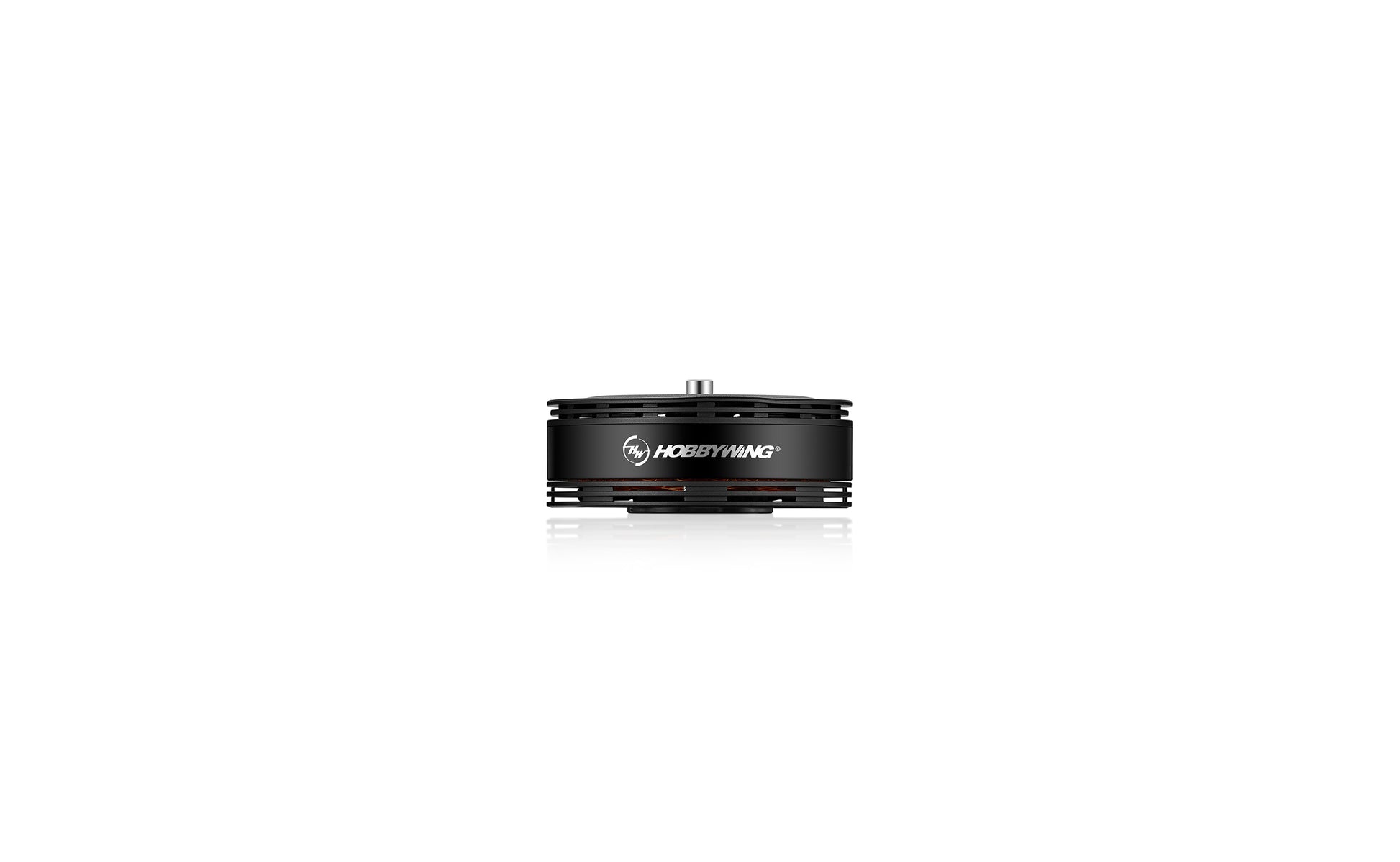

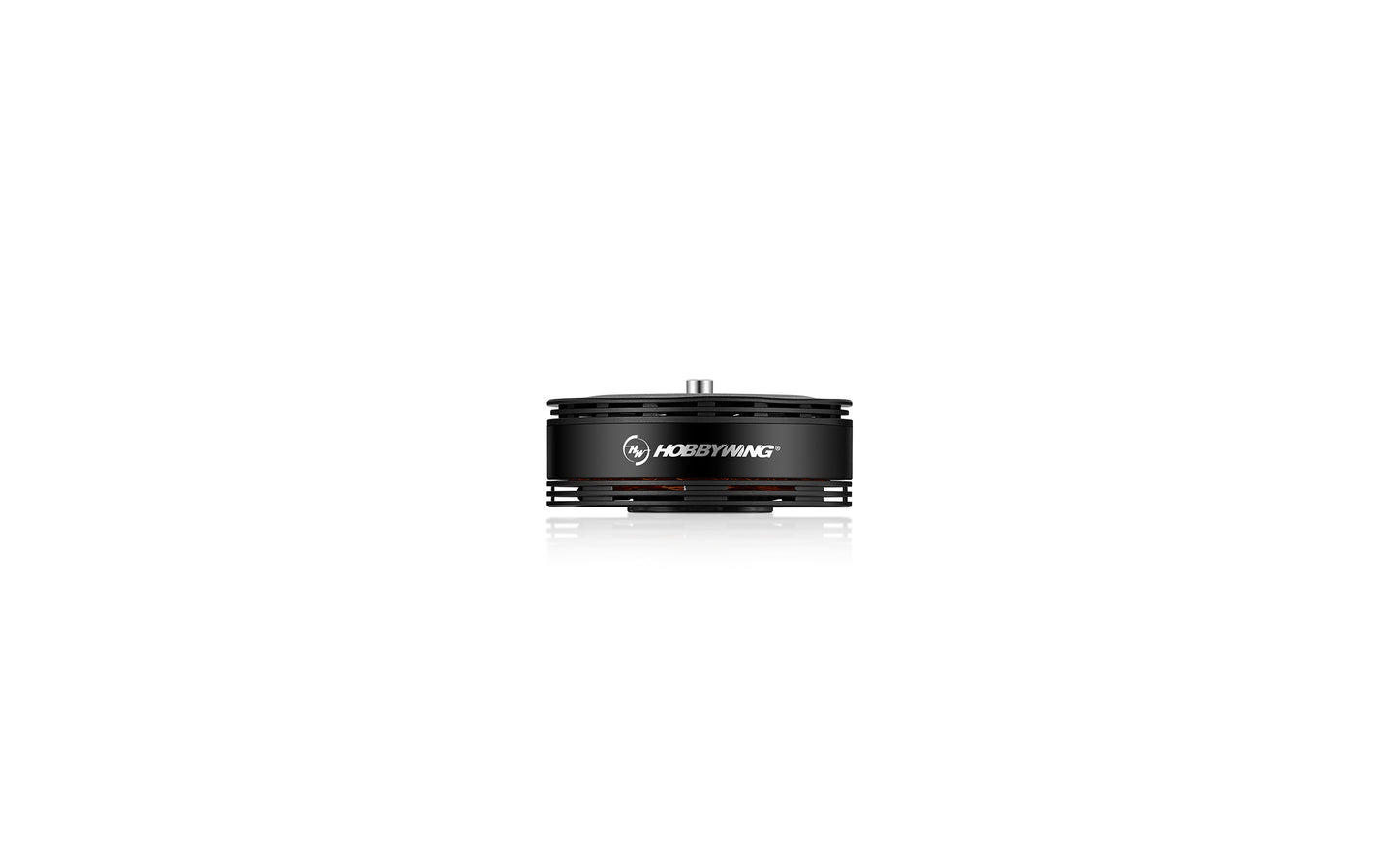

Motor Hobbywing HM-6210-170KV BLACK The Hobbywing HM-6210-170KV BLACK is a highly efficient AC motor designed for industrial drone and UAV applications. With 12S LiPo compatibility, high torque and durable waterproof construction, this motor is built for reliable performance in demanding aviation operations. Specifications: - KV value: 170KV - Battery compatibility: LiPo-12S - Current without load: 1.31 A - Maximum current: 42.9 A (at ambient temperature ≤ 25 °C) - Maximum power: 1973W - Maximum pull: 9.1 kg - Resistance: 98.6 mΩ - Wire size: 16AWG - Wire length: 150 mm - Weight (with wires): 231g - Motor size: Φ68.7 x H30.2mm - Stator size: Φ61.5mm - Slot and pole configuration: 24N28P - Dynamic balance standard: ≤8mg - Degree of protection: IP45 (resistance to water and dust) - Bearing type: High quality waterproof bearing - Motor axis diameter: Φ6 mm - Dimensions for mounting supports: 4×M3@D12mm, 4×M3@D18mm - Dimensions for motor mounting: 4×M4@D25mm The package contains: 1× Motor Hobbywing HM-6210-170KV BLACK
