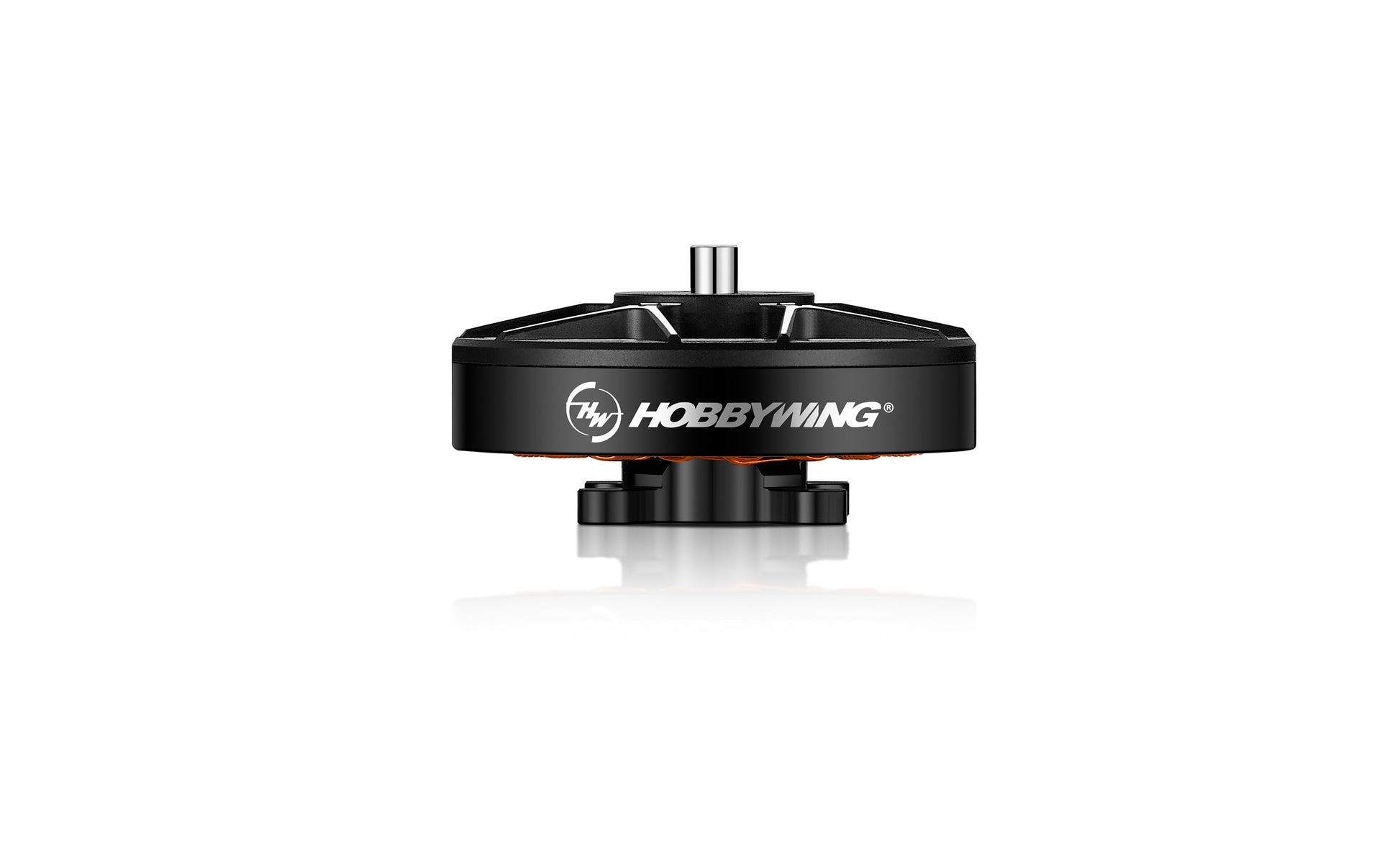

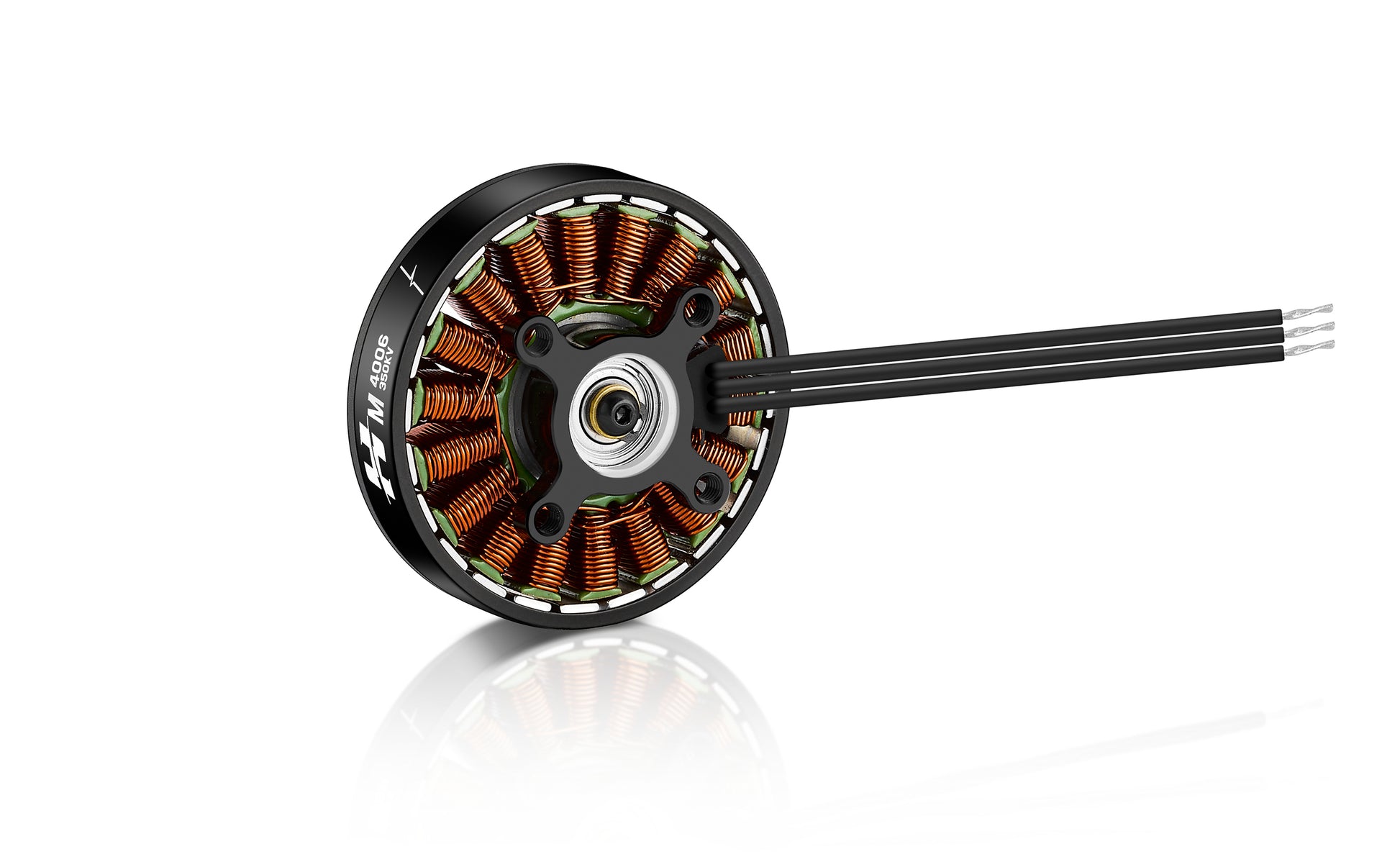

Motor Hobbywing HM-4006-350KV BLACK The Hobbywing HM-4006-350KV BLACK is a high-performance AC motor designed for industrial multi-rotor drones that offers exceptional efficiency and reliability for a variety of aviation applications. An excellent choice for professionals looking for a reliable and efficient power solution for their industrial multi-rotor drones, ensuring high performance and long life for demanding aerial operations. Features: - High-quality construction: Uses high-standard silicon steel sheets with anti-corrosion treatment and 180℃ high-temperature coating to increase durability. - Premium winding materials: Equipped with 220℃ enameled wires to ensure efficient performance at high temperatures. - Robust magnet design: 180℃ rated magnets are used to ensure consistent magnetic flux and optimal motor performance. - Enhanced Protection: Achieves an IPX5 protection rating, ensuring resistance to water ingress for reliable operation in a variety of environments. - Precision design: Maintains dynamic balance standard ≤5mg, which ensures smooth and stable motor operation. - Efficient cooling: It features an optimized rotor design with improved fan holes, which effectively improves heat dissipation and extends the life of the motor. - Lightweight construction: Weight of only 66.1 g with wires contributes to an optimal power-to-weight ratio for multi-rotor applications. Specifications: - Motor size: Φ44.4 x 19.3mm - Stator size: Φ39mm - Rated KV power: 350KV - Battery compatibility: 6S LiPo - Current without load: 0.64A - Maximum current: 17.3A (at ambient temperature ≤ 25℃) - Maximum power: 358W - Maximum pull: 2.5 kg - Resistance: 209.7 mΩ - Wire length: 60 mm - Weight (with wires): 60mm 66.1g - Degree of protection: IPX5 - Slot and pole configuration: 18N 24P - Dynamic balance standard: ≤5mg - Bearing type: High quality waterproof bearing - Motor axis diameter: Φ4mm - Propeller mounting dimensions: 4×M3@D12mm - Dimensions for motor mounting: 4×M3@D25mm The package contains: 1× Motor Hobbywing HM-4006-350KV BLACK
