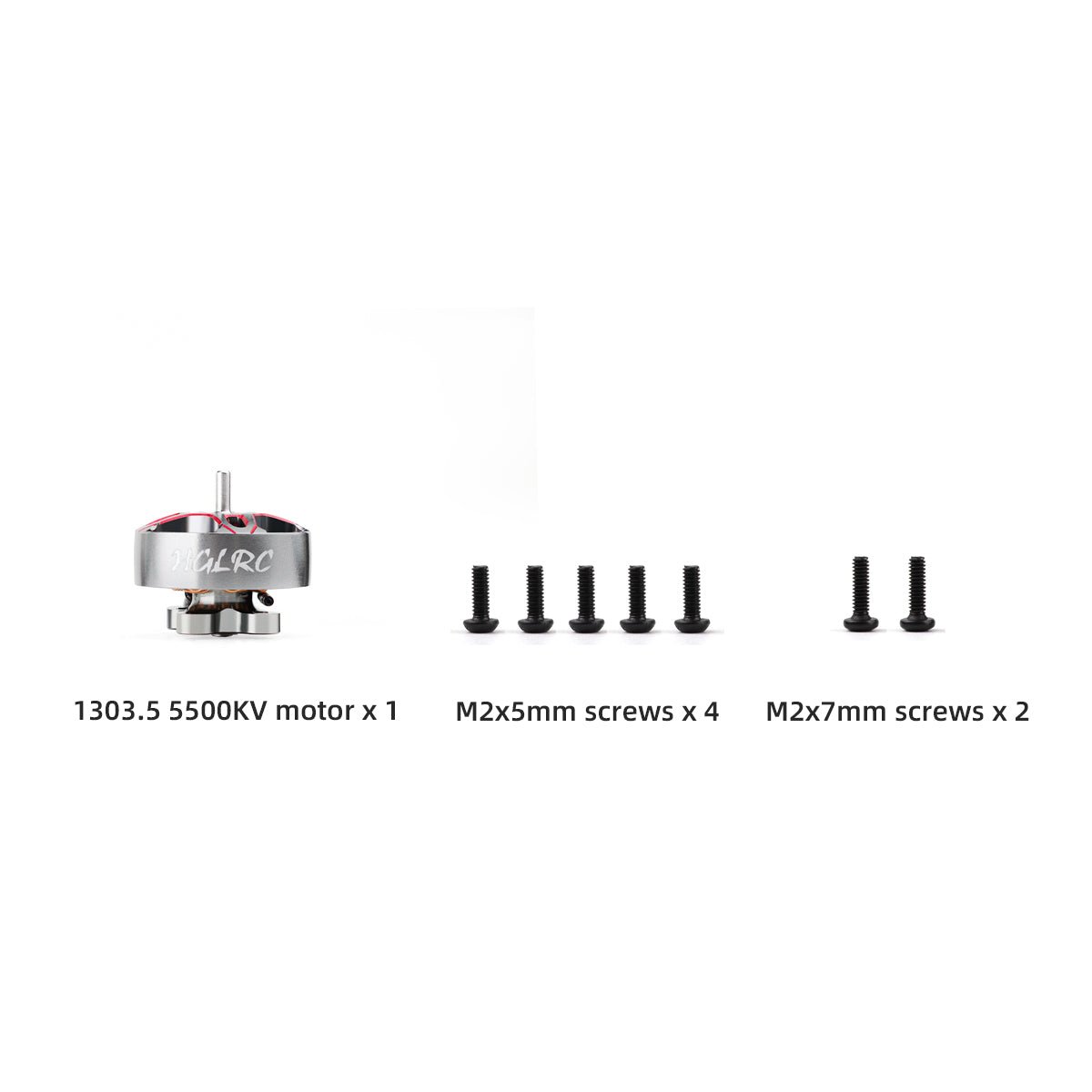

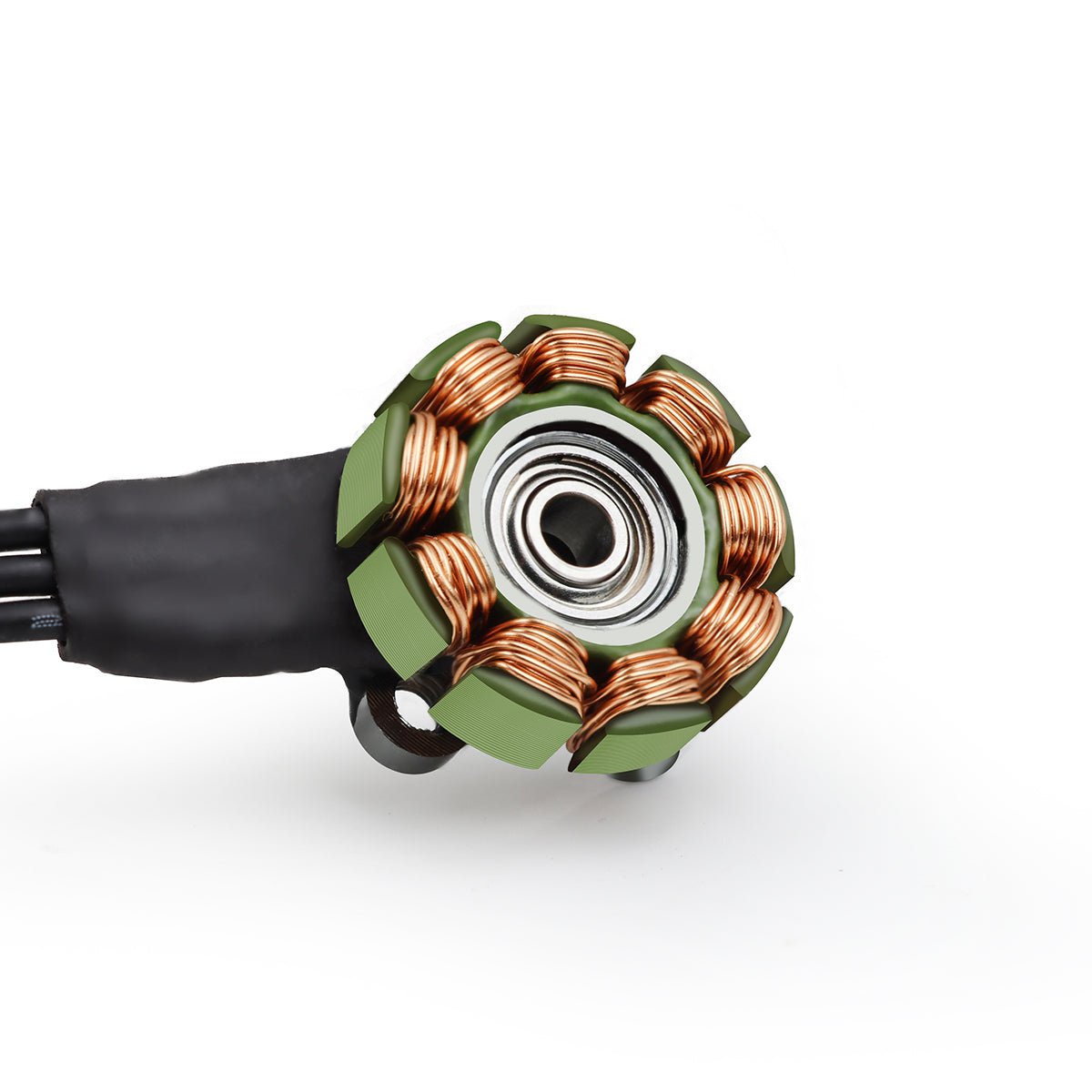

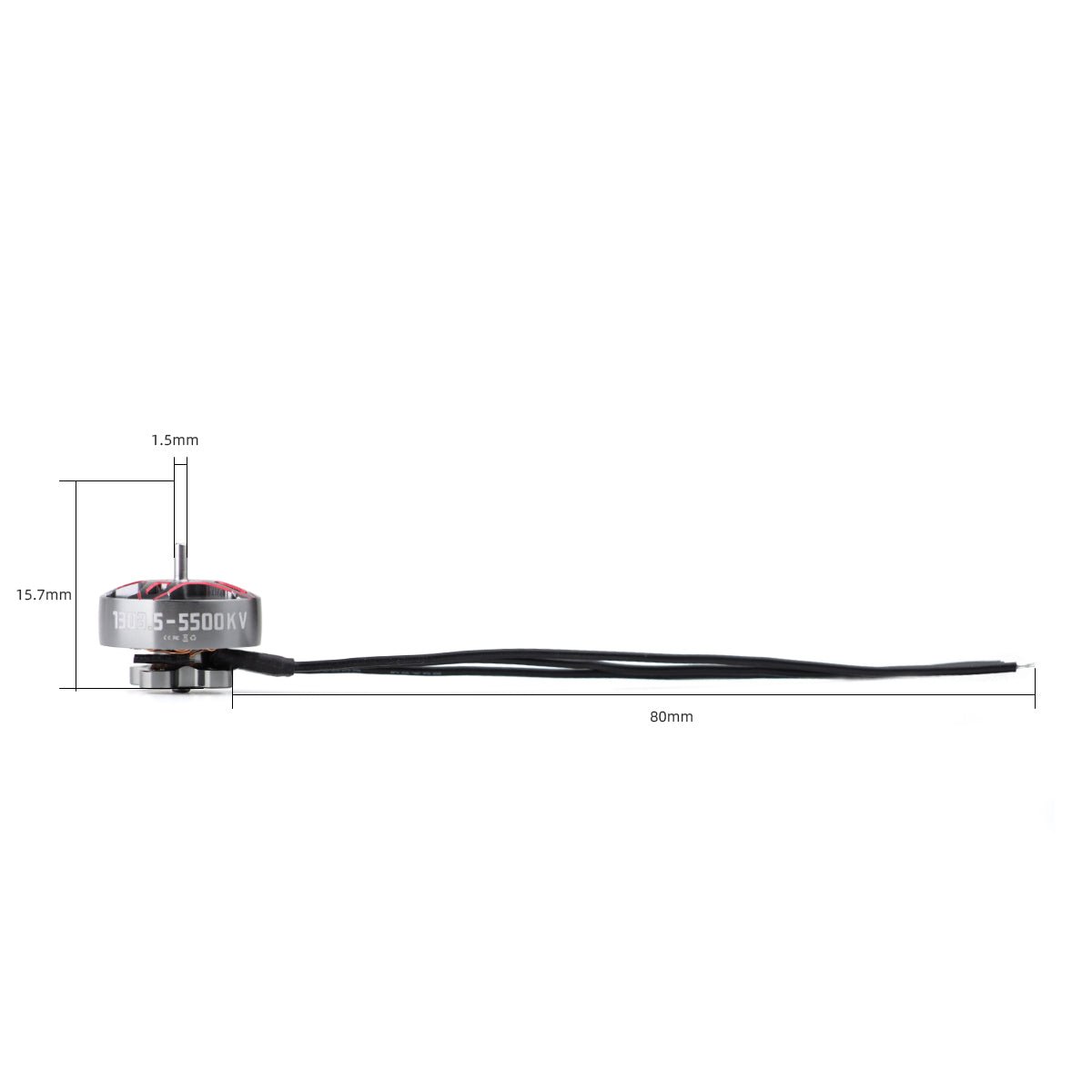

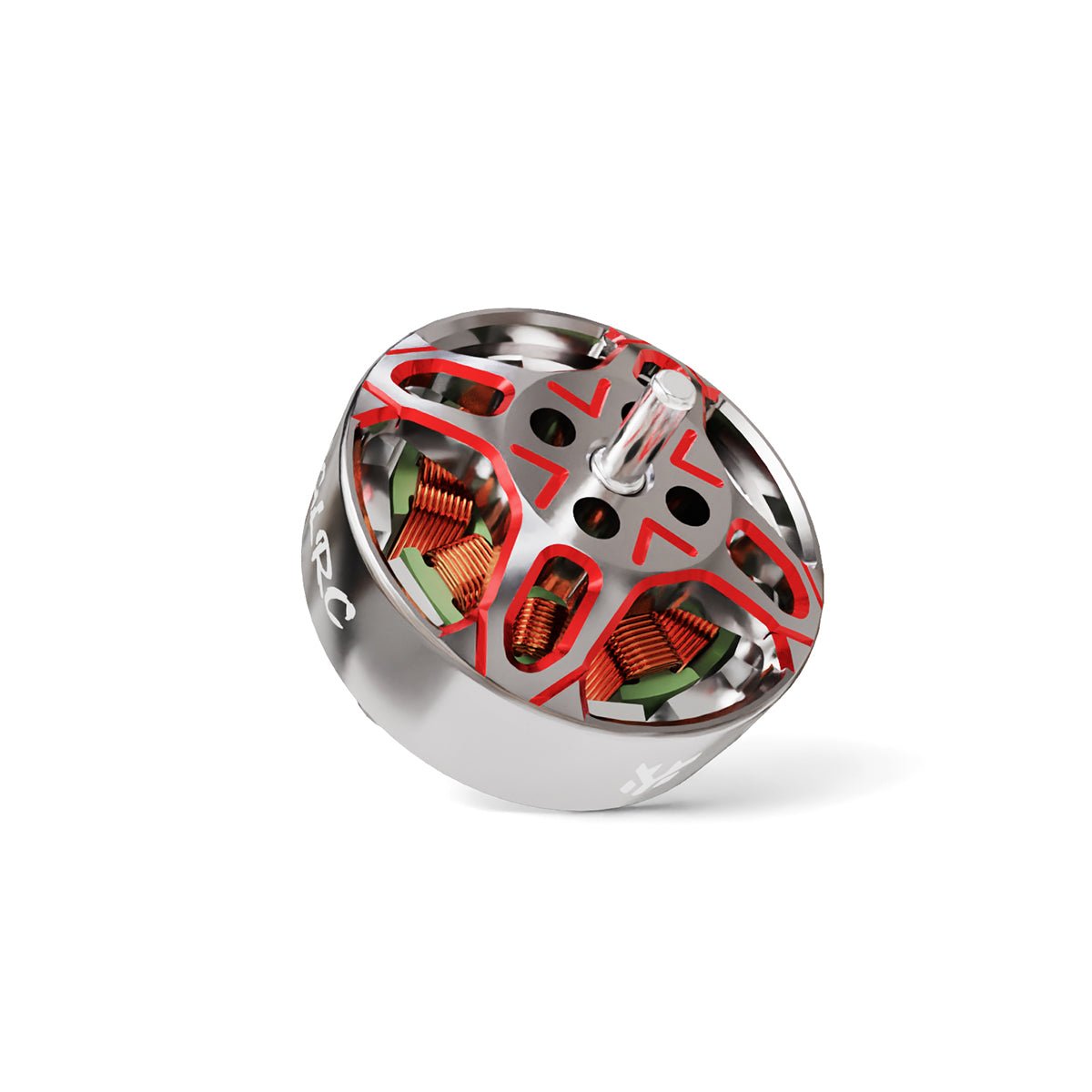

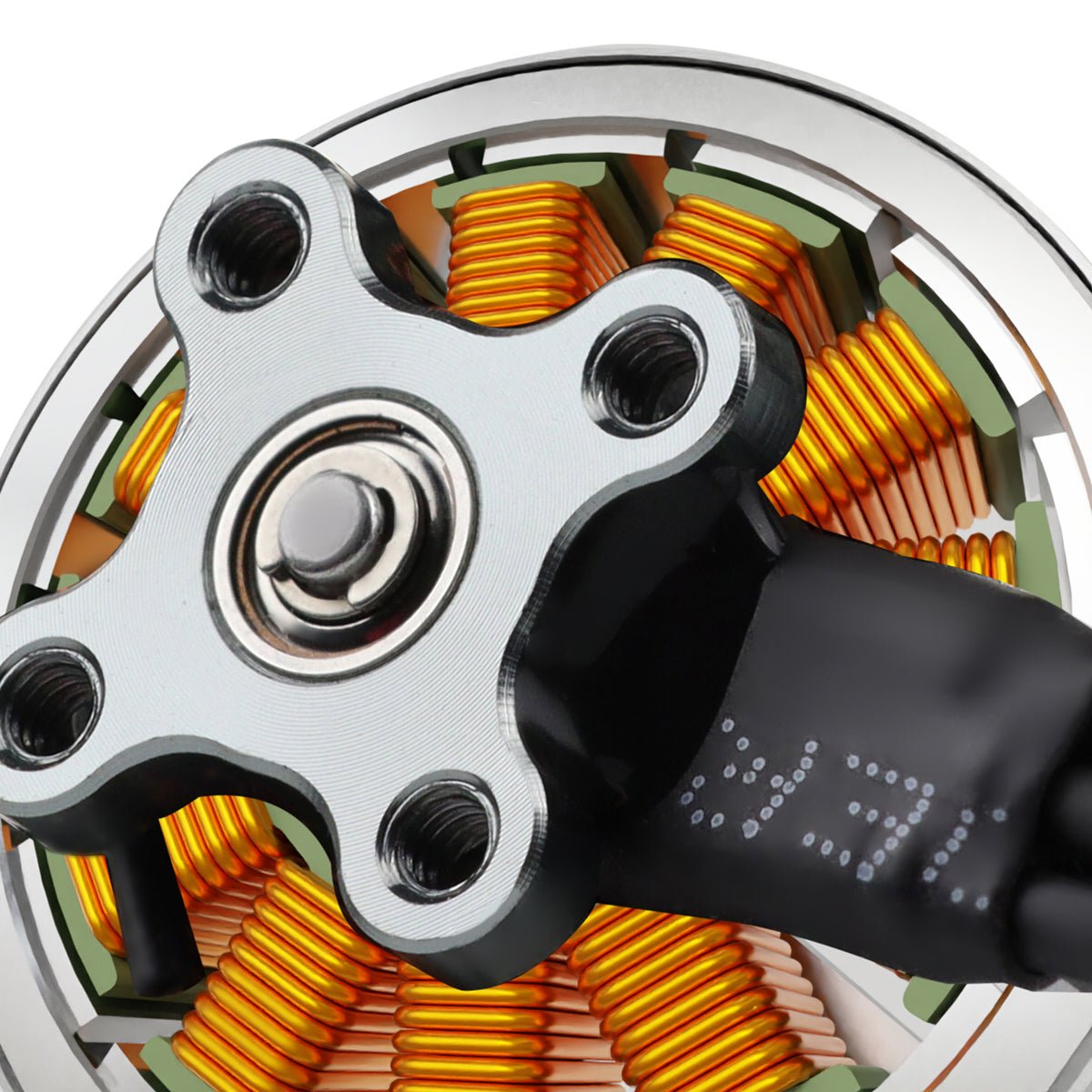

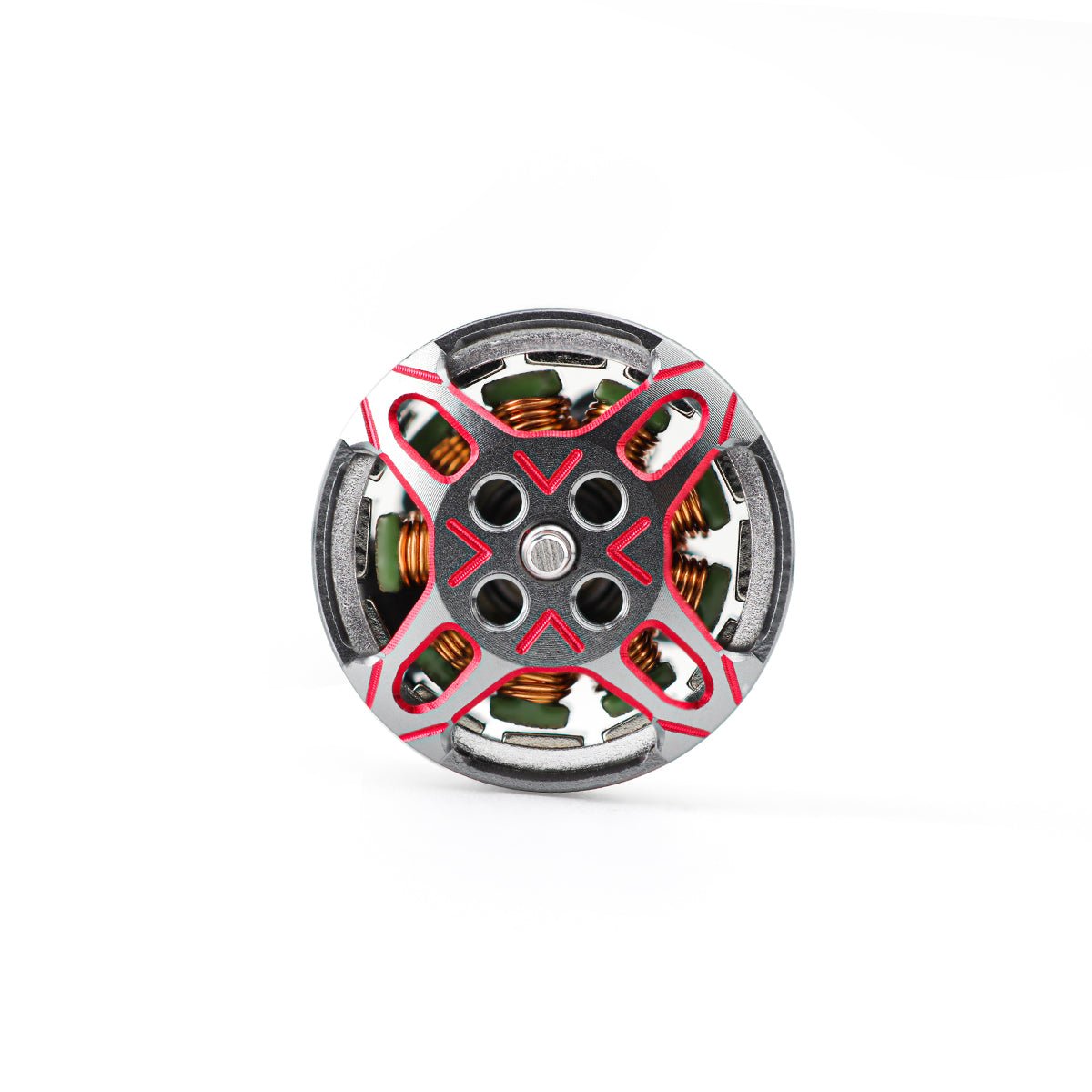

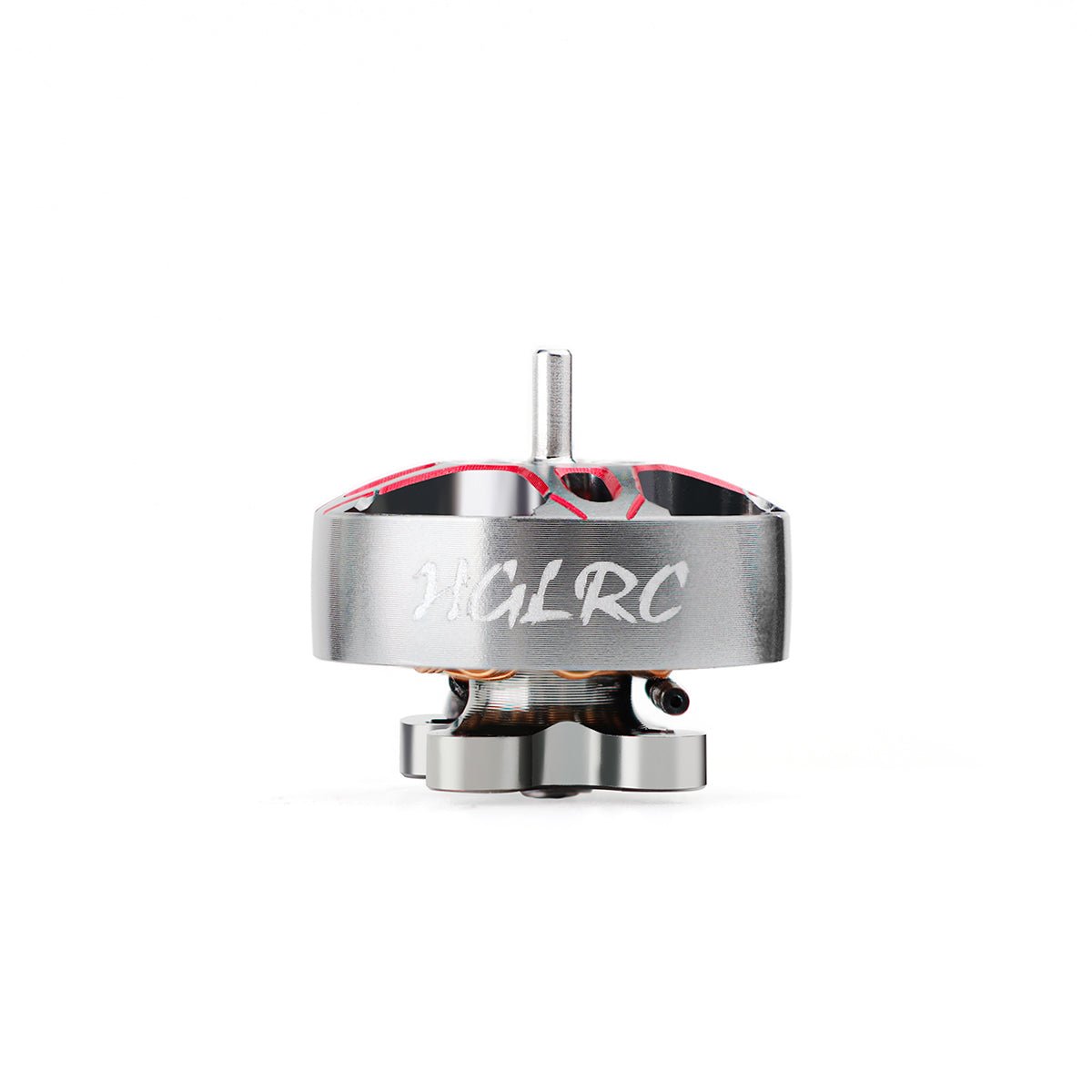

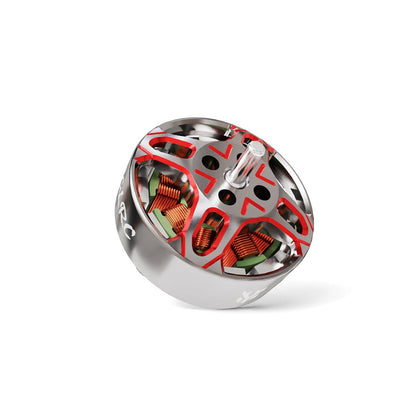

AC motor SPECTRE 1303.5 5500KV Function: - New design with two-tone anodized finish. - Made from high-strength 7075 aircraft-grade aluminum to ensure a durable one-piece rotor. - Uses customized N52H curved magnetic steel for strong magnetism and high torque. - Contains 200° high temperature resistant copper winding for stable motor operation. - Includes imported Kawasaki silicon steel sheets for a low-loss stator that reduces heat generation and increases efficiency. - Optimized tuning maintains high torque at low revs, delivers linear performance during quick throttle changes and ensures precise and quick response during maneuvers. - Equipped with an alloy steel output shaft that combines high strength with reduced weight. - Ideal for 2-2.5 inch small drones or 2-3 inch toothpick drones. Specifications: Engine: 1303.5 KV: 5500 KV Magnetic pole: 9N12P Magnetic steel: N52H Stator: Kawasaki 1200 Rotor: 7075 Bearing: ISC Winding: copper wire resistant to high temperatures 200° Maximum continuous current: 8.9A Maximum power: 130W Input voltage: 2-4S Line specification: 80mm ESC: >10A Recommended propeller: 2-3 inches Motor size: Φ17.53 x 11.7mm Mounting hole: 4*M2-9 Material: alloy steel Weight: 7.15g (with wire) The package includes: 1x AC motor 1303.5 5500KV 4x M2x5mm screws 4x screws M2x7mm
