    Code: GP105997

    Motor GEPRC SPEEDX2 3214

    Motor GEPRC SPEEDX2 3214

    Brand: GEPRC

    €38,04
    €38,04 €38,04
    -0% View Product
    Upon request
    We need to check the product availability with our supplier. Please contact us for details.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion

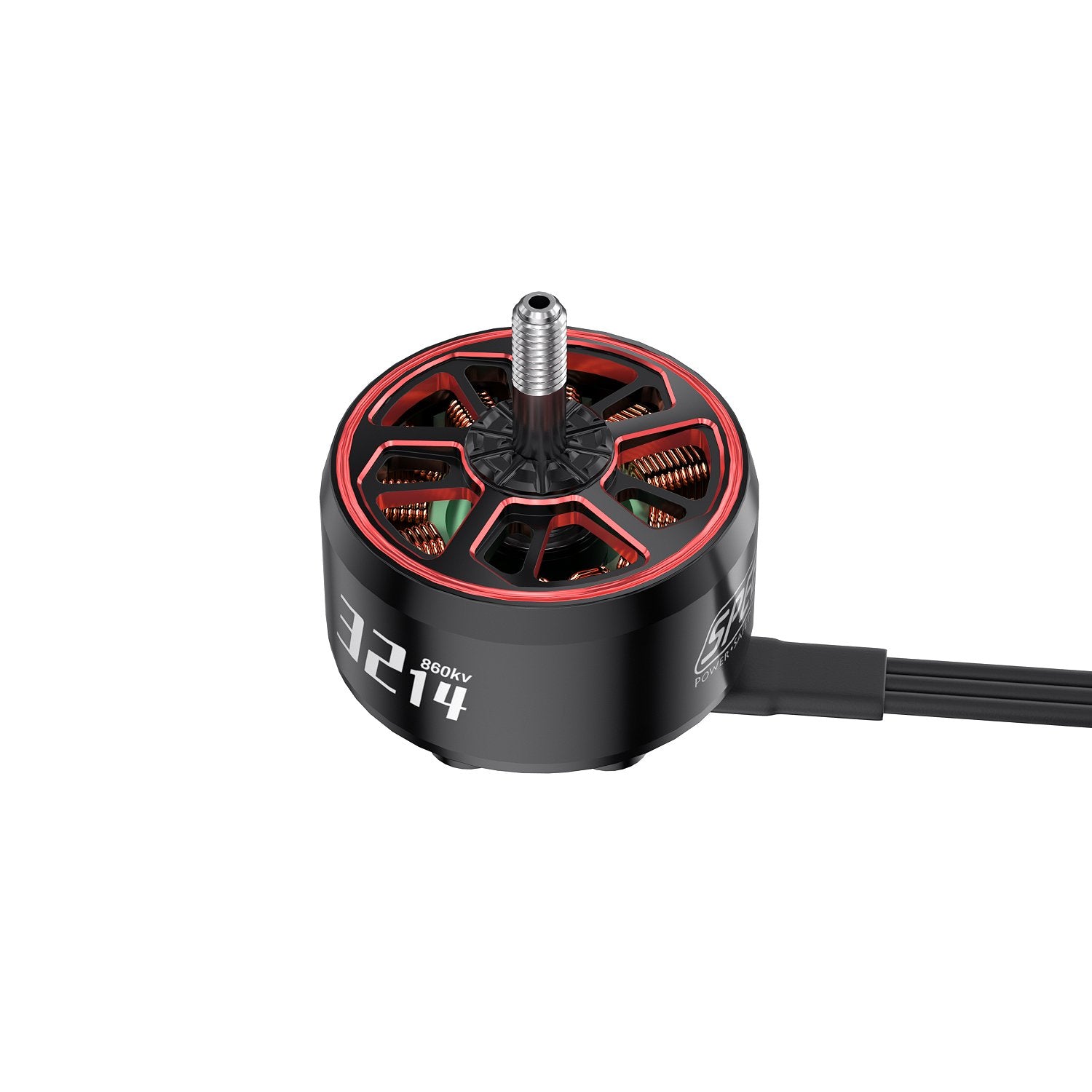

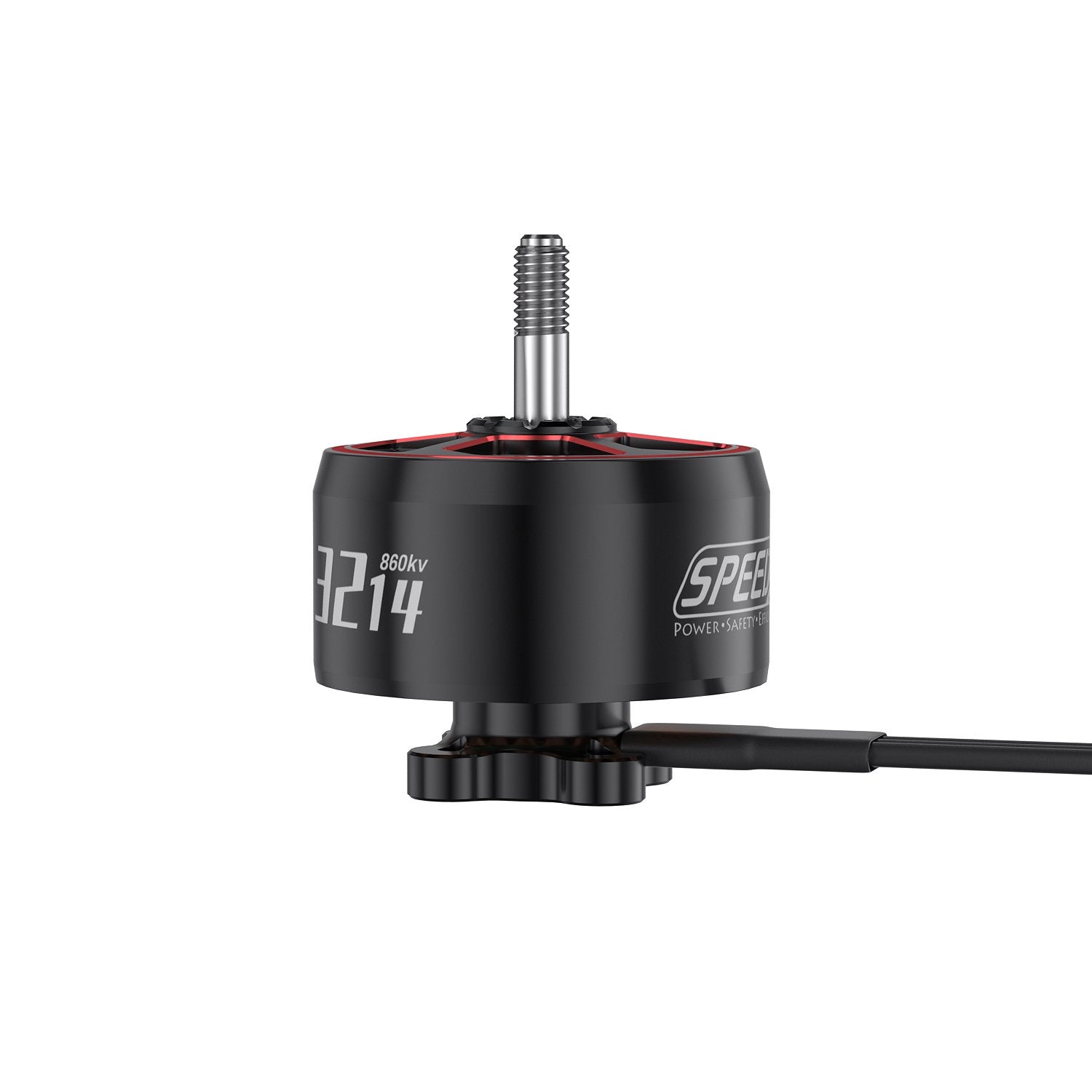

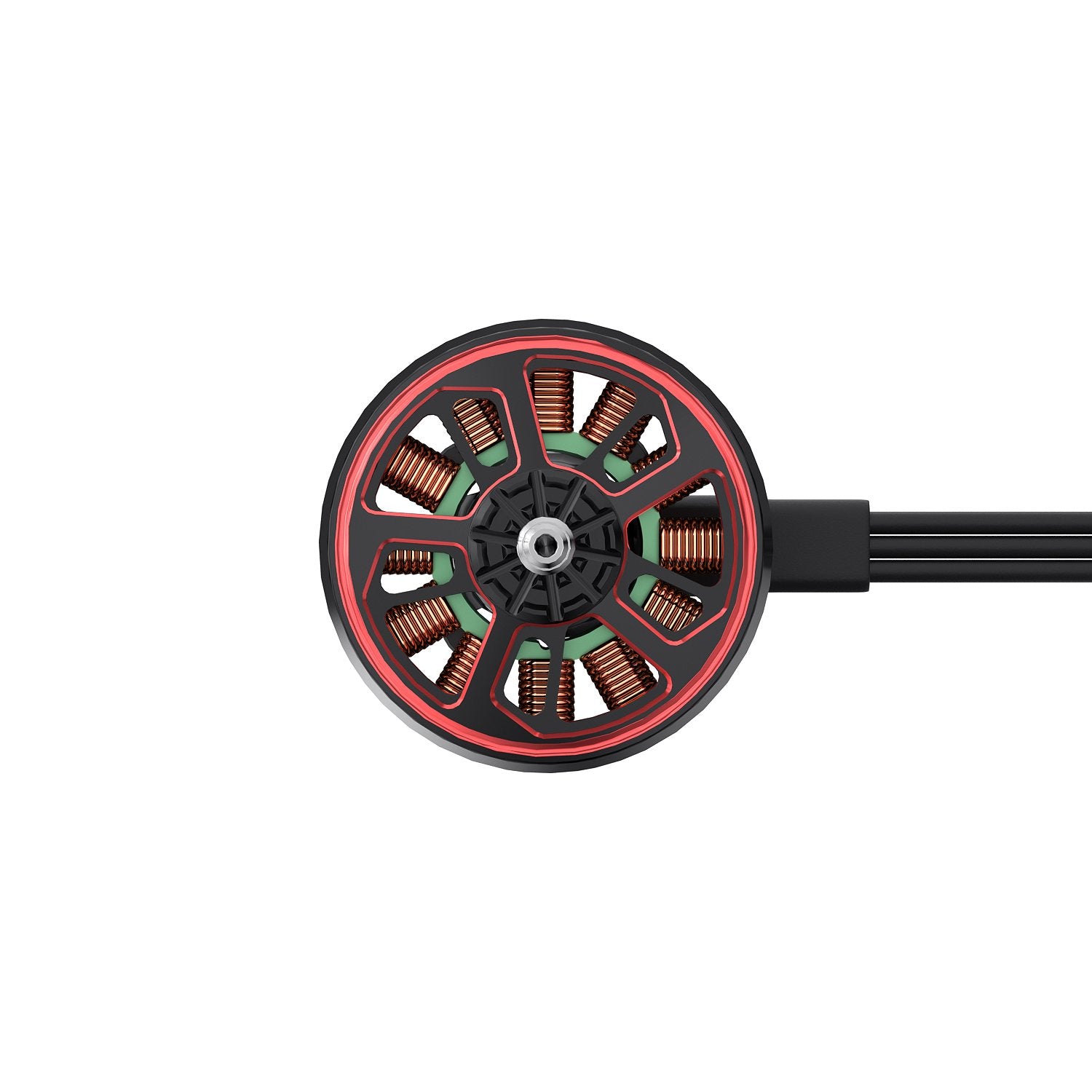

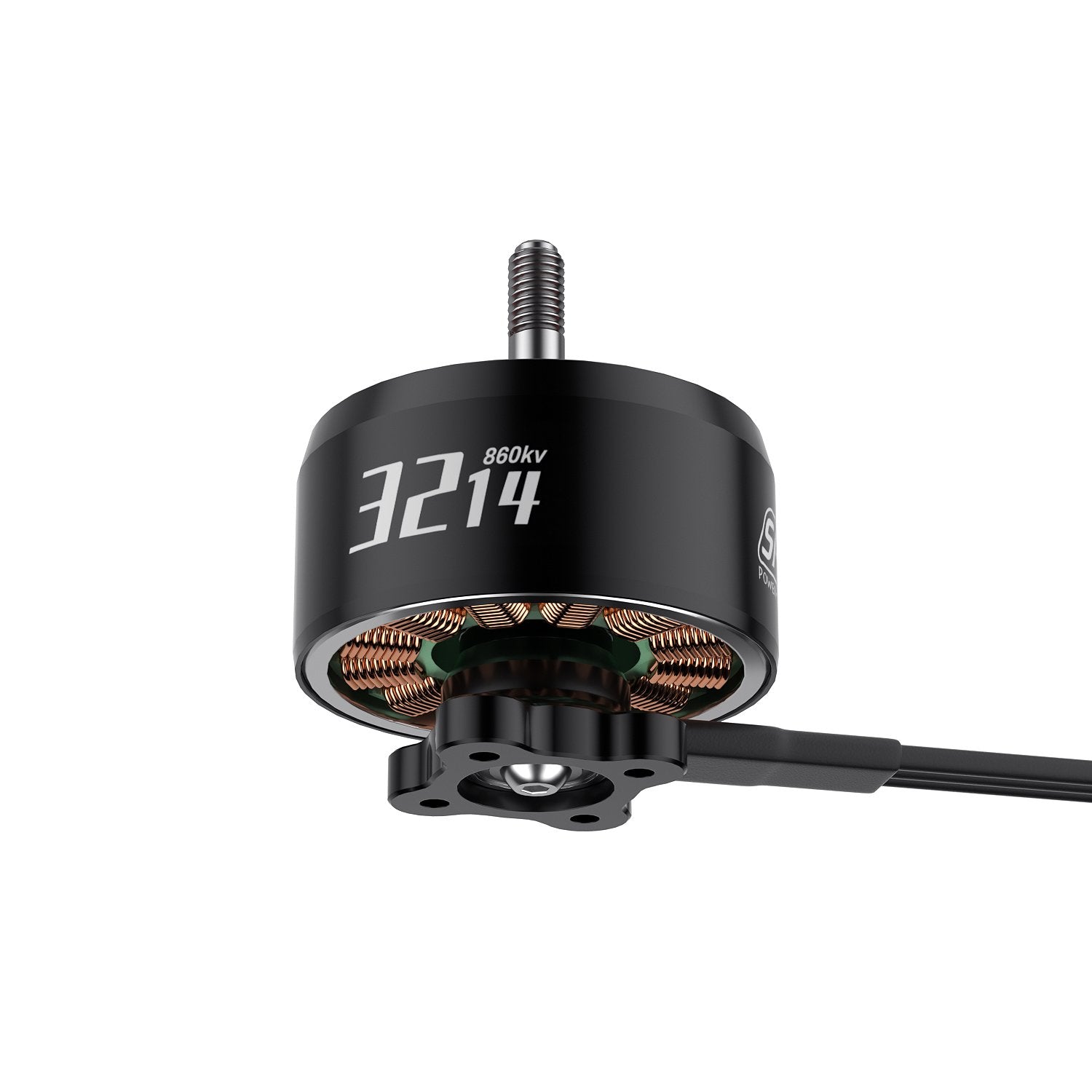

    SPEEDX2 3214

The SPEEDX2 3214 motor is purpose-built for 9-10 inch long range FPV. Its larger size provides considerable power for your flights, while the high torque of the 860KV motor ensures a more reasonable payload capacity.

Function:
1. Integrated outer rotor design, precisely machined from CNC aluminum alloy.
2. Enameled wire resistant to high temperatures.
3. Unique hollow design to reduce weight and increase performance.
4. It uses N52H magnetic steel with high magnetic energy product, resulting in a stronger magnetic field.

Specifications:

Model: SPEEDX2 3214 Engine
KV: 860KV
Configuration: 12N14P
Magnet: N52H
Rotor material: aircraft aluminum alloy 7075-T6
Stator diameter: 32 mm
Stator height: 14 mm
Output shaft diameter: 5 mm
Dimensions: 42mm x 49.8mm
Output specification: 16AWG 500mm
Rated voltage: 25.2V 6S (LiPo)
Maximum power: 1867.11W
Maximum current: 77.8A
Mounting hole: 19x19mm (M3)
Color: red and black
Weight: 155.0g
Applicable models: Suitable for 9-10 inch setups
