    Code: GP105980

    Motor GEPRC SPEEDX2 2809

    Motor GEPRC SPEEDX2 2809

    Brand: GEPRC

    €26,53
    €26,53 €26,53
    -0% View Product
    Upon request
    We need to check the product availability with our supplier. Please contact us for details.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion

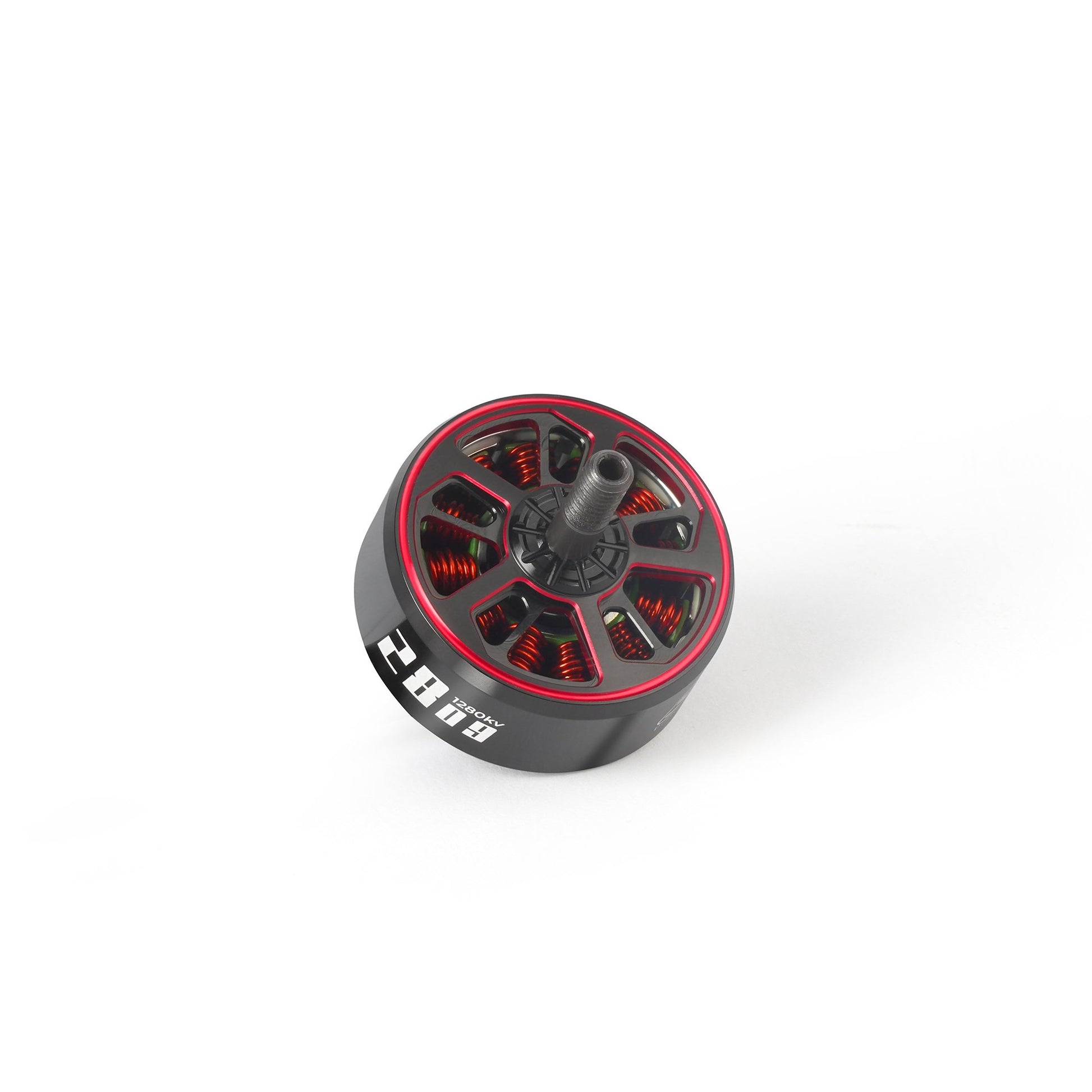

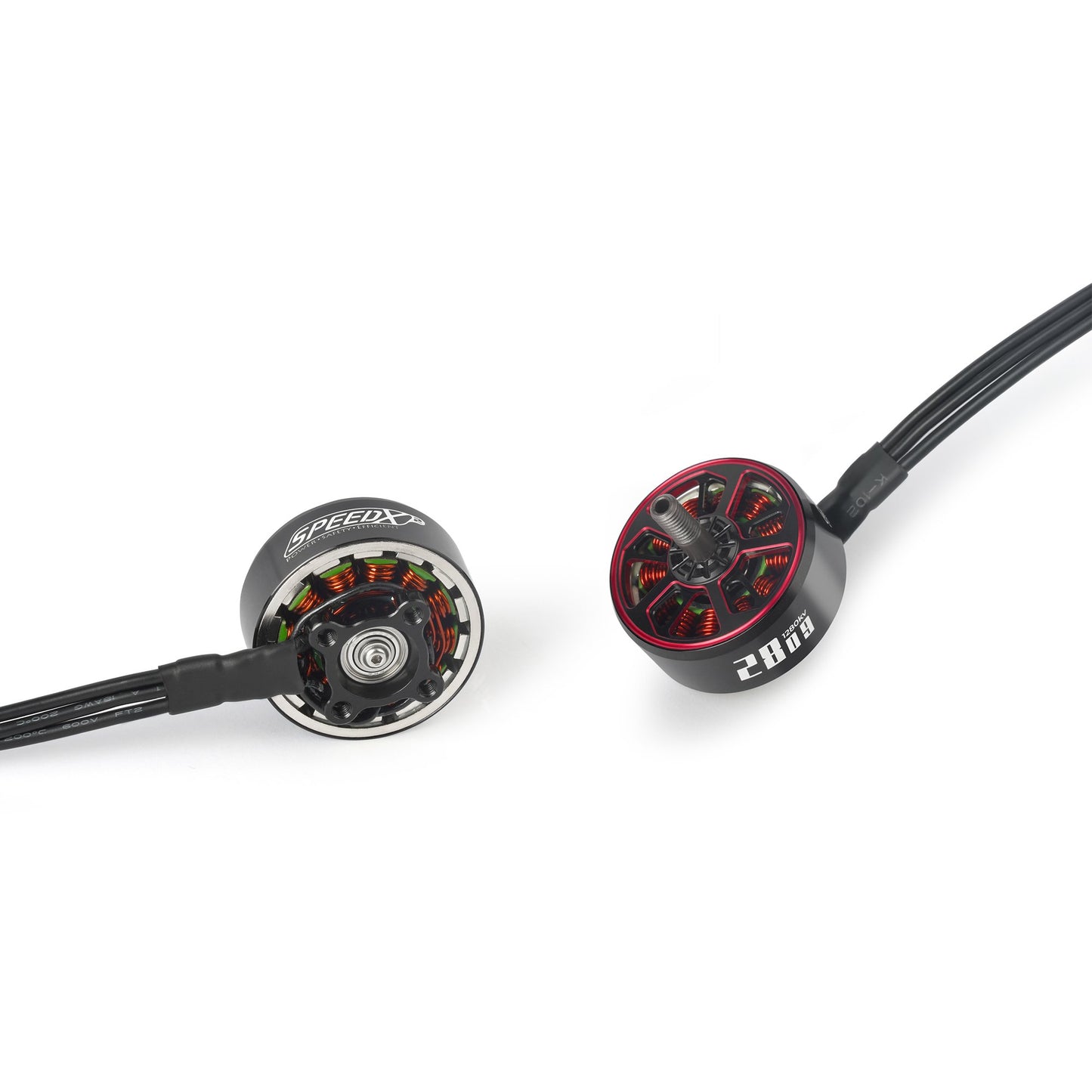

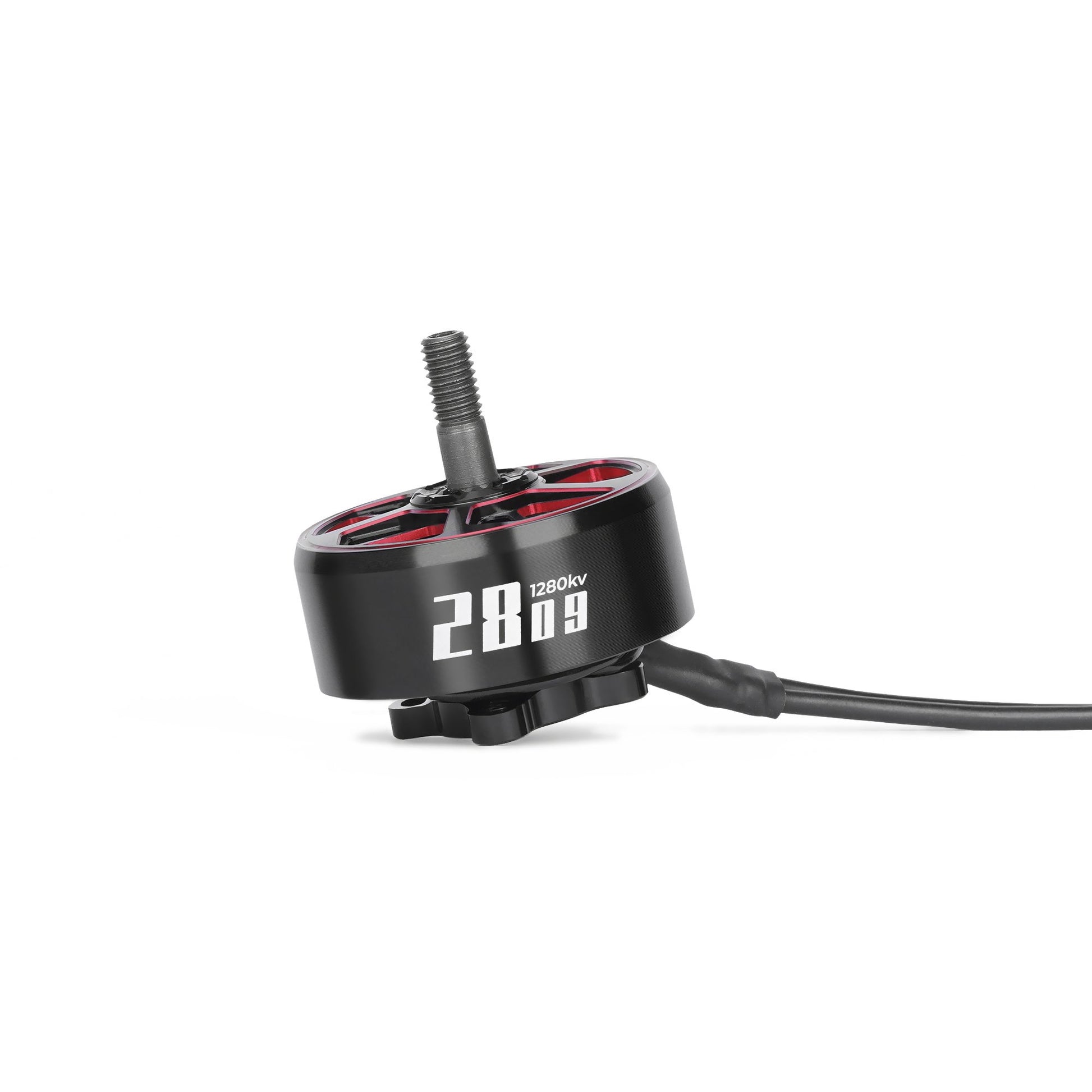

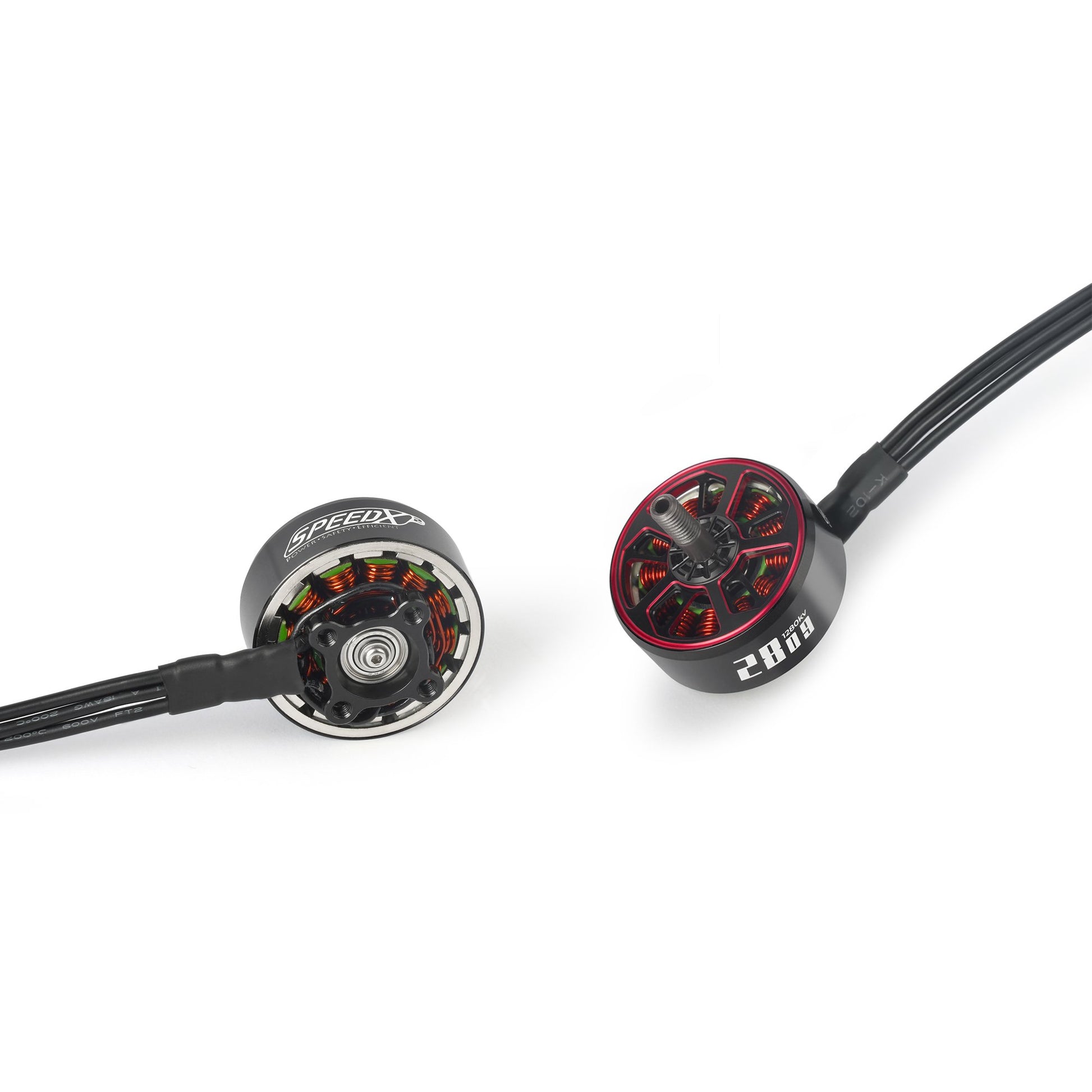

    SPEEDX2 2809

The SPEEDX2 2809 motor is specially designed for 7-8 inch large FPV drones. Its stator is made from 0.2mm Kawasaki silicon steel sheets that provide exceptional quality. The motor mounting hole measures 19mm x 19mm.

Function:
1. Made of 7075 aircraft aluminum alloy using high precision CNC integration.
2. Sleek dark design with red side stripes for an eye-catching look.
3. It uses high-quality N52SH magnetic steel to prevent demagnetization, increasing its high temperature resistance by 30%.

Specifications:

Model: SPEEDX2 2809 Motor
KV: 1280KV
Configuration: 12N14P
Magnet: N52SH ARC
Rotor material: aircraft aluminum alloy 7075-T6
Stator diameter: 28mm
Stator height: 9 mm
Output shaft diameter: 5 mm
Dimensions: 36.04mm x 36.53mm
Output specification: 18AWG 250mm
Rated voltage: 25.2V 6S (LiPo)
Maximum power (W): 1148.9
Maximum current (A): 49.35A
Mounting hole: 19x19mm (M3)
Color: red and black
Weight: 71.4g

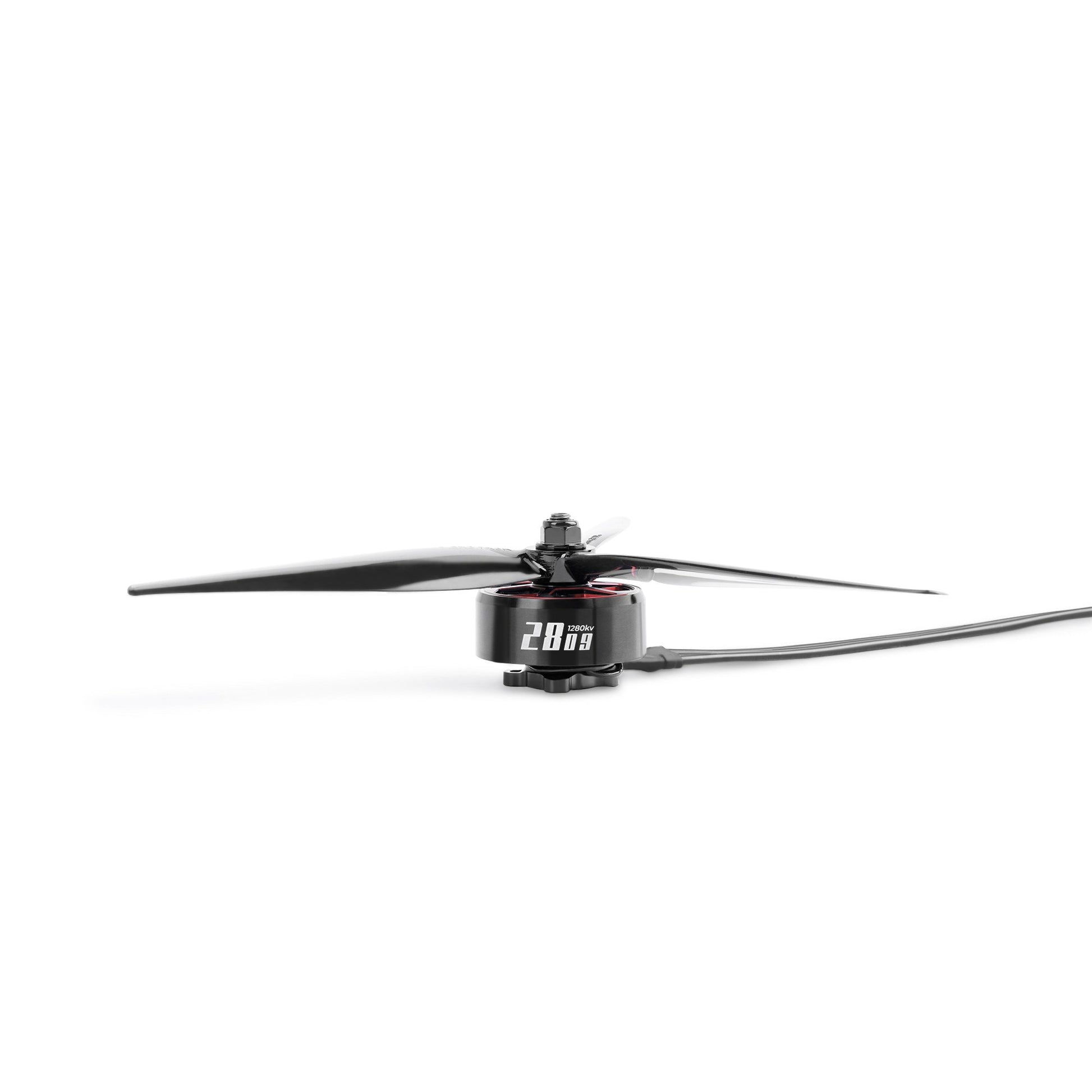

Applicable models: Suitable for 7-8 inch FPV/7-8 inch long range X8 models
