    Code: GP105442

    Motor GEPRC SPEEDX2 2806.5 1760KV

    Motor GEPRC SPEEDX2 2806.5 1760KV

    Brand: GEPRC

    €29,19
    €29,19 €29,19
    -0% View Product
    Upon request
    We need to check the product availability with our supplier. Please contact us for details.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion

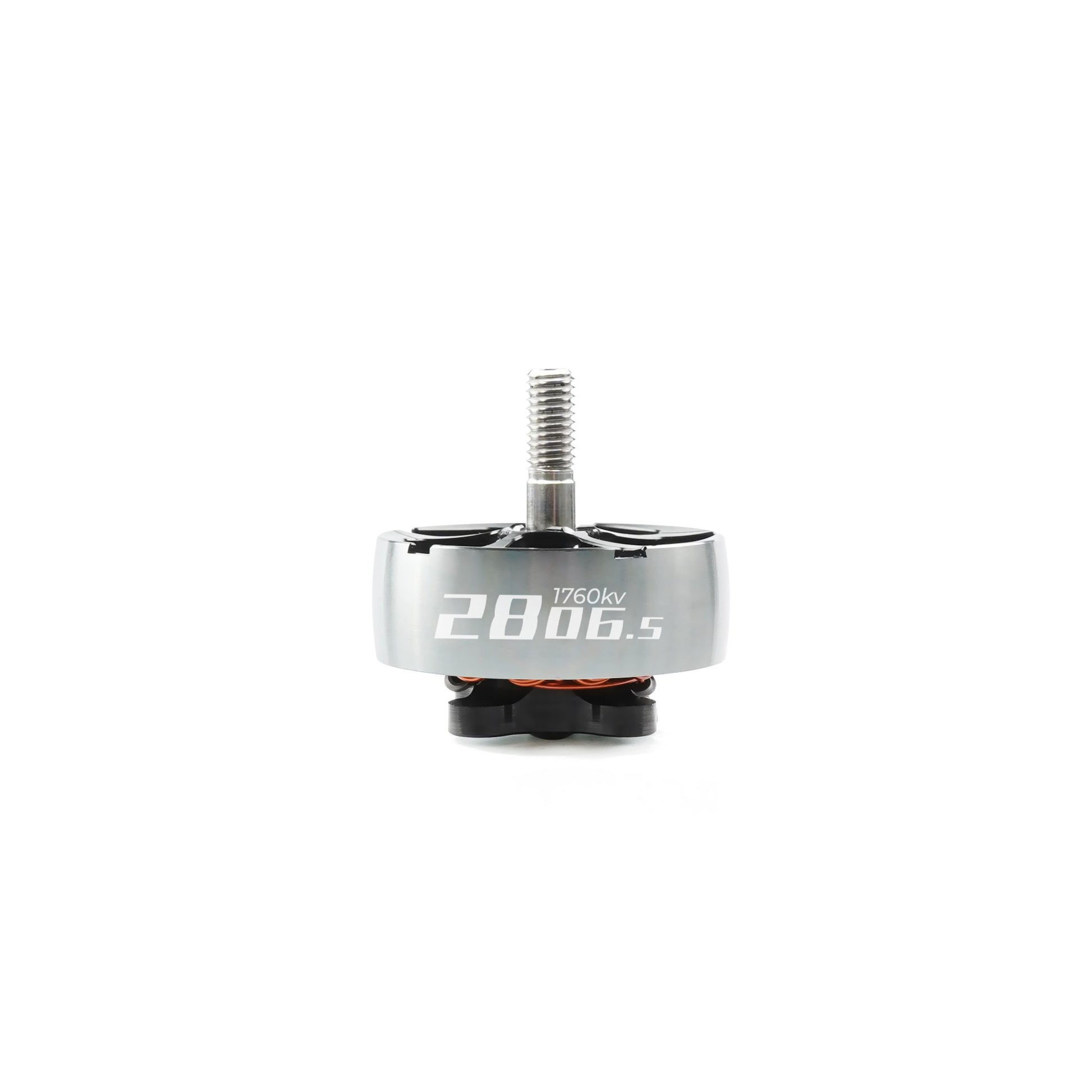

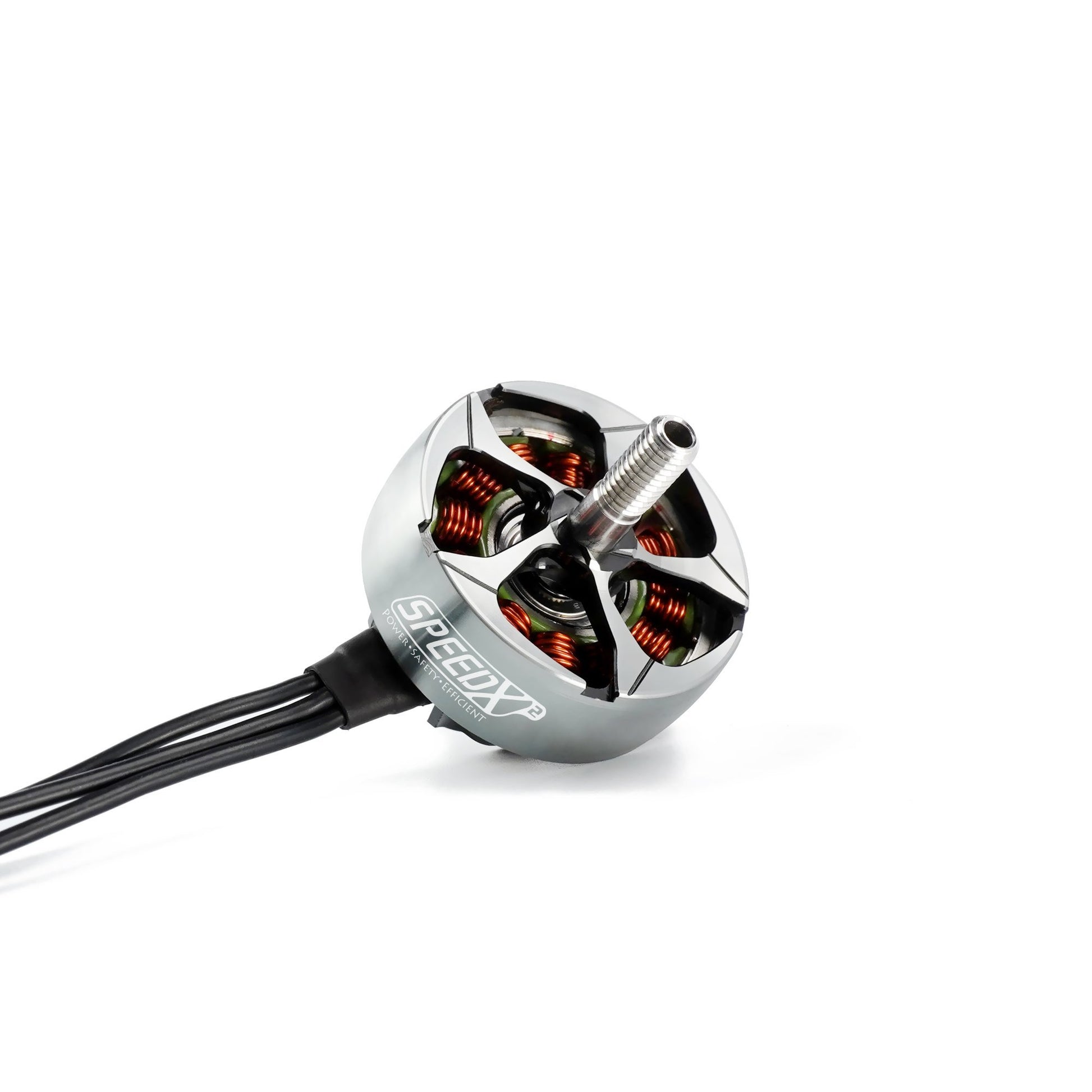

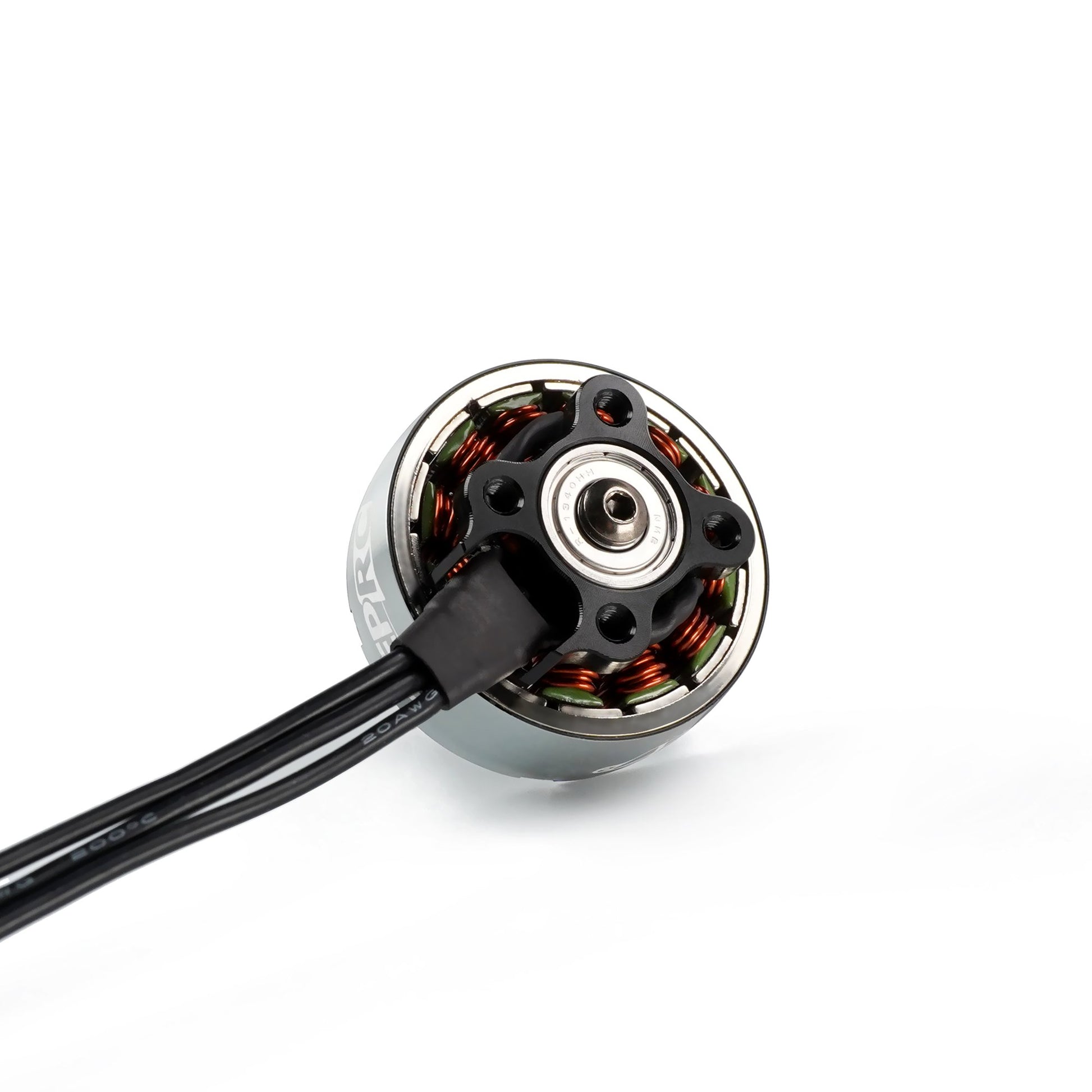

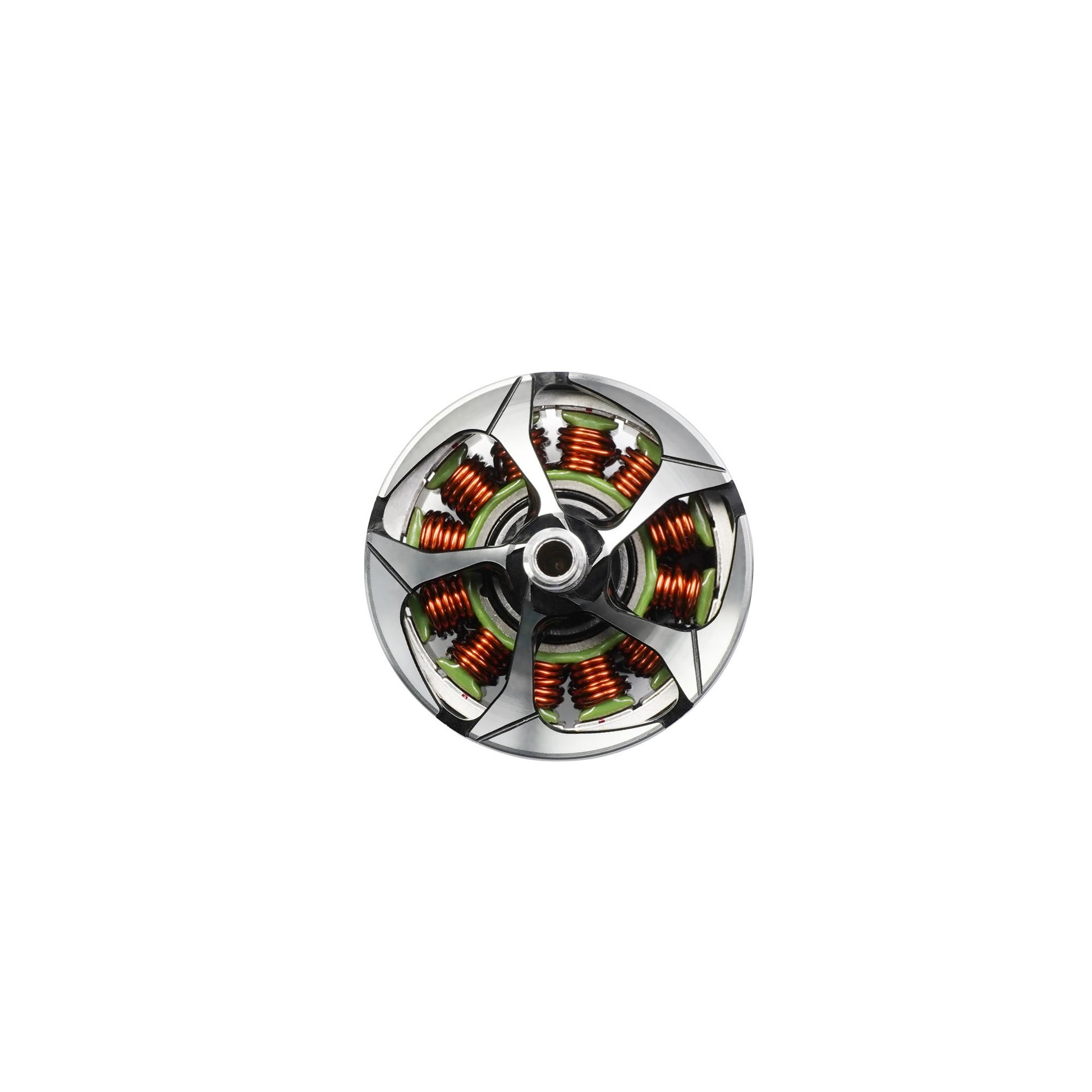

    SPEEDX2 2806.5

The SPEEDX2 2806.5 brushless motor is the second generation of the GEPRC motor with new design elements and a lighter construction.
The SPEEDX2 2806.5 motor has good heat dissipation, is light, has enough power, good stability, and is made of high-quality custom materials. With linear and fine throttle control and excellent magnetic circuit design. SPEEDX2 2806.5 has super smooth flying with excellent performance, long life and impact resistance.
The SPEEDX2 2806.5 motor is ideal for 6-7 inch long range and cinematic FPV.
We strive for lighter, more sensitive, more efficient and more powerful brushless motors.

Specifications:
Model: SPEEDX2 2806.5-1760KV
KV: 1760KV
Configuration: 12N14P
Magnet: N52H ARC
Stator diameter: 28mm
Stator length: 6.5 mm
Shaft diameter: Φ4.0mm

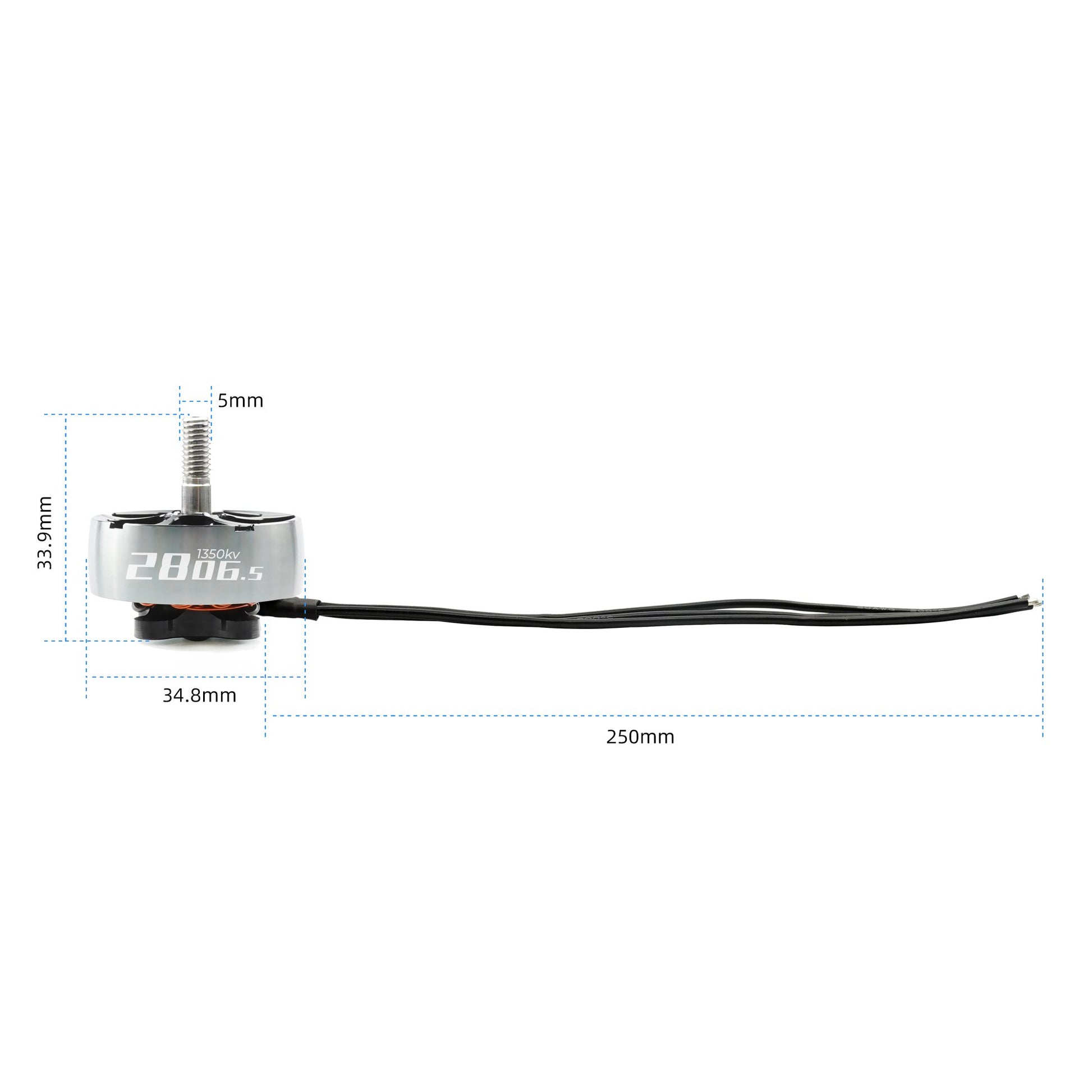

Dimension: Φ34.8mm * 33.9mm
Lead wire size: 20#AWG 250mm
No load current (10V): 1.7A
Number of cells (LiPo): 4-6S
Maximum continuous power (W) (5S): 1200
Maximum current (5S): 50A
Internal resistance: 47mΩ
Mounting holes: 19 x 19 mm
Weight: 48.0g
Suitable Quadcopter: 6-7″ Long Range Quadcopter
