Code: SKU:GP106117
Motor GEPRC SPEEDX2 2806.5 1350KV
Motor GEPRC SPEEDX2 2806.5 1350KV
Brand: GEPRC
Regular price
€29,19
Regular price
€29,19
Sale price
€29,19
Unit price
/
per
In stock
We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion

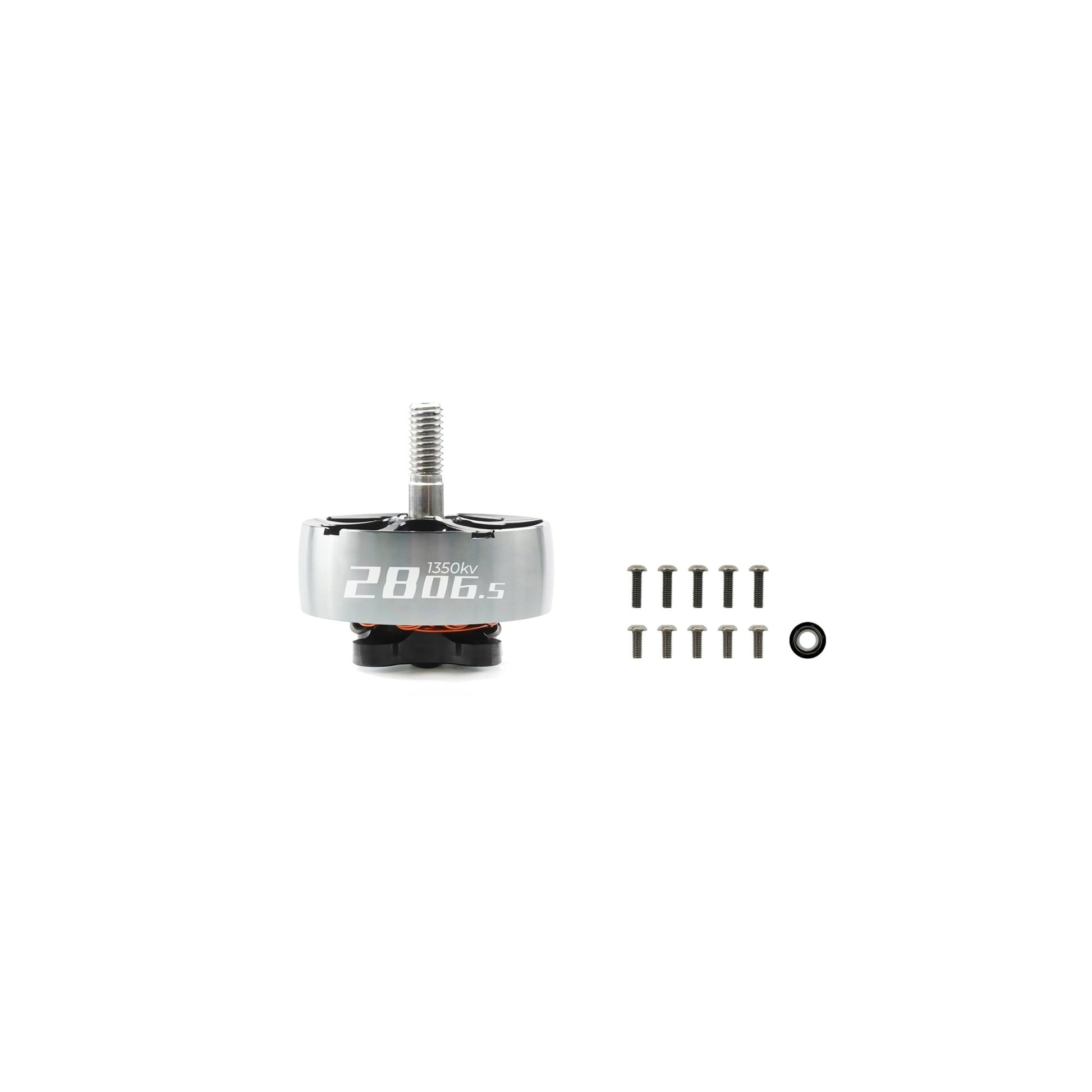

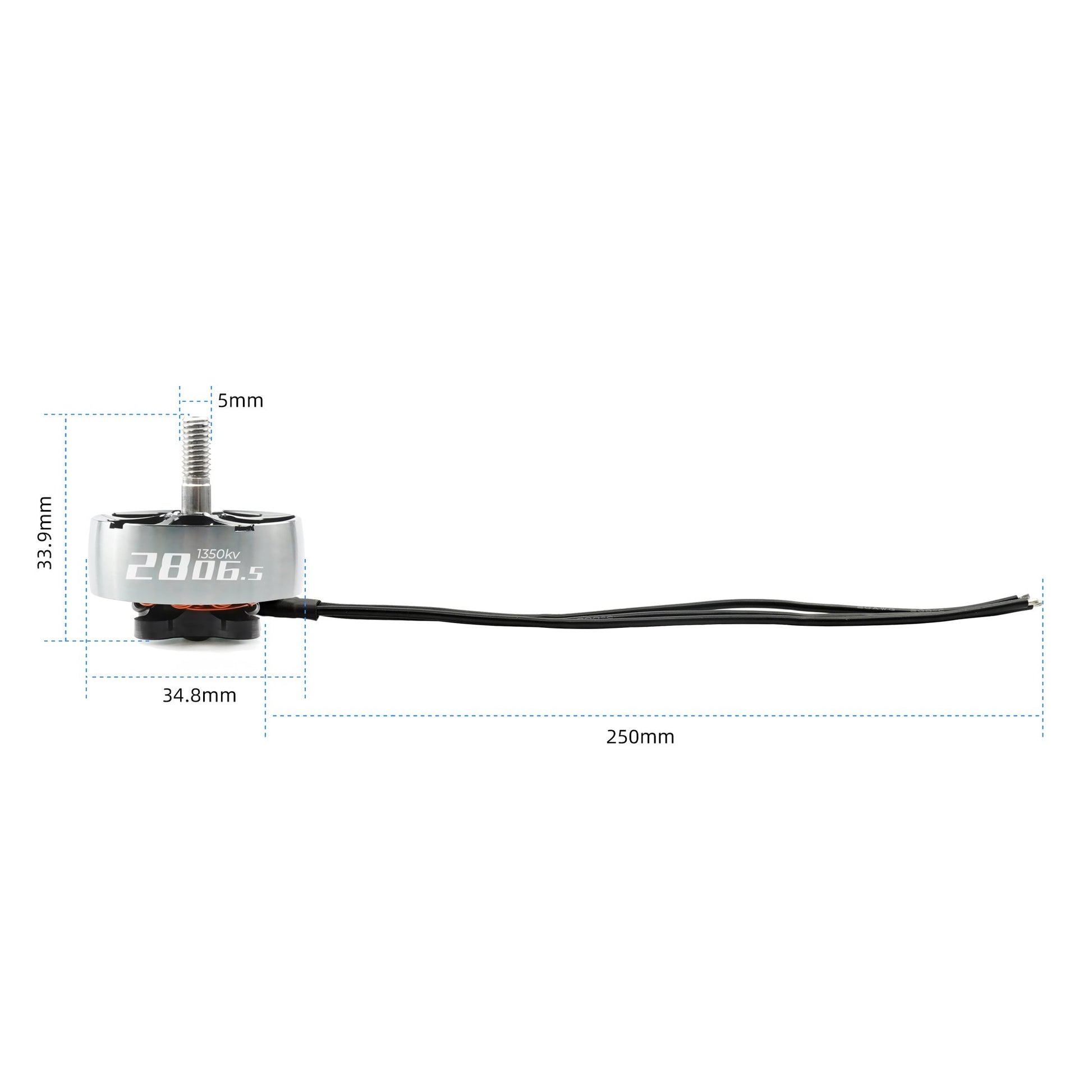

GEPRC SPEEDX2 2806.5 1350KV The SPEEDX2 2806.5 brushless motor is the second generation of the GEPRC motor with new design elements and a lighter construction. The SPEEDX2 2806.5 motor has good heat dissipation, light weight, good stability with linear and fine throttle control, and excellent magnetic circuit design. It is made of high quality materials. SPEEDX2 2806.5 has super smooth flying with excellent performance, long life and impact resistance. The SPEEDX2 2806.5 motor is ideal for 6-7 inch long range and cinematic FPV. Specifications: Model: SPEEDX2 2806.5-1350KV KV: 1350KV Configuration: 12N14P Magnet: N52H ARC Stator diameter: 28mm Stator length: 6.5 mm Shaft diameter: Φ4.0mm Dimension: Φ34.8mm * 33.9mm Lead wire size: 20#AWG 250mm No load current (10V): 1.25A Number of cells (LiPo): 4-6S Maximum continuous power (W) (5S): 960 Maximum current (5S): 40A Internal resistance: 58mΩ Mounting holes: 19 x 19 mm Weight: 48.0g Suitable for: 6-7″ long range quadcopters The package includes: 1 x SPEEDX2 2806.5 motor 5 x M3 * 8mm screws 5 x M3 * 10mm screws 1 x M5 flange nut
