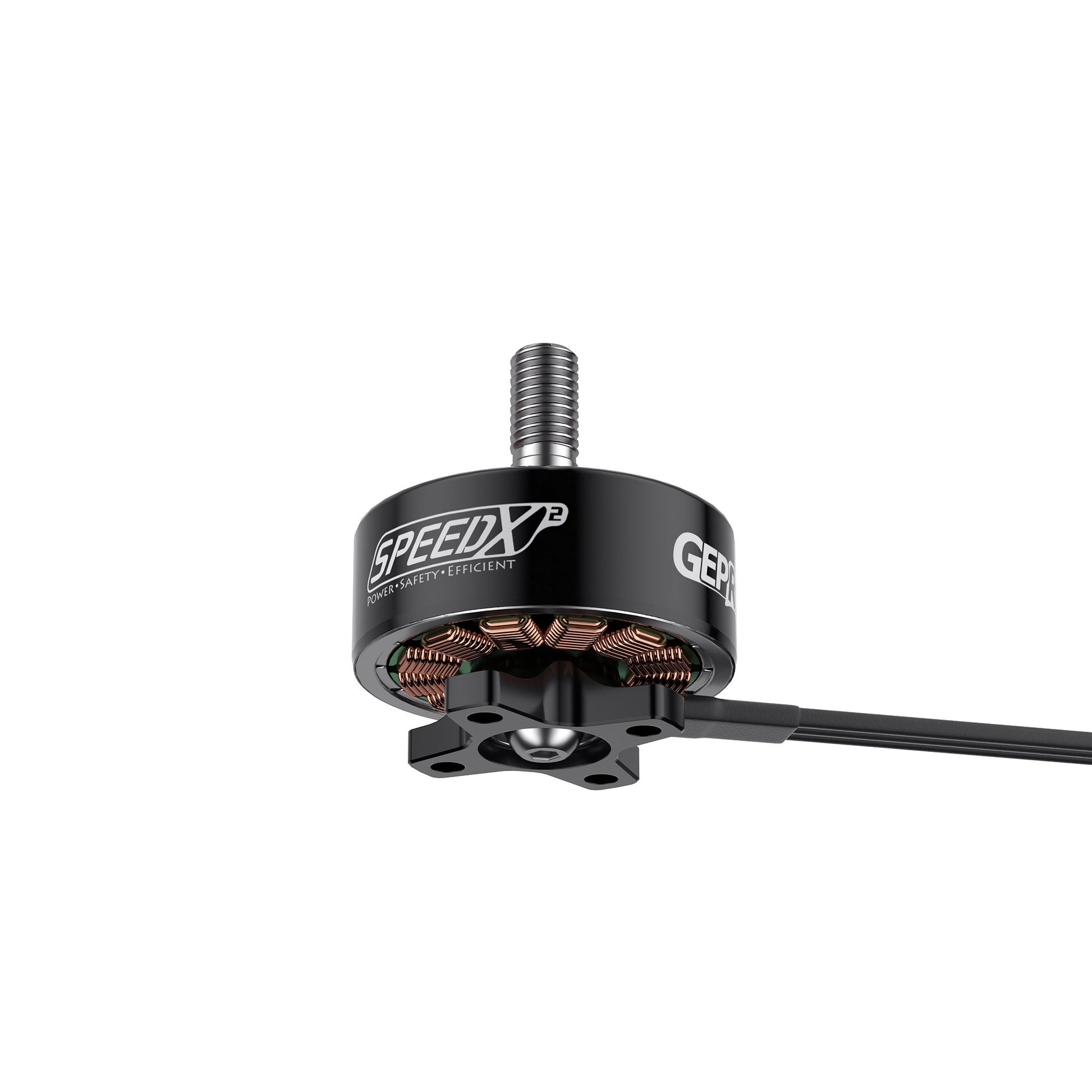

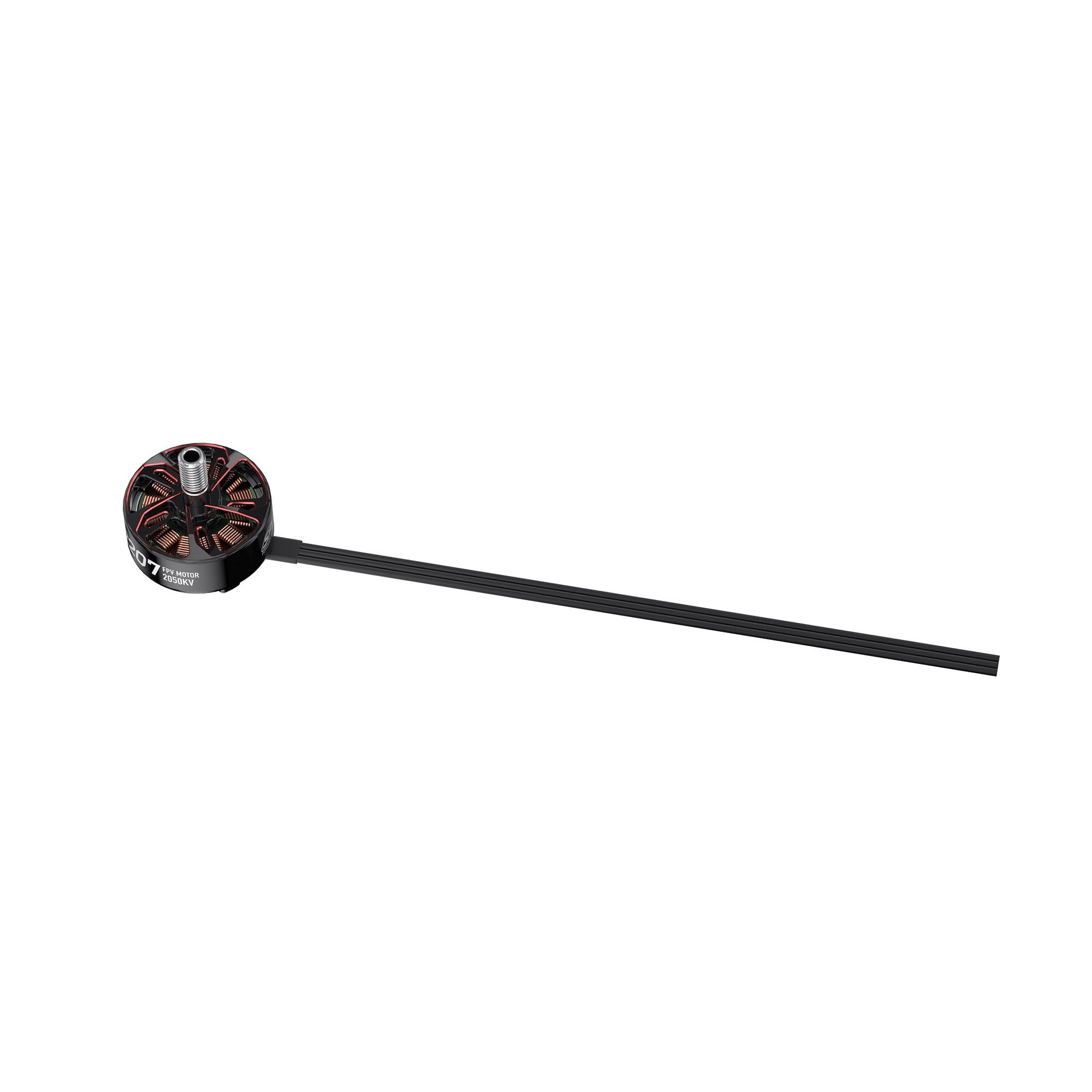

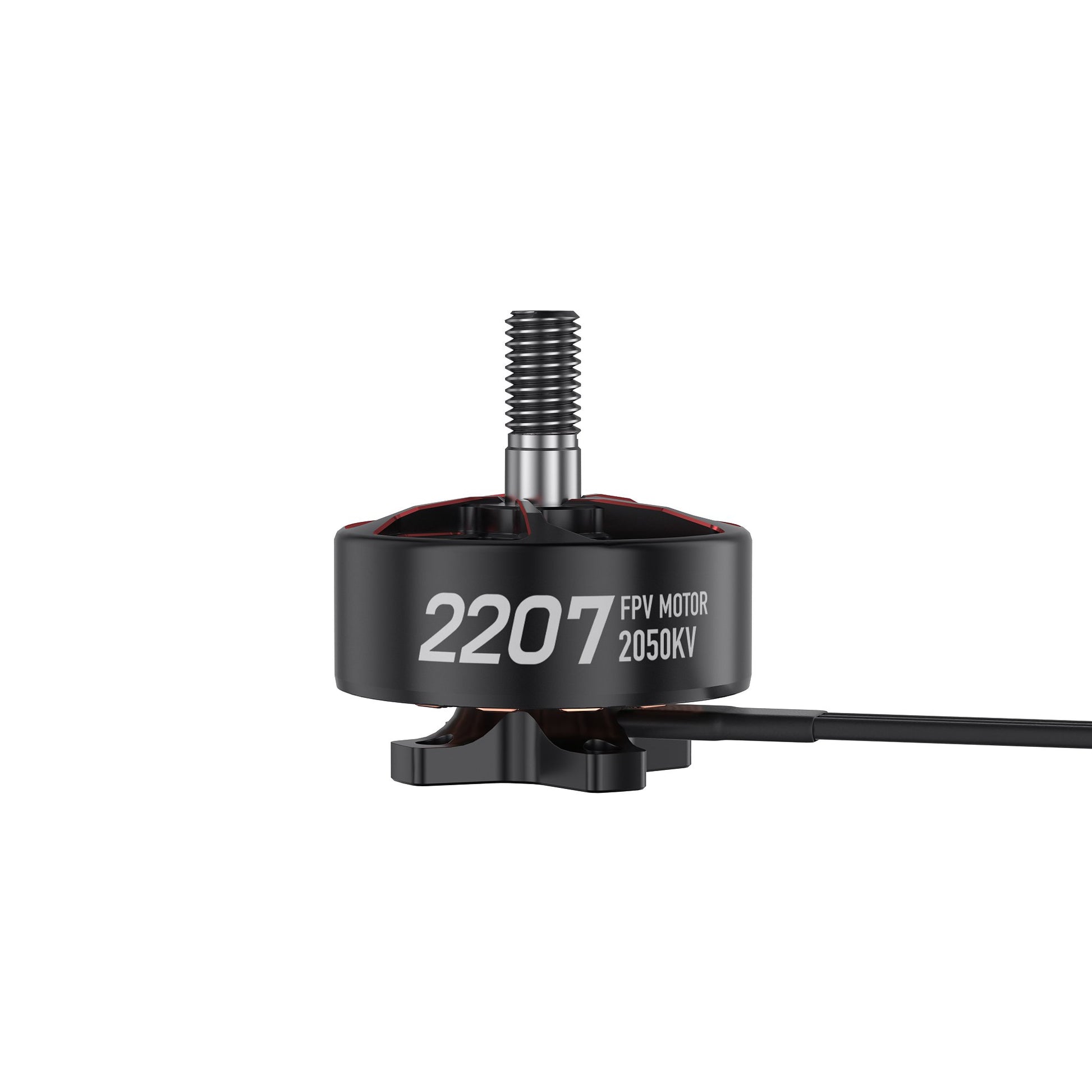

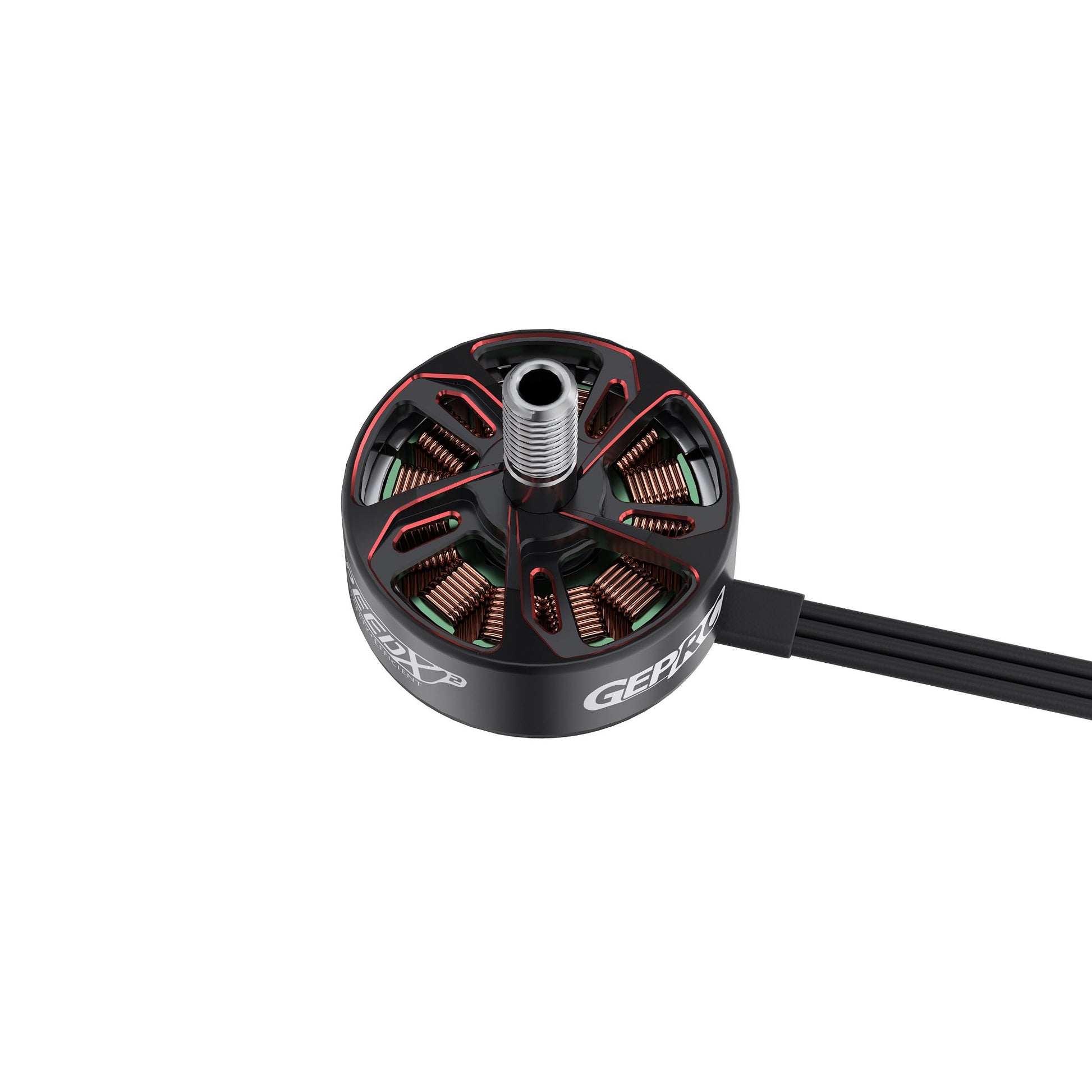

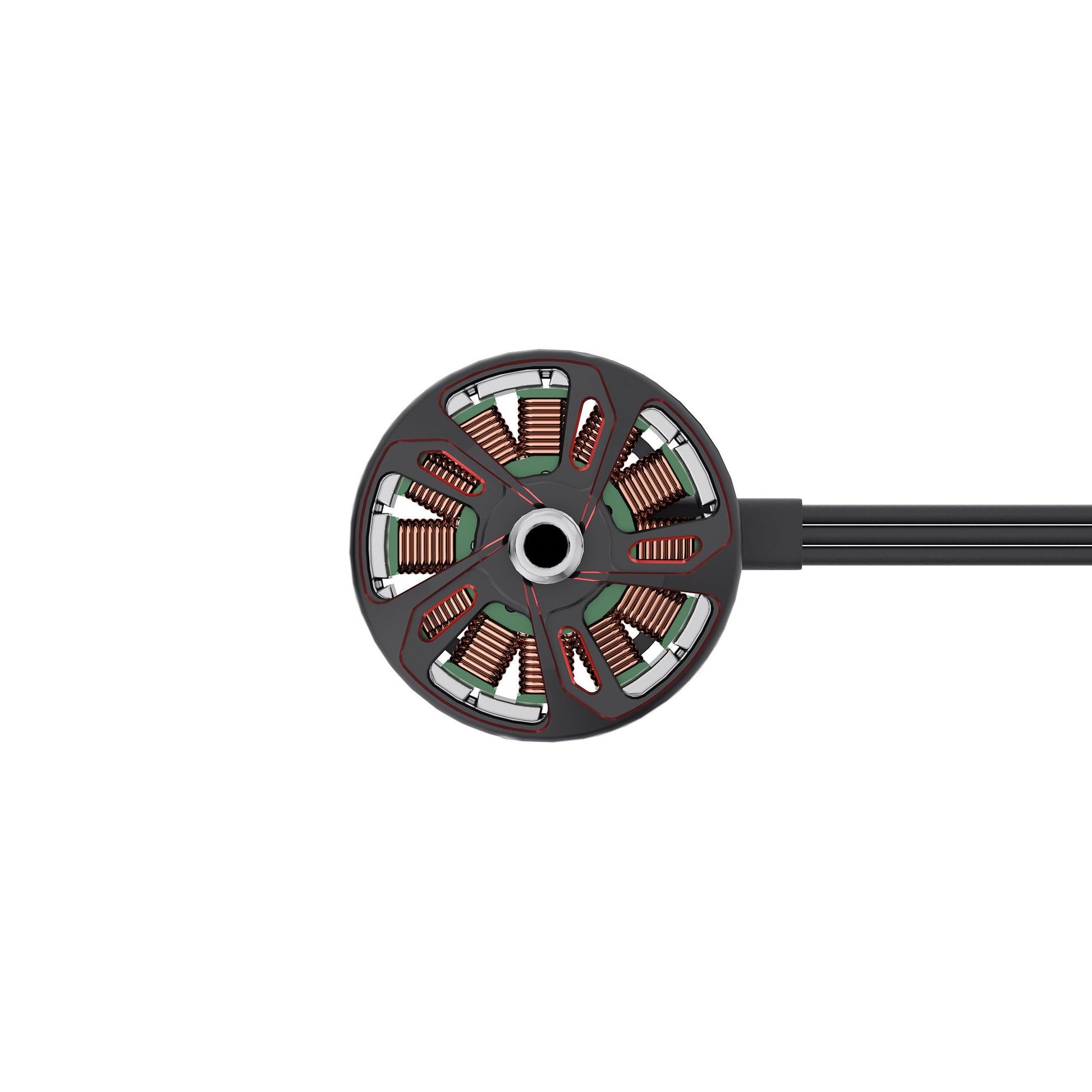

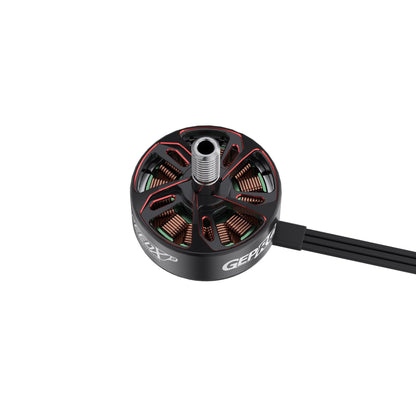

SPEEDX2 2207 (2050 KV) The SPEEDX2 2207 motor is specially designed for FPV competitions. It features enamelled wire with a remarkable temperature resistance of up to 360°C, ensuring that the motor remains safe even when operating at high temperatures. The precision design of this motor maintains a minimum gap of just 0.13 mm between the motor magnet and the stator, allowing for significantly faster response. It is made of 7075 aircraft grade aluminum alloy and undergoes high precision integrated CNC pressing, which results in lower weight. The SPEEDX2 2207 racing motor is available in two KV variants: 1960KV for novice racing pilots and 2050KV for professional racing pilots. Specifications: Model: SPEEDX2 2207 2050KV Motor KV: 2050 KV Configuration: 12N14P Magnet: N52H ARC Rotor material: aircraft aluminum alloy 7075-T6 Stator diameter: 22 mm Stator height: 7 mm Output shaft diameter: 5 mm Dimensions: 30.3mm x 27.40mm Output specification: 20AWG 150mm Rated voltage: 25.2V 6S LiPo Maximum power: 1411.2W Maximum current: 56A Mounting hole: 16x16mm (M3) Color: Black with red Weight: 32.4g (including wire) Applicable models: Suitable for 4 inch to 5 inch racing FPV
