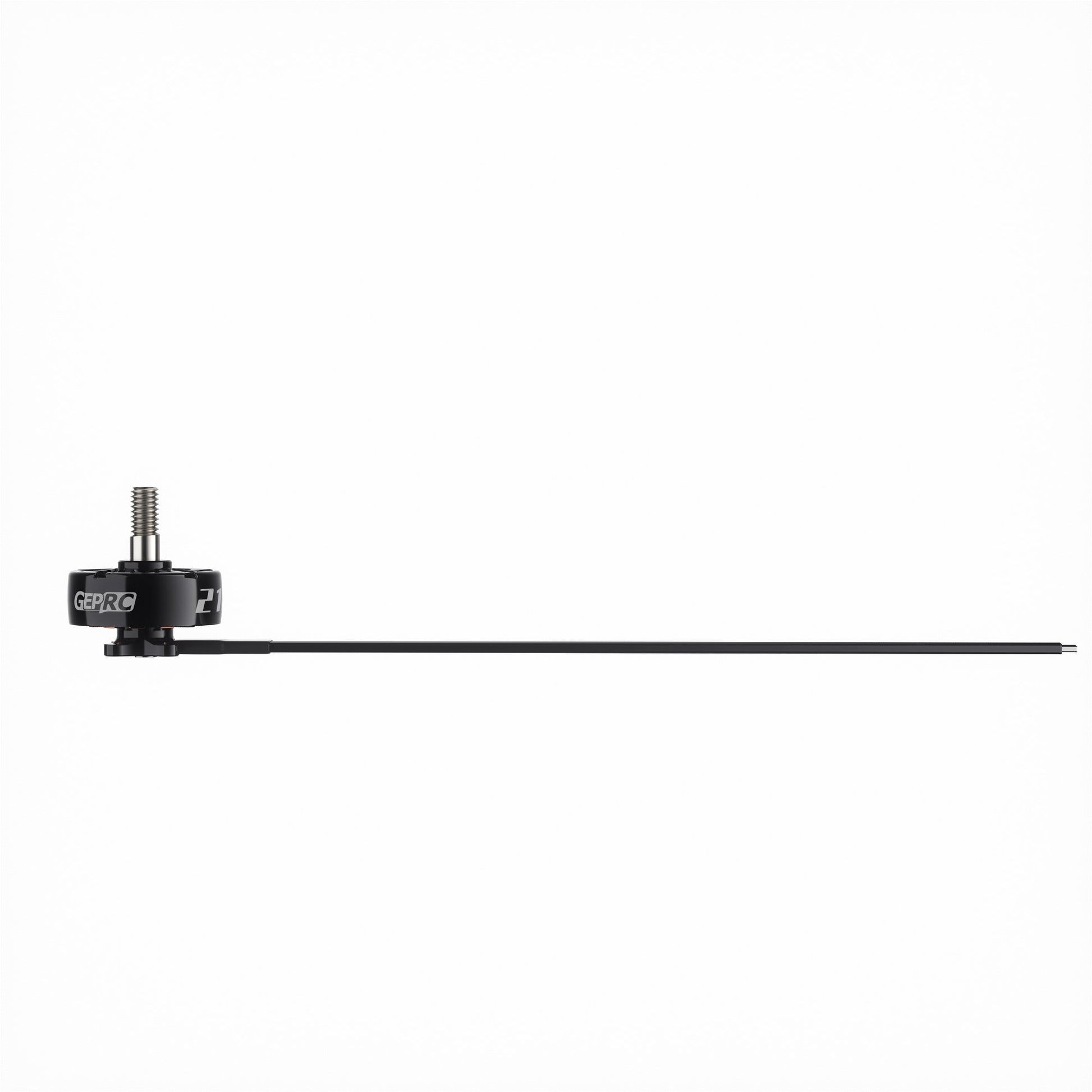

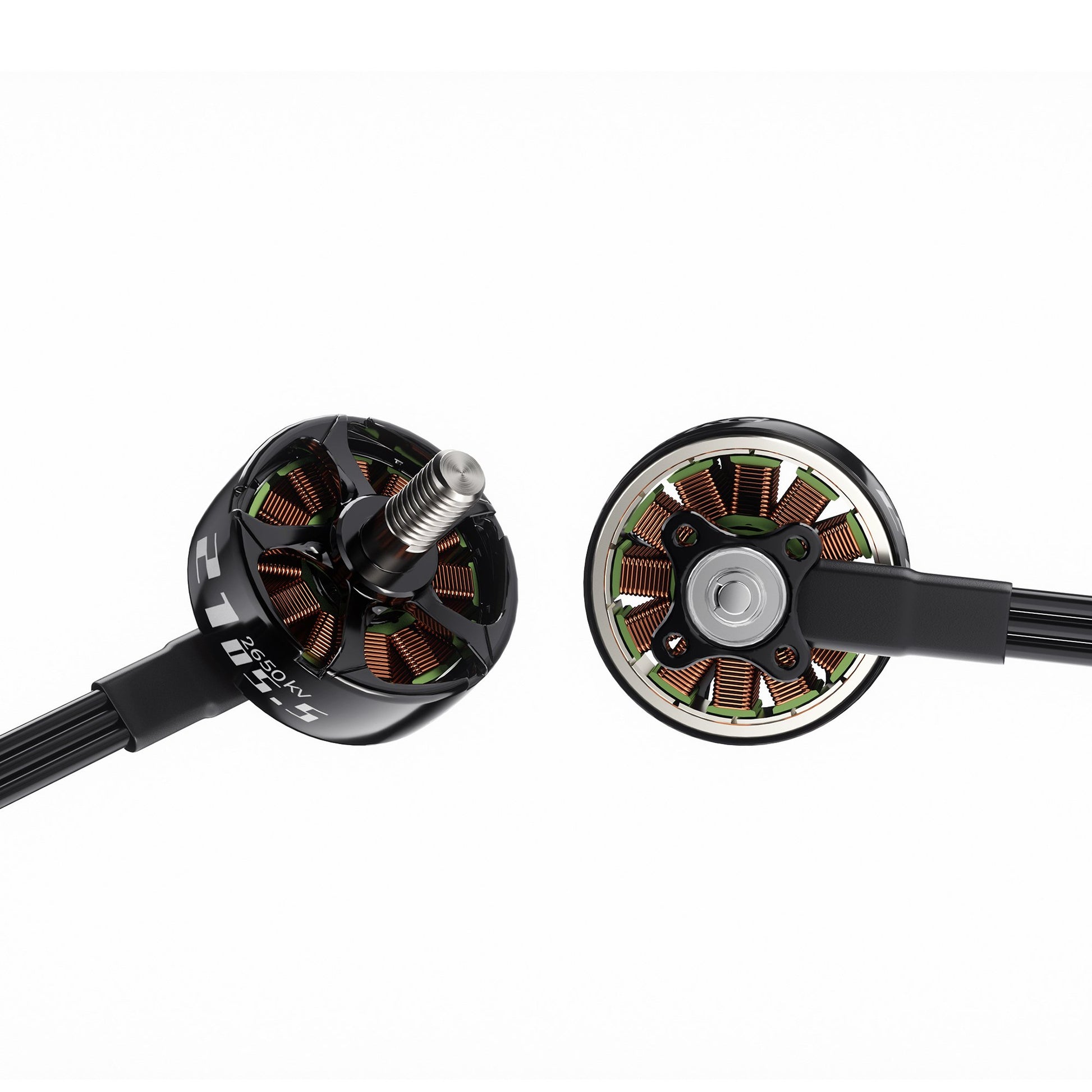

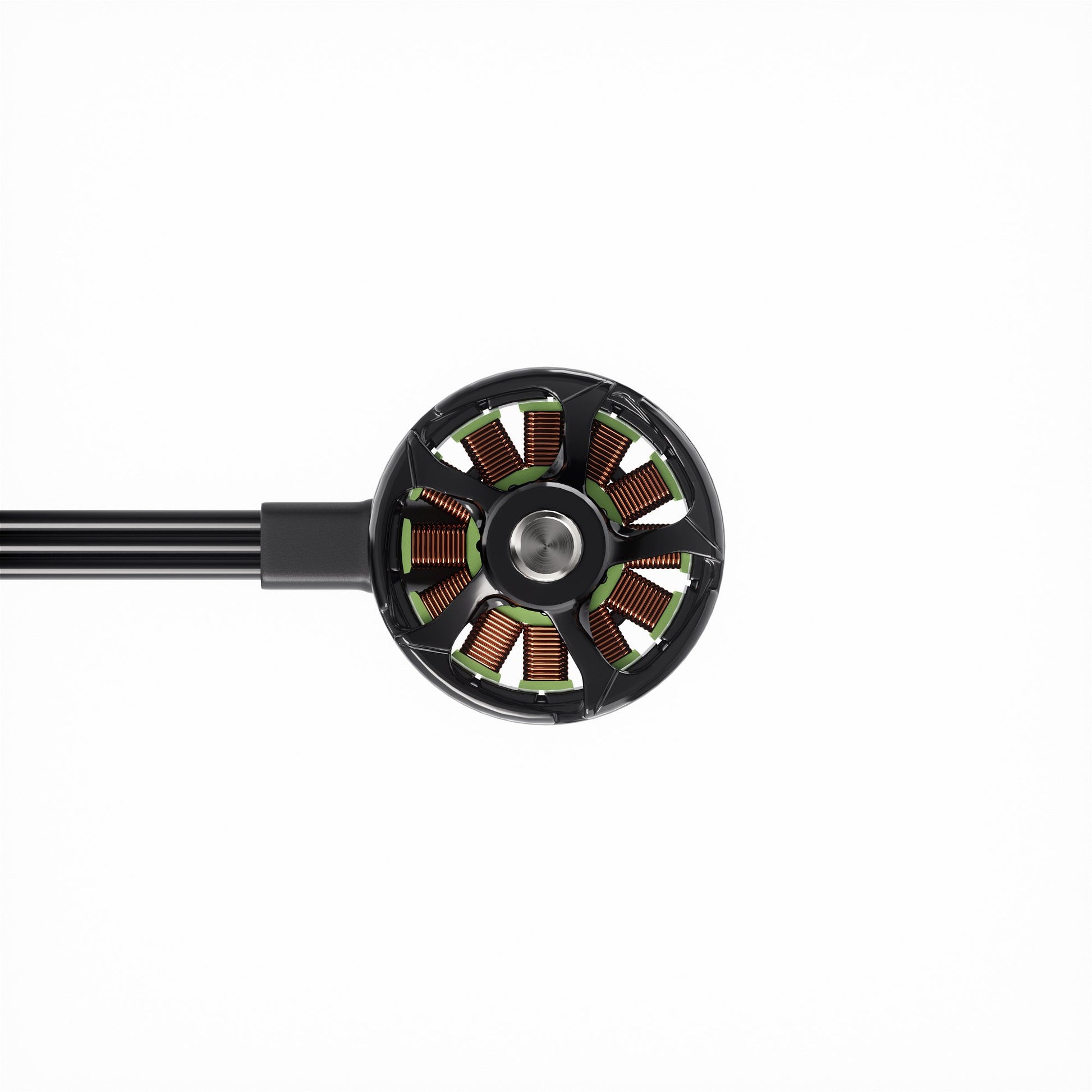

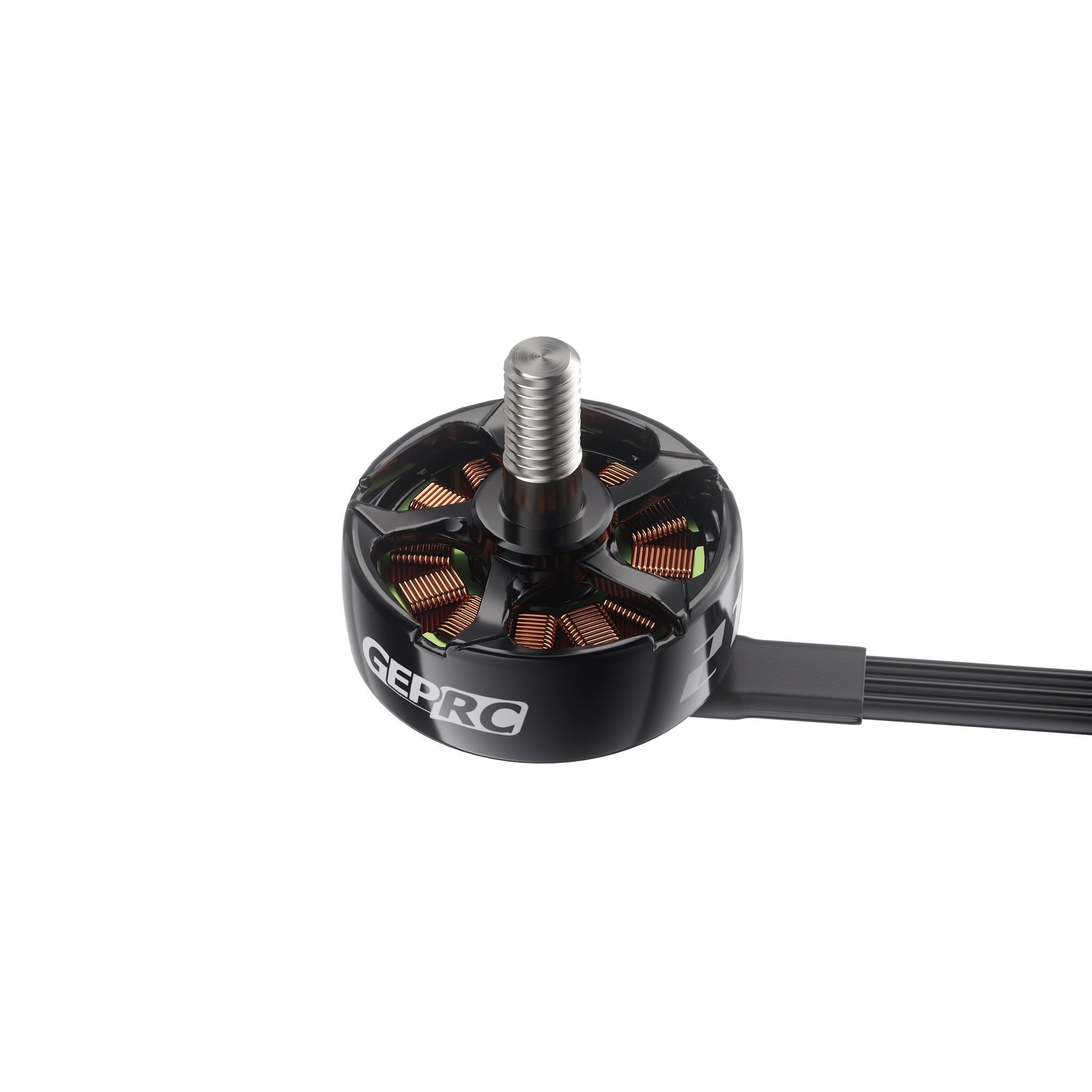

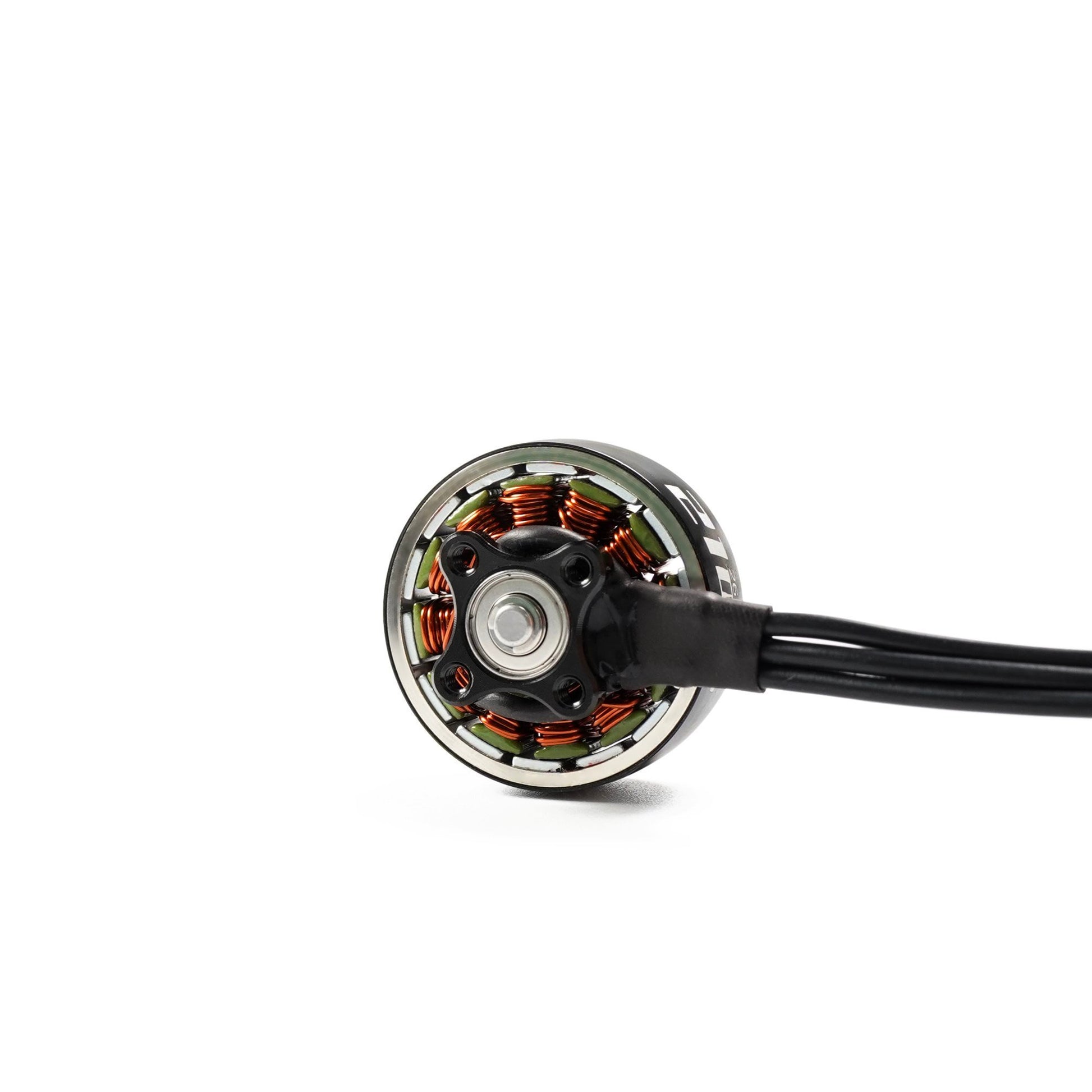

GEPRC motor of new generation carbonless SPEEDX2 2105.5
SPEEDX2 2105.5 is a highly innovative brushless motor with avant-garde style and unique design.
Lightweight design significantly reduces weight, only 21.0 g. The flat motor shape with an excellent 'drilled out' design on top of the rotor improves the efficiency of heat dissipation, helping to keep the running motor temperature lower.
Using high-quality materials and professional magnetic circuit design, the SPEEDX2 2105.5 motor offers good control and stable aggressive performance, giving pilots a super smooth flight experience.
Due to its high-strength construction, the SPEEDX2 2105.5 also has good durability and impact resistance. It is the ideal motor for any pilot building their own 3-4 inch FPV quadcopters or long range 4-5 inch FPV quadcopters.
We strived for a lighter, faster, more efficient and powerful brushless motor.
Features:
- Lightweight design, only 21.0g.
- High quality arc magnetic steel, professional magnetic field design, strong magnetic force, stable motor performance.
- The flat engine design is very prominent in Freestyle and racing. High engine torque, strong explosive power and extremely fast response time.
- Good control and stable performance brings a super smooth flight experience.
- Excellent "drilled" design on the top of the rotor improves heat dissipation efficiency.
- Engine design with high strength, good durability and impact resistance.
- The 1.5mm diameter shaft is suitable for most common 3-5 inch FPV quadcopters on the market.
- Suitable for 3-4 inch FPV quadcopter and 4-5 inch long range FPV quadcopter.
-
Specifications:
- Item: SPEEDX2 2105.5-2650KV
- KV: 2650KV
- Configuration: 12N14P
- Magnet: N52H ARC
- Stator diameter: 21 mm
- Stator height: 5.5mm
- Shaft diameter: Φ3.0mm (inner) Φ1.5mm (outer)
- Dimensions: Φ25.65mm x 15.7mm
- Wire: 22#AWG 150mm
- Number of cells (LiPo): 2-6S
- Maximum continuous power (W) (5S): 559
- Maximum current (5S): 34.9A
- Mounting holes: 12mm x 12mm (M2 screw)
- Color: Titanium, black
- Weight: 21.0g
- Suitable for Quadcopters: 3-4" whoop FPV, 4-5" Toothpick & Long Range FPV
Contains:
- 1 x SPEEDX2 2105.5 motor
- 5 x M2*6mm screw
- 5 x M2*7mm screw
