Code: SKU:GP106230

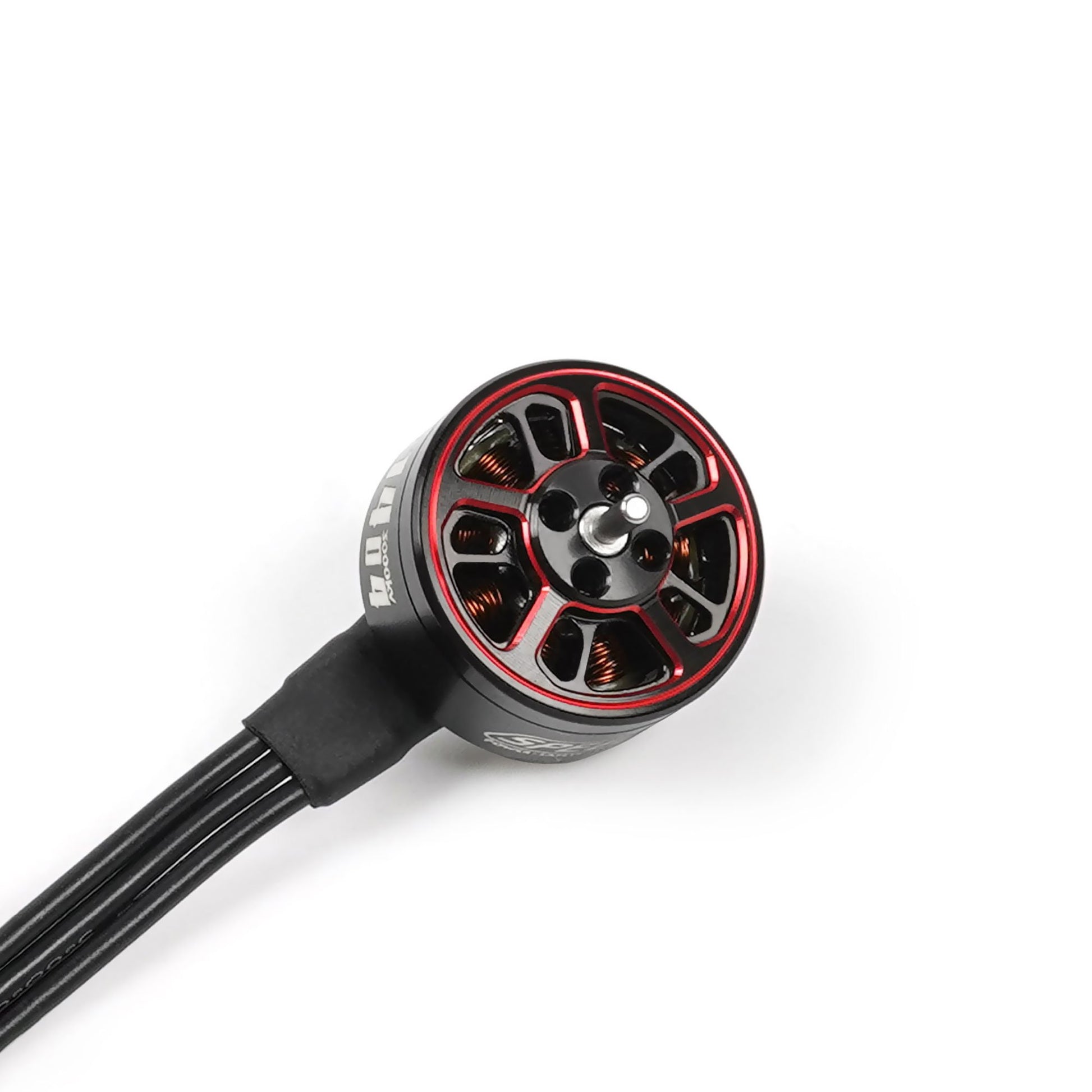

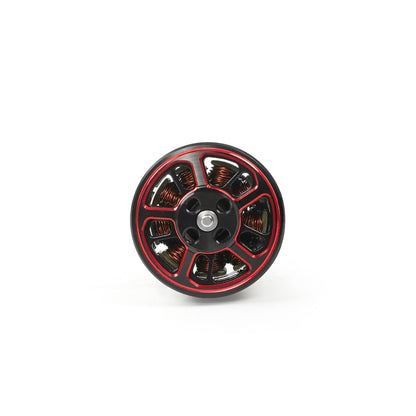

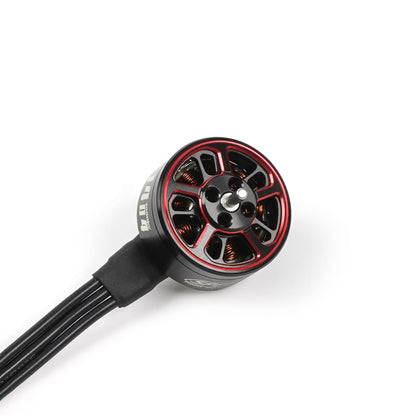

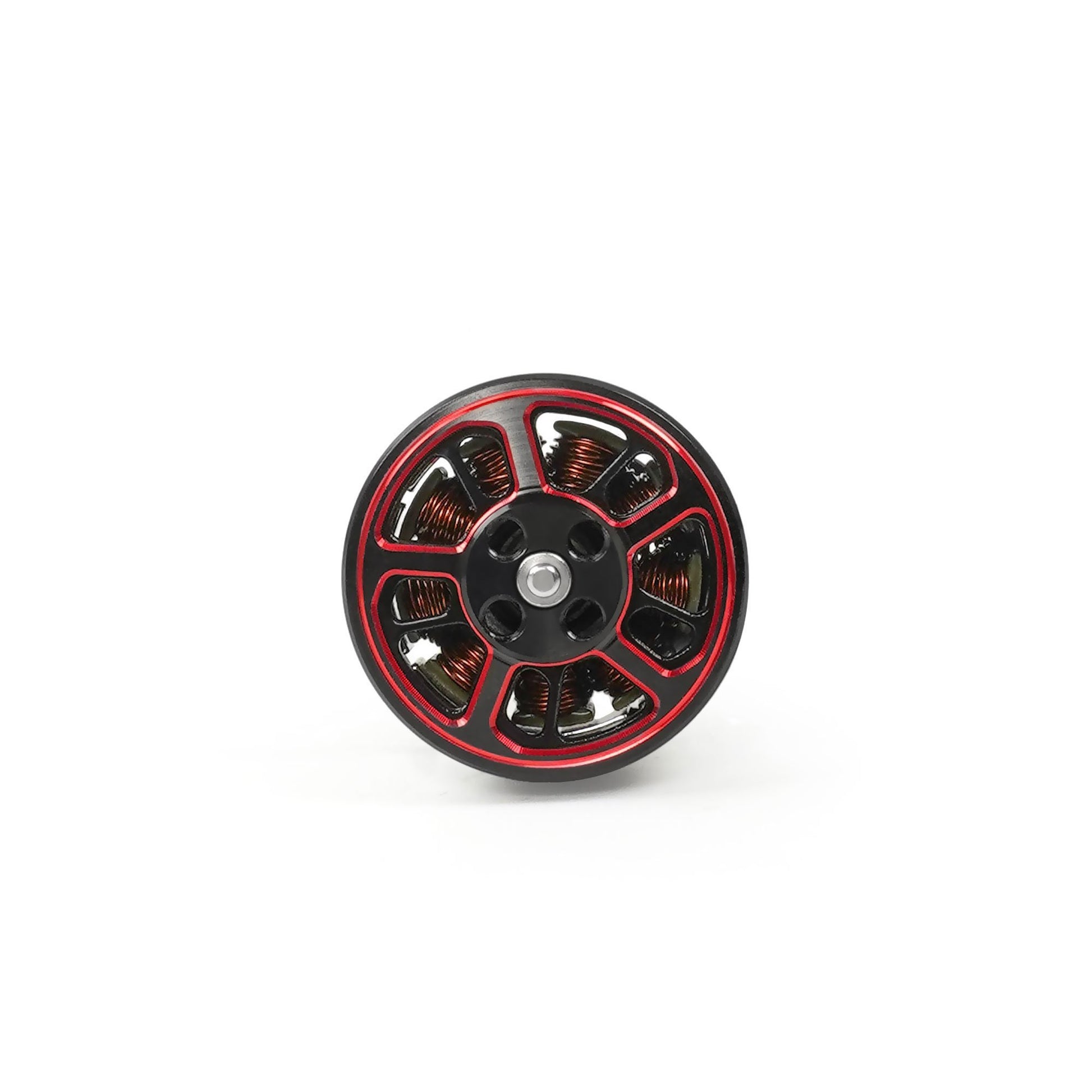

Motor GEPRC SPEEDX2 1404 4600kv
Motor GEPRC SPEEDX2 1404 4600kv
Brand: GEPRC
Regular price
€13,27
Regular price
€13,27
Sale price
€13,27
Unit price
/
per
In stock
We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion
Features:
- The color red and black looks very luxurious.
- Using bearings with excellent performance and strong wear resistance.
- Light profile, powerful performance.
- Suitable for 2 to 4 inch lightweight chassis.
Specifications:
- Model: SPEEDX2 1404 4600KV motor
- Maximum power: 180W
- Peak current: 14.3A/3"
- Resistance between phases: 0.19Ω
- Magnet: N52H
- Bearing type: NSK/NMB
- Configuration: 9N12P

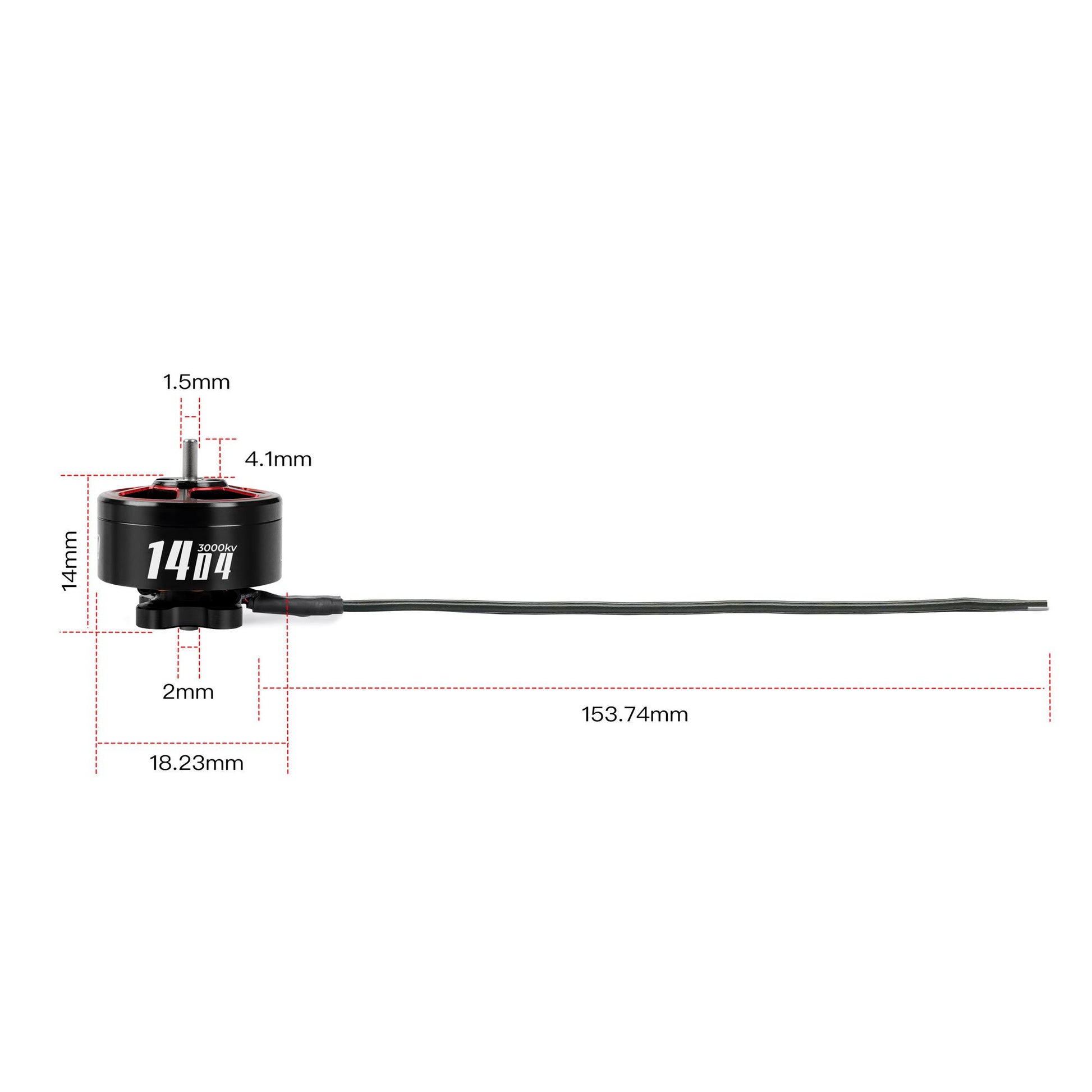

- Dimensions: φ18.2mm * 13.8mm
- Shaft diameter: φ1.5mm
- Length of protruding shaft: 4 mm
- Mounting holes: 9 mm x 9 mm (M2)
- Wire: 160mm / 26AWG
- ESC: 20A/2-4S (7.4V-14.8V)
- Input voltage: 11.1V – 14.8V (3S – 4S LiPo)
- Winding: Single-strand copper winding

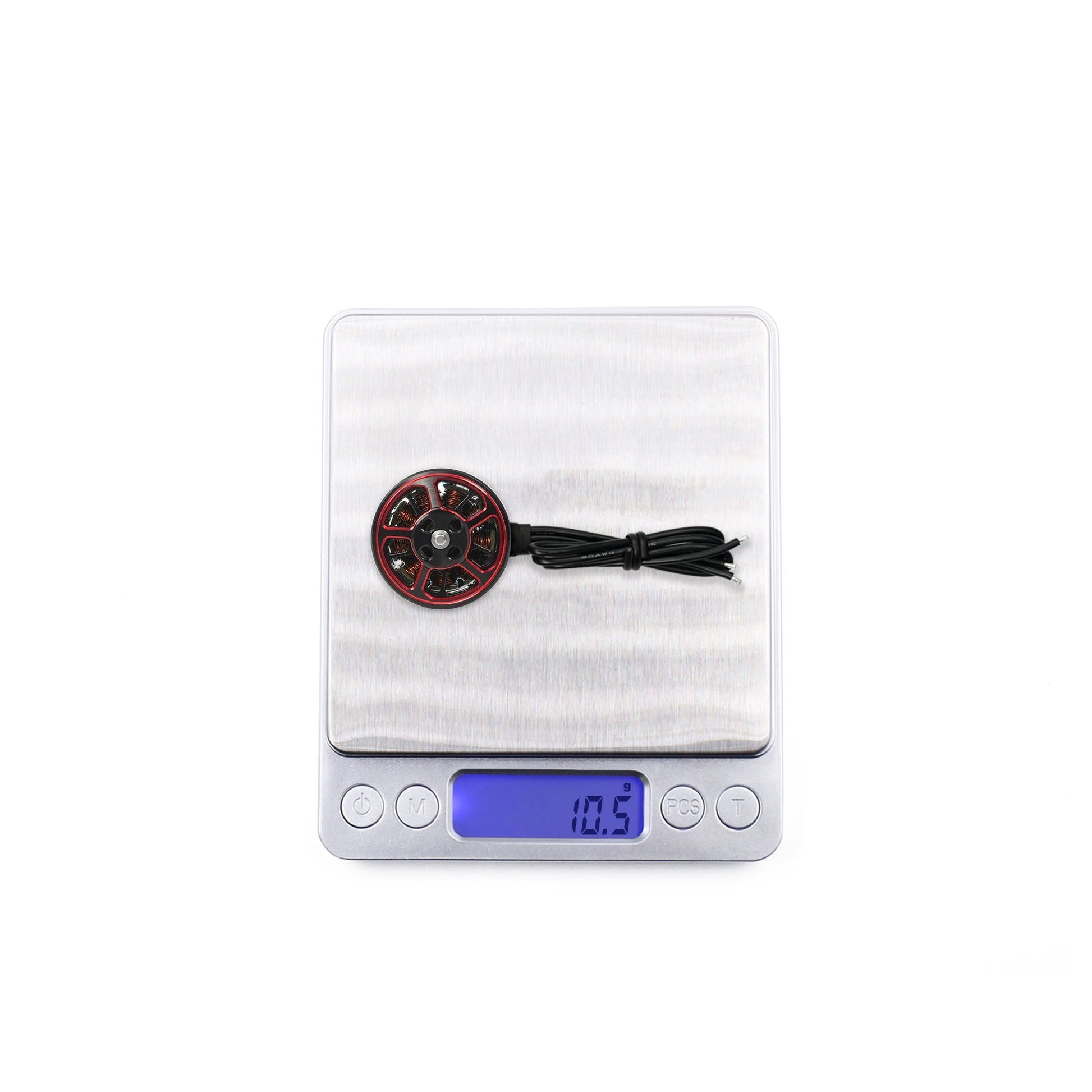

- Weight: 10.5 g (including wire)
- Suitable for: 2 to 3 inch lightweight models
