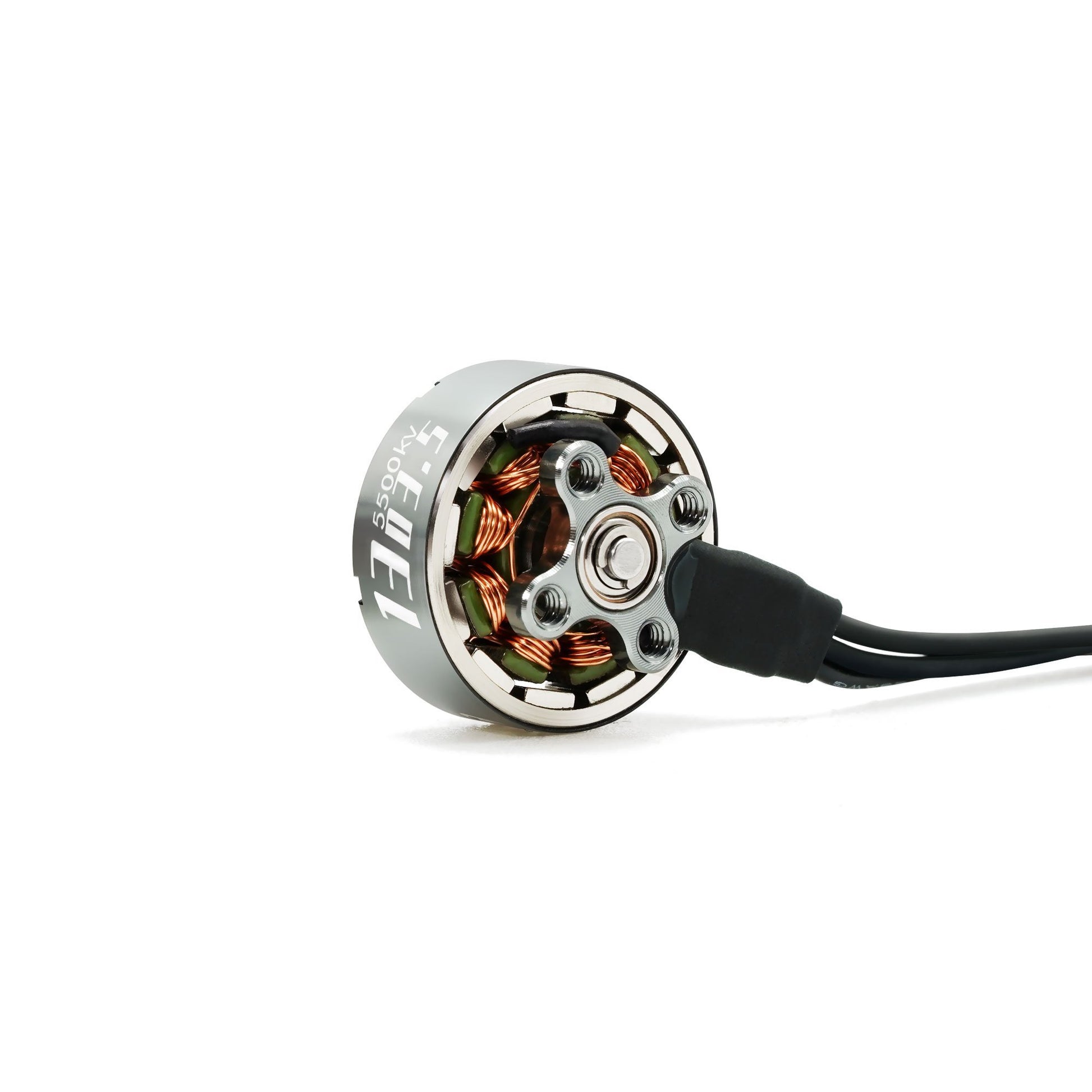

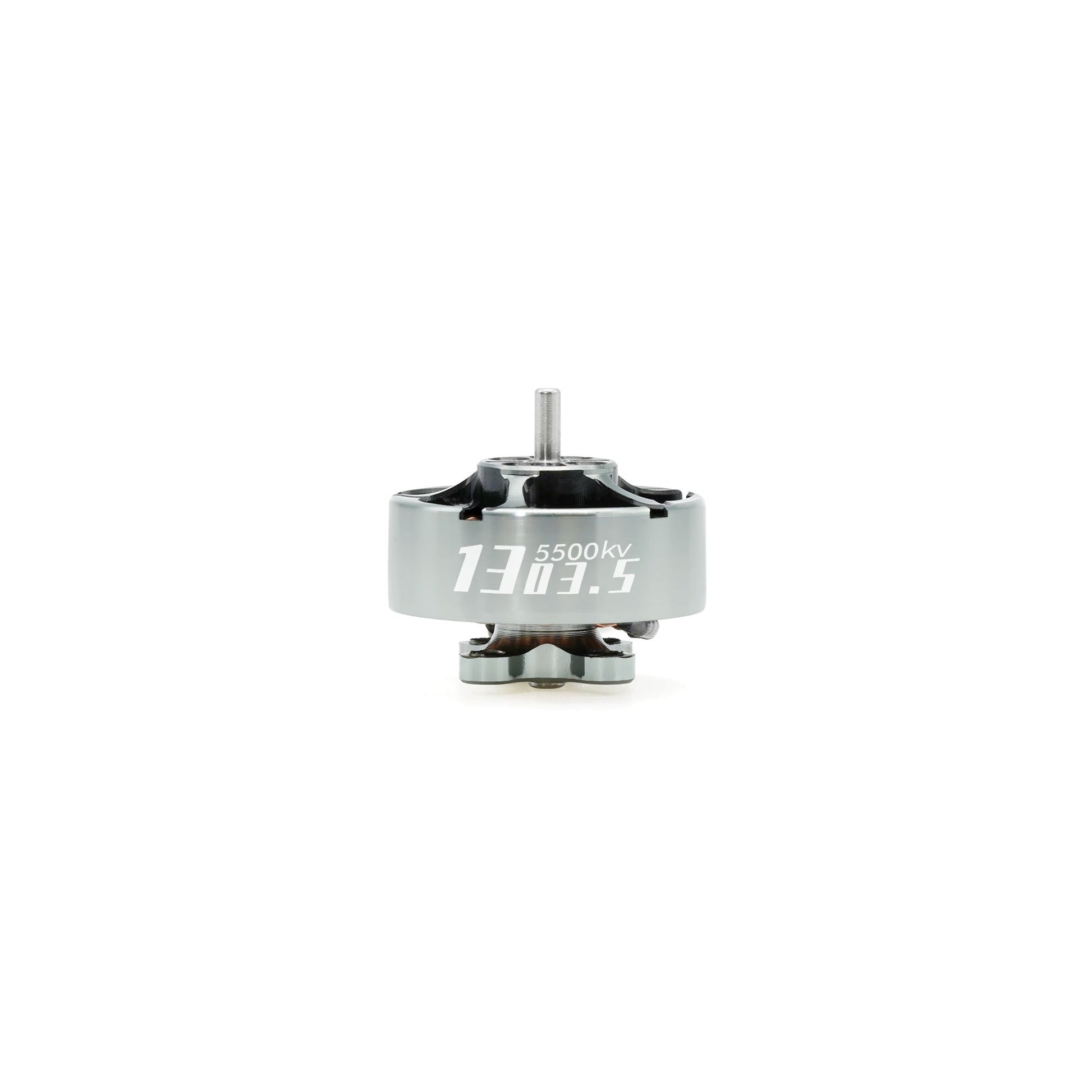

SPEEDX2 1303.5 (5500 KV)

The SPEEDX2 1303.5 motor is an innovative brushless motor weighing only 6.5g (including 90mm cable length). The SPEEDX2 1303.5 motor is made of high quality aircraft grade 7075-T aluminum material and brings increased strength to the rotor.

Function:
1. One-piece high-strength housing made of 7075 aircraft aluminum ensures durability and impact resistance.
2. Its compact size and lightweight design contribute to a lighter flight experience. It weighs only 6.5g with cable (including 90mm cable length), making it suitable for building 2 inch cinewhoop FPV drones.
3. Large hollow rotor design facilitates efficient heat dissipation and ensures stable motor operation.
4. Equipped with strong N52H magnets and low internal loss stator, the efficiency is greatly improved, resulting in increased durability.
5. 1.5mm shaft is compatible with conventional 2-2.5 inch propellers.

Specifications:

Model: SPEEDX2 1303.5-5500KV
Configuration: 9N12P
Magnet: N52H ARC
Stator diameter: 13mm
Stator height: 3.5 mm
Shaft diameter: 1.5 mm
Dimensions: 17.35mm x 11.7mm
Wires: 28#AWG 90mm
Rated voltage (LiPo): 2-4S
Maximum power: 128.8W
Maximum current: 8.7A
Recommended ESC: 35A
Mounting hole: 9mm x 9mm (M2)
Color: Titanium color
Weight: 6.5g (including 90mm wire length)
Suitable models: 2 inch drones with propeller covers or 2.5 inch freestyle drones
