Code: SKU:GP106112

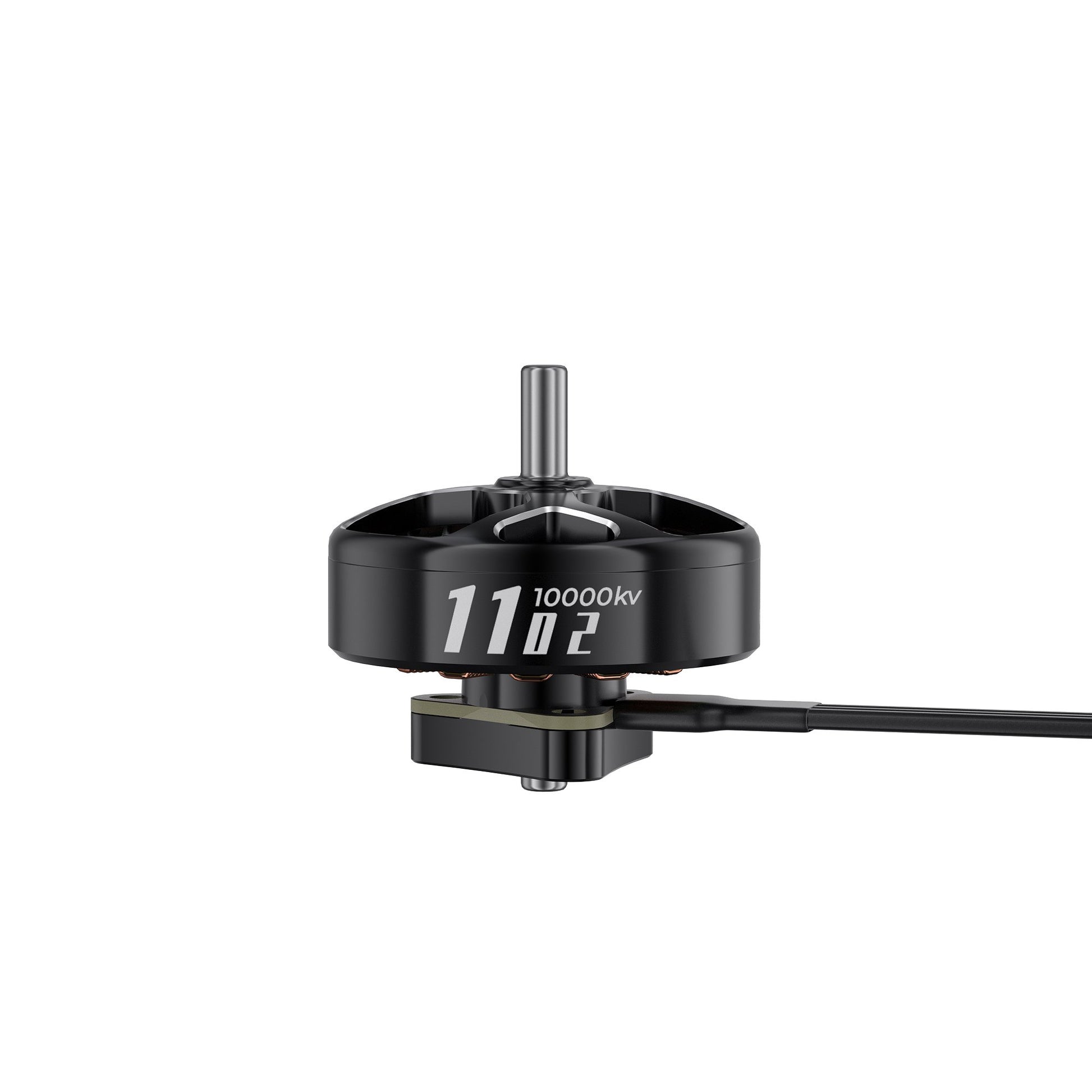

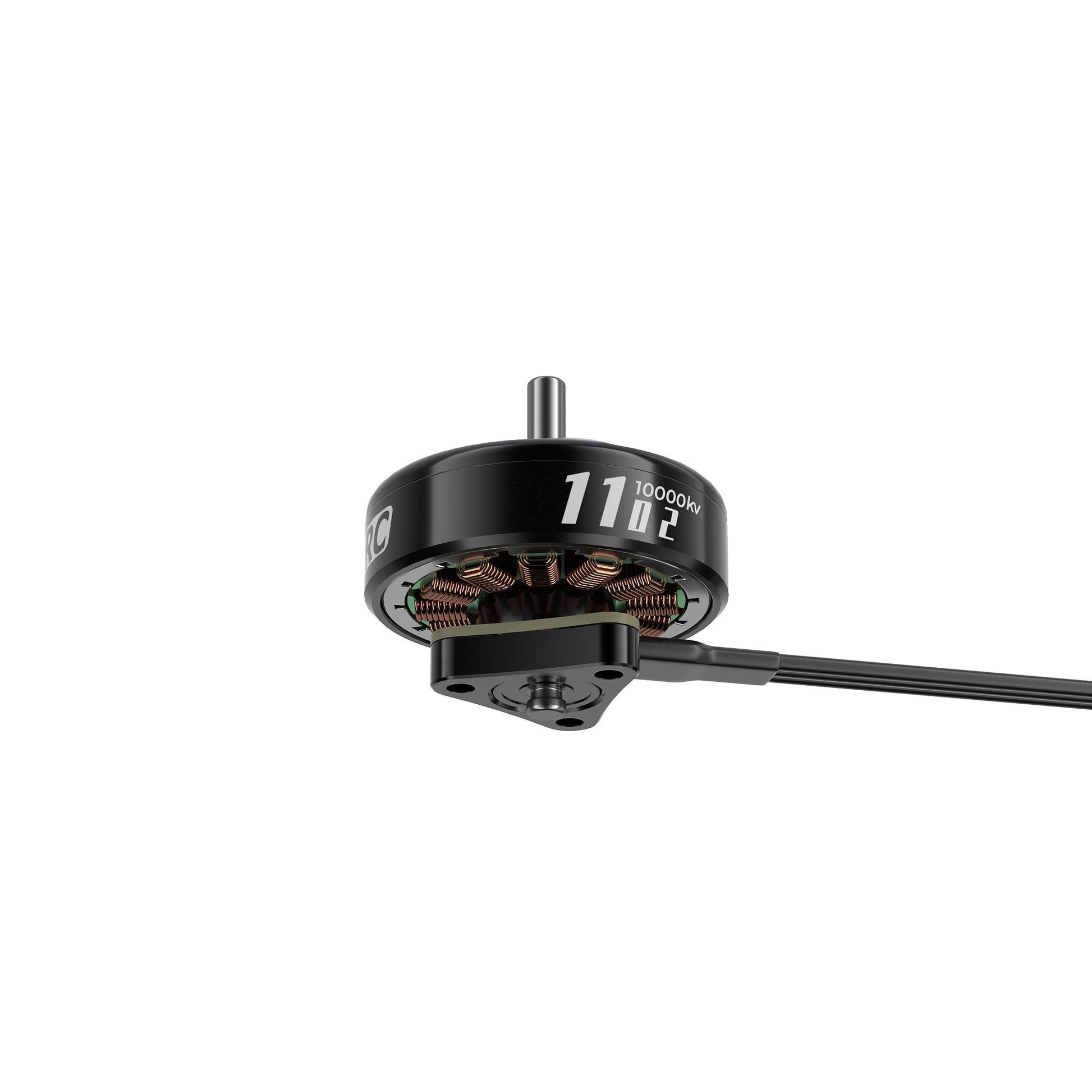

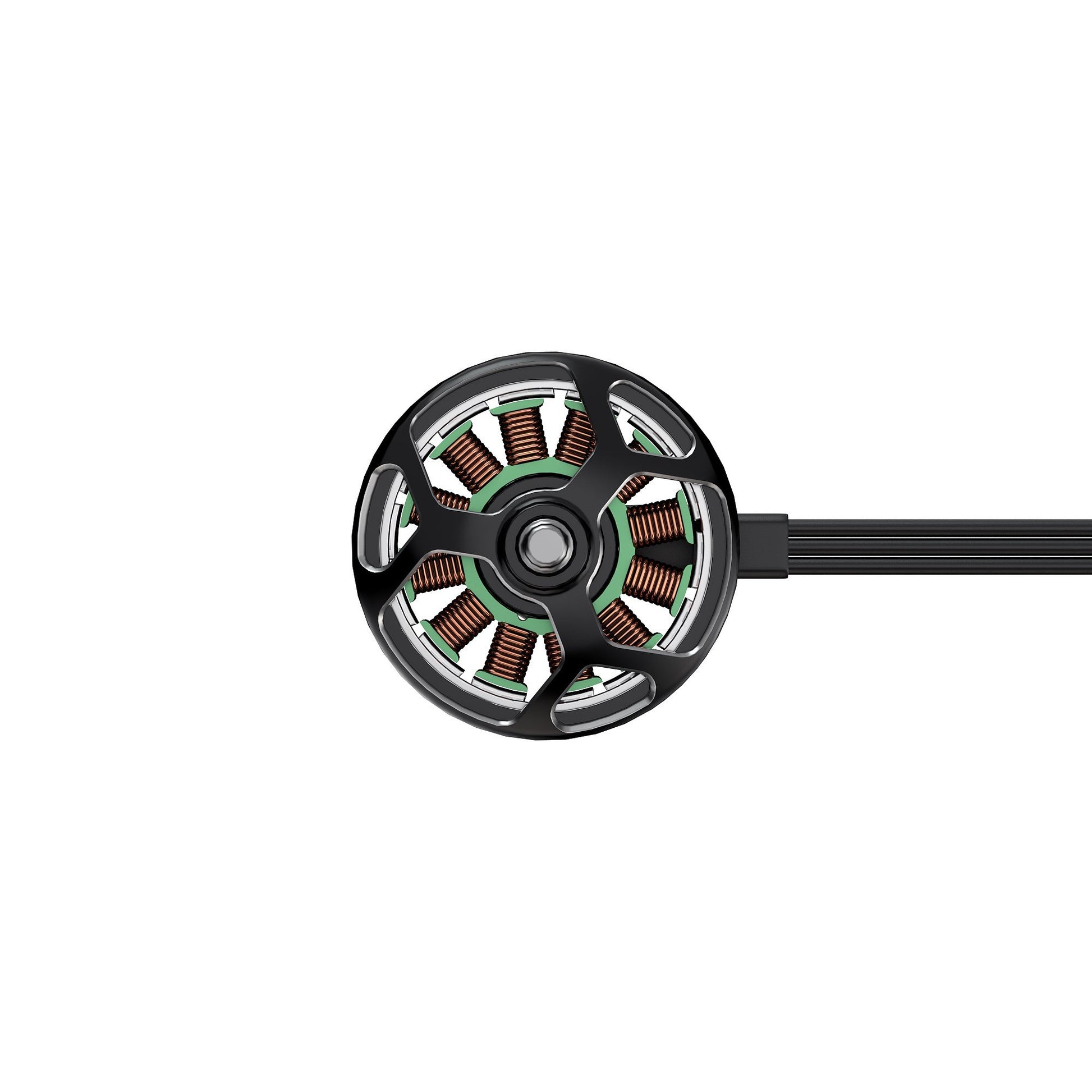

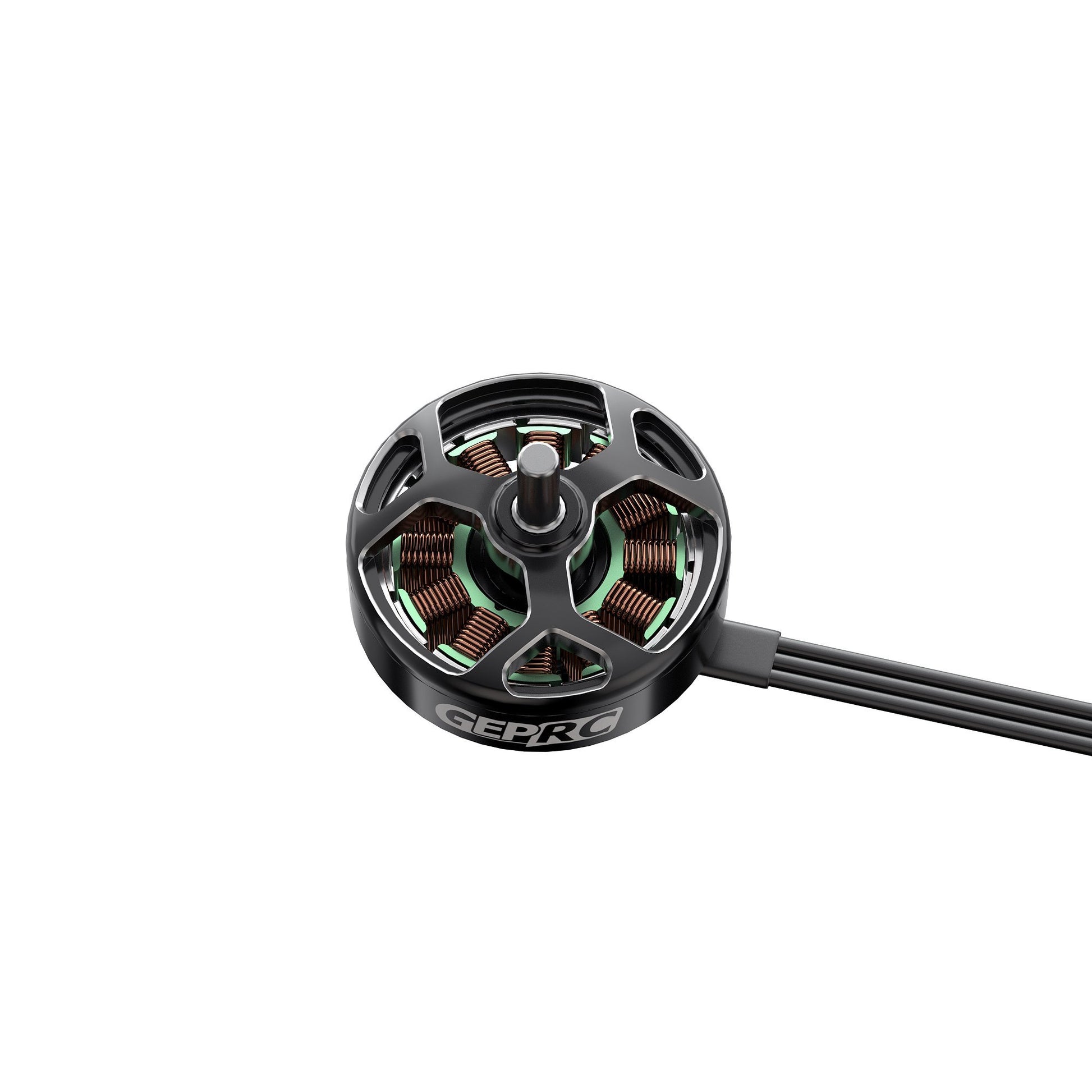

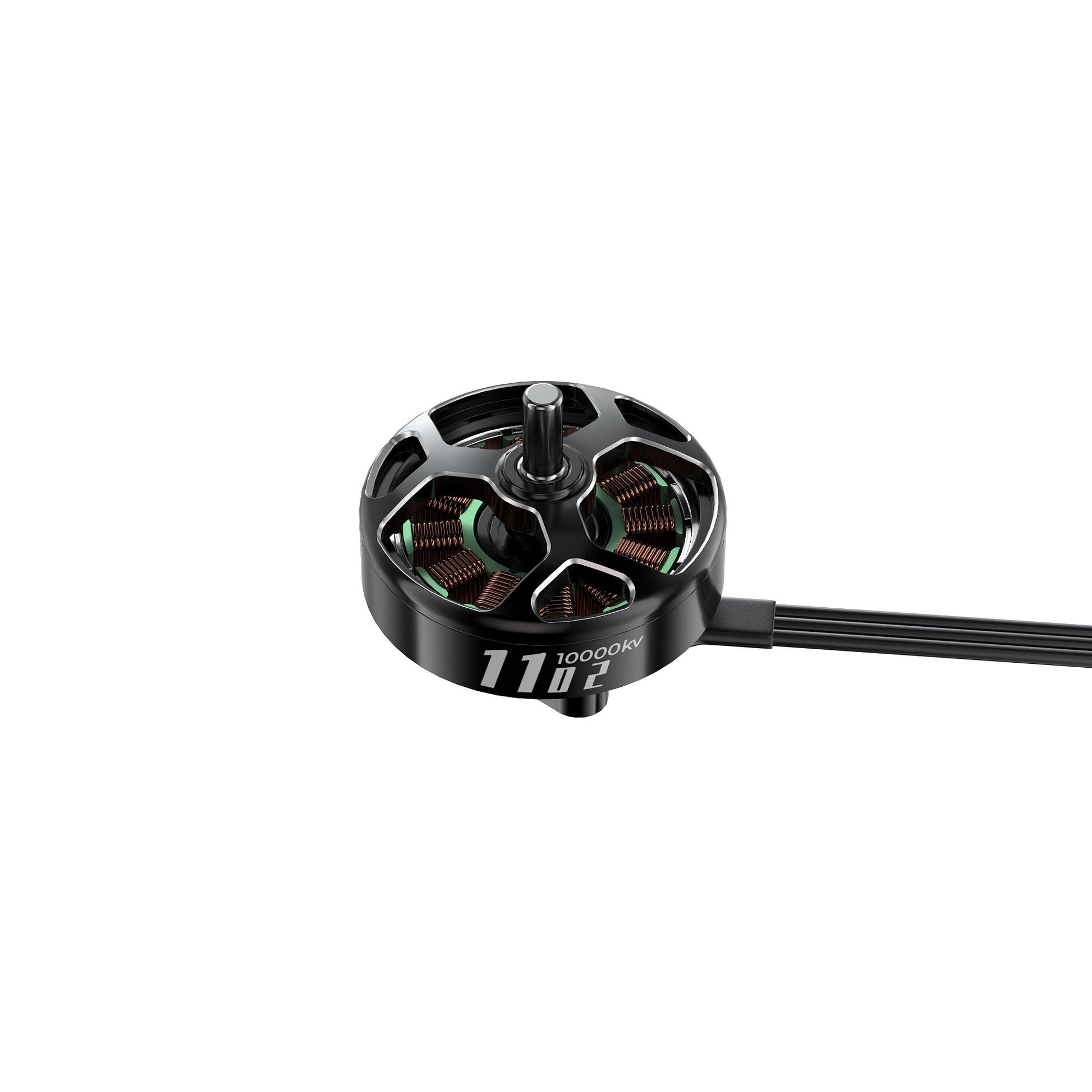

Motor GEPRC SPEEDX2 1102 10000KV
Motor GEPRC SPEEDX2 1102 10000KV
Brand: GEPRC
Regular price
€9,73
Regular price
€9,73
Sale price
€9,73
Unit price
/
per
In stock
We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion
Features:
- The appearance is matte black with shiny edges that are soft and beautiful.
- Using high quality bearings with high precision and durability.
- Base with three mounting holes, light construction.
- Suitable for lightweight 1.6 to 2 inch models.
Specifications:
- Model: SPEEDX2 1102 10000KV motor
- Maximum power: 59.6W
- Peak current: 7.45A
- Resistance between phases: 251mΩ
- Magnet: N52H
- Bearing type: NSK/NMB
- Configuration: 9N12P
- Dimensions: φ13.8mm x 12.7mm
- Shaft diameter: φ1.5mm
- Length of protruding shaft: 3.5 mm
- Mounting holes: 3-φ6.6 mm
- Wire: 35mm / 28AWG
- ESC: 12A
- Input voltage: 8.4V (2S LiPo)
- Winding: Multi-strand copper winding
- Weight: 2.83g (including wire)
- Suitable for: 1.6 to 2 inch lightweight models
Contains:
- 1 x SPEEDX2 1102 engine
- 6 x M1.4*3 Torx ball head screw
