    Code: GP102809

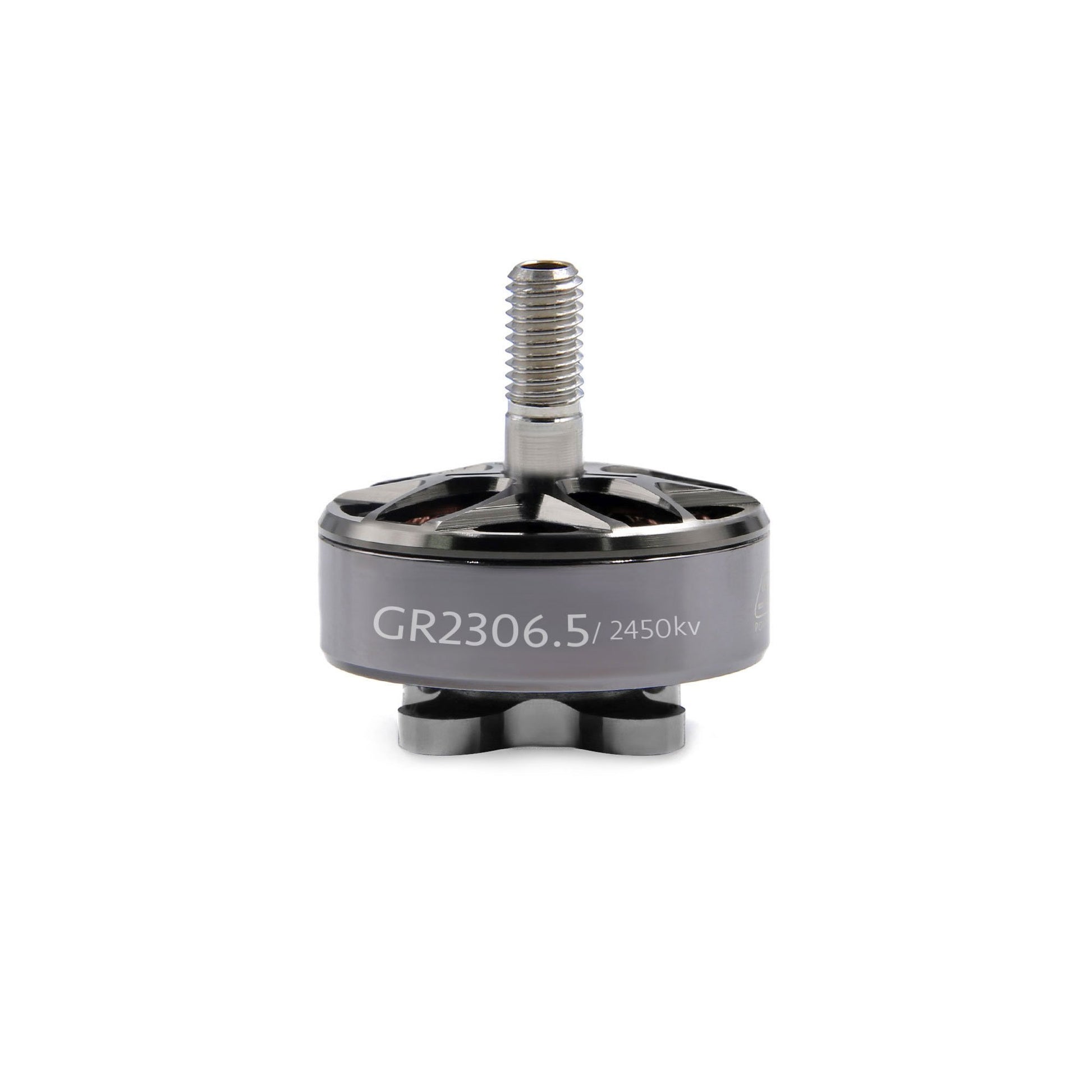

    Motor GEPRC GR2306.5 2450KV

    Motor GEPRC GR2306.5 2450KV

    Brand: GEPRC

    €17,69
    €17,69 €17,69
    -0% View Product
    In stock
    We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion
    GEP-GR2306.5 (2450 KV)

Specifications:
Item Name: GR2306.5 Motors
KV: 2450KV
Configuration: 12N14P
Stator diameter: 23 mm
Stator length: 6.5 mm
Shaft diameter: 4 mm (hollow)
Motor (dimension (diameter*lens)): Φ28.2*29.2mm
No load current(10)@10V(A): 1.95
cells (Lipo): 4-5S
Max. continuous (power (W) 15S): 1000
Internal resistance: 38mΩ
Maximum current (15S): 49A
Effective current: (3-7A)>85%
Rotor: Arc magnets N52H
Bearings: JAPAN ISC
Base case: Al 7075
Wire AWG: 20AWG
Weight (g): 31g (without wire)
